John Deere

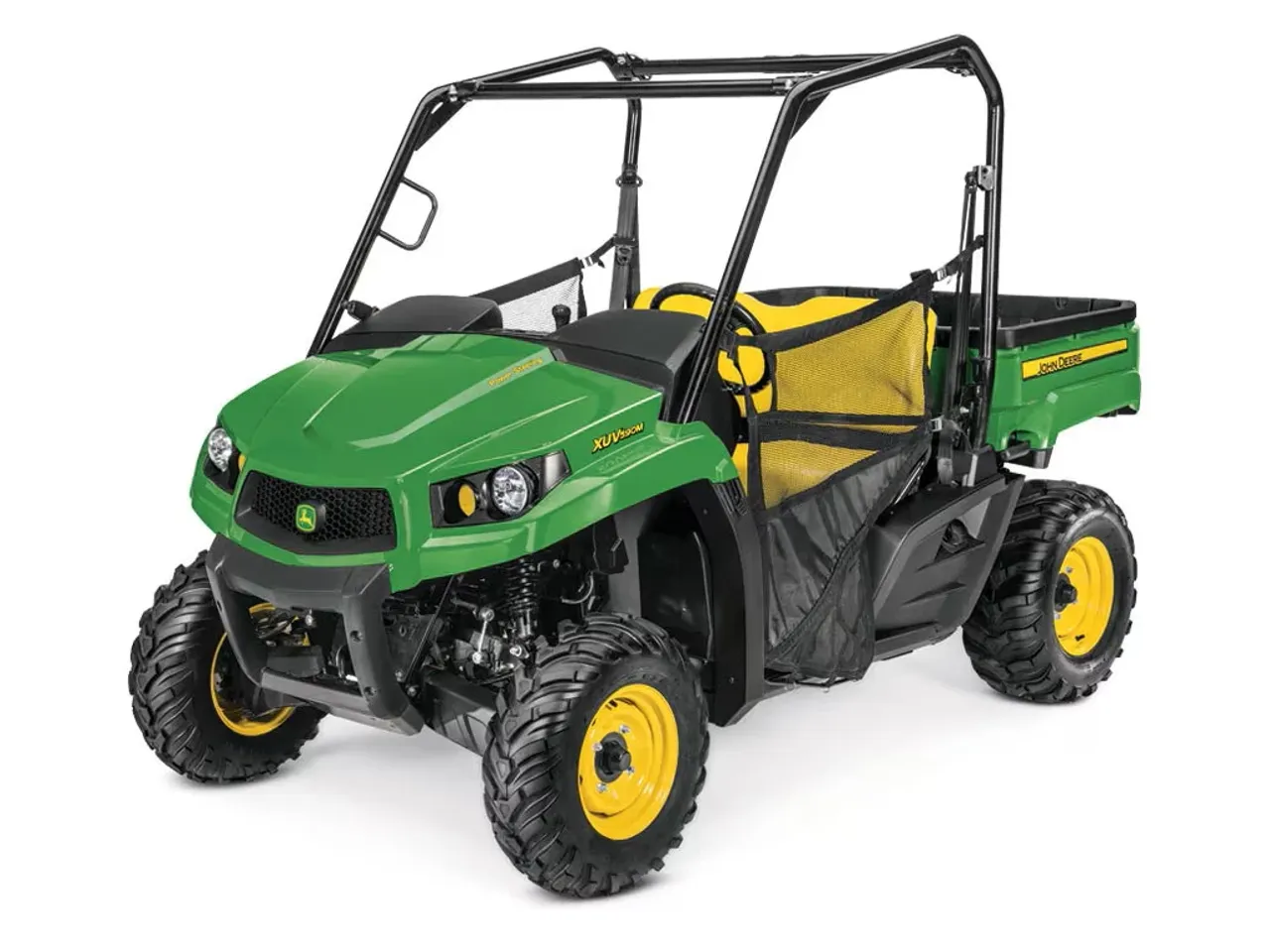

ModelXUV590M Crossover Utility Vehicle
Mid-Size Crossover UTVs
Explore the John Deere XUV590M Crossover Utility Vehicle with suspension, power steering, operator comfort, and balanced performance.
Model / part number: 592HM
Key specifications
- Engine Power (Metric)
- 23.8 kW
- Final Drive
- High, Low, Neutral, Reverse Transaxle
- Four Wheel Drive
- Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
- Front Suspension
- 25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Technical specifications
71 specifications
Key Specs16 details
- Engine Power (Metric)
- 23.8 kW
- Engine Power (Imperial)
- 32.0 hp
- Final Drive
- High, Low, Neutral, Reverse Transaxle
- Four Wheel Drive
- Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
- Front Suspension
- 25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
- Rear Suspension
- 25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
- Fuel Capacity (Metric)
- 28.0 L
- Fuel Capacity (Imperial)
- 7.4 U.S. gal.
- Cargo Box Dimensions (Metric)
- 820L x 1209W x 297D mm
- Cargo Box Dimensions (Imperial)
- 32.3L x 47.6W x 11.7D in.
- Cargo Box Volume (Metric)
- 250.0 L
- Cargo Box Volume (Imperial)
- 8.9 cu ft
- Cargo Box Capacity (Weight) (Metric)
- 181.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 400.0 lb.
- Towing Capacity (Metric)
- 499.0 kg
- Towing Capacity (Imperial)
- 1100.0 lb.
Engine5 details
- Engine Type
- 4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)
- Displacement
- 586.0 cc
- Engine Power (Metric)
- 23.8 kW
- Engine Power (Imperial)
- 32.0 hp
- Cooling System
- Liquid cooled
Drivetrain5 details
- Transmission
- Continuously Variable Transmission (CVT) with clutch enclosure
- Final Drive
- High, Low, Neutral, Reverse Transaxle
- Four Wheel Drive
- Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
- Traction Assist
- Positive locking, mechanically actuated (hand lever operated) rear differential lock
- Descent Control
- Not available
Suspension2 details
- Front Suspension
- 25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
- Rear Suspension
- 25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Brakes2 details
- Type
- 196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers
- Park Brake
- Automotive-style foot-actuated mechanical park brake system
Tires/Wheels2 details
- Front
- 25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
- Rear
- 25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Dimensions/Capacities29 details
- Wheelbase (Metric)
- 1860.0 mm
- Wheelbase (Imperial)
- 72.8 in.
- Weight (Metric)
- 650.0 kg
- Weight (Imperial)
- 1434.0 lb.
- Length (Metric)
- 2870.0 mm
- Length (Imperial)
- 113.0 in.
- Width (Metric)
- 1435.0 mm
- Width (Imperial)
- 56.5 in.
- Height (Metric)
- 1867.0 mm
- Height (Imperial)
- 73.5 in.
- Tread Centers Front (Metric)
- 1220.0 mm
- Tread Centers Front (Imperial)
- 48.0 in.
- Tread Centers Rear (Metric)
- 1168.0 mm
- Tread Centers Rear (Imperial)
- 46.0 in.
- Ground Clearance (Metric)
- 267.0 mm
- Ground Clearance (Imperial)
- 10.5 in.
- Fuel Capacity (Metric)
- 28.0 L
- Fuel Capacity (Imperial)
- 7.4 U.S. gal.
- Cargo Box Dimensions (Metric)
- 820L x 1209W x 297D mm
- Cargo Box Dimensions (Imperial)
- 32.3L x 47.6W x 11.7D in.
- Cargo Box Volume (Metric)
- 250.0 L
- Cargo Box Volume (Imperial)
- 8.9 cu ft
- Cargo Box Capacity (Weight) (Metric)
- 181.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 400.0 lb.
- Payload Capacity (Metric)
- 363.0 kg
- Payload Capacity (Imperial)
- 800.0 lb.
- Towing Capacity (Metric)
- 499.0 kg
- Towing Capacity (Imperial)
- 1100.0 lb.
- Hitch
- Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops
Features9 details
- Color
- Green/Yellow
- Power Steering
- Available
- Battery (Metric)
- 340.0 CCA
- Battery (Other)
- 12.0 V
- Alternator
- 65.0 amp
- Power Port DC Outlet
- 12.0 V
- Instrumentation
- Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor
- Storage
- 2 cupholders, sealed underhood storage, glovebox
- Seating
- Bench seat
Additional Information1 detail
- Country Of Manufacture
- U.S.
