John Deere

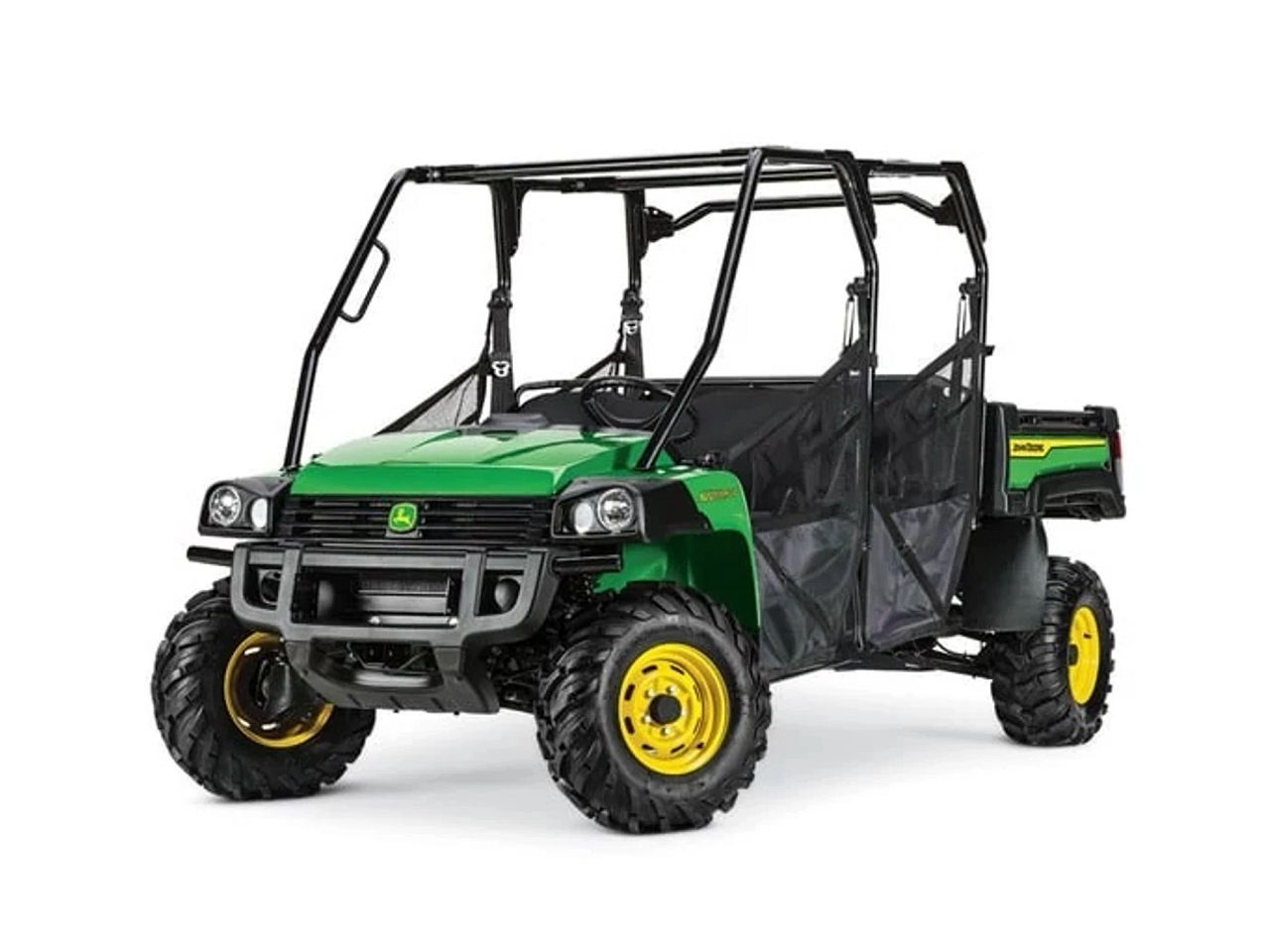

XUV855M S4 Crossover Utility Vehicle
Full-Size Crossover UTVs
Explore the John Deere XUV855M S4 Crossover Utility Vehicle with four-passenger seating, diesel power, cargo versatility, and utility vehicle features.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 57FJM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs16 specifications
- Engine Power (Metric)
- 17.0 kW
- Engine Power (Imperial)
- 22.8 hp
- Final Drive
- Park, high, low, neutral, reverse transaxle
- Four Wheel Drive
- Dash switch actuated four-wheel drive system
- Front Suspension
- Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
- Rear Suspension
- Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
- Fuel Capacity (Metric)
- 27.6 L
- Fuel Capacity (Imperial)
- 7.3 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Volume (Metric)
- 460.0 L
- Cargo Box Volume (Imperial)
- 16.4 cu ft
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Towing Capacity (Metric)
- 680.0 kg
- Towing Capacity (Imperial)
- 1500.0 lb.
Engine6 specifications
- Engine Type
- 4-cycle diesel
- Displacement (Imperial)
- 52.1 cu in.
- Displacement (Metric)
- 854.0 cc
- Engine Power (Metric)
- 17.0 kW
- Engine Power (Imperial)
- 22.8 hp
- Cooling System
- Liquid
Drivetrain5 specifications
- Transmission
- Continuously Variable Transmission (CVT) with clutch enclosure
- Final Drive
- Park, high, low, neutral, reverse transaxle
- Four Wheel Drive
- Dash switch actuated four-wheel drive system
- Traction Assist
- Limited slip front differential; Positive locking, switch actuated rear differential lock
- Descent Control
- Yes
Suspension2 specifications
- Front Suspension
- Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
- Rear Suspension
- Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Brakes2 specifications
- Type
- Front/rear hydraulic disc with twin piston front calipers
- Park Brake
- Park in-transmission; Optional factory-installed secondary foot operated with hand release
Tires/Wheels2 specifications
- Front
- 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels
- Rear
- 27x11-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels
Dimensions/Capacities27 specifications
- Wheelbase (Metric)
- 2908.0 mm
- Wheelbase (Imperial)
- 114.5 in.
- Weight (Metric)
- 952.0 kg
- Weight (Imperial)
- 2098.0 lb.
- Length (Metric)
- 3911.0 mm
- Length (Imperial)
- 154.0 in.
- Width (Metric)
- 1589.0 mm
- Width (Imperial)
- 62.6 in.
- Height (Metric)
- 1903.0 mm
- Height (Imperial)
- 74.9 in.
- Tread Centers (Metric)
- 1304.0 mm
- Tread Centers (Imperial)
- 51.3 in.
- Ground Clearance (Metric)
- 279.0 mm
- Ground Clearance (Imperial)
- 11.0 in.
- Fuel Capacity (Metric)
- 27.6 L
- Fuel Capacity (Imperial)
- 7.3 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 305 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Volume (Metric)
- 460.0 L
- Cargo Box Volume (Imperial)
- 16.4 cu ft
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Payload Capacity (Metric)
- 591.0 kg
- Payload Capacity (Imperial)
- 1302.0 lb.
- Towing Capacity (Metric)
- 680.0 kg
- Towing Capacity (Imperial)
- 1500.0 lb.
- Hitch
- Standard receiver: 2 in. (5.1 cm)
Features9 specifications
- Color
- Green and yellow, TrueTimber® KANATI® camo, olive and black
- Power Steering
- Yes
- Battery (Metric)
- 480.0 CCA
- Battery (Other)
- 12.0 V
- Alternator
- 55.0 amp
- Power Port DC Outlet
- 12.0 V
- Instrumentation
- Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
- Storage
- Total: 11.9 gal. (45.1 L); Front console tray with two cup holders: 0.2 gal. (0.9 L); Rear console tray with two cup holders: 0.3 gal. (1.0 L); Glove box: 2.0 gal. (7.6 L); Under rear seat: 7.9 gal. (29.8 L); Under hood: 1.5 gal. (5.8 L)
- Seating
- Black vinyl front and rear bench (four-passenger)
Additional Information2 specifications
- Country Of Manufacture
- U.S.
- Date Collected
- 2025-06-11T11:11:00
