John Deere

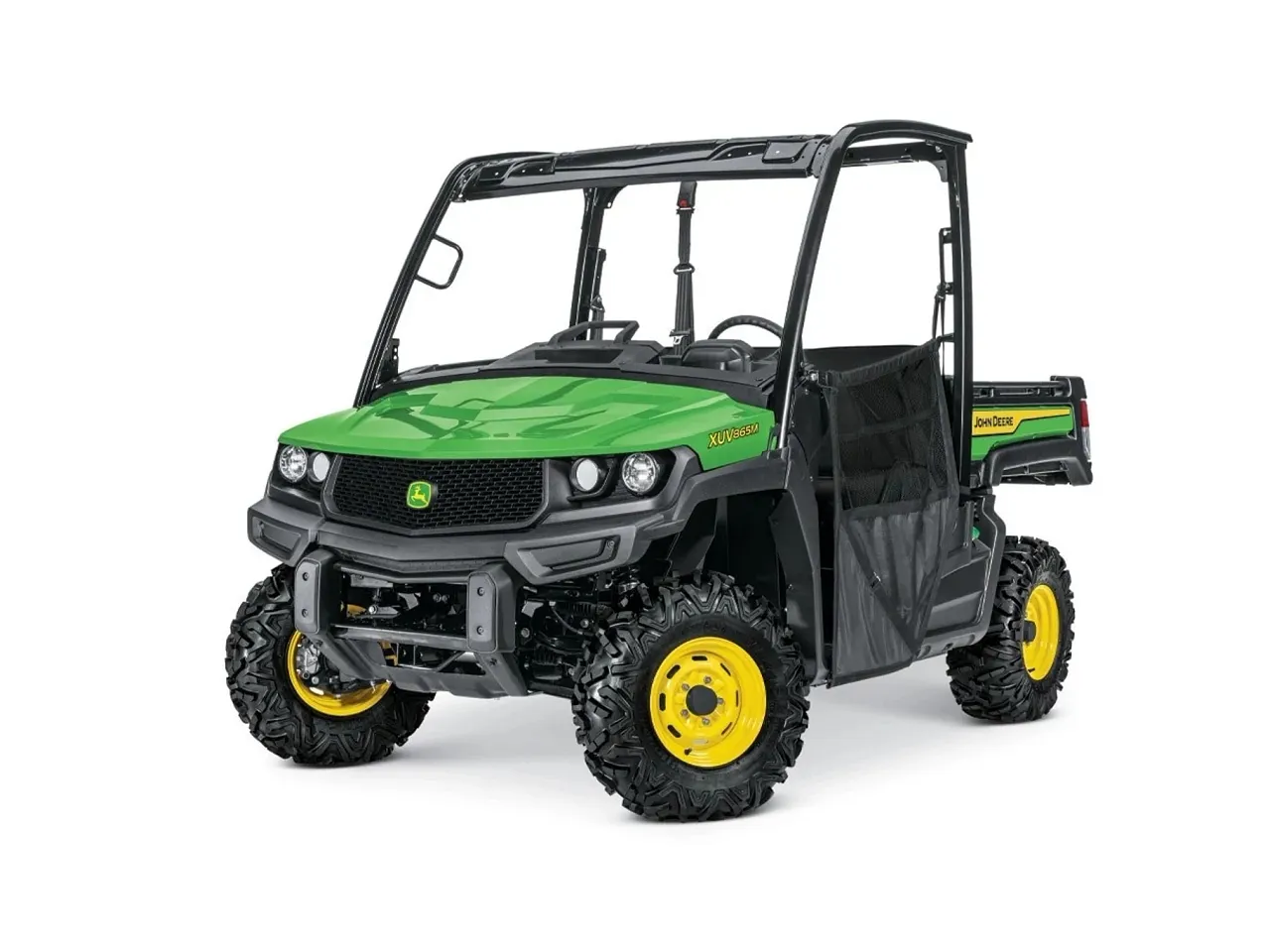

GATOR™ XUV865M (Model Year 2024) Crossover Utility Vehicle
Full-Size Crossover UTVs
Explore the John Deere XUV865M Crossover Utility Vehicle with a three-person cockpit, power steering, diesel engine system, and utility-focused features.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 576YM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Engine Power (Metric)
- 17.0 kW
- Engine Power (Imperial)
- 22.8 hp
- Final Drive
- Two speed, oil bath
- Four Wheel Drive
- On-demand true four-wheel drive system
- Front Suspension
- 25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
- Rear Suspension
- 25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
- Fuel Capacity (Metric)
- 42.4 L
- Fuel Capacity (Imperial)
- 11.2 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 304.8 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Towing Capacity (Metric)
- 907.0 kg
- Towing Capacity (Imperial)
- 2000.0 lb.
Engine5 specifications
- Engine Type
- 4-cycle gas, Electronic Fuel Injection (EFI)
- Displacement
- 854.0 cc
- Engine Power (Metric)
- 17.0 kW
- Engine Power (Imperial)
- 22.8 hp
- Cooling System
- Liquid
Drivetrain5 specifications
- Transmission
- Continuously Variable Transmission (CVT) with clutch enclosure
- Final Drive
- Two speed, oil bath
- Four Wheel Drive
- On-demand true four-wheel drive system
- Traction Assist
- Positive locking, mechanically actuated (hand-operated)
- Descent Control
- Yes
Suspension2 specifications
- Front Suspension
- 25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
- Rear Suspension
- 25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Brakes2 specifications
- Type
- Front/rear hydraulic disc with twin piston front calipers
- Park Brake
- Driveline, internal wet multi-disc, foot operated (hand release)
Tires/Wheels2 specifications
- Front
- 25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
- Rear
- 25x11-12 Terrahawk AT, 27x11-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims)
Dimensions/Capacities27 specifications
- Wheelbase (Metric)
- 2146.0 mm
- Wheelbase (Imperial)
- 84.5 in.
- Weight (Metric)
- 839.0 kg
- Weight (Imperial)
- 1845.0 lb.
- Length (Metric)
- 3228.0 mm
- Length (Imperial)
- 127.0 in.
- Width (Metric)
- 1618.0 mm
- Width (Imperial)
- 63.7 in.
- Height (Metric)
- 1981.0 mm
- Height (Imperial)
- 78.0 in.
- Tread Centers Front (Metric)
- 1341.0 mm
- Tread Centers Front (Imperial)
- 52.8 in.
- Tread Centers Rear (Metric)
- 1259.0 mm
- Tread Centers Rear (Imperial)
- 49.6 in.
- Ground Clearance (Metric)
- 284.0 mm
- Ground Clearance (Imperial)
- 11.2 in.
- Fuel Capacity (Metric)
- 42.4 L
- Fuel Capacity (Imperial)
- 11.2 U.S. gal.
- Cargo Box Dimensions (Metric)
- 1143 x 304.8 x 1320 mm
- Cargo Box Dimensions (Imperial)
- 45 x 12 x 52 in.
- Cargo Box Capacity (Weight) (Metric)
- 454.0 kg
- Cargo Box Capacity (Weight) (Imperial)
- 1000.0 lb.
- Payload Capacity (Metric)
- 680.0 kg
- Payload Capacity (Imperial)
- 1500.0 lb.
- Towing Capacity (Metric)
- 907.0 kg
- Towing Capacity (Imperial)
- 2000.0 lb.
- Hitch
- Standard 2-in. receiver
Features9 specifications
- Color
- Green/Yellow
- Power Steering
- No on E Trim; Yes on M and R Trim
- Battery
- 480.0 CCA
- Alternator
- 55.0 amp
- Power Port
- 660.0 Watt
- Instrumentation
- Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, EPAS indicator)
- Storage
- 4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit
- Seating
- Bench (Available Bucket Seats on E and M Trim)
- Headlights
- Halogen - Single Beam (LED Dual Beam on R Trim)
Additional Information1 specifications
- Country Of Manufacture
- U.S.
