John Deere

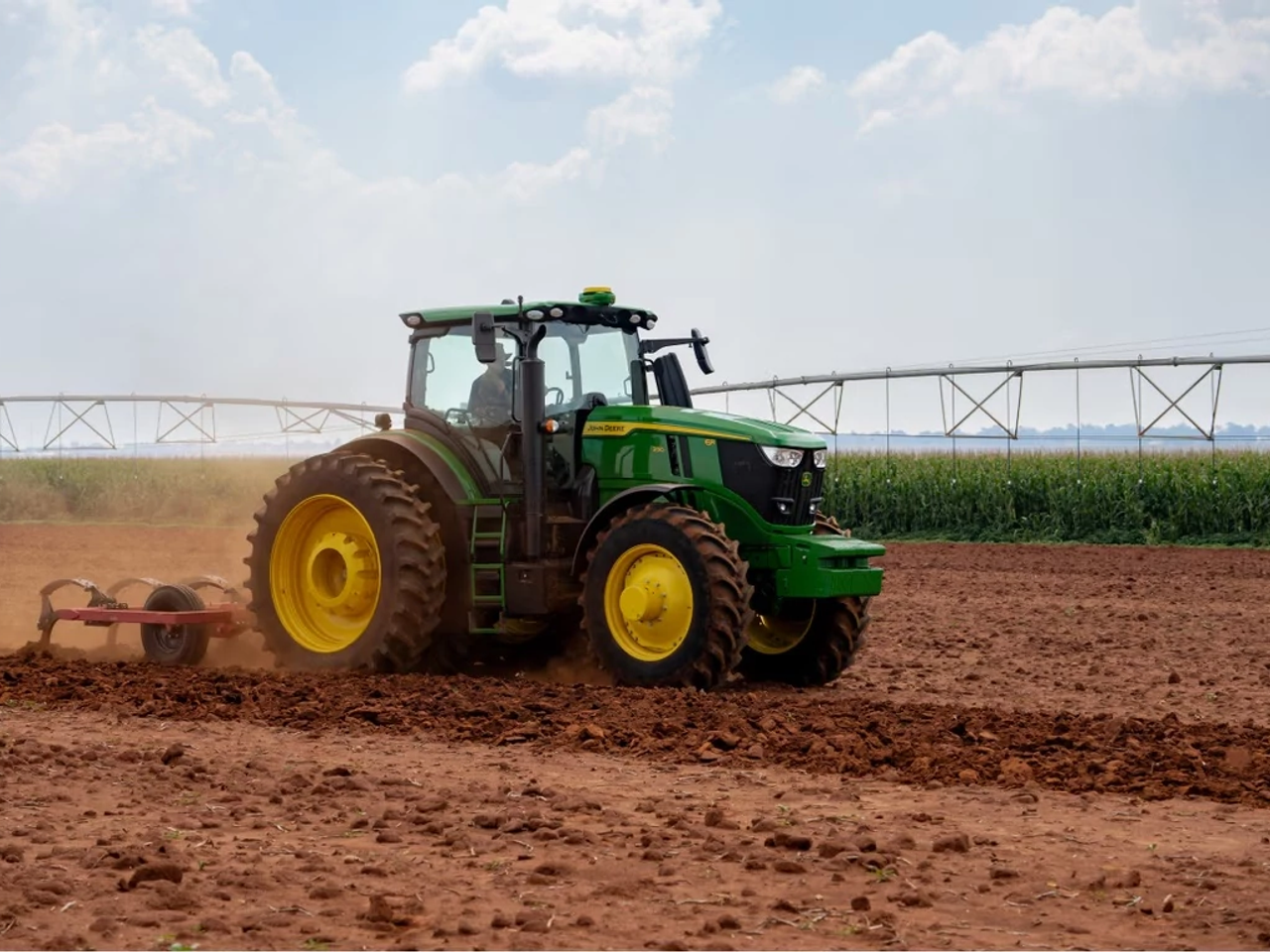

Model6R 230 Tractors
Utility Tractors
Explore the John Deere 6R 230 tractor with IVT transmission, PowerTech engine technology, and configurable hydraulic options.
Model / part number: 08Q4L
Key specifications
- Engine Make
- John Deere Power Systems
- Engine Model
- PowerTech™ PSS
- Displacement (Imperial)
- 418 cu in.
- Displacement (Other)
- 6.8 L
Technical specifications
122 specifications
Key Specs15 details
- Engine Make
- John Deere Power Systems
- Engine Model
- PowerTech™ PSS
- Displacement (Imperial)
- 418 cu in.
- Displacement (Other)
- 6.8 L
- Rated Engine Power (Imperial)
- 227 hp
- Rated Engine Power (Metric)
- 169 kW
- Rated Engine Power (Other)
- 230 PS
- Maximum Engine Power (Imperial)
- 250 hp
- Maximum Engine Power (Metric)
- 186 kW
- Maximum Engine Power (Other)
- 253 PS
- Transmission Type
- AutoPowr 0.03 - 40 km/h
- Rear Hitch Category (SAE Designation)
- Category 3N/3, Hook end type hitch arms
- Pump Rated Output
- 195 l/min
- Base Machine Weight (Imperial)
- 21716 lb.
- Base Machine Weight (Metric)
- 9300 kg
Engine29 details
- Engine Make
- John Deere Power Systems
- Engine Model
- PowerTech™ PSS
- Displacement (Imperial)
- 418 cu in.
- Displacement (Other)
- 6.8 L
- Number of Cylinders
- 6
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power (Imperial)
- 227 hp
- Rated Engine Power (Metric)
- 169 kW
- Rated Engine Power (Other)
- 230 PS
- Rated Engine Power with IPM (Imperial)
- 266 hp
- Rated Engine Power with IPM (Metric)
- 199 kW
- Rated Engine Power with IPM (Other)
- 270 PS
- Engine Torque at Rated Speed
- 1074 Nm
- Maximum Engine Speed
- 1900 rpm
- Maximum Engine Power (Imperial)
- 250 hp
- Maximum Engine Power (Metric)
- 186 kW
- Maximum Engine Power (Other)
- 253 PS
- Maximum Engine Power with IPM (Imperial)
- 277 hp
- Maximum Engine Power with IPM (Metric)
- 206 kW
- Maximum Engine Power with IPM (Other)
- 281 PS
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628)
- 186 kW
- Maximum Engine Torque
- 1077 Nm at 1600 rpm
- Constant Power Range
- 1,500 - 2,100 rpm
- Power Bulge
- 10 %
- Bore and Stroke
- 4.2 x 5.0 in.
- Compression Ratio
- 16.7:1
- Cooling System Type
- Distributed cooling system with temperature controlled electric fan drive and dedicated fan for charge air cooling
- Air Cleaner Type
- External A-Post Filter with pre-cleaning
- Torque Rise
- 40 %
Transmission1 detail
- Transmission Type
- AutoPowr 0.03 - 40 km/h
Rear Power Take-Off (PTO)9 details
- Rated PTO Power (Imperial)
- 184 hp
- Rated PTO Power (Metric)
- 137 kW
- Rated PTO Power (Other)
- 186 PS
- Rated PTO Power with IPM (Imperial)
- 219 hp
- Rated PTO Power with IPM (Other)
- 222 PS
- Engine rpm at Rated PTO Speeds (540/1.000)
- 1950/1721/1950
- Engine rpm at Rated PTO Speeds (540/540 E/1.000)
- 1950/1721/1950
- Engine rpm at Rated PTO Speeds (540 E/1000/1.000 E)
- 1618/2012/1659
- PTO Clutch
- Wet Clutch
Front PTO4 details
- PTO Speed
- 1000
- Engine rpm (at Rated PTO Speeds)
- 1965 rpm
- Maximum PTO Power (Imperial)
- 154 hp
- Maximum PTO Power (Other)
- 156 PS
Front Hitch3 details
- Lift Capacity Through Full Lift Range at Coupling Points (Metric)
- 3300 kg
- Maximum Lift Capacity at Coupling Points (Imperial)
- 11023 lb.
- Maximum Lift Capacity at Coupling Points (Metric)
- 5000 kg
Rear Hitch5 details
- Rear Hitch Category (SAE Designation)
- Category 3N/3, Hook end type hitch arms
- Maximum Lift Capacity Directly at Coupling Points
- 10400 kg / 21820 lb
- Lift Capacity Through Full Lift Range Directly at Coupling Points
- 7280 kg / 15,430 lb
- Maximum Lift Capacity at 610 mm Behind Hitch Point
- 10400 kg
- Lift Capacity Through Full Lift Range at 610 mm Behind Hitch Point
- 14,770 lb
Drawbar2 details
- Drawbar Category
- Cat III with 31 mm pin
- Maximum Vertical Load
- 3000 kg
Hydraulics5 details
- Pump Rated Output
- 195 l/min
- Maximum Operating Pressure (Imperial)
- 2973 psi
- Maximum Operating Pressure (Metric)
- 205 bar
- Number of Rear Selective Control Valves (SCVs)
- 1/2/3/4/5/6 Hydraulic Selective Control Valves, Rear
- Number of Mid Selective Control Valves (SCVs)
- 3
Front Axle2 details
- Front Axle Type
- 4WD Front axle Unsuspended or TLS Plus w/Brakes
- Front Axle Differential Lock
- Self Locking Differential or 100% Differential Lock
Rear Axle2 details
- Rear Axle Type
- Flange axle or Rack & Pinion axle
- Rear Differential Lock
- Electro hydraulic with oil cooled clutch
Steering & Brakes2 details
- Primary Brakes
- Oil-cooled, self equalizing, self adjusting, hydraulically actuated
- Secondary Brake
- Hydraulically actuated, integrated into primary brake
Tires2 details
- Front Tires Size
- 420/85R34
- Rear Tires Size
- 480/80R50
Electrical System5 details
- Battery Voltage
- 12 V
- Electrical System Voltage
- 12 V
- Battery Cold Cranking Amps
- 1800 CCA
- Battery Capacity
- 174 Ah
- Alternator Capacity
- 250 Amps/14.5 Volt
Operator Station9 details
- ROPS Type
- Climate Controlled w/RH Console/CommandARM - LH and RH steps
- Db(A) Rating
- 71 dBA
- Degree of Seat Swivel, Left Hand
- 7 degree (angle)
- Degree of Seat Swivel, Right Hand
- 15 degree (angle)
- Primary Display
- Intregrated Dashboard Display
- Inner Cab Volume (Imperial)
- 102.4 cu ft
- Inner Cab Volume (Metric)
- 3.3 m³
- Cab Glass Area (Imperial)
- 63.5 sq ft
- Cab Glass Area (Metric)
- 6.1 m²
Technology Integration3 details
- Guidance
- Base
- Connectivity
- Base
- ISOBUS Ready
- Base
Capacities10 details
- Fuel Tank Capacity (Imperial)
- gal.
- Fuel Tank Capacity (Metric)
- 410 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 6.6 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 25.0 L
- Cooling System Capacity (Imperial)
- 9 gal.
- Cooling System Capacity (Metric)
- 34 L
- Transmission Hydraulic System (Imperial)
- 51.5 gal.
- Transmission Hydraulic System (Metric)
- 195 L
- Crankcase Oil Volume (Imperial)
- 6.2 gal.
- Crankcase Oil Volume (Metric)
- 24 L
Dimensions & Weights13 details
- Wheelbase (Imperial)
- 114.0 in.
- Wheelbase (Metric)
- 2900 mm
- Base Machine Weight (Imperial)
- 21716 lb.
- Base Machine Weight (Metric)
- 9300 kg
- Overall Height (Imperial)
- 129.3 in.
- Overall Height (Metric)
- 3250 mm
- Transport Height
- 145.4 in.
- Overall Width (Metric)
- 1892 mm
- Overall Length (Imperial)
- 204.3 in.
- Overall Length (Metric)
- 5190 mm
- Ground Clearance
- 500 mm
- Maximum Permissible Weight (Imperial)
- 33069 lb.
- Maximum Permissible Weight (Metric)
- 15000 kg
Additional Information1 detail
- Country of Manufacture
- Germany
