John Deere

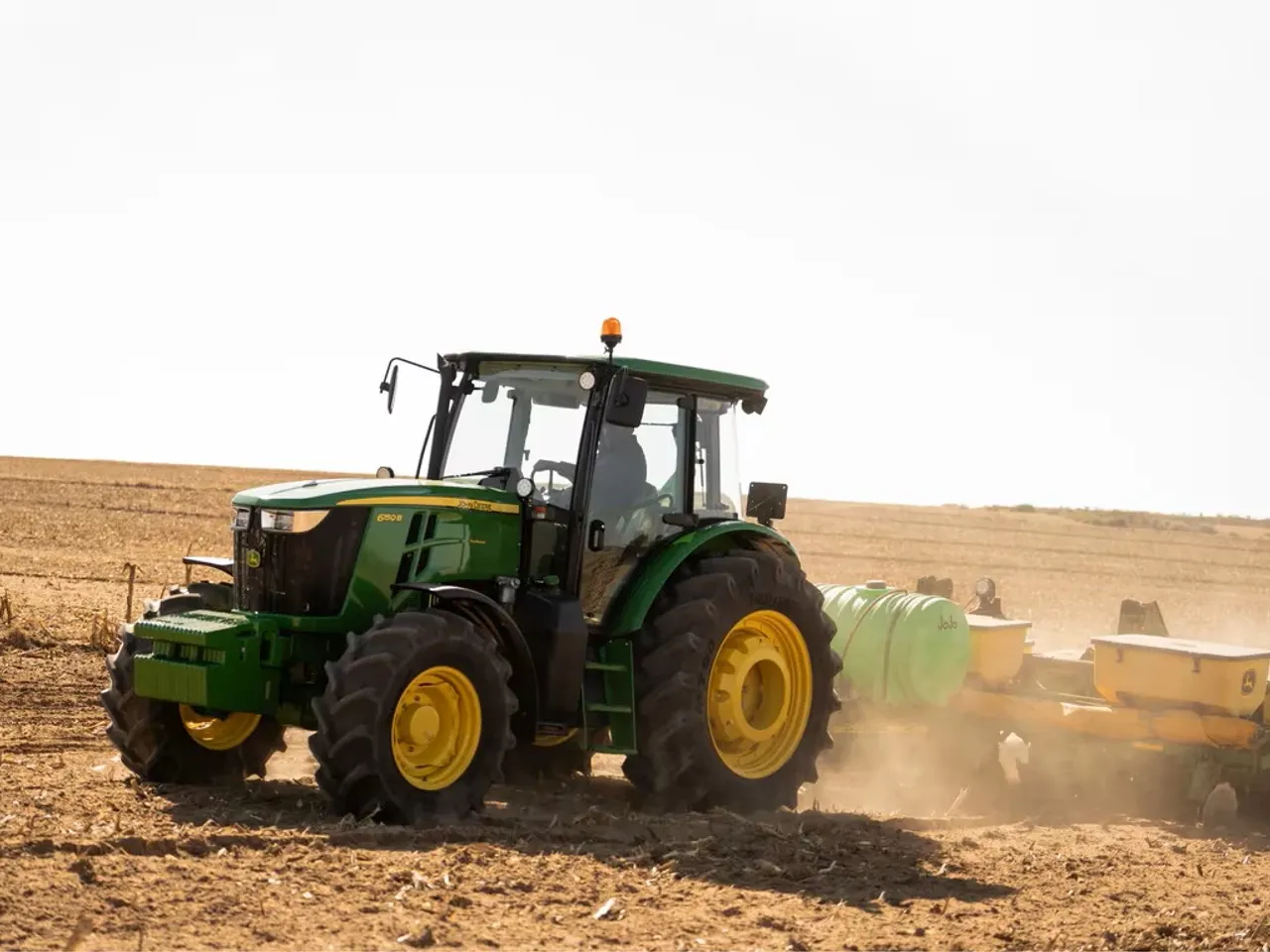

6150B Tractor
Utility Tractors
The John Deere 6150B tractor delivers powerful performance, efficient transmission, and versatility, helping operators tackle heavy-duty agricultural tasks with maximum productivity and reliability.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 018BYR
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs11 specifications
- Engine Make
- John Deere
- Engine Family
- John Deere PTE with High-Pressure Common Rail
- Displacement
- 6.8 L
- Rated Engine Power (Imperial)
- 150 hp
- Rated Engine Power (Metric)
- 110 kW
- Maximum Engine Power (Imperial)
- 156 hp
- Maximum Engine Power (Metric)
- 115 kW
- Transmission Type
- 12X4 WC TSS 40K / 12X12 WC TSS 30K PR with 6x6 Creeper / 24X12 WC TSS 40K HLPR
- Rear Hitch Category (SAE Designation)
- Category 3N
- Pump Rated Output
- 60 L/min 76 L/min
- Base Machine Weight
- 4910 kg
Engine15 specifications
- Engine Make
- John Deere
- Engine Family
- John Deere PTE with High-Pressure Common Rail
- Emissions Certifications
- Stage IIIa
- Displacement
- 6.8 L
- Aspiration
- Turbocharged / Intercooled
- Number of Cylinders
- 6
- Rated Engine Speed
- 2200 rpm
- Rated Engine Power (Imperial)
- 150 hp
- Rated Engine Power (Metric)
- 110 kW
- Maximum Engine Power (Imperial)
- 156 hp
- Maximum Engine Power (Metric)
- 115 kW
- Maximum Engine Torque
- 370 Nm
- Cooling System Type
- Circulating Water Cooling
- Air Cleaner Type
- Dry-type
- Torque Rise
- 40 %
Transmission4 specifications
- Transmission Type
- 12X4 WC TSS 40K / 12X12 WC TSS 30K PR with 6x6 Creeper / 24X12 WC TSS 40K HLPR
- Creeper
- Option
- Reverser
- Option
- Clutch
- Wet
Rear Power Take-Off (PTO)3 specifications
- Engine rpm at Rated PTO Speeds (540/1.000)
- 2085/2065
- PTO Clutch
- EH
- Number of Splines
- 6-Spline 540 rpm / 21-Spline 1.000 rpm (Reversible Stub Shaft)
Rear Hitch4 specifications
- Rear Hitch Category (SAE Designation)
- Category 3N
- Maximum Lift Capacity Directly at Coupling Points
- 5300
- Maximum Lift Capacity at 610 mm Behind Hitch Point
- 3250
- Sensing Type
- Mechanical
Drawbar2 specifications
- Drawbar Category
- Category II
- Maximum Vertical Load
- 1900 kg
Hydraulics5 specifications
- Hydraulic System Type
- Open-Center with optional Pressure Compensated Flow Control
- Pump Rated Output
- 60 L/min 76 L/min
- Number of Rear Selective Control Valves (SCVs)
- 3
- Available Flow at a Single Rear SCV
- 60 L/min 76 L/min
- SCV Control
- Mechanical
Front Axle2 specifications
- Front Axle Type
- Flange
- Front Axle Differential Lock
- w/Limited Slip
Rear Axle4 specifications
- Rear Axle Type
- Flange
- Rear Differential Lock
- Mechanical
- Differential Controls
- Mechanical
- Final Drive
- Planet
Steering & Brakes4 specifications
- Steering Type
- Tiltable & Telescopic Steering Column
- Primary Brakes
- Wet/Mechanical
- Secondary Brake
- Mechanical
- Park Brake
- Mechanical
Tires3 specifications
- Front Tires Size
- 420/70 R24
- Rear Tires Size
- 520/70 R38
- Wheel Tread Range
- 1713-2017
Electrical System5 specifications
- Battery Cold Cranking Amps
- 960 CCA
- Battery Capacity
- 135AH
- Alternator Capacity
- 12 V 90A
- Working Lights
- LED/Halogen
- Driving Lights
- LED
Operator Station9 specifications
- ROPS Type
- No
- Gearshift Location
- Floor
- Db(A) Rating
- 89 dBA
- Cab Suspension
- Mechanical
- Instructional Seat
- No
- Primary Display
- No
- Radio
- No
- Inner Cab Volume
- 2.4 m³
- Cab Glass Area
- 5.2 m²
Technology Integration1 specifications
- Connectivity
- JDLink™ M modem
Capacities3 specifications
- Fuel Tank Capacity
- 250 L
- Transmission Hydraulic System
- 15 L
- Crankcase Oil Volume
- 22.4 L
Dimensions & Weights9 specifications
- Wheelbase
- 2677 mm
- Base Machine Weight
- 4910 kg
- Overall Height
- 2765 mm
- Overall Width
- 2300 mm
- Overall Length
- 4970 mm
- Front Axle Ground Clearance
- 494 mm
- Drawbar Ground Clearance
- 405 mm
- Maximum Ballast Level
- 800 kg
- Maximum Permissible Weight
- 8000 kg
Additional Information1 specifications
- Country of Manufacture
- China
