John Deere

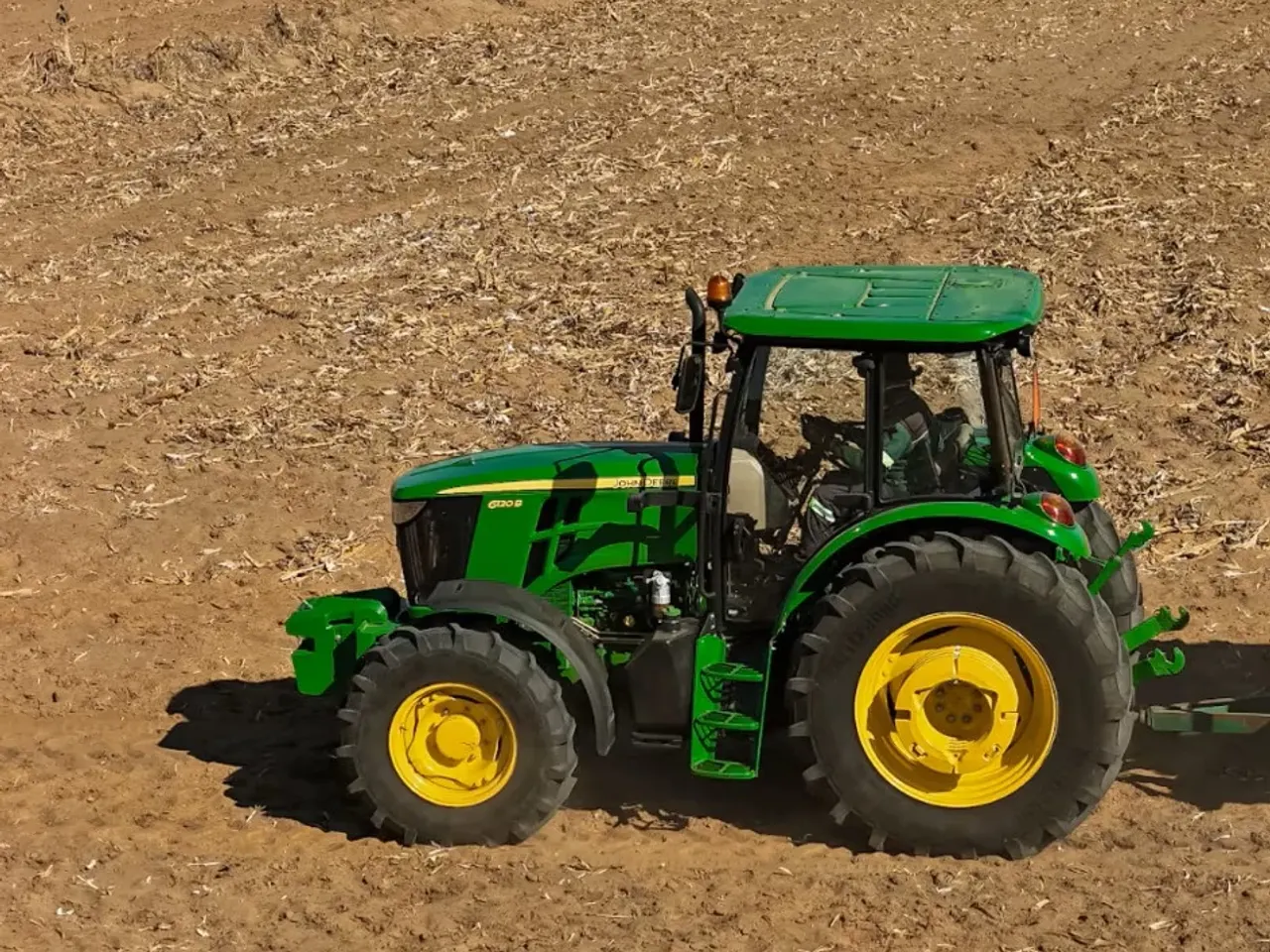

6120B Tractor
Utility Tractors
The John Deere 6120B tractor delivers powerful performance, efficient transmission, and versatility, helping farmers improve productivity and handle diverse agricultural tasks with ease.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 0173YR
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs11 specifications
- Engine Make
- John Deere
- Engine Family
- John Deere PTE with High-Pressure Common Rail
- Displacement
- 4.5 L
- Rated Engine Power (Imperial)
- 120 hp
- Rated Engine Power (Metric)
- 88 kW
- Maximum Engine Power (Imperial)
- 124 hp
- Maximum Engine Power (Metric)
- 91 kW
- Transmission Type
- 12X4DC TSS 30K / 12X12 WC TSS 30K PR with 6x6 Creeper / 24X12 WC TSS 40K HLPR
- Rear Hitch Category (SAE Designation)
- Category II
- Pump Rated Output
- 60 L/min 76 L/min
- Base Machine Weight
- 4170 kg
Engine15 specifications
- Engine Make
- John Deere
- Engine Family
- John Deere PTE with High-Pressure Common Rail
- Emissions Certifications
- Stage IIIa
- Displacement
- 4.5 L
- Aspiration
- Turbocharged / Intercooled
- Number of Cylinders
- 4
- Rated Engine Speed
- 2200 rpm
- Rated Engine Power (Imperial)
- 120 hp
- Rated Engine Power (Metric)
- 88 kW
- Maximum Engine Power (Imperial)
- 124 hp
- Maximum Engine Power (Metric)
- 91 kW
- Maximum Engine Torque
- 370 Nm
- Cooling System Type
- Circulating Water Cooling
- Air Cleaner Type
- Dry-type
- Torque Rise
- 29 %
Transmission4 specifications
- Transmission Type
- 12X4DC TSS 30K / 12X12 WC TSS 30K PR with 6x6 Creeper / 24X12 WC TSS 40K HLPR
- Creeper
- Option
- Reverser
- Option
- Clutch
- Wet/Dry
Rear Power Take-Off (PTO)3 specifications
- Engine rpm at Rated PTO Speeds (540/1.000)
- 2085/2065
- PTO Clutch
- Mechanical/EH
- Number of Splines
- 6-Spline 540 rpm / 21-Spline 1.000 rpm (Reversible Stub Shaft)
Rear Hitch4 specifications
- Rear Hitch Category (SAE Designation)
- Category II
- Maximum Lift Capacity Directly at Coupling Points
- 5300
- Maximum Lift Capacity at 610 mm Behind Hitch Point
- 3250
- Sensing Type
- Mechanical
Drawbar2 specifications
- Drawbar Category
- Category II
- Maximum Vertical Load
- 1900 kg
Hydraulics5 specifications
- Hydraulic System Type
- Open-Center with optional Pressure Compensated Flow Control
- Pump Rated Output
- 60 L/min 76 L/min
- Number of Rear Selective Control Valves (SCVs)
- 2 or 3
- Available Flow at a Single Rear SCV
- 60 L/min 76 L/min
- SCV Control
- Mechanical
Front Axle2 specifications
- Front Axle Type
- Flange
- Front Axle Differential Lock
- w/Limited Slip
Rear Axle4 specifications
- Rear Axle Type
- Flange
- Rear Differential Lock
- Mechanical
- Differential Controls
- Mechanical
- Final Drive
- Planet
Steering & Brakes4 specifications
- Steering Type
- Tiltable & Telescopic Steering Column / Fixed Steering Column
- Primary Brakes
- Wet/Mechanical
- Secondary Brake
- Mechanical
- Park Brake
- Mechanical
Tires3 specifications
- Front Tires Size
- 380/85 R24 Option: 14.9-24 for JD ASIA
- Rear Tires Size
- 420/85 R38 Option: 18.4-38 for JD ASIA
- Wheel Tread Range
- 1620-2020
Electrical System5 specifications
- Battery Cold Cranking Amps
- 960 CCA
- Battery Capacity
- 135AH
- Alternator Capacity
- 12 V 90A
- Working Lights
- LED/Halogen
- Driving Lights
- LED
Operator Station9 specifications
- ROPS Type
- No
- Gearshift Location
- Floor
- Db(A) Rating
- 89 dBA
- Cab Suspension
- Mechanical
- Instructional Seat
- No
- Primary Display
- No
- Radio
- No
- Inner Cab Volume
- 2.4 m³
- Cab Glass Area
- 5.2 m²
Technology Integration1 specifications
- Connectivity
- JDLink™ M modem
Capacities3 specifications
- Fuel Tank Capacity
- 220 L
- Transmission Hydraulic System
- 15 L
- Crankcase Oil Volume
- 15 L
Dimensions & Weights9 specifications
- Wheelbase
- 2560 mm
- Base Machine Weight
- 4170 kg
- Overall Height
- 2965 mm
- Overall Width
- 2300 mm
- Overall Length
- 4835 mm
- Front Axle Ground Clearance
- 469 mm
- Drawbar Ground Clearance
- 380 mm
- Maximum Ballast Level
- 800 kg
- Maximum Permissible Weight
- 7750 kg
Additional Information1 specifications
- Country of Manufacture
- China
