John Deere

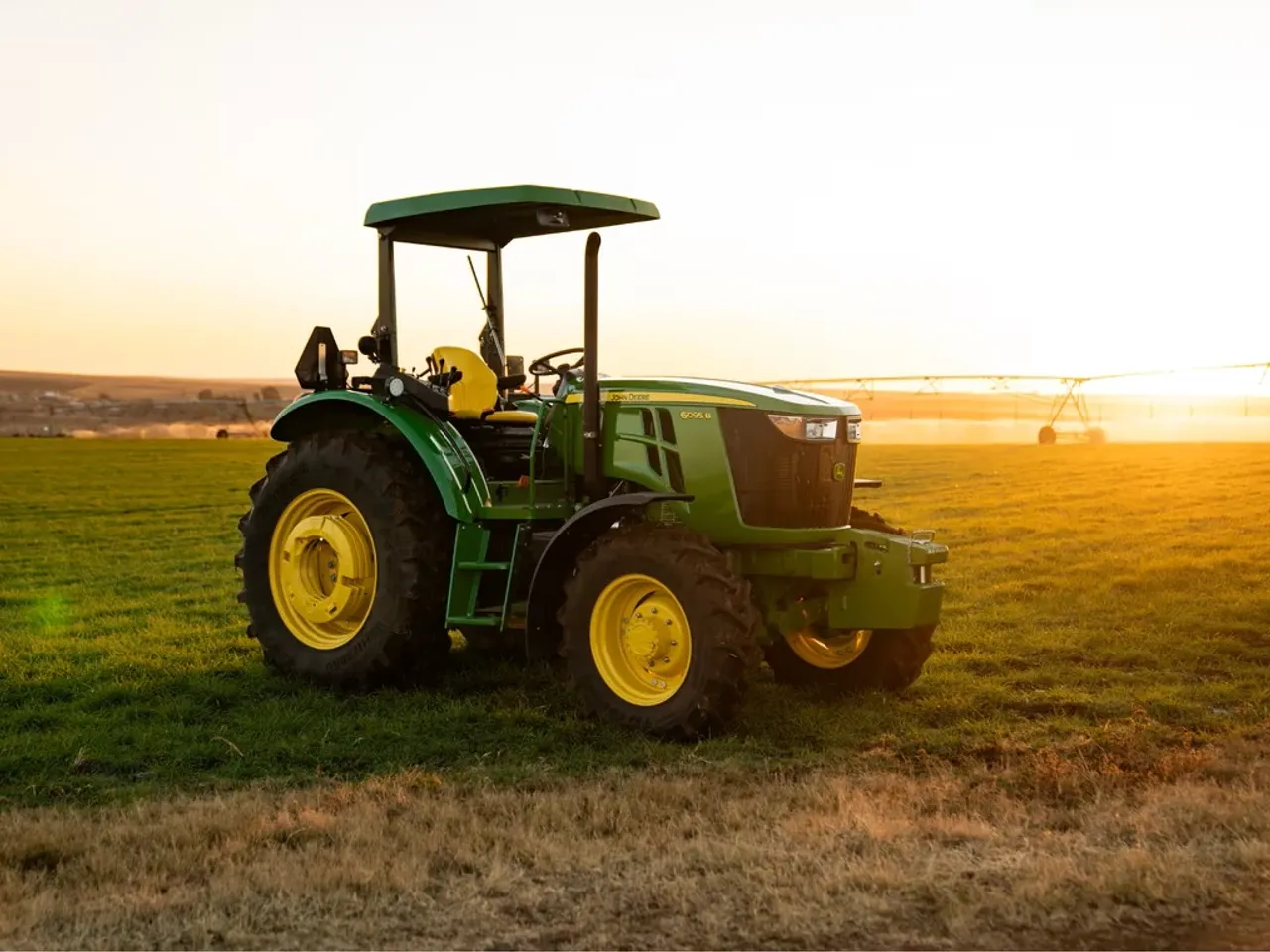

Model6095B Tractor
Utility Tractors
Reliable performance and versatility with the John Deere 6095B tractor. Designed for efficient operation, strong power, and comfort across demanding agricultural tasks.
Model / part number: 0422YR
Key specifications
- Engine Make
- John Deere
- Engine Family
- John Deere PTM
- Displacement
- 4.5 L
- Rated Engine Power (Imperial)
- 95 hp
Technical specifications
85 specifications
Key Specs11 details
- Engine Make
- John Deere
- Engine Family
- John Deere PTM
- Displacement
- 4.5 L
- Rated Engine Power (Imperial)
- 95 hp
- Rated Engine Power (Metric)
- 70 kW
- Maximum Engine Power (Imperial)
- 96 hp
- Maximum Engine Power (Metric)
- 71 kW
- Transmission Type
- 12X4 WC TSS 40K / 12X12 WC TSS 30K PR with 6x6 Creeper / 24X12 WC TSS 40K HLPR
- Rear Hitch Category (SAE Designation)
- Category II
- Pump Rated Output
- 60 L/min 76 L/min
- Base Machine Weight
- 4170 kg
Engine15 details
- Engine Make
- John Deere
- Engine Family
- John Deere PTM
- Emissions Certifications
- Stage IIIa
- Displacement
- 4.5 L
- Aspiration
- Turbocharged / Intercooled
- Number of Cylinders
- 4
- Rated Engine Speed
- 2200 rpm
- Rated Engine Power (Imperial)
- 95 hp
- Rated Engine Power (Metric)
- 70 kW
- Maximum Engine Power (Imperial)
- 96 hp
- Maximum Engine Power (Metric)
- 71 kW
- Maximum Engine Torque
- 370 Nm
- Cooling System Type
- Circulating Water Cooling
- Air Cleaner Type
- Dry-type
- Torque Rise
- 22 %
Transmission4 details
- Transmission Type
- 12X4 WC TSS 40K / 12X12 WC TSS 30K PR with 6x6 Creeper / 24X12 WC TSS 40K HLPR
- Creeper
- Option
- Reverser
- Option
- Clutch
- Wet
Rear Power Take-Off (PTO)3 details
- Engine rpm at Rated PTO Speeds (540/1.000)
- 2085/2065
- PTO Clutch
- EH
- Number of Splines
- 6-Spline 540 rpm / 21-Spline 1.000 rpm (Reversible Stub Shaft)
Rear Hitch4 details
- Rear Hitch Category (SAE Designation)
- Category II
- Maximum Lift Capacity Directly at Coupling Points
- 4060
- Maximum Lift Capacity at 610 mm Behind Hitch Point
- 2500
- Sensing Type
- Mechanical
Drawbar2 details
- Drawbar Category
- Category II
- Maximum Vertical Load
- 1900 kg
Hydraulics5 details
- Hydraulic System Type
- Open-Center with optional Pressure Compensated Flow Control
- Pump Rated Output
- 60 L/min 76 L/min
- Number of Rear Selective Control Valves (SCVs)
- 3
- Available Flow at a Single Rear SCV
- 60 L/min 76 L/min
- SCV Control
- Mechanical
Front Axle2 details
- Front Axle Type
- Flange
- Front Axle Differential Lock
- w/o
Rear Axle4 details
- Rear Axle Type
- Flange
- Rear Differential Lock
- Mechanical
- Differential Controls
- Mechanical
- Final Drive
- Planet
Steering & Brakes4 details
- Steering Type
- Tiltable & Telescopic Steering Column
- Primary Brakes
- Wet/Mechanical
- Secondary Brake
- Mechanical
- Park Brake
- Mechanical
Tires3 details
- Front Tires Size
- 320/85 R24; Option: 12.4-24 for JD ASIA
- Rear Tires Size
- 420/85 R34; Option: 16.9-34 for JD ASIA
- Wheel Tread Range
- 1617-2017
Electrical System5 details
- Battery Cold Cranking Amps
- 960 CCA
- Battery Capacity
- 135AH
- Alternator Capacity
- 12 V 90A
- Working Lights
- LED/Halogen
- Driving Lights
- LED
Operator Station9 details
- ROPS Type
- No
- Gearshift Location
- Floor
- Db(A) Rating
- 89 dBA
- Cab Suspension
- Mechanical
- Instructional Seat
- No
- Primary Display
- No
- Radio
- No
- Inner Cab Volume
- 2.4 m³
- Cab Glass Area
- 5.2 m²
Technology Integration1 detail
- Connectivity
- JDLink™ M modem
Capacities3 details
- Fuel Tank Capacity
- 160 L
- Transmission Hydraulic System
- 15 L
- Crankcase Oil Volume
- 15 L
Dimensions & Weights9 details
- Wheelbase
- 2310 mm
- Base Machine Weight
- 4170 kg
- Overall Height
- 2690 mm
- Overall Width
- 2200 mm
- Overall Length
- 4655 mm
- Front Axle Ground Clearance
- 407 mm
- Drawbar Ground Clearance
- 330 mm
- Maximum Ballast Level
- 600 kg
- Maximum Permissible Weight
- 6200 kg
Additional Information1 detail
- Country of Manufacture
- China
