John Deere

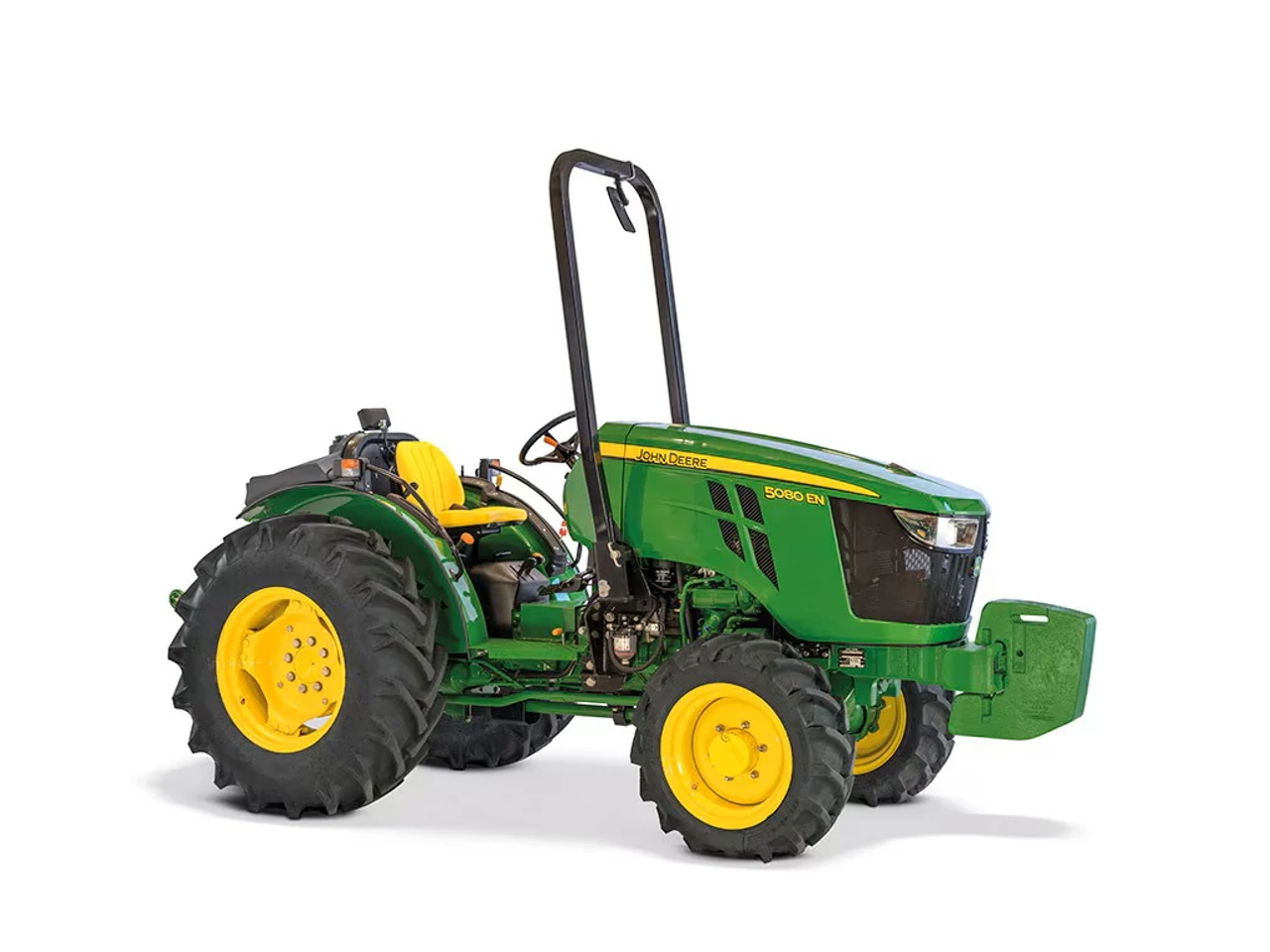

5080EN Narrow Speciality Tractor
Utility Tractors
John Deere 5080EN narrow specialty tractor with 80 HP PowerTech™ engine, superior traction, fuel efficiency, and dependable performance.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 08GGBM
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Engine Make
- John Deere
- Engine Model
- PowerTech™
- Engine Family
- 3029H
- Displacement
- 2.9 L
- Rated Engine Power (Imperial)
- 80 hp
- Rated Engine Power (Metric)
- 58 kW
- Transmission Type
- 9F/3R TSS
- Rear Hitch Category (SAE Designation)
- 1/2 N
- Pump Rated Output
- 69 L/min @ 2400 rpm
- Base Machine Weight
- 2720 kg
Engine12 specifications
- Engine Make
- John Deere
- Engine Model
- PowerTech™
- Engine Family
- 3029H
- Emissions Certifications
- Tier III
- Displacement
- 2.9 L
- Aspiration
- Turbocharged
- Aftertreatment Type
- 4-stroke water cooled
- Rated Engine Speed
- 2400 rpm
- Rated Engine Power (Imperial)
- 80 hp
- Rated Engine Power (Metric)
- 58 kW
- Engine Torque at Rated Speed
- 294 Nm
- Fuel Type
- Diesel
Transmission3 specifications
- Transmission Type
- 9F/3R TSS
- Creeper
- Field kit only
- Clutch
- Dry
Rear Power Take-Off (PTO)3 specifications
- Engine rpm at Rated PTO Speeds (540/1.000)
- 2083
- Engine rpm at Rated PTO Speeds (540/540 E/1.000)
- 2083/1588
- PTO Clutch
- Mechanical
Rear Hitch2 specifications
- Rear Hitch Category (SAE Designation)
- 1/2 N
- Draft Control Sensing
- Mechanical
Drawbar1 specifications
- Drawbar Category
- Independent
Hydraulics5 specifications
- Hydraulic System Type
- Open centered
- Pump Rated Output
- 69 L/min @ 2400 rpm
- Number of Rear Selective Control Valves (SCVs)
- 2
- Available Flow at a Single Rear SCV
- 43 L/min
- SCV Control
- Levers and cables
Front Axle2 specifications
- Front Axle Type
- MFWD – auxiliar front-wheel drive
- Front Axle Differential Lock
- Self-locking
Rear Axle3 specifications
- Rear Axle Type
- Final drive, Flange
- Rear Differential Lock
- Drive through pedal
- Final Drive
- Planetary type, internally mounted
Steering & Brakes1 specifications
- Primary Brakes
- Oil-bath disc service brake with hydraulic drive and park brake with transmission lock by P shift lever
Tires2 specifications
- Rear Tires Size
- Bias
- Wheel Tread Range
- R1
Capacities4 specifications
- Fuel Tank Capacity
- 70 L
- Cooling System Capacity
- 11 L
- Transmission Hydraulic System
- 40 L
- Crankcase Oil Volume
- 11 L
Dimensions & Weights4 specifications
- Wheelbase
- 1959 mm
- Base Machine Weight
- 2720 kg
- Overall Length
- 4088 mm
- Maximum Permissible Weight
- 3375 kg
