John Deere

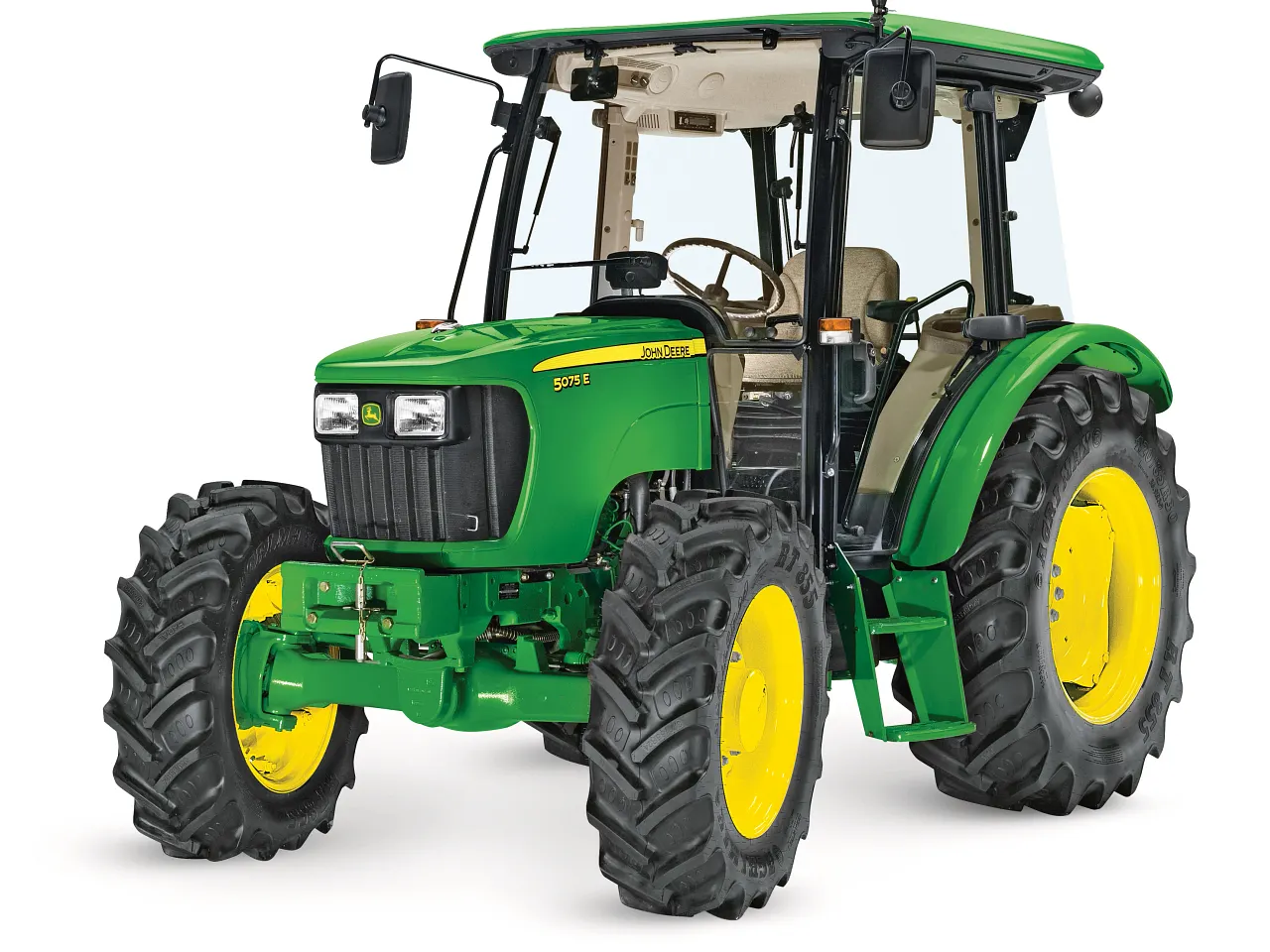

5075E Tractor
Utility Tractors
The John Deere 5075E tractor combines PowrReverser™ transmission, dependable performance and operator comfort for demanding agricultural applications.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 045CPY
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs4 specifications
- Engine Make
- John Deere
- Rated Engine Power
- 75 hp
- Transmission Type
- 9 Forward + 3 Reverse, Collarshift
- Base Machine Weight
- 2640 kg
Engine6 specifications
- Engine Make
- John Deere
- Number of Cylinders
- 3
- Rated Engine Speed
- 2400 rpm
- Rated Engine Power
- 75 hp
- Cooling System Type
- Coolant cooled with overflow reservoir
- Air Cleaner Type
- Dry type, Dual element
Transmission2 specifications
- Transmission Type
- 9 Forward + 3 Reverse, Collarshift
- Clutch
- Dual
Rear Power Take-Off (PTO)3 specifications
- PTO Category
- Independent
- Engagement Method
- Standard: 540 @ 2376 ERPM; Economy: 540 @ 1705 ERPM
- Number of Splines
- 6
Hydraulics1 specifications
- Hydraulic System Type
- Category II Automatic Depth & Draft Control
Steering & Brakes1 specifications
- Steering Type
- Power
Tires2 specifications
- Front Tires Size
- 12.4 x 24
- Rear Tires Size
- 18.4 x 30
Dimensions & Weights5 specifications
- Wheelbase
- 2045 mm
- Base Machine Weight
- 2640 kg
- Overall Width
- 1880 mm
- Overall Length
- 3625 mm
- Ground Clearance
- 460 mm
