John Deere

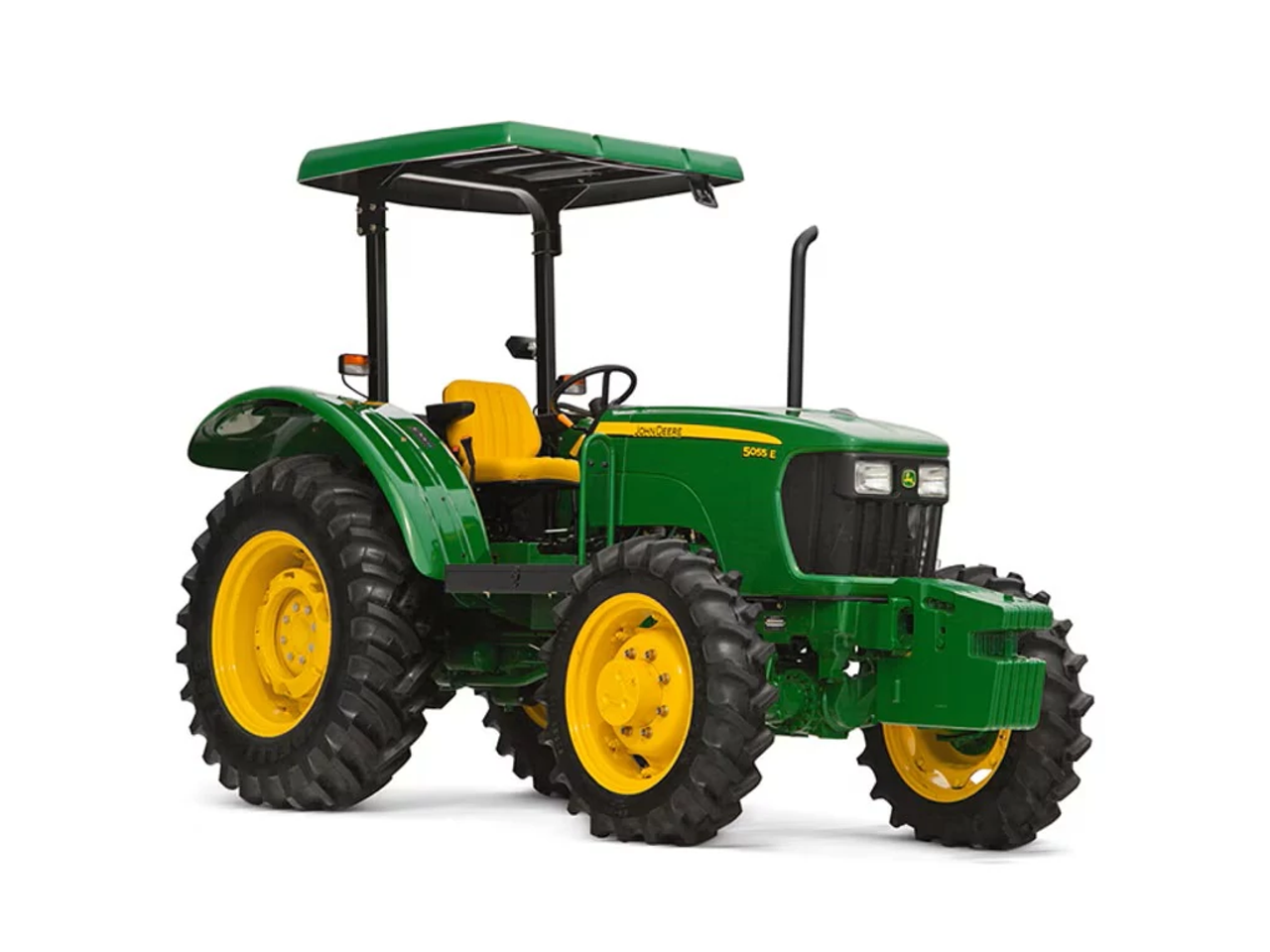

5055E Utility tractor
Utility Tractors
The John Deere 5055E tractor delivers reliable 55 HP performance, fuel efficiency and versatile capability for farming, hauling and field operations.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: A55JPY
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs4 specifications
- Engine Make
- John Deere
- Engine Model
- 3029H
- Rated Engine Power
- 55 hp
- Transmission Type
- 9 Forward + 3 Reverse, Collarshift
Engine7 specifications
- Engine Make
- John Deere
- Engine Model
- 3029H
- Number of Cylinders
- 3
- Rated Engine Speed
- 2400 rpm
- Rated Engine Power
- 55 hp
- Cooling System Type
- Coolant cooled with overflow reservoir
- Air Cleaner Type
- Dry type, Dual element
Transmission2 specifications
- Transmission Type
- 9 Forward + 3 Reverse, Collarshift
- Clutch
- Dual
Rear Power Take-Off (PTO)3 specifications
- PTO Category
- Independent
- Engagement Method
- 540 @ 1600 ERPM
- Number of Splines
- 6
Hydraulics2 specifications
- Hydraulic System Type
- Category II Automatic Depth & Draft Control
- Number of Rear Selective Control Valves (SCVs)
- 3
Steering & Brakes1 specifications
- Steering Type
- Power
Tires2 specifications
- Front Tires Size
- 6.5 X 20, 8 PR
- Rear Tires Size
- 16.9 X 28, 12 PR
Dimensions & Weights4 specifications
- Wheelbase
- 2050 mm
- Overall Width
- 1850 mm
- Overall Length
- 3535 mm
- Ground Clearance
- 435 mm
