John Deere

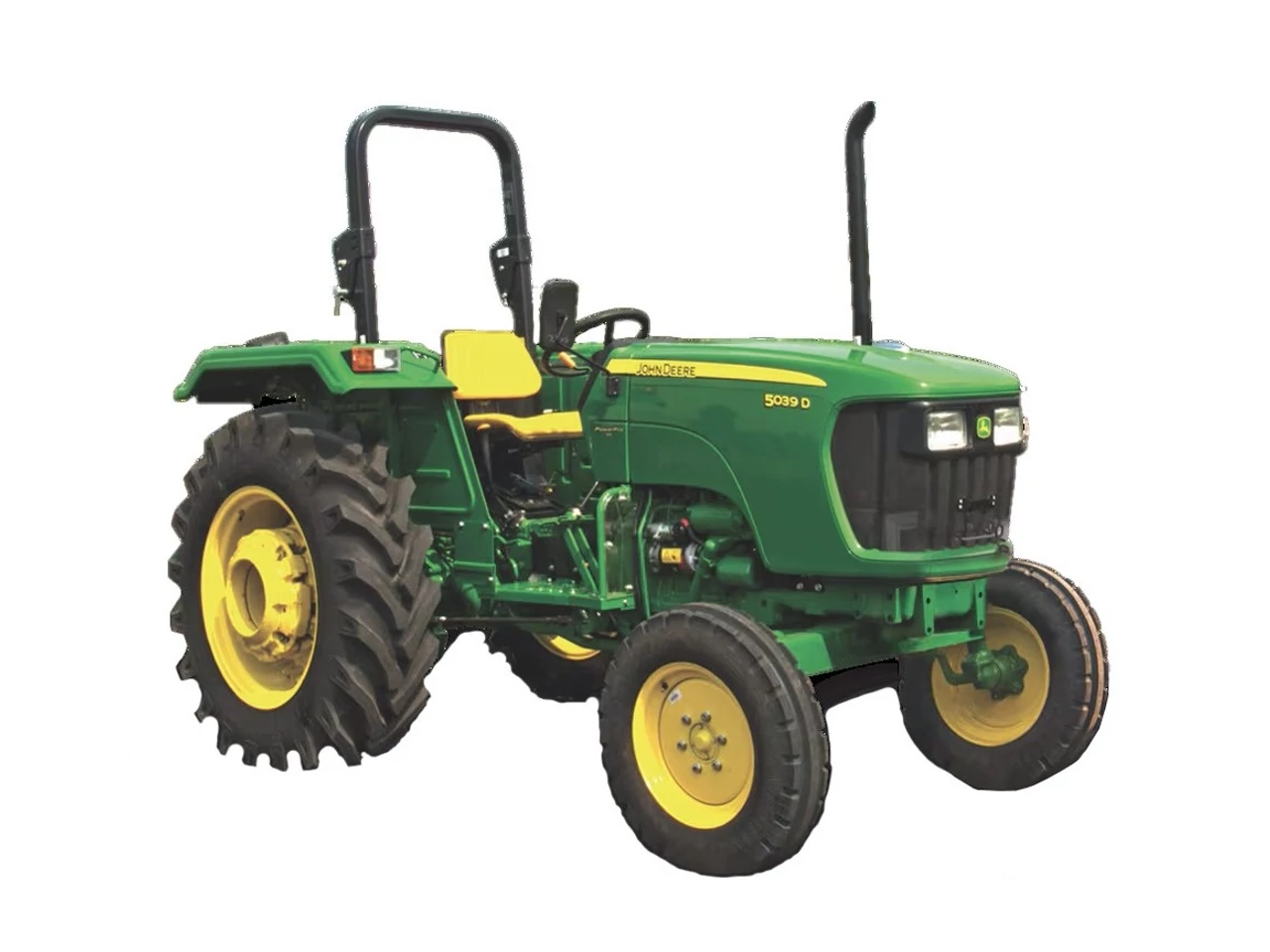

5039D Utility Tractor
Utility Tractors
The John Deere 5039D tractor delivers dependable performance, fuel efficiency and durability for versatile everyday farming applications.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 014GPY
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs8 specifications
- Engine Make
- John Deere Power Systems
- Engine Model
- PowerTech™ Diesel Engine
- Displacement
- 2.9 L
- Rated Engine Power (Imperial)
- 39 hp
- Rated Engine Power (Metric)
- 31 kW
- Rear Hitch Category (SAE Designation)
- CAT II with sway chains
- Pump Rated Output
- 37.8
- Base Machine Weight
- 1795 kg
Engine13 specifications
- Engine Make
- John Deere Power Systems
- Engine Model
- PowerTech™ Diesel Engine
- Displacement
- 2.9 L
- Aspiration
- Naturally Aspirated
- Number of Cylinders
- 3
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power (Imperial)
- 39 hp
- Rated Engine Power (Metric)
- 31 kW
- Maximum Engine Torque
- 162 N.m @ 1200 rpm
- Cooling System Type
- Liquid Cooled
- Fuel Type
- Diesel
- Air Cleaner Type
- Dry Type, Dual Element
- Torque Rise
- 17 %
Rear Power Take-Off (PTO)1 specifications
- Engine rpm at Rated PTO Speeds (540/1.000)
- 2100
Front PTO3 specifications
- Front Rated PTO Power (Imperial)
- 35 hp
- Front Rated PTO Power (Metric)
- 26 kW
- Engine rpm (at Rated PTO Speeds)
- 2100 rpm
Rear Hitch2 specifications
- Rear Hitch Category (SAE Designation)
- CAT II with sway chains
- Maximum Lift Capacity Directly at Coupling Points
- 1600
Drawbar1 specifications
- Drawbar Category
- Botswana, Eswatini, Namibia, South Africa
Hydraulics3 specifications
- Hydraulic System Type
- Open Center Hydraulic System
- Pump Rated Output
- 37.8
- Number of Rear Selective Control Valves (SCVs)
- 1 x Double Acting - Rear Selective Control Valve
Front Axle1 specifications
- Front Axle Type
- N/A
Rear Axle2 specifications
- Rear Axle Type
- 3 Pinion
- Final Drive
- Inboard Planetary Final Drives
Steering & Brakes3 specifications
- Steering Type
- Hydrostatic Power Steering
- Primary Brakes
- Wet Disk Brakes
- Secondary Brake
- Hand Brake
Tires1 specifications
- Front Tires Size
- 6.0X16
Electrical System3 specifications
- Battery Voltage
- 12 V
- Battery Capacity
- 88
- Alternator Capacity
- 42 Amp
Capacities1 specifications
- Fuel Tank Capacity
- 60 L
Dimensions & Weights3 specifications
- Wheelbase
- 1950 mm
- Base Machine Weight
- 1795 kg
- Ground Clearance
- 380 mm
