John Deere

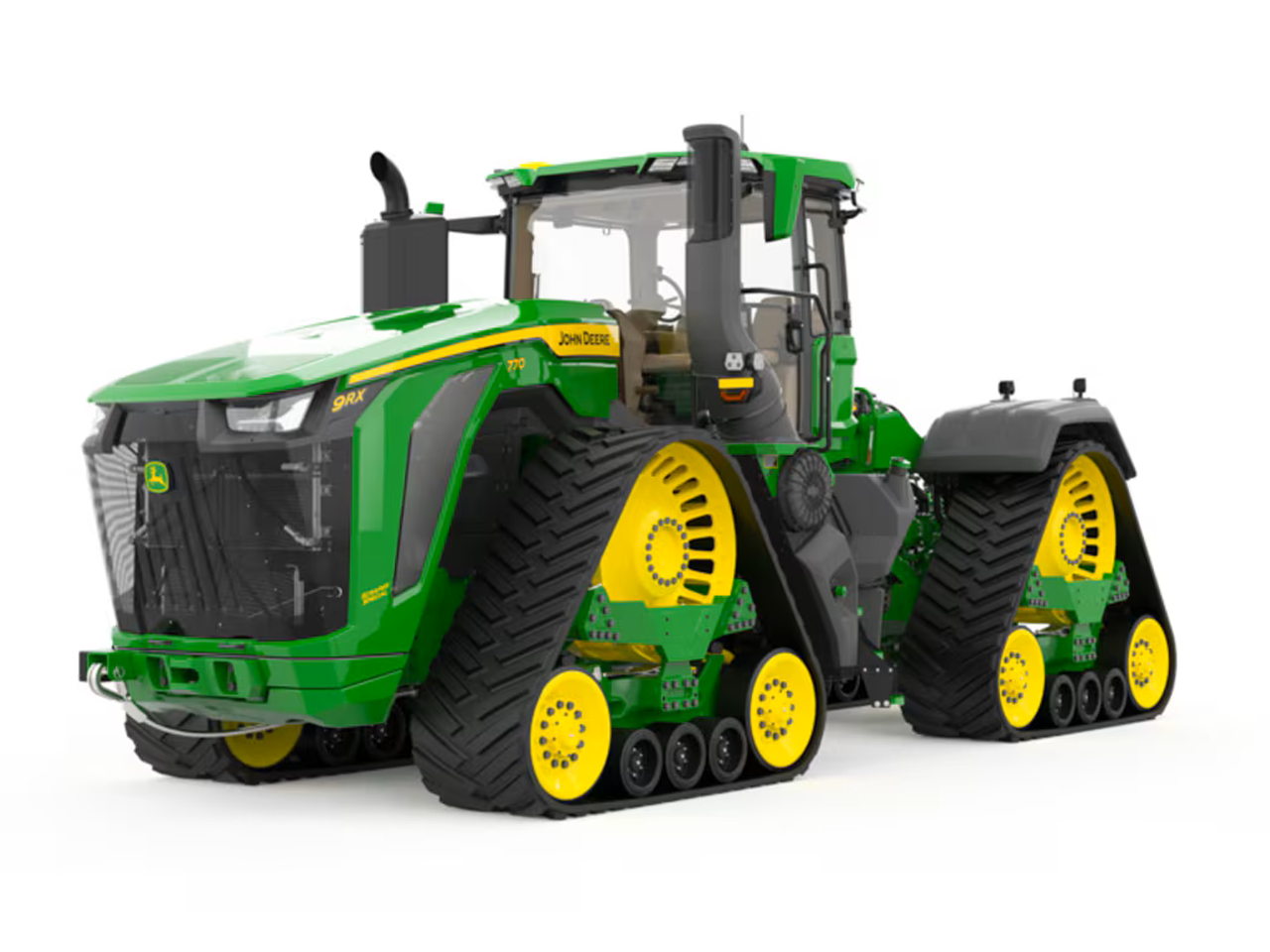

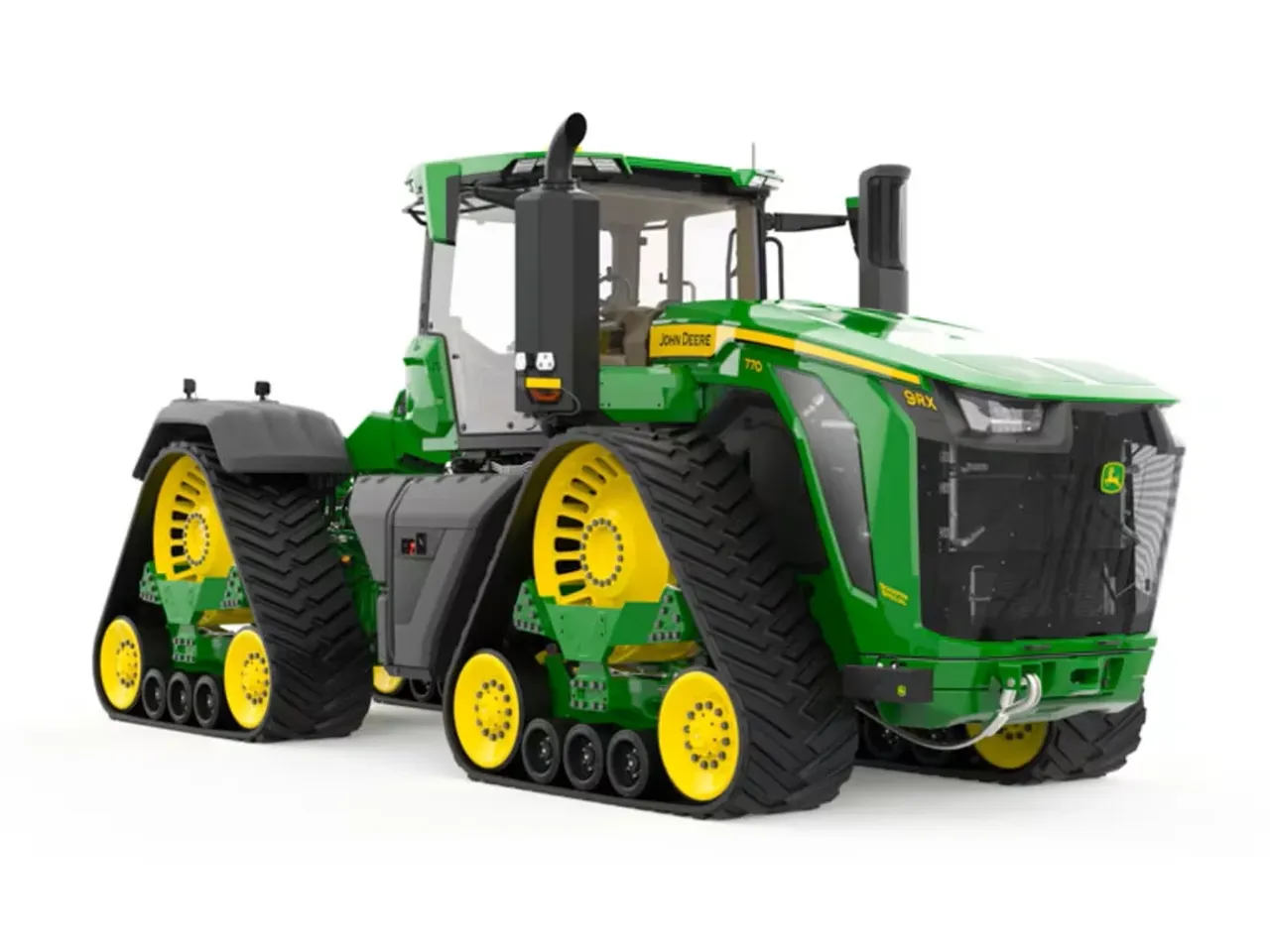

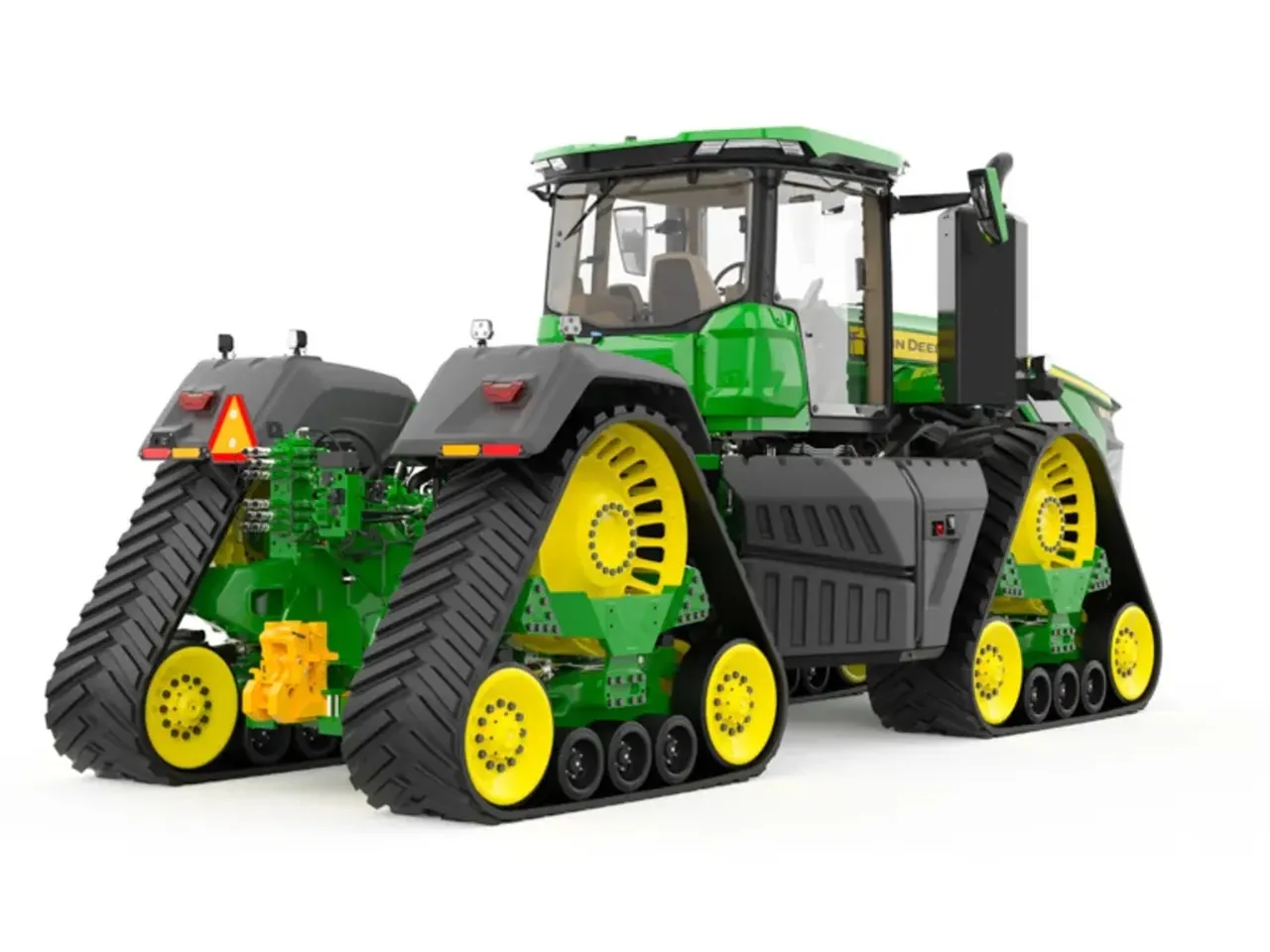

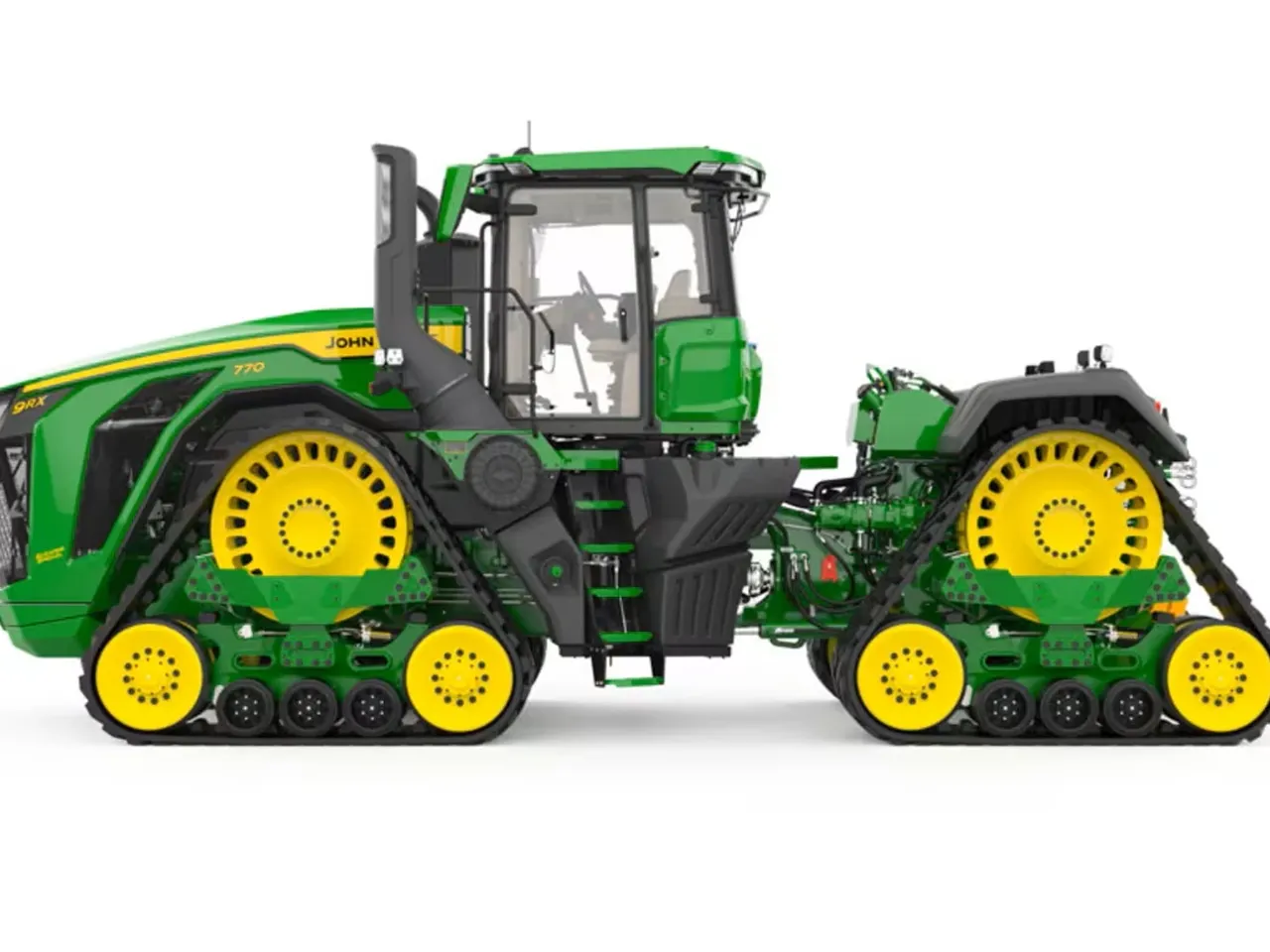

Model9RX 770 Scraper Special Tractor
Scraper Systems
Discover the ultimate efficiency and strength of the John Deere 9RX 770 Scraper Special Tractor.
Model / part number: 9940RW
Key specifications
- Engine Model
- JD18
- Displacement (Imperial)
- 1098 cu in.
- Displacement (Other)
- 18.0 L
- Rated Engine Power (Imperial)
- 759 hp
Technical specifications
85 specifications
Key Specs13 details
- Engine Model
- JD18
- Displacement (Imperial)
- 1098 cu in.
- Displacement (Other)
- 18.0 L
- Rated Engine Power (Imperial)
- 759 hp
- Rated Engine Power (Metric)
- 566 kW
- Rated Engine Power (Other)
- 770 PS
- Maximum Engine Power (Imperial)
- 835 hp
- Maximum Engine Power (Metric)
- 623 kW
- Maximum Engine Power (Other)
- 847 PS
- Transmission Type
- John Deere e21™ 21-speed PowerShift™; 21F, 11R with Efficiency Manager™: 40 km/h / 25 mph
- Pump Rated Output
- Triple: 636 L/min / 168 gpm
- Base Machine Weight (Imperial)
- 74000 lb.
- Base Machine Weight (Metric)
- 33500 kg
Engine21 details
- Engine Model
- JD18
- Emissions Certifications
- Final Tier 4 (FT4) / Stage V Compliant Diesel Engine
- Displacement (Imperial)
- 1098 cu in.
- Displacement (Other)
- 18.0 L
- Aspiration
- Dual turbochargers in series; Primary fixed displacement turbocharger and secondary wastegated turbocharger, air-to-air aftercooling, and cooled exhaust gas recirculation (EGR)
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Exhaust Gas Recirculation (EGR) - No Diesel Exhaust Fluid (DEF) used
- Rated Engine Speed
- 1900 rpm
- Rated Engine Power (Imperial)
- 759 hp
- Rated Engine Power (Metric)
- 566 kW
- Rated Engine Power (Other)
- 770 PS
- Maximum Engine Power (Imperial)
- 835 hp
- Maximum Engine Power (Metric)
- 623 kW
- Maximum Engine Power (Other)
- 847 PS
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (Imperial)
- 847 hp
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (Metric)
- 623 kW
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (Other)
- 859 PS
- Maximum Engine Torque
- At 1400 rpm: 3928 Nm / 2897 lb-ft
- Power Bulge
- 10 %
- Torque Rise
- 38 %
Transmission1 detail
- Transmission Type
- John Deere e21™ 21-speed PowerShift™; 21F, 11R with Efficiency Manager™: 40 km/h / 25 mph
Drawbar1 detail
- Drawbar Category
- Drawbar support for short scraper drawbars
Hydraulics5 details
- Hydraulic System Type
- Axial piston, closed-center, pressure-and-flow compensated, naturally-aspirated
- Pump Rated Output
- Triple: 636 L/min / 168 gpm
- Number of Rear Selective Control Valves (SCVs)
- Six 1.9-cm (3/4-in.) couplers
- Available Flow at a Single Rear SCV
- 1.9-cm (3/4-in.) couplers: 180 L/min / 44 gpm
- SCV Control
- Electronic
Front Axle1 detail
- Front Axle Differential Lock
- Full-locking electrohydraulic
Rear Axle2 details
- Rear Differential Lock
- Full-locking electrohydraulic
- Final Drive
- Outboard planetary with three planetary gears
Steering & Brakes1 detail
- Steering Type
- John Deere ActiveCommand Steering (ACS™)
Tracks3 details
- Track Drive Type
- Camso® Scraper 6500 Tracks
- Track Width
- 762 mm / 30 in.
- Number Of Mid Rollers
- Three
Electrical System4 details
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 4750 CCA
- Alternator Capacity
- 330 amp
- Working Lights
- Varies by visibility package
Operator Station11 details
- Seat Suspension
- Air suspension
- Degree of Seat Swivel, Left Hand
- 8 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Cab Suspension
- Standard
- Instructional Seat
- Standard
- Primary Display
- Standard: G5ᴾˡᵘˢ CommandCenter™: 32.5 cm / 12.8 in.
- Radio
- Varies by comfort and convenience package
- Inner Cab Volume (Imperial)
- 119.0 cu ft
- Inner Cab Volume (Metric)
- 3.37 m³
- Cab Glass Area (Imperial)
- 73.81 sq ft
- Cab Glass Area (Metric)
- 6.86 m²
Technology Integration3 details
- Guidance
- Integrated AutoTrac™
- Connectivity
- Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- Available with activated JDLink™ hardware and activations
Capacities8 details
- Fuel Tank Capacity (Imperial)
- 515 gal.
- Fuel Tank Capacity (Metric)
- 1952 L
- Cooling System Capacity (Imperial)
- 30.9 gal.
- Cooling System Capacity (Metric)
- 117 L
- Transmission Hydraulic System (Imperial)
- 53 gal.
- Transmission Hydraulic System (Metric)
- 201 L
- Crankcase Oil Volume (Imperial)
- 18.9 gal.
- Crankcase Oil Volume (Metric)
- 71.5 L
Dimensions & Weights10 details
- Wheelbase (Imperial)
- 182.4 in.
- Wheelbase (Metric)
- 4620 mm
- Base Machine Weight (Imperial)
- 74000 lb.
- Base Machine Weight (Metric)
- 33500 kg
- Overall Length (Imperial)
- 349.2 in.
- Overall Length (Metric)
- 8869 mm
- Drawbar Ground Clearance (Imperial)
- 14.1 in.
- Drawbar Ground Clearance (Metric)
- 359 mm
- Maximum Ballast Level (Imperial)
- 76000 lb.
- Maximum Ballast Level (Metric)
- 34500 kg
Additional Information1 detail
- Country of Manufacture
- USA
