John Deere

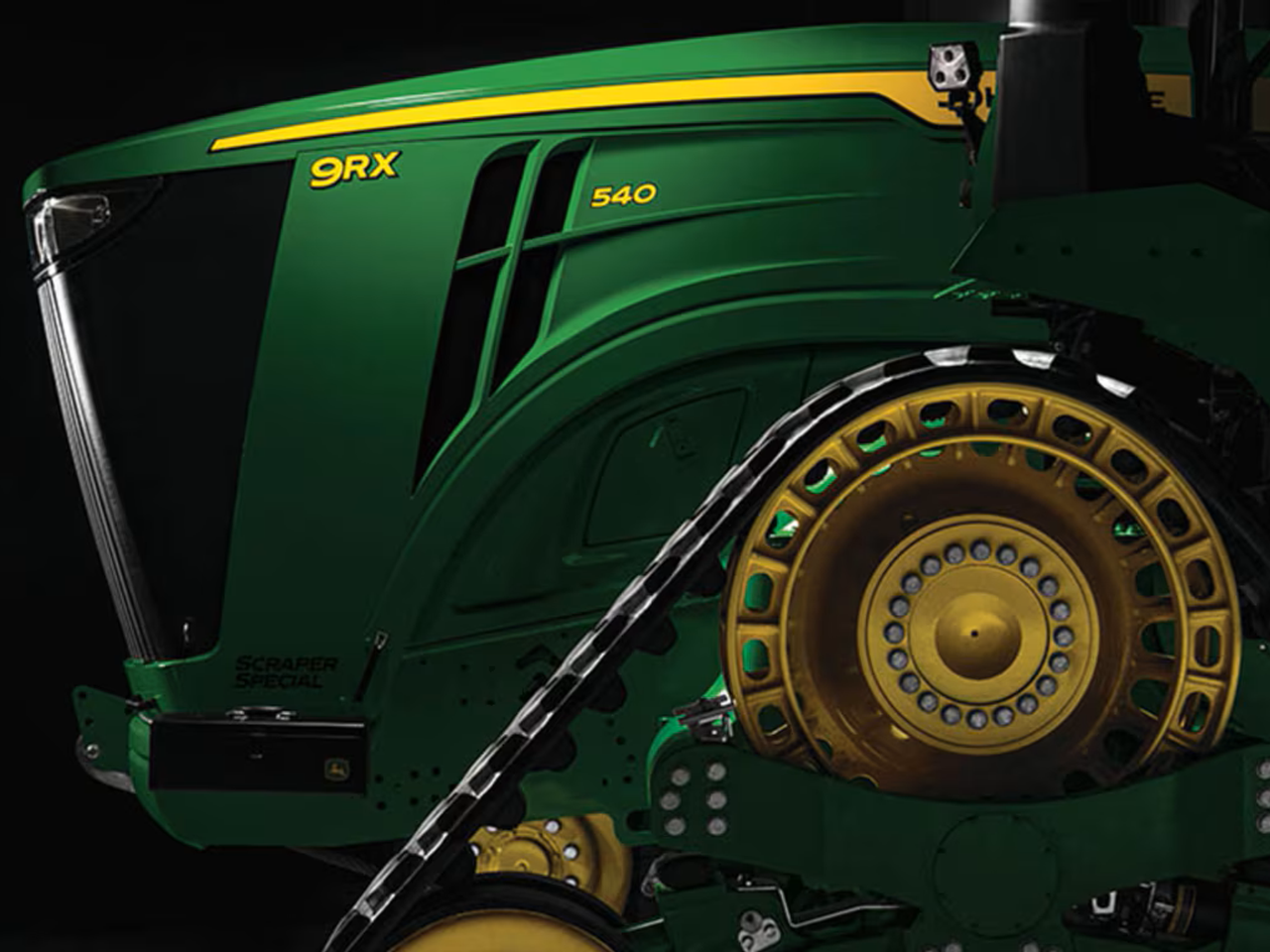

9RX 540 Scraper Special Tractor
Scraper Systems
Engineered for tough jobs, the John Deere 9RX 540 Scraper Special Tractor combines advanced technology with powerful features to maximize productivity and operational efficiency.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 9810RW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Rated Engine Power (Imperial)
- 533 hp
- Rated Engine Power (Metric)
- 397 kW
- Rated Engine Power (Other)
- 540 PS
- Maximum Engine Power (Imperial)
- 586 hp
- Maximum Engine Power (Metric)
- 437 kW
- Maximum Engine Power (Other)
- 594 PS
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h / 25 mph
- Pump Rated Output
- Standard: 416 L/min / 110 gpm
- Base Machine Weight (Imperial)
- 56714 lb.
- Base Machine Weight (Metric)
- 25779 kg
Engine19 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Emissions Certifications
- Final Tier 4 (FT4)
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Aspiration
- Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power (Imperial)
- 533 hp
- Rated Engine Power (Metric)
- 397 kW
- Rated Engine Power (Other)
- 540 PS
- Maximum Engine Power (Imperial)
- 586 hp
- Maximum Engine Power (Metric)
- 437 kW
- Maximum Engine Power (Other)
- 594 PS
- Maximum Engine Torque
- At 1550 rpm: 2492 Nm / 1838 lb-ft
- Power Bulge
- 10 %
- Torque Rise
- 38 %
Transmission1 specifications
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h / 25 mph
Drawbar1 specifications
- Drawbar Category
- Drawbar support for short scraper drawbars
Hydraulics5 specifications
- Hydraulic System Type
- Closed-center, pressure-and-flow compensated
- Pump Rated Output
- Standard: 416 L/min / 110 gpm
- Number of Rear Selective Control Valves (SCVs)
- Standard: four 1.9-cm (3/4-in.) deluxe; Optional: six 1.9-cm (3/4-in.) deluxe
- Available Flow at a Single Rear SCV
- 1.9-cm (3/4-in.) couplers: 159 L/min / 42 gpm
- SCV Control
- Electronic
Front Axle2 specifications
- Front Axle Type
- Diameter: 120 x 3048 mm / 4.72 x 120 in.
- Front Axle Differential Lock
- Full-locking electrohydraulic
Rear Axle2 specifications
- Rear Differential Lock
- Full-locking electrohydraulic
- Final Drive
- Bull gear and double idler with floating pinion
Steering & Brakes1 specifications
- Steering Type
- Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Tracks3 specifications
- Track Drive Type
- Camso® 6500 Scraper Series Tracks - reinforced drive lug technology
- Track Width
- 762 mm / 30 in.
- Number Of Mid Rollers
- Two
Electrical System4 specifications
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 2850 CCA
- Alternator Capacity
- Standard: 250 amp; Optional: 330 amp
- Working Lights
- Standard: 18 halogen; Optional: 18 or 24 LED plus 8 LED convenience lights
Operator Station11 specifications
- Seat Suspension
- Air suspension
- Degree of Seat Swivel, Left Hand
- 25 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Cab Suspension
- Standard
- Instructional Seat
- Standard
- Primary Display
- Standard: Generation 4 4600 CommandCenter™: 25.4 cm / 10 in.; Optional: Extended monitor
- Radio
- Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio
- Inner Cab Volume (Imperial)
- 115.0 cu ft
- Inner Cab Volume (Metric)
- 3.27 m³
- Cab Glass Area (Imperial)
- 71.47 sq ft
- Cab Glass Area (Metric)
- 6.64 m²
Technology Integration3 specifications
- Guidance
- Integrated AutoTrac™
- Connectivity
- Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- Available with activated JDLink™ hardware and activations
Capacities10 specifications
- Fuel Tank Capacity (Imperial)
- 400 gal.
- Fuel Tank Capacity (Metric)
- 1514 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 31.7 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 120.0 L
- Cooling System Capacity (Imperial)
- 14.9 gal.
- Cooling System Capacity (Metric)
- 56.5 L
- Transmission Hydraulic System (Imperial)
- 59 gal.
- Transmission Hydraulic System (Metric)
- 223 L
- Crankcase Oil Volume (Imperial)
- 16.9 gal.
- Crankcase Oil Volume (Metric)
- 64 L
Dimensions & Weights10 specifications
- Wheelbase (Imperial)
- 162.5 in.
- Wheelbase (Metric)
- 4128 mm
- Base Machine Weight (Imperial)
- 56714 lb.
- Base Machine Weight (Metric)
- 25779 kg
- Overall Length (Imperial)
- 327.1 in.
- Overall Length (Metric)
- 8309 mm
- Drawbar Ground Clearance (Imperial)
- 12.2 in.
- Drawbar Ground Clearance (Metric)
- 311 mm
- Maximum Ballast Level (Imperial)
- 60000 lb.
- Maximum Ballast Level (Metric)
- 27216 kg
Additional Information1 specifications
- Country of Manufacture
- USA
