John Deere

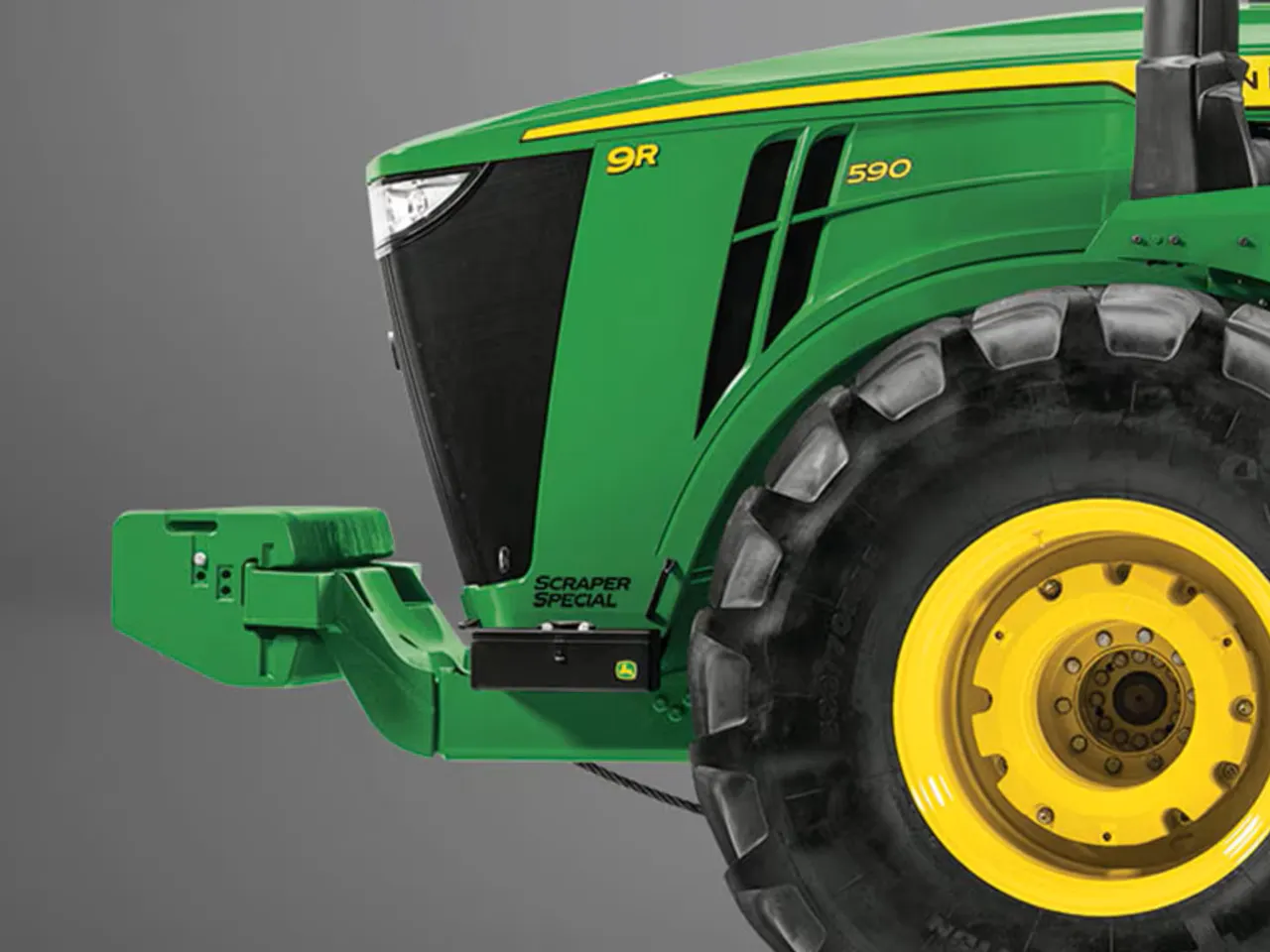

9R 590 Scraper Special Tractor
Scraper Systems
Explore the robust power of the John Deere 9R 590 Scraper Special Tractor, built for demanding conditions and featuring innovative technology.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 9620RW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Rated Engine Power (Imperial)
- 582 hp
- Rated Engine Power (Metric)
- 434 kW
- Rated Engine Power (Other)
- 590 PS
- Maximum Engine Power (Imperial)
- 640 hp
- Maximum Engine Power (Metric)
- 477 kW
- Maximum Engine Power (Other)
- 649 PS
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h / 25 mph
- Pump Rated Output
- Standard: 208 L/min / 55 gpm, Optional: 416 L/min / 110 gpm
- Base Machine Weight (Imperial)
- 45122 lb.
- Base Machine Weight (Metric)
- 20510 kg
Engine19 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Emissions Certifications
- Final Tier 4 (FT4)
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Aspiration
- Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power (Imperial)
- 582 hp
- Rated Engine Power (Metric)
- 434 kW
- Rated Engine Power (Other)
- 590 PS
- Maximum Engine Power (Imperial)
- 640 hp
- Maximum Engine Power (Metric)
- 477 kW
- Maximum Engine Power (Other)
- 649 PS
- Maximum Engine Torque
- At 1550 rpm: 2723 Nm / 2008 lb-ft
- Power Bulge
- 10 %
- Torque Rise
- 38 %
Transmission1 specifications
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™: 40 km/h / 25 mph
Drawbar1 specifications
- Drawbar Category
- Standard: Drawbar support for short scraper drawbars; Optional: Drawbar support for long scraper drawbars
Hydraulics5 specifications
- Hydraulic System Type
- Closed-center, pressure-and-flow compensated
- Pump Rated Output
- Standard: 208 L/min / 55 gpm, Optional: 416 L/min / 110 gpm
- Number of Rear Selective Control Valves (SCVs)
- Standard: four 1.3-cm (1/2-in.) ISO couplers; Optional: four 1.9-cm (3/4-in.) deluxe; Optional: six 1.9-cm (3/4-in.) deluxe
- Available Flow at a Single Rear SCV
- 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 159 L/min (42 gpm)
- SCV Control
- Electronic
Front Axle2 specifications
- Front Axle Type
- Diameter: 120 x 3048 mm / 4.72 x 120 in.
- Front Axle Differential Lock
- Full-locking electrohydraulic
Rear Axle3 specifications
- Rear Axle Type
- Diameter: 120 x 3048 mm / 4.72 x 120 in.
- Rear Differential Lock
- Full-locking electrohydraulic
- Final Drive
- Inboard planetary with double-reduction axle
Steering & Brakes1 specifications
- Steering Type
- Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Electrical System4 specifications
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 2850 CCA
- Alternator Capacity
- Standard: 250 amp; Optional: 330 amp
- Working Lights
- Standard: 18 halogen; Optional: 18 or 24 LED plus 8 LED convenience lights
Operator Station9 specifications
- Degree of Seat Swivel, Left Hand
- 25 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Instructional Seat
- Standard
- Primary Display
- Standard: Generation 4 4600 CommandCenter™: 25.4 cm / 10 in.; Optional: Extended monitor
- Radio
- Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio
- Inner Cab Volume (Imperial)
- 115.0 cu ft
- Inner Cab Volume (Metric)
- 3.27 m³
- Cab Glass Area (Imperial)
- 71.47 sq ft
- Cab Glass Area (Metric)
- 6.64 m²
Technology Integration3 specifications
- Guidance
- Integrated AutoTrac™
- Connectivity
- Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- Available with activated JDLink™ hardware and activations
Capacities10 specifications
- Fuel Tank Capacity (Imperial)
- 400 gal.
- Fuel Tank Capacity (Metric)
- 1514 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 31.7 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 120.0 L
- Cooling System Capacity (Imperial)
- 14.9 gal.
- Cooling System Capacity (Metric)
- 56.5 L
- Transmission Hydraulic System (Imperial)
- 59 gal.
- Transmission Hydraulic System (Metric)
- 223 L
- Crankcase Oil Volume (Imperial)
- 16.9 gal.
- Crankcase Oil Volume (Metric)
- 64 L
Dimensions & Weights10 specifications
- Wheelbase (Imperial)
- 154.0 in.
- Wheelbase (Metric)
- 3912 mm
- Base Machine Weight (Imperial)
- 45122 lb.
- Base Machine Weight (Metric)
- 20510 kg
- Overall Length (Imperial)
- 312.8 in.
- Overall Length (Metric)
- 7945 mm
- Drawbar Ground Clearance (Imperial)
- 20.7 in.
- Drawbar Ground Clearance (Metric)
- 527 mm
- Maximum Ballast Level (Imperial)
- 54000 lb.
- Maximum Ballast Level (Metric)
- 24500 kg
Additional Information1 specifications
- Country of Manufacture
- USA
