John Deere

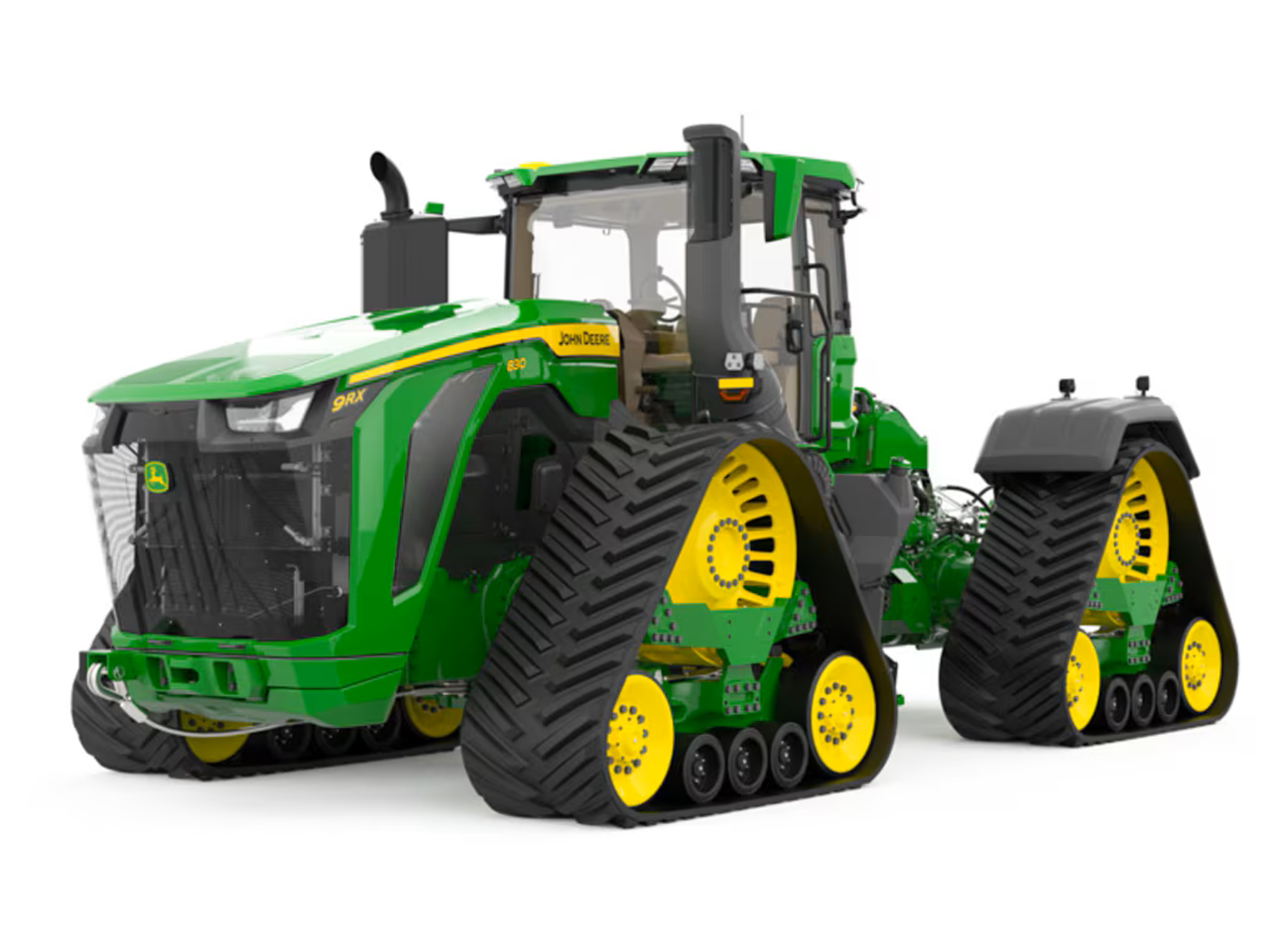

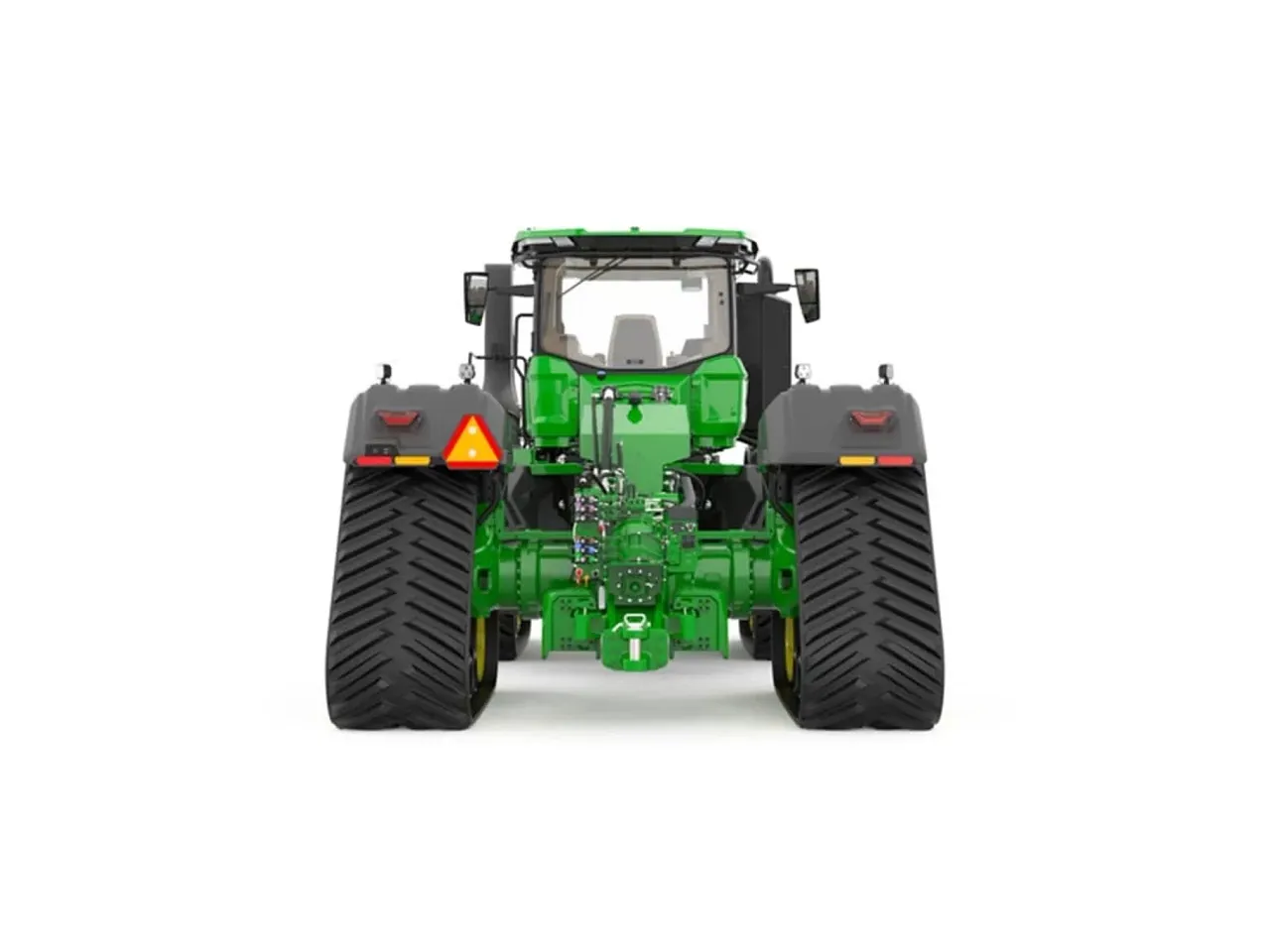

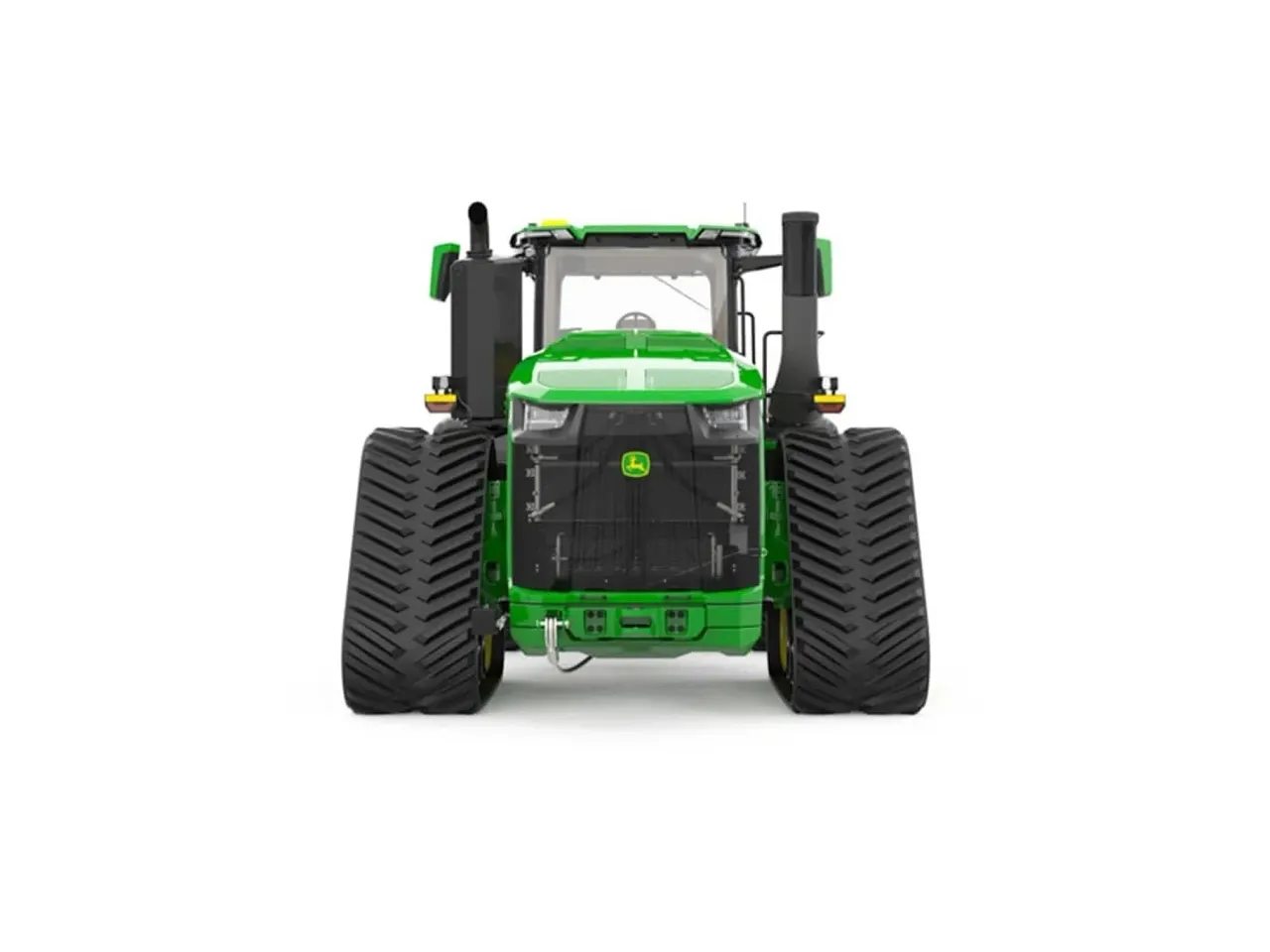

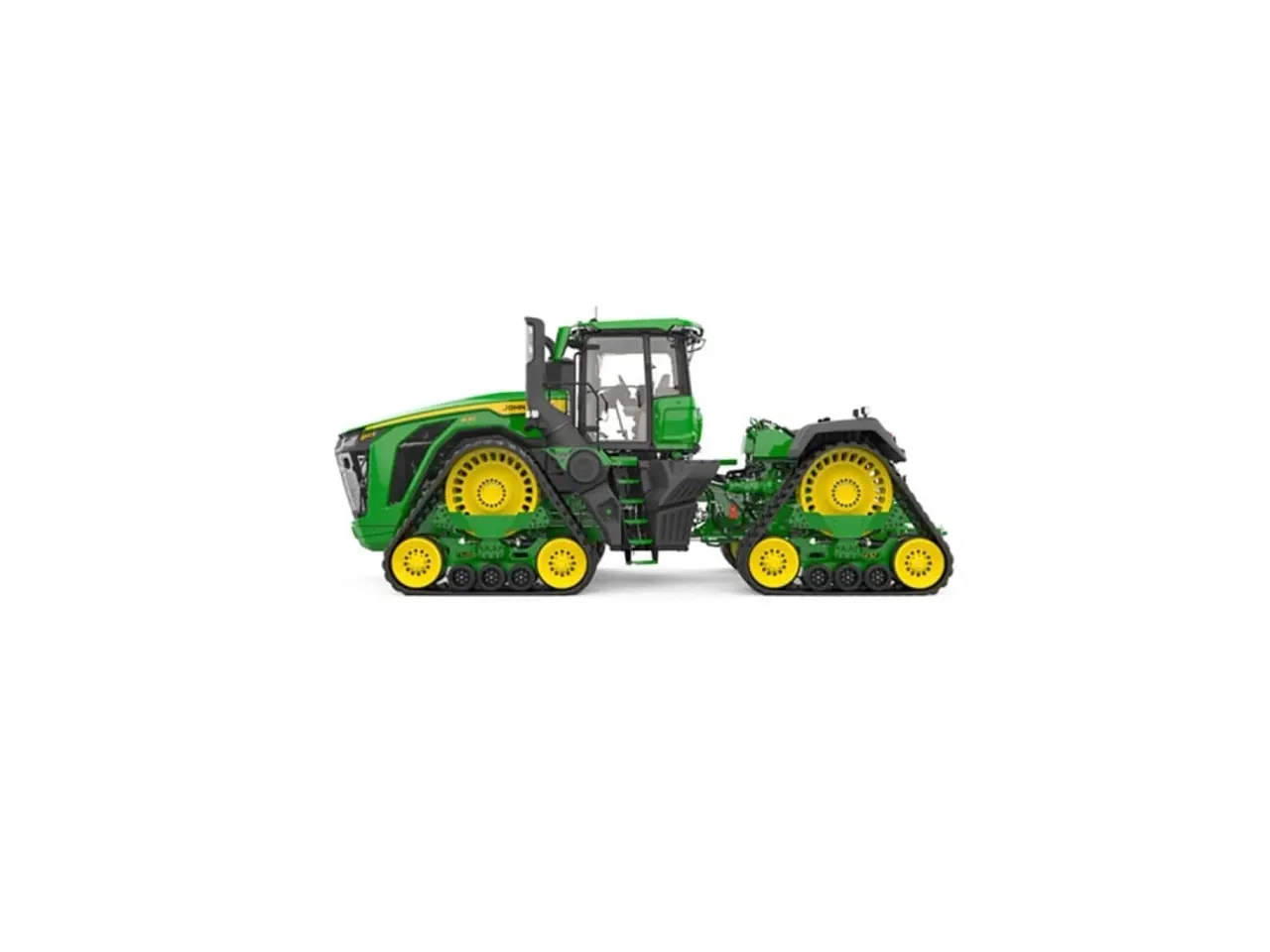

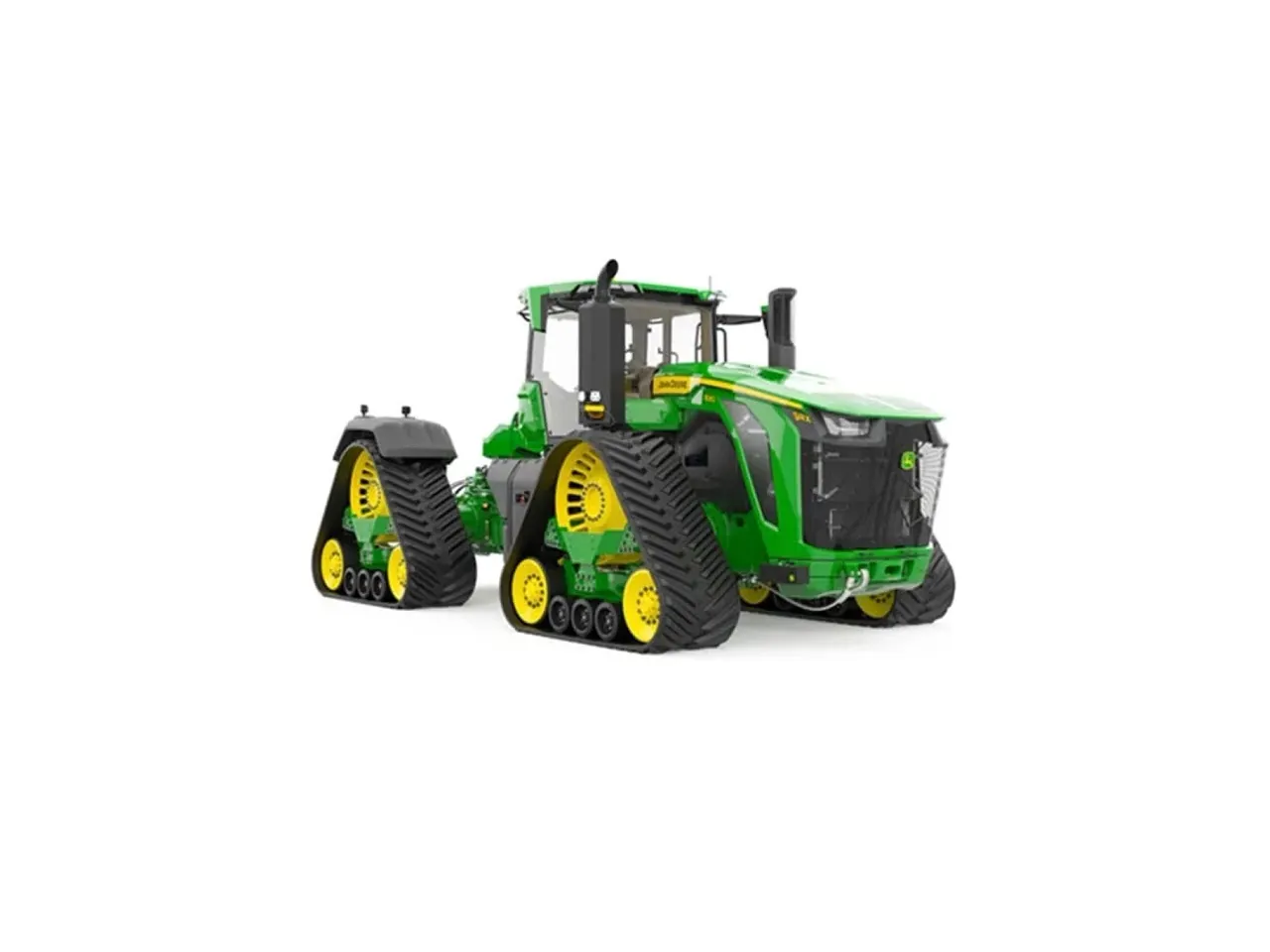

9RX 830 Tractor
Row Crop 4WD Tractors
Explore supreme power and innovation with the John Deere 9RX 830 Tractor, designed to revolutionize large-scale farming operations.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 9920RW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs9 specifications
- Engine Model
- JD18
- Displacement (Imperial)
- 1098 cu in.
- Displacement (Other)
- 18.0 L
- Rated Engine Power
- 610 kW
- Maximum Engine Power
- 610 kW
- Transmission Type
- John Deere e21™ 21-speed PowerShift™; 21F, 11R with Efficiency Manager™
- Pump Rated Output
- Single: 212 L/min (56 gpm); Dual: 424 L/min (112 gpm); Triple: 636 L/min (168 gpm)
- Base Machine Weight (Imperial)
- 76000 lb.
- Base Machine Weight (Metric)
- 34473 kg
Engine20 specifications
- Engine Model
- JD18
- Emissions Certifications
- Final Tier 4 (FT4) / Stage V Compliant Diesel Engine
- Displacement (Imperial)
- 1098 cu in.
- Displacement (Other)
- 18.0 L
- Aspiration
- Dual turbochargers in series; Primary fixed displacement turbocharger and secondary wastegated turbocharger, air-to-air aftercooling, and cooled exhaust gas recirculation (EGR)
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Exhaust Gas Recirculation (EGR) - No Diesel Exhaust Fluid (DEF) used
- Intelligent Power Management (IPM)
- 40 hp at rated engine RPM
- Rated Engine Speed
- 1900 rpm
- Rated Engine Power
- 610 kW
- Engine Torque at Rated Speed (Imperial)
- 3123.0 lb-ft
- Engine Torque at Rated Speed (Metric)
- 4234 Nm
- Maximum Engine Power
- 610 kW
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (Imperial)
- 913 hp
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (Metric)
- 672 kW
- Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628) (Other)
- 926 PS
- Maximum Engine Torque
- At 1400 rpm: 4234 Nm / 3123 lb-ft
- Power Bulge
- 10 %
- Torque Rise
- 38 %
Transmission1 specifications
- Transmission Type
- John Deere e21™ 21-speed PowerShift™; 21F, 11R with Efficiency Manager™
Rear Power Take-Off (PTO)5 specifications
- Rated PTO Power (Imperial)
- 335 hp
- Rated PTO Power (Metric)
- 249 kW
- Rated PTO Power (Other)
- 340 PS
- Engagement Method
- Electrohydraulic
- Number of Splines
- 20
Drawbar2 specifications
- Drawbar Category
- Category 5
- Maximum Vertical Load
- 8618 kg / 19,000 lb
Hydraulics5 specifications
- Hydraulic System Type
- Axial piston, closed-center, pressure-and-flow compensated, naturally-aspirated
- Pump Rated Output
- Single: 212 L/min (56 gpm); Dual: 424 L/min (112 gpm); Triple: 636 L/min (168 gpm)
- Number of Rear Selective Control Valves (SCVs)
- Base: four 1.3-cm (1/2-in.) couplers; Optional: five or six 1.3-cm (1/2-in.) couplers; Optional: three 1.9-cm (3/4-in.) couplers and three 1.3-cm (1/2-in.) couplers; 7th and 8th SCV options are available as field install kits
- Available Flow at a Single Rear SCV
- 1.3-cm (1/2 in.) couplers: 140 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 180 L/min (44 gpm)
- SCV Control
- Electronic
Front Axle1 specifications
- Front Axle Differential Lock
- Full-locking electrohydraulic
Rear Axle2 specifications
- Rear Differential Lock
- Full-locking electrohydraulic
- Final Drive
- Outboard planetary with three planetary gears
Steering & Brakes1 specifications
- Steering Type
- John Deere ActiveCommand Steering (ACS™)
Tracks4 specifications
- Track Drive Type
- Camso ® Ag 3500 or 6500 Tracks
- Track Tread Spacing
- Only compatible with 762 mm (30 in.) tracks: 2235 mm (88 in.); Optional: 3048 mm (120 in.)
- Track Width
- Standard: 762 mm (30 in.); Optional - only compatible with 3048 mm (120 in.) spacing: 914 mm (36 in.)
- Number Of Mid Rollers
- Three
Electrical System4 specifications
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 4750 CCA
- Alternator Capacity
- 330 amp
- Working Lights
- Varies by visibility package
Operator Station10 specifications
- Degree of Seat Swivel, Left Hand
- 8 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Cab Suspension
- Standard
- Instructional Seat
- Standard
- Primary Display
- Standard: G5ᴾˡᵘˢ CommandCenter™: 12.8 in. (32.5 cm)
- Radio
- Varies by comfort and convenience package
- Inner Cab Volume (Imperial)
- 119.0 cu ft
- Inner Cab Volume (Metric)
- 3.37 m³
- Cab Glass Area (Imperial)
- 73.81 sq ft
- Cab Glass Area (Metric)
- 6.86 m²
Technology Integration3 specifications
- Guidance
- Integrated AutoTrac™; Available with Autonomy Ready
- Connectivity
- Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- Available with activated JDLink™ hardware and activations
Capacities8 specifications
- Fuel Tank Capacity (Imperial)
- 515 gal.
- Fuel Tank Capacity (Metric)
- 1952 L
- Cooling System Capacity (Imperial)
- 30.9 gal.
- Cooling System Capacity (Metric)
- 117 L
- Transmission Hydraulic System (Imperial)
- 53 / 60 gal.
- Transmission Hydraulic System (Metric)
- 201 / 226 L
- Crankcase Oil Volume (Imperial)
- 18.9 gal.
- Crankcase Oil Volume (Metric)
- 71.5 L
Dimensions & Weights10 specifications
- Wheelbase (Imperial)
- 181.9 in.
- Wheelbase (Metric)
- 4620 mm
- Base Machine Weight (Imperial)
- 76000 lb.
- Base Machine Weight (Metric)
- 34473 kg
- Overall Length (Imperial)
- 349.2 in.
- Overall Length (Metric)
- 8869 mm
- Drawbar Ground Clearance (Imperial)
- 22.3 in.
- Drawbar Ground Clearance (Metric)
- 567 mm
- Maximum Ballast Level (Imperial)
- 84000 lb.
- Maximum Ballast Level (Metric)
- 38100 kg
Additional Information1 specifications
- Country of Manufacture
- USA
