John Deere

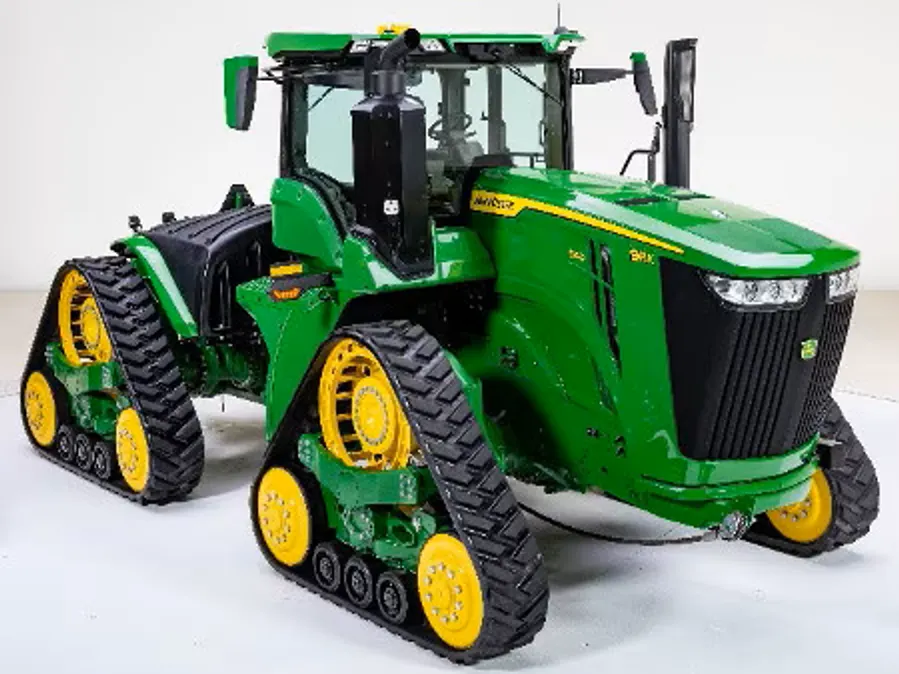

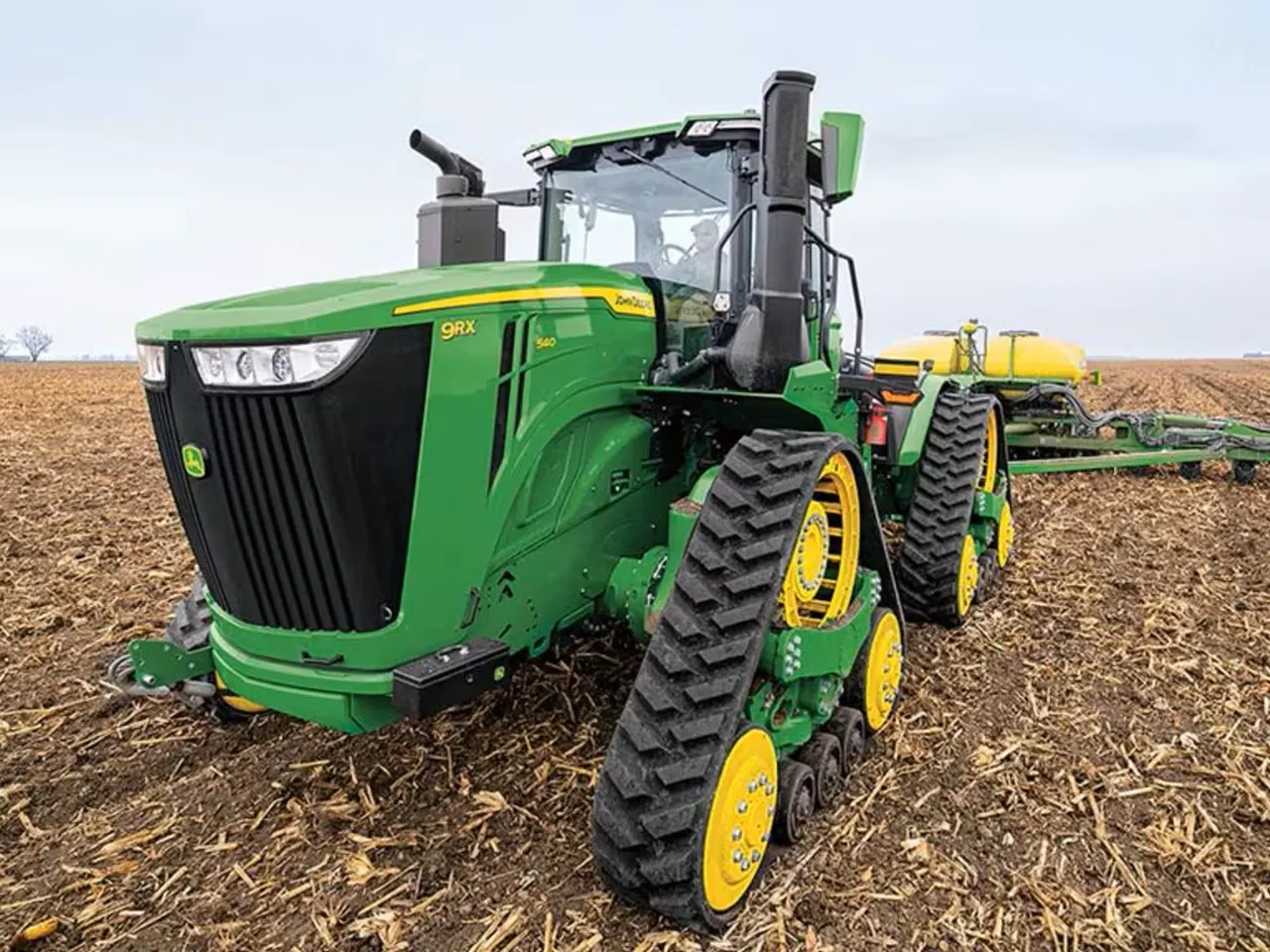

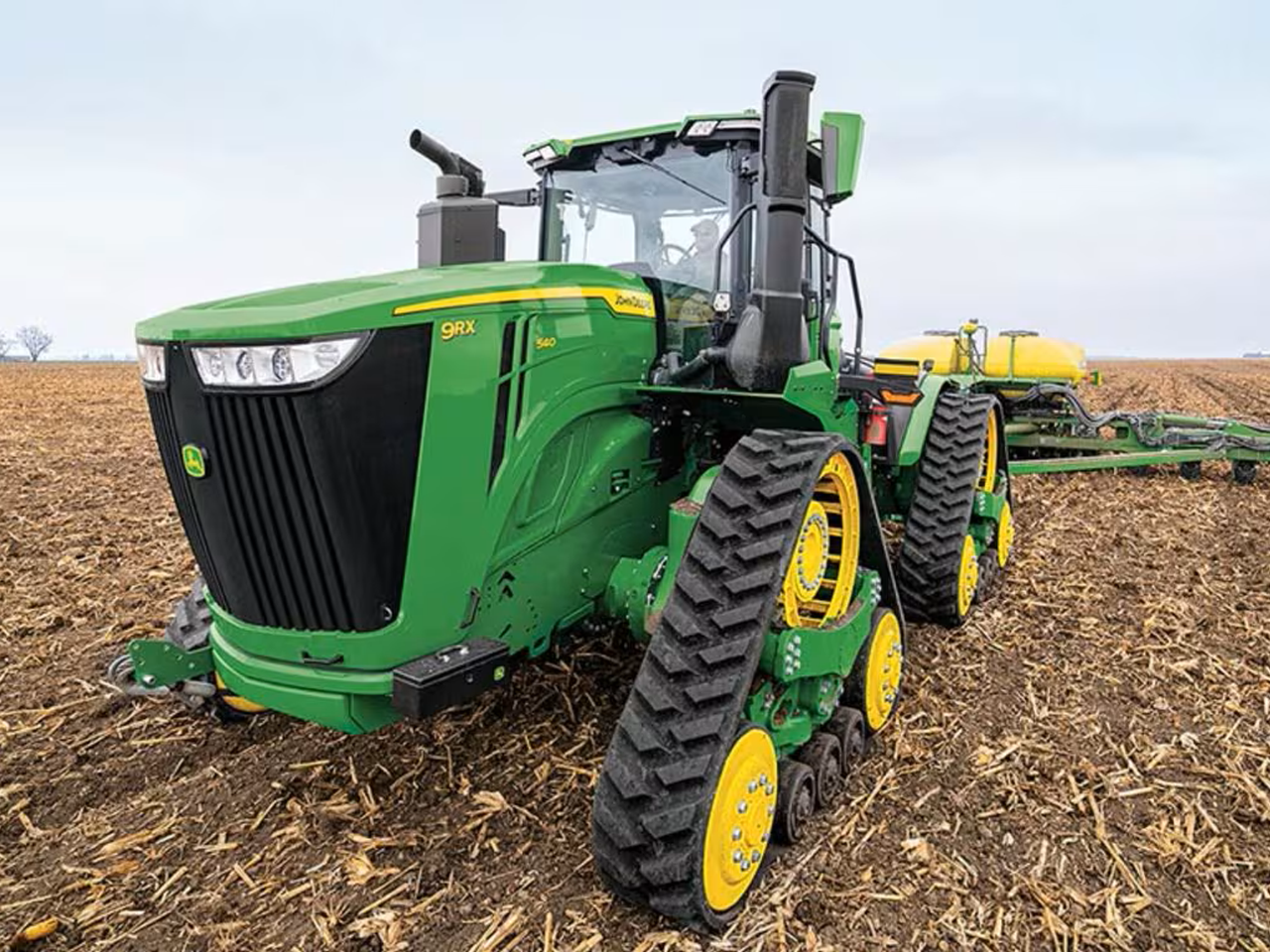

9RX 540 Tractor
Row Crop 4WD Tractors
Experience superior performance and efficiency with the John Deere 9RX 540 Tractor.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 9520RW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs11 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Rated Engine Power
- 397 kW
- Maximum Engine Power
- 437 kW
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
- Rear Hitch Category (SAE Designation)
- Category 4N/4: 6804 kg (15,000 lb); Category 4N/4: 9072 kg (20,000 lb)
- Pump Rated Output
- Standard: 208 L/min / 55 gpm; Optional: 416 L/min / 110 gpm
- Base Machine Weight (Imperial)
- 57200 lb.
- Base Machine Weight (Metric)
- 25946 kg
Engine17 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Emissions Certifications
- Final Tier 4 (FT4)
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Aspiration
- Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power
- 397 kW
- Engine Torque at Rated Speed (Imperial)
- 1838.0 lb-ft
- Engine Torque at Rated Speed (Metric)
- 2492 Nm
- Maximum Engine Power
- 437 kW
- Maximum Engine Torque
- At 1550 rpm: 2492 Nm / 1838 lb-ft
- Power Bulge
- 10 %
- Torque Rise
- 38 %
Transmission2 specifications
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
- Maximum Speed Forward
- 40 km/h / 25 mph
Rear Power Take-Off (PTO)6 specifications
- PTO Category
- Independent
- Rated PTO Power (Imperial)
- 335 hp
- Rated PTO Power (Metric)
- 249 kW
- Rated PTO Power (Other)
- 340 PS
- Engagement Method
- Electrohydraulic
- Number of Splines
- 20
Rear Hitch3 specifications
- Rear Hitch Category (SAE Designation)
- Category 4N/4: 6804 kg (15,000 lb); Category 4N/4: 9072 kg (20,000 lb)
- Maximum Lift Capacity Directly at Coupling Points
- 20.000
- Sensing Type
- Electrohydraulic with draft sensing
Drawbar2 specifications
- Drawbar Category
- Category 5
- Maximum Vertical Load
- 5440 kg / 12,000 lb
Hydraulics5 specifications
- Hydraulic System Type
- Closed-center, pressure-and-flow compensated
- Pump Rated Output
- Standard: 208 L/min / 55 gpm; Optional: 416 L/min / 110 gpm
- Number of Rear Selective Control Valves (SCVs)
- Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed
- Available Flow at a Single Rear SCV
- 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 170 L/min (45 gpm)
- SCV Control
- Electronic
Front Axle1 specifications
- Front Axle Differential Lock
- Full-locking electrohydraulic
Rear Axle2 specifications
- Rear Differential Lock
- Full-locking electrohydraulic
- Final Drive
- Bull gear and double idler with floating pinion
Steering & Brakes1 specifications
- Steering Type
- Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Tracks3 specifications
- Track Tread Spacing
- Narrow undercarriage: 2032, 2235, or 3048 mm (80, 88, or 120 in.); Wide undercarriage: 2218 or 3048 mm (87 or 120 in.)
- Track Width
- Standard: 762 mm (30 in.); Optional: 457, 610, or 914 mm (18, 24, or 36 in.)
- Number Of Mid Rollers
- Narrow undercarriage: Three; Wide undercarriage: Two
Electrical System4 specifications
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 2850 CCA
- Alternator Capacity
- Standard: 250 amp; Optional: 330 amp
- Working Lights
- Standard: 18 halogen; Optional: 18 or 24 LED plus 8 LED convenience lights
Operator Station11 specifications
- Seat Suspension
- Air suspension
- Degree of Seat Swivel, Left Hand
- 25 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Cab Suspension
- Standard
- Instructional Seat
- Standard
- Primary Display
- Standard: G5 Plus CommandCenter™: 32.5 cm (12.8 in.)
- Radio
- Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio
- Inner Cab Volume (Imperial)
- 115.0 cu ft
- Inner Cab Volume (Metric)
- 3.27 m³
- Cab Glass Area (Imperial)
- 71.47 sq ft
- Cab Glass Area (Metric)
- 6.64 m²
Technology Integration3 specifications
- Guidance
- Integrated AutoTrac™ Autonomy Ready (available in select regions)
- Connectivity
- Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- Available with activated JDLink™ hardware and activations
Capacities10 specifications
- Fuel Tank Capacity (Imperial)
- 400 gal.
- Fuel Tank Capacity (Metric)
- 1514 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 31.7 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 120.0 L
- Cooling System Capacity (Imperial)
- 14.9 gal.
- Cooling System Capacity (Metric)
- 56.5 L
- Transmission Hydraulic System (Imperial)
- With 3-point hitch and PTO: 60 Without 3-point hitch and PTO: 58 gal.
- Transmission Hydraulic System (Metric)
- With 3-point hitch and PTO: 242 Without 3-point hitch and PTO: 235 L
- Crankcase Oil Volume (Imperial)
- 16.9 gal.
- Crankcase Oil Volume (Metric)
- 64 L
Dimensions & Weights10 specifications
- Wheelbase (Imperial)
- 162.5 in.
- Wheelbase (Metric)
- 4128 mm
- Base Machine Weight (Imperial)
- 57200 lb.
- Base Machine Weight (Metric)
- 25946 kg
- Overall Length (Imperial)
- 326.6 in.
- Overall Length (Metric)
- 8295 mm
- Drawbar Ground Clearance (Imperial)
- 12.2 in.
- Drawbar Ground Clearance (Metric)
- 311 mm
- Maximum Ballast Level (Imperial)
- 62000 lb.
- Maximum Ballast Level (Metric)
- 28123 kg
Additional Information1 specifications
- Country of Manufacture
- USA
