John Deere

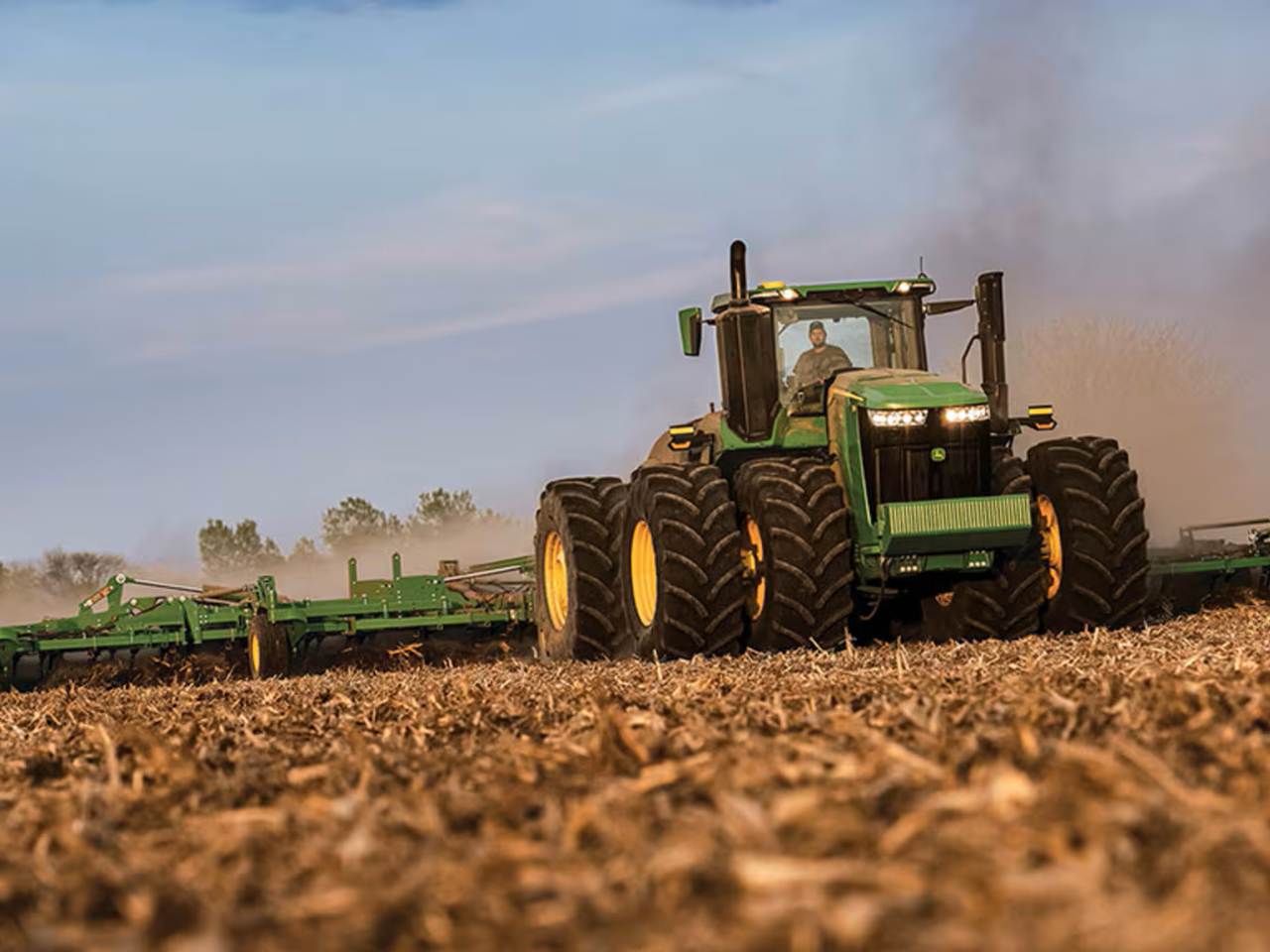

9R 490 Tractor
Row Crop 4WD Tractors
Explore the superior power and advanced technology of the John Deere 9R 490 Tractor.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 9320RW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs11 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Rated Engine Power
- 360 kW
- Maximum Engine Power
- 396 kW
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
- Rear Hitch Category (SAE Designation)
- Category 4N: 6804 kg (15,000 lb); Category 4N: 9072 kg (20,000 lb); Category 4N/4: 6804 kg; Category 4N/4: 9072 kg
- Pump Rated Output
- Standard: 208 L/min / 55 gpm; Optional: 416 L/min / 110 gpm
- Base Machine Weight (Imperial)
- 40660 lb.
- Base Machine Weight (Metric)
- 18482 kg
Engine17 specifications
- Engine Model
- JD14
- Engine Family
- MJDXL13.5334
- Emissions Certifications
- Final Tier 4 (FT4)
- Displacement (Imperial)
- 827 cu in.
- Displacement (Other)
- 13.6 L
- Aspiration
- Single wastegated turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation (EGR)
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Diesel oxidation catalyst (DOC)/selective catalytic reduction (SCR)
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power
- 360 kW
- Engine Torque at Rated Speed (Imperial)
- 1668.0 lb-ft
- Engine Torque at Rated Speed (Metric)
- 2262 Nm
- Maximum Engine Power
- 396 kW
- Maximum Engine Torque
- At 1550 rpm: 2262 Nm / 1668 lb-ft
- Power Bulge
- 10 %
- Torque Rise
- 38 %
Transmission2 specifications
- Transmission Type
- John Deere e18™ 18-speed PowerShift™ with Efficiency Manager™
- Maximum Speed Forward
- 40 km/h / 25 mph
Rear Power Take-Off (PTO)5 specifications
- Rated PTO Power (Imperial)
- 335 hp
- Rated PTO Power (Metric)
- 249 kW
- Rated PTO Power (Other)
- 340 PS
- Engagement Method
- Electrohydraulic
- Number of Splines
- 20
Rear Hitch5 specifications
- Rear Hitch Category (SAE Designation)
- Category 4N: 6804 kg (15,000 lb); Category 4N: 9072 kg (20,000 lb); Category 4N/4: 6804 kg; Category 4N/4: 9072 kg
- Maximum Lift Capacity Directly at Coupling Points
- 20,000 lb / 9072 kg
- Lift Capacity Through Full Lift Range at Coupling Points
- 9072 kg
- Sensing Type
- Electrohydraulic with draft sensing
- Draft Control Sensing
- Electrohydraulic with draft sensing
Drawbar2 specifications
- Drawbar Category
- Category 5
- Maximum Vertical Load
- 12,000 lb / 5440 kg
Hydraulics5 specifications
- Hydraulic System Type
- Closed-center, pressure-and-flow compensated
- Pump Rated Output
- Standard: 208 L/min / 55 gpm; Optional: 416 L/min / 110 gpm
- Number of Rear Selective Control Valves (SCVs)
- Four to six factory or field installed; Base: four 1.3-cm (1/2-in.) couplers; Optional: five to six 1.3-cm (1/2-in.) couplers factory installed; Optional: three 1.9-cm (3/4-in.) couplers plus three 1.3-cm (1/2-in.) couplers factory installed
- Available Flow at a Single Rear SCV
- 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm); 1.9-cm (3/4-in.) couplers: 159 L/min (42 gpm)
- SCV Control
- Electronic
Front Axle2 specifications
- Front Axle Type
- Diameter: 120 x 3048 mm (4.72 x 120 in.)
- Front Axle Differential Lock
- Full-locking electrohydraulic
Rear Axle3 specifications
- Rear Axle Type
- Diameter: 120 x 3048 mm (4.72 x 120 in.)
- Rear Differential Lock
- Full-locking electrohydraulic
- Final Drive
- Inboard planetary with double-reduction axle
Steering & Brakes1 specifications
- Steering Type
- Standard: Hydraulic power steering; Optional: ActiveCommand Steering (ACS™)
Electrical System4 specifications
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 2850 CCA
- Alternator Capacity
- Standard: 250 amp; Optional: 330 amp
- Working Lights
- Standard: 18 halogen; Optional: 18 or 24 LED plus 8 LED convenience lights
Operator Station10 specifications
- Seat Suspension
- Standard: Air suspension; Optional: ActiveSeat™ II
- Degree of Seat Swivel, Left Hand
- 8 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Instructional Seat
- Standard
- Primary Display
- Standard: Generation 4 4600 CommandCenter™: 25.4 cm / 10 in.; Optional: Extended monitor
- Radio
- Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna; Optional: Touchscreen radio
- Inner Cab Volume (Imperial)
- 115.0 cu ft
- Inner Cab Volume (Metric)
- 3.27 m³
- Cab Glass Area (Imperial)
- 71.47 sq ft
- Cab Glass Area (Metric)
- 6.64 m²
Technology Integration3 specifications
- Guidance
- Integrated AutoTrac™
- Connectivity
- Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- Available with activated JDLink™ hardware and activations
Capacities10 specifications
- Fuel Tank Capacity (Imperial)
- 400 gal.
- Fuel Tank Capacity (Metric)
- 1514 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 31.7 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 120.0 L
- Cooling System Capacity (Imperial)
- 14.9 gal.
- Cooling System Capacity (Metric)
- 56.5 L
- Transmission Hydraulic System (Imperial)
- With 3-point hitch and PTO: 60 Without 3-point hitch and PTO: 58 gal.
- Transmission Hydraulic System (Metric)
- With 3-point hitch and PTO: 242 Without 3-point hitch and PTO: 235 L
- Crankcase Oil Volume (Imperial)
- 16.9 gal.
- Crankcase Oil Volume (Metric)
- 64 L
Dimensions & Weights10 specifications
- Wheelbase (Imperial)
- 154.0 in.
- Wheelbase (Metric)
- 3912 mm
- Base Machine Weight (Imperial)
- 40660 lb.
- Base Machine Weight (Metric)
- 18482 kg
- Overall Length (Imperial)
- 312.8 in.
- Overall Length (Metric)
- 7945 mm
- Drawbar Ground Clearance (Imperial)
- 20.7 in.
- Drawbar Ground Clearance (Metric)
- 527 mm
- Maximum Ballast Level (Imperial)
- 60000 lb.
- Maximum Ballast Level (Metric)
- 27216 kg
Additional Information2 specifications
- Country of Manufacture
- USA
- Date Collected
- 01/22/2022
