John Deere

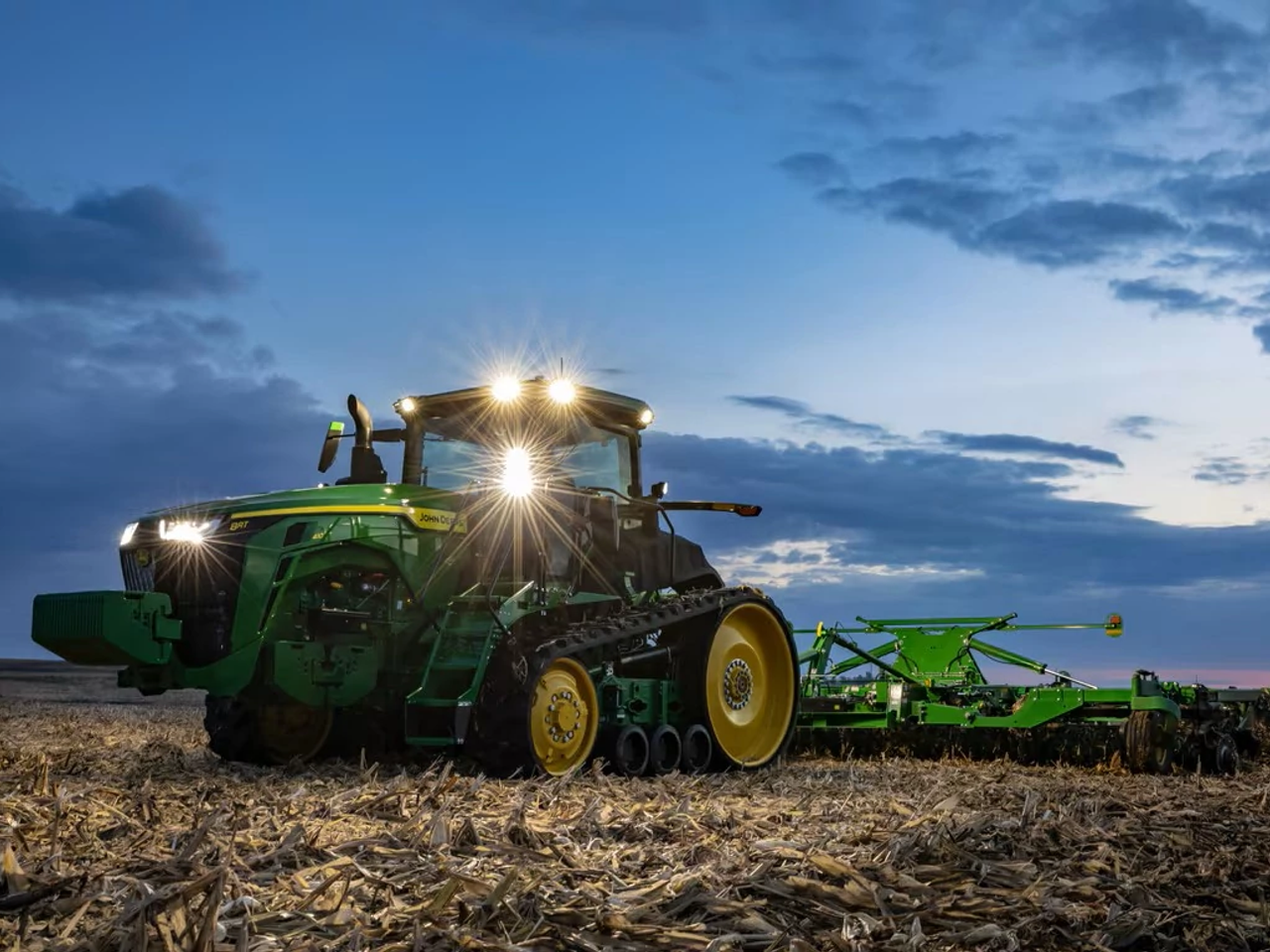

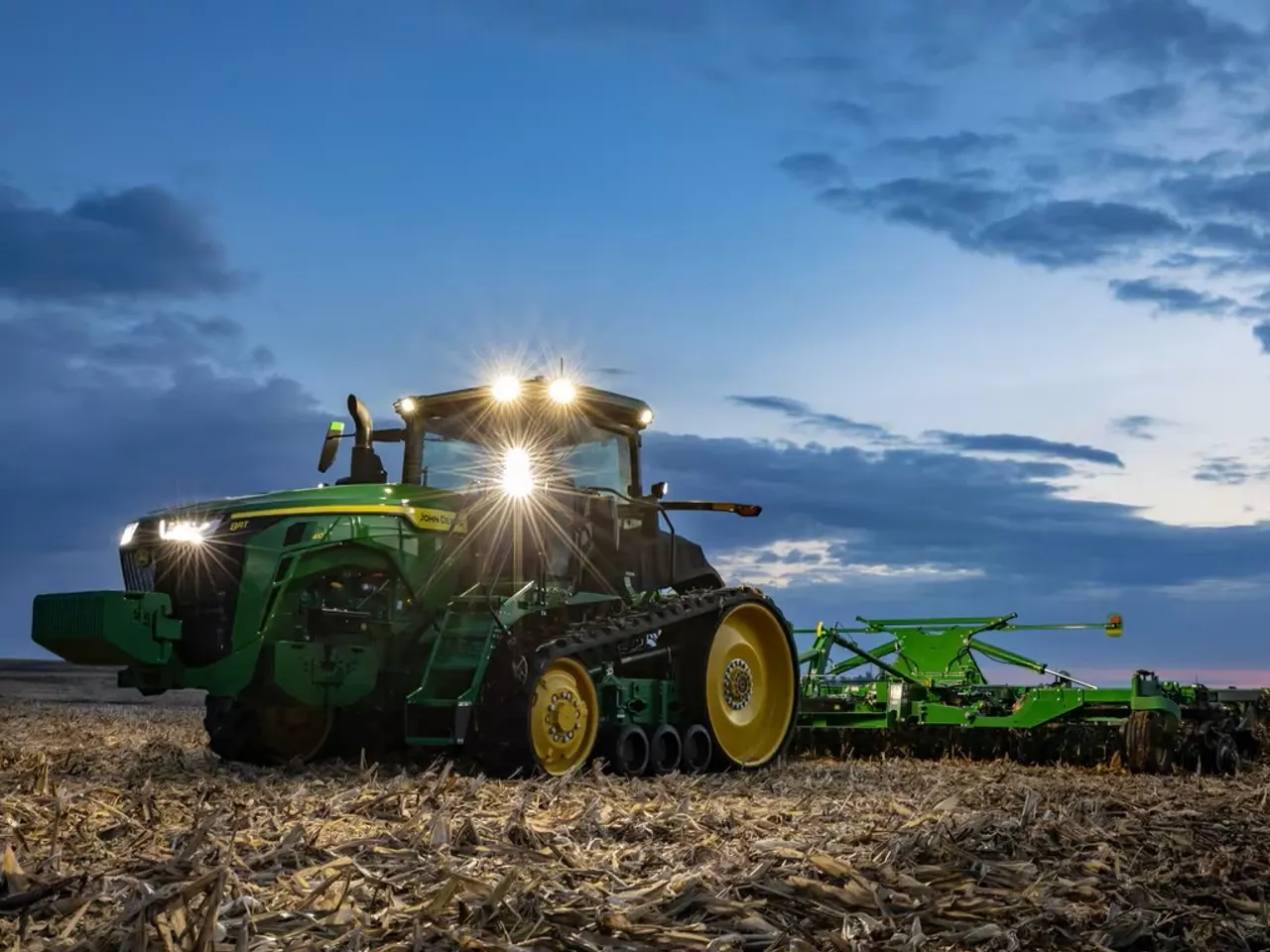

8RT 340 Tractor
Row Crop 4WD Tractors
Explore the John Deere 8RT 340 tractor featuring 340 hp, precision agriculture technology, tracked mobility, and operator comfort.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 8210RW
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Engine Make
- John Deere PowerTech™ 9.0 L (B20 diesel compatible)
- Engine Model
- PowerTech™ 9.0 L
- Engine Family
- MJDXL09.0333
- Displacement (Imperial)
- 549 cu in.
- Displacement (Other)
- 9.0 L
- Rated Engine Power
- 250 kW
- Maximum Engine Power
- 275 kW
- Transmission Type
- Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h (25 mph); Optional: John Deere AutoPowr IVT 40K, 0.05-42 km/h (0.03-26 mph)
- Rear Hitch Category (SAE Designation)
- Category 4N/3 at 610 mm (24 in.) behind hitch point: 9072 kg / 20,000 lb; Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg / 15,000 lb
- Pump Rated Output
- 85-cc pump: 227.1 L/min (60 gpm)
- Base Machine Weight (Imperial)
- 34400 lb.
- Base Machine Weight (Metric)
- 15600 kg
Machine Configuration2 specifications
- Wheel or Track Configuration
- 2-Track
- Drive Type
- 4WD
Engine20 specifications
- Engine Make
- John Deere PowerTech™ 9.0 L (B20 diesel compatible)
- Engine Model
- PowerTech™ 9.0 L
- Engine Family
- MJDXL09.0333
- Emissions Certifications
- Final Tier 4
- Displacement (Imperial)
- 549 cu in.
- Displacement (Other)
- 9.0 L
- Aspiration
- Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation
- Number of Cylinders
- 6
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power
- 250 kW
- Engine Torque at Rated Speed (Imperial)
- 1174.0 lb-ft
- Engine Torque at Rated Speed (Metric)
- 1592 Nm
- Maximum Engine Power
- 275 kW
- Maximum Engine Torque
- At 1600 rpm: 1592 Nm / 1174 lb-ft
- Power Bulge
- 10 %
- Fuel Type
- Diesel
- Alternative Fuel Type
- B20 diesel compatible
- Torque Rise
- 40 %
Transmission3 specifications
- Transmission Type
- Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h (25 mph); Optional: John Deere AutoPowr IVT 40K, 0.05-42 km/h (0.03-26 mph)
- Maximum Speed Forward
- Standard: 40 km/h (25 mph); Optional: 42 km/h (26 mph)
- Minimum Speed Forward
- 0.05 km/h (0.03 mph)
Rear Power Take-Off (PTO)7 specifications
- PTO Category
- 45 mm (1.75 in.) 20-spline, 1000 rpm
- Rated PTO Power (Imperial)
- 284 hp
- Rated PTO Power (Metric)
- 211 kW
- Rated PTO Power (Other)
- 288 PS
- Engine rpm at Rated PTO Speeds (540/1.000)
- 1000 PTO rpm: 2000 rpm
- Engagement Method
- Electrohydraulic with adjustable modulation
- Number of Splines
- 20
Rear Hitch4 specifications
- Rear Hitch Category (SAE Designation)
- Category 4N/3 at 610 mm (24 in.) behind hitch point: 9072 kg / 20,000 lb; Optional: Category 4N/3 at 610 mm (24 in.) behind hitch point: 6803 kg / 15,000 lb
- Maximum Lift Capacity at 610 mm Behind Hitch Point
- Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg 26,729 lb
- Lift Capacity Through Full Lift Range at 610 mm Behind Hitch Point
- Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg 26,729 lb
- Sensing Type
- Electrohydraulic
Drawbar2 specifications
- Drawbar Category
- Category 4 with heavy-duty support; Optional: Category 4
- Maximum Vertical Load
- 4990 lb / 11,000 lb; Optional: 2245 kg / 4950 lb
Hydraulics5 specifications
- Hydraulic System Type
- Closed-center, pressure/flow compensated system with load sensing
- Pump Rated Output
- 85-cc pump: 227.1 L/min (60 gpm)
- Number of Rear Selective Control Valves (SCVs)
- Standard: 1.3-cm (1/2-in.) ISO couplers: 4; Optional: 1.3-cm (1/2-in.) ISO couplers: 5 and 6 available
- Available Flow at a Single Rear SCV
- 1.3-cm (1/2-in.) couplers: 132 L/min (35 gpm)
- SCV Control
- Electronic
Rear Axle1 specifications
- Final Drive
- Inboard planetary three pinion
Steering & Brakes1 specifications
- Steering Type
- Electric command steering with electric pump backup
Tracks4 specifications
- Track Drive Type
- Camso® 4500 General Ag Series - friction drive track belts
- Track Tread Spacing
- 1828.8 to 3048 mm / 72 to 120 in.
- Track Width
- Standard: 635 mm / 25 in.; Available: 419 mm / 16.5 in.; 457 mm / 18 in.; 609 mm / 24 in.; 762 mm / 30 in.
- Number Of Mid Rollers
- Three
Electrical System5 specifications
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 1900 CCA
- Alternator Capacity
- 200 amp; 330 amp optional
- Working Lights
- 18 halogen; Available: 20 light-emitting diode (LED) or 24 LED
- Driving Lights
- Halogen, 65 W; Available: LED

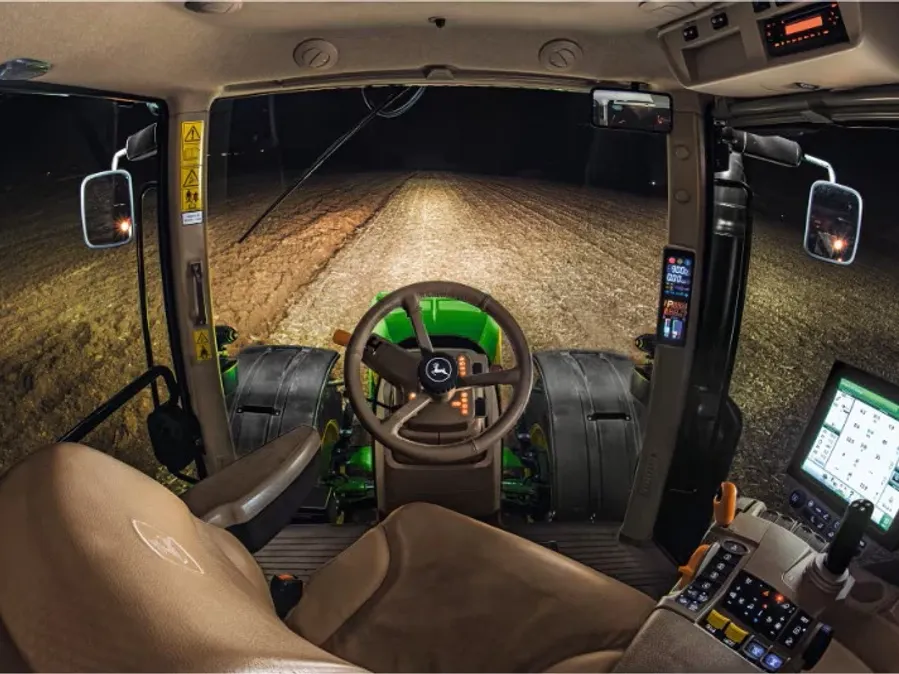

Operator Station11 specifications
- Seat Suspension
- Air suspension
- Degree of Seat Swivel, Left Hand
- 25 degree (angle)
- Degree of Seat Swivel, Right Hand
- 40 degree (angle)
- Cab Suspension
- Four-post cab suspension
- Instructional Seat
- Standard

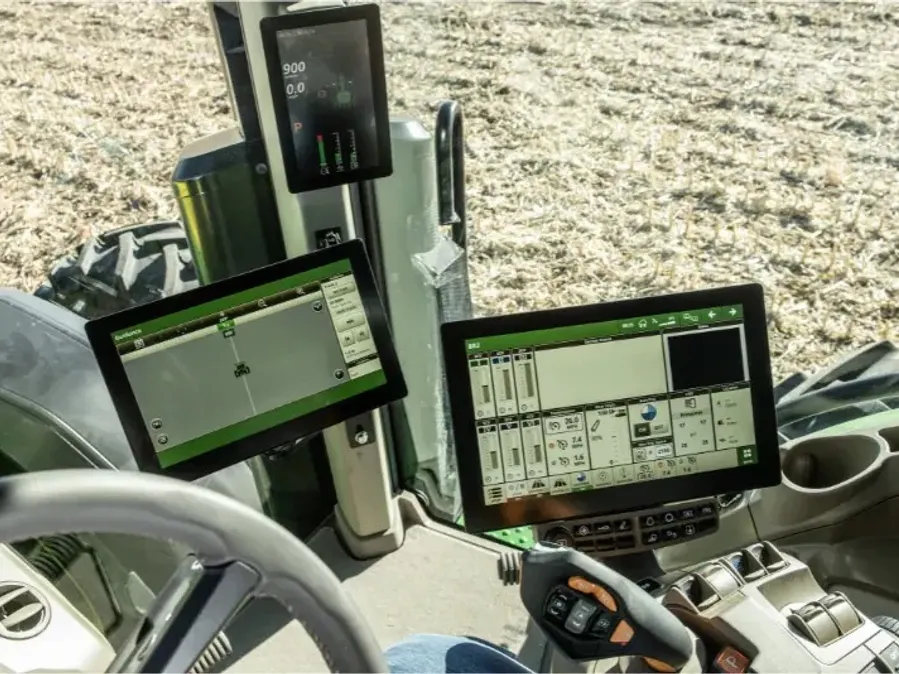

- Primary Display
- G5ᴾˡᵘˢ 12.8 in. (325 mm)
- Radio
- AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
- Inner Cab Volume (Imperial)
- 114.0 cu ft
- Inner Cab Volume (Metric)
- 3.24 m³
- Cab Glass Area (Imperial)
- 70.18 sq ft
- Cab Glass Area (Metric)
- 6.52 m²
Technology Integration3 specifications
- Guidance
- Integrated AutoTrac™
- Connectivity
- JDLink™ hardware standard, activations, and Ethernet harnesses (availability dependent upon destination)
- Remote Diagnostics
- JDLink™ hardware standard
Capacities10 specifications
- Fuel Tank Capacity (Imperial)
- 202 gal.
- Fuel Tank Capacity (Metric)
- 764 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 8.3 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 31.3 L
- Cooling System Capacity (Imperial)
- 11.2 gal.
- Cooling System Capacity (Metric)
- 42.3 L
- Transmission Hydraulic System (Imperial)
- 52 gal.
- Transmission Hydraulic System (Metric)
- 197 L
- Crankcase Oil Volume (Imperial)
- 6.8 gal.
- Crankcase Oil Volume (Metric)
- 25.7 L
Dimensions & Weights6 specifications
- Base Machine Weight (Imperial)
- 34400 lb.
- Base Machine Weight (Metric)
- 15600 kg
- Maximum Ballast Level (Imperial)
- 39000 lb.
- Maximum Ballast Level (Metric)
- 17700 kg
- Maximum Permissible Weight (Imperial)
- 40100 lb.
- Maximum Permissible Weight (Metric)
- 18200 kg
Additional Information2 specifications
- Country of Manufacture
- USA
- Date Collected
- 2025_04_03T00:00:00.0000000
