John Deere
Model8RT 310 Tractor
Row Crop 4WD Tractors

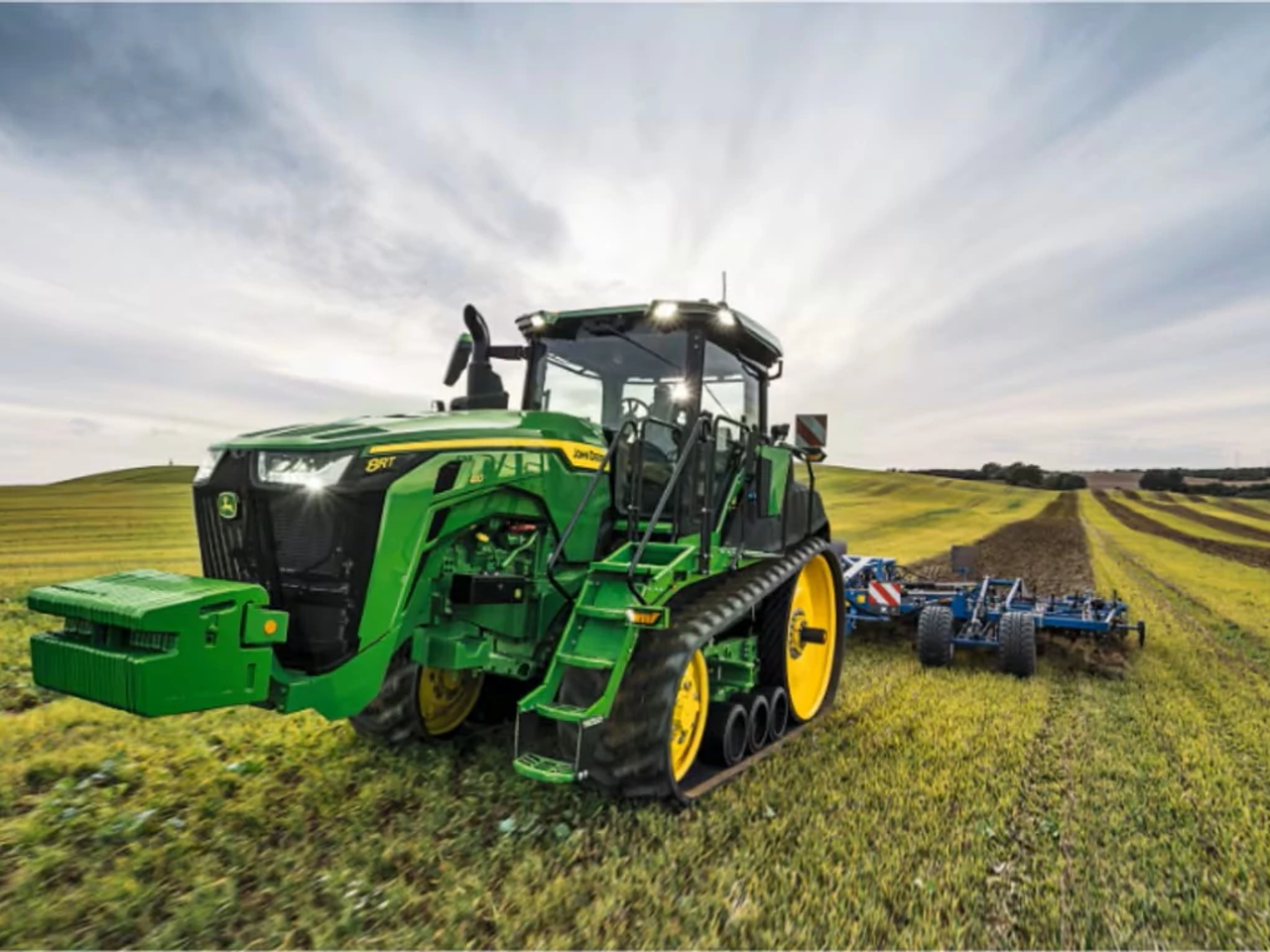

John Deere 8RT 310 tracked tractor with 310 hp, precision ag technology, advanced suspension, and powerful performance for field operations.
Model / part number: 8200RW
Key specifications
- Engine Make
- John Deere
- Engine Model
- PowerTech™ 9.0 L
- Engine Family
- MJDXL09.0333
- Displacement (Imperial)
- 549 cu in.
Technical specifications
71 specifications
Key Specs12 details
- Engine Make
- John Deere
- Engine Model
- PowerTech™ 9.0 L
- Engine Family
- MJDXL09.0333
- Displacement (Imperial)
- 549 cu in.
- Displacement (Other)
- 9.0 L
- Rated Engine Power (Imperial)
- 306 hp
- Rated Engine Power (Metric)
- 228 kW
- Rated Engine Power (Other)
- 310 PS
- Maximum Engine Power
- 251 kW
- Transmission Type
- Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h (24.9 mph); Optional: 16-speed PowerShift 40 km/h; e23 PowerShift with Efficiency Manager 50K, 50 km/h (31 mph); John Deere AutoPowr IVT 40K, 0.05-42 km/h (0.03-26 mph); John Deere AutoPowr IVT 50K, 0.05-50 km/h (0.03-31 mph)
- Base Machine Weight (Imperial)
- 27584 lb.
- Base Machine Weight (Metric)
- 12538 kg
Machine Configuration2 details
- Wheel or Track Configuration
- 2-Track
- Drive Type
- 4WD
Engine21 details
- Engine Make
- John Deere
- Engine Model
- PowerTech™ 9.0 L
- Engine Family
- MJDXL09.0333
- Emissions Certifications
- Final Tier 4
- Displacement (Imperial)
- 549 cu in.
- Displacement (Other)
- 9.0 L
- Aspiration
- Single, variable geometry turbo; air-to-air aftercooling and cooled exhaust gas recirculation
- Cylinder Liners
- Wet-sleeve
- Aftertreatment Type
- Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)/selective catalytic reduction (SCR)
- Rated Engine Speed
- 2100 rpm
- Rated Engine Power (Imperial)
- 306 hp
- Rated Engine Power (Metric)
- 228 kW
- Rated Engine Power (Other)
- 310 PS
- Engine Torque at Rated Speed (Imperial)
- 1070.0 lb-ft
- Engine Torque at Rated Speed (Metric)
- 1452 Nm
- Maximum Engine Power
- 251 kW
- Maximum Engine Torque
- At 1600 rpm: 1452 Nm / 1070 lb-ft
- Power Bulge
- 10 %
- Fuel Type
- Diesel
- Alternative Fuel Type
- B20 Diesel Compatible
- Torque Rise
- 40 %
Transmission2 details
- Transmission Type
- Standard: e23 PowerShift with Efficiency Manager 40K, 40 km/h (24.9 mph); Optional: 16-speed PowerShift 40 km/h; e23 PowerShift with Efficiency Manager 50K, 50 km/h (31 mph); John Deere AutoPowr IVT 40K, 0.05-42 km/h (0.03-26 mph); John Deere AutoPowr IVT 50K, 0.05-50 km/h (0.03-31 mph)
- Maximum Speed Forward
- 42 km/h (26 mph)
Rear Power Take-Off (PTO)9 details
- PTO Category
- Standard: 45 mm (1.75 in.) 20-spline, 1,000 rpm; Optional: 45 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm (1.375 in.) 540/1000 rpm; 45 mm (1.75 in.) 20-spline, 1,000 rpm/1,000E rpm
- Rated PTO Power (Imperial)
- 310 hp
- Rated PTO Power (Metric)
- 228 kW
- Rated PTO Power (Other)
- 261 PS
- Economy PTO Speeds
- 1000E rpm
- Engine rpm at Rated PTO Speeds (540/1.000)
- 1810 / 1995
- Engine rpm at Rated PTO Speeds (1000/1000 E/1.300)
- 1,000 PTO rpm at 2,000 engine rpm
- Engagement Method
- Electrohydraulic with adjustable modulation
- Number of Splines
- 20
Front PTO1 detail
- Front PTO Rotation
- 35 mm (1.375 in.) 21 spline, 1000 rpm; 45 mm (1.75 in.) 20 spline, 1000 rpm (available through parts only); 35 mm (1.375 in.) 6 spline, 1000 rpm (available dependent on location)
Rear Hitch1 detail
- Lift Capacity Through Full Lift Range at 610 mm Behind Hitch Point
- Standard (at 610-mm [24-in.] behind hitch point): 12,124 kg 26,729 lb
Electrical System2 details
- Battery Voltage
- 12 V
- Battery Cold Cranking Amps
- 1900 CCA
Operator Station6 details
- Degree of Seat Swivel, Left Hand
- 25 degree (angle)
- Degree of Seat Swivel, Right Hand
- 50 degree (angle)
- Inner Cab Volume (Imperial)
- 114.0 cu ft
- Inner Cab Volume (Metric)
- 3.24 m³
- Cab Glass Area (Imperial)
- 70.18 sq ft
- Cab Glass Area (Metric)
- 6.52 m²
Capacities8 details
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 8.3 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 31.3 L
- Cooling System Capacity (Imperial)
- 11.2 gal.
- Cooling System Capacity (Metric)
- 42.3 L
- Transmission Hydraulic System (Imperial)
- 52 gal.
- Transmission Hydraulic System (Metric)
- 197 L
- Crankcase Oil Volume (Imperial)
- 6.8 gal.
- Crankcase Oil Volume (Metric)
- 25.7 L
Dimensions & Weights6 details
- Base Machine Weight (Imperial)
- 27584 lb.
- Base Machine Weight (Metric)
- 12538 kg
- Maximum Ballast Level (Imperial)
- 39000 lb.
- Maximum Ballast Level (Metric)
- 17700 kg
- Maximum Permissible Weight (Imperial)
- 40100 lb.
- Maximum Permissible Weight (Metric)
- 18200 kg
Additional Information1 detail
- Country of Manufacture
- USA
