John Deere
E130 Lawn Tractor
Lawn Tractors

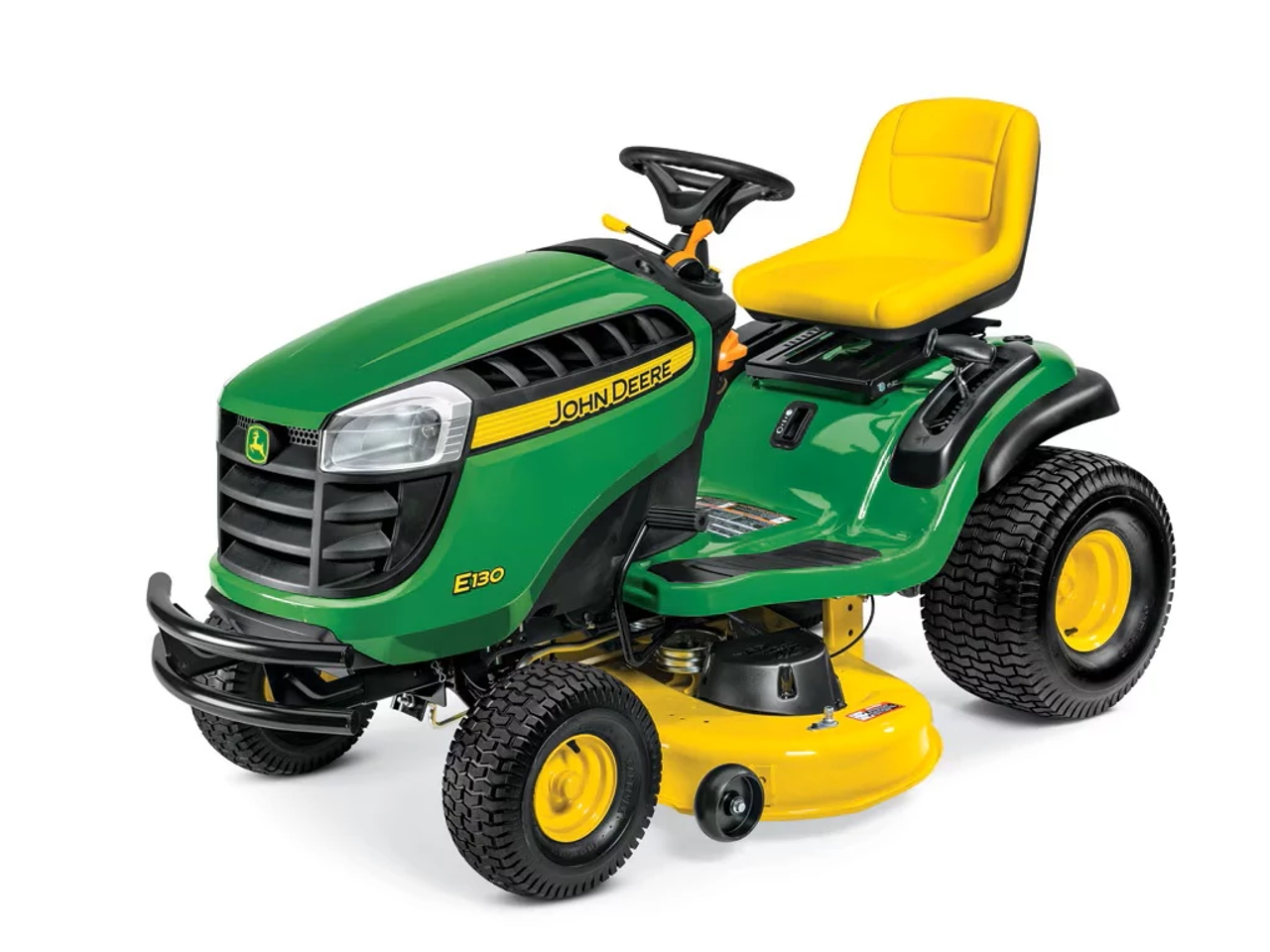

John Deere E130 Lawn Tractor with 42-in. Deck. Confirm the current configuration and Eswatini availability with SwaziTrac.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1710GX
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Engine Power (Metric)
- 16.4 kW
- Engine Power (Imperial)
- 22.0 hp
- Engine Manufacturer/Model
- 44N677 (M44)
- Transaxle Type
- Hydrostatic, 2-wheel drive
- Transaxle Control
- Two-pedal foot-controlled hydrostatic
- Rear Tires
- 20x8-8
- Lift System Type
- Lever on fender deck
- Cutting Width (Metric)
- 107 cm
- Cutting Width (Imperial)
- 42 in.
- Warranty
- 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

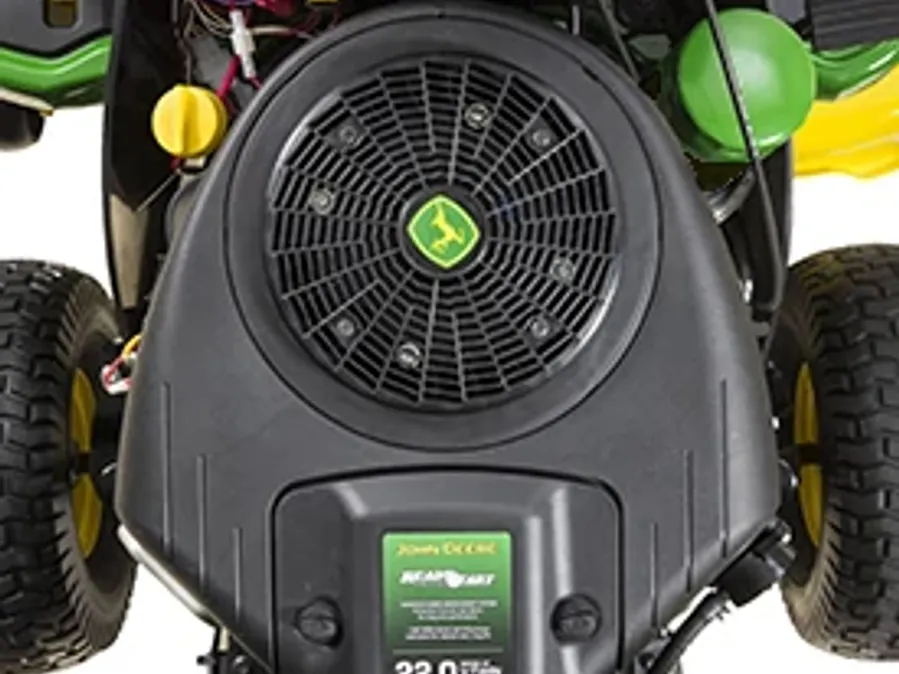

Engine12 specifications
- Engine Power (Metric)
- 16.4 kW
- Engine Power (Imperial)
- 22.0 hp
- Displacement (Metric)
- 724.0 cc
- Displacement (Imperial)
- 44.2 cu in.
- Engine Manufacturer/Model
- 44N677 (M44)
- Engine Type
- Overhead valve, full-pressure lube, oil filter
- Cylinders
- V-twin
- Governor
- Mechanical
- Choke/Speed Control
- One lever, ReadyStart®
- Cooling Method
- Air
- Air Cleaner
- Cartridge
- Oil Change
- No tools
Fuel System9 specifications
- Type
- Gasoline
- Fuel Delivery
- Pulse pump and carburetor
- Fuel Gauge
- Mechanical, viewable from seat
- Fuel Tank Location
- Rear
- Fuel Fill Opening
- Center
- Fuel Fill Opening (Metric)
- 4.45 cm
- Fuel Fill Opening (Imperial)
- 1.75 in.
- Fuel Tank Capacity (Metric)
- 9.1 L
- Fuel Tank Capacity (Imperial)
- 2.4 U.S. gal.
Electrical System11 specifications
- Battery Voltage
- 12.0 V
- Battery Cold Crank Amps
- 330.0 CCA
- Charging System
- Regulated, 9 amp
- Charging System (Imperial)
- 9.0 amp
- Engine Starter
- Bendix type
- Hour Meter
- Yes, with service reminder
- Headlights
- Two standard, incandescent
- Taillights Or Reflector
- No
- Backup Lights
- No
- Rear Work Lights
- No
- 12 V Outlet
- No
Transaxle11 specifications
- Transaxle Type
- Hydrostatic, 2-wheel drive
- Transaxle Control
- Two-pedal foot-controlled hydrostatic
- Cruise Control
- Standard
- Oil Cooler
- Fins and fan on transaxle
- Oil Filter
- Yes, not serviceable
- Differential Lock
- No
- Forward Speed (Metric)
- 8.9 km/h
- Forward Speed (Imperial)
- 5.5 mph
- Reverse Speed (Metric)
- 5.1 km/h
- Reverse Speed (Imperial)
- 3.2 mph
- Brakes
- Disc
Chassis16 specifications
- Frame
- Full-length welded steel
- Primer/Paint
- E-coat/powder
- Weight Bracket
- Optional rear
- Receiver Hitch
- No
- Front Axle
- Cast-iron front axle, powdered-metal front wheel bushings
- Spindle Bushings
- No
- Front Tires
- 15x6-6
- Rear Tires
- 20x8-8
- Hood Material
- JD Loy, UV resistant
- Fender Deck Material
- Stamped steel
- Floor Mats
- Yes, with debris removing channels
- Storage
- Storage tray with cover
- Service Interval Decal
- Yes
- Fender Handles/Grips
- No
- Cup Holder
- Yes
- Equipment Mounting
- CargO Mount™ system
Steering9 specifications
- Type
- Sector and pinion with single drag link and tie rod
- Four Wheel Steer
- Not available on this model
- Steering Wheel (Metric)
- 30.5 cm
- Steering Wheel (Imperial)
- 12.0 in.
- Tilt Steering Wheel
- No
- Turning Radius (Metric)
- 45.7 cm
- Turning Radius (Imperial)
- 18.0 in.
- Uncut Circle Radius (Metric)
- 63.5 cm
- Uncut Circle Radius (Imperial)
- 25.0 in.
Seat7 specifications
- Type
- One piece
- Seat Back Height (Metric)
- 38.1 cm
- Seat Back Height (Imperial)
- 15.0 in.
- Armrests
- No
- Fore Aft Adjustment (Metric)
- 14.0 cm
- Fore Aft Adjustment (Imperial)
- 5.5 in.
- Seat Suspension
- Tilt, two coil springs
Lift System9 specifications
- Lift System Type
- Lever on fender deck
- Hydraulic Outlets
- No
- Mower Cut Height Minimum (Metric)
- 2.5 cm
- Mower Cut Height Minimum (Imperial)
- 1.0 in.
- Mower Cut Height Maximum (Metric)
- 10.2 cm
- Mower Cut Height Maximum (Imperial)
- 4.0 in.
- Cut Height Increments (Metric)
- 0.64 cm
- Cut Height Increments (Imperial)
- 0.25 in.
- Preset Cut Height
- No
Mower Deck12 specifications
- Type
- Side discharge
- Cutting Width (Metric)
- 107 cm
- Cutting Width (Imperial)
- 42 in.
- Construction
- Stamped steel deck shell
- Mower Deck Material (Other)
- 13.0 gauge
- Mower Deck Material (Metric)
- 2.3 mm
- Mower Deck Material (Imperial)
- 0.09 in.
- Mower Wash Port
- Yes
- Mower Drive System
- Manual power take-off (PTO)
- Mower Wheels
- Two
- Mower Wheel Adjustment
- One bolt
- Mower Level Adjustment
- Easy-level deck
Mower Attachability5 specifications
- Type
- Slide under tractor
- Front Draft Arms
- One spring clip
- Rear Draft Arms
- Two spring clips
- Mower Wheels Rotate
- No
- Drive System
- Single belt
Safety4 specifications
- Meets ANSI Standard
- Yes
- Meets OPEI Standard
- Yes
- Backup Protection
- Reverse Implement Option (RIO)
- Safety Video
- Yes
Buyer's Notes2 specifications
- Notes
- JD Loy hood resists fading, won't rust or dent; Durable primer and powder paint finish; Full-length welded steel frame
- Warranty
- 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional Equipment18 specifications
- Mowers
- Standard, 107 cm (42 in.)
- Rear Bagger (Metric)
- 229.0 L
- Rear Bagger (Imperial)
- 6.5 bu
- Mulching System
- Mulch cover or high-performance plug
- Front Blade (Metric)
- 116.8 cm
- Front Blade (Imperial)
- 46.0 in.
- Sprayer Tow Behind (Metric)
- 56.8 L
- Sprayer Tow Behind (Imperial)
- 15.0 U.S. gal.
- Sprayer Mounted (Metric)
- 56.8 L
- Sprayer Mounted (Imperial)
- 15.0 U.S. gal.
- Spreader Tow Behind (Metric)
- 80.0 kg
- Spreader Tow Behind (Imperial)
- 175.0 lb.
- Front Bumper
- Standard two-bar styled front bumper
- Weather Protection
- Snow cab
- Sun Canopy
- Yes
- Bucket Holder
- Yes, single bucket
- Grass Striping
- Lawn striping kit
- Tow Behind Tools
- 16
Dimensions7 specifications
- Height
- 44.5 in.
- Overall Length
- 73.3 in.
- Wheelbase
- 48.9 in.
- Width With Mower
- 54.9 in.
- Width With Mower (Deflector Raised For Storage)
- 44.8 in.
- Weight (Metric)
- 199.0 kg
- Weight (Imperial)
- 438.0 lb.
