John Deere
2680H - Integral, 11 ft, 8 in. High Performance Disk
Disks

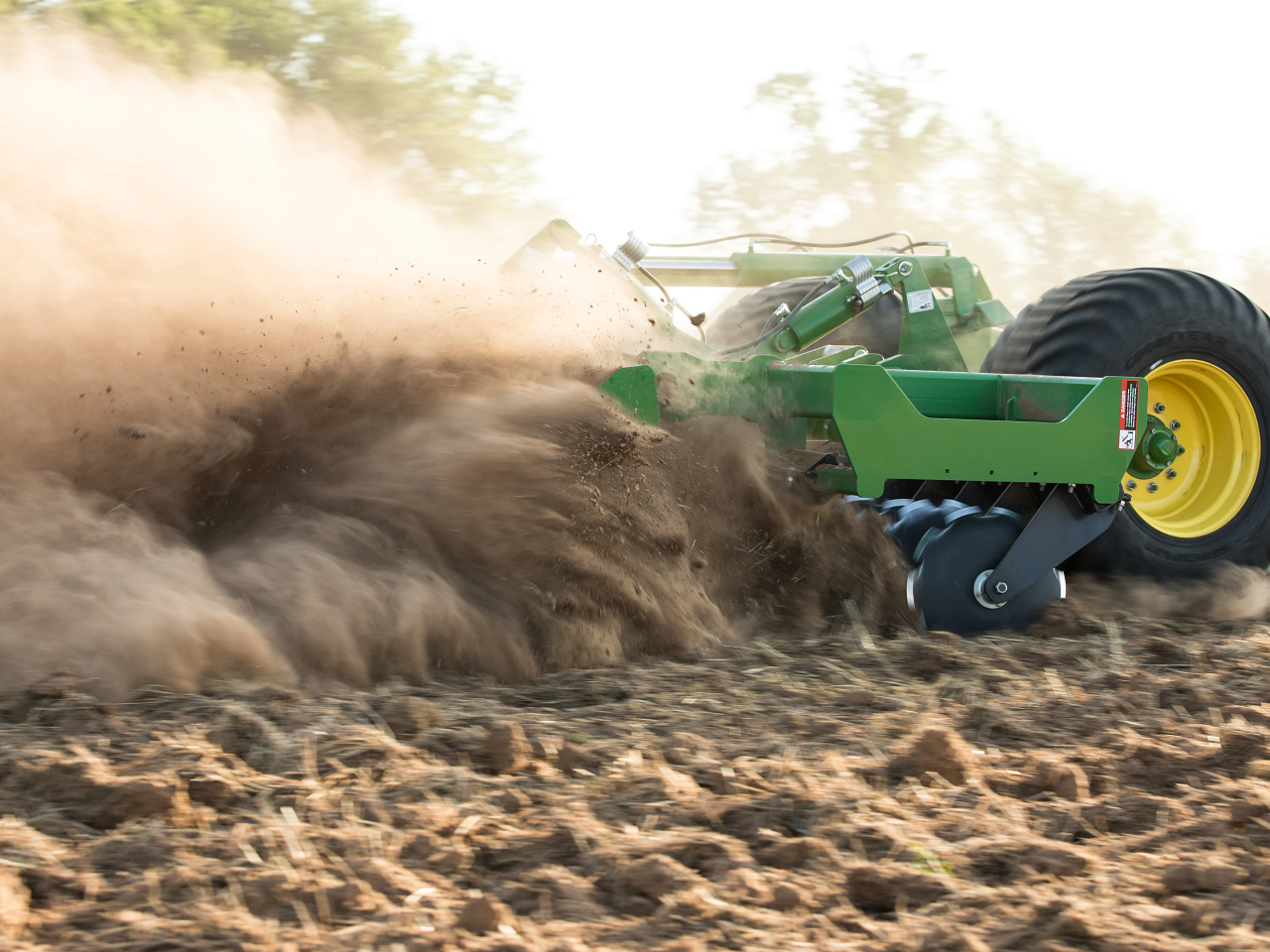

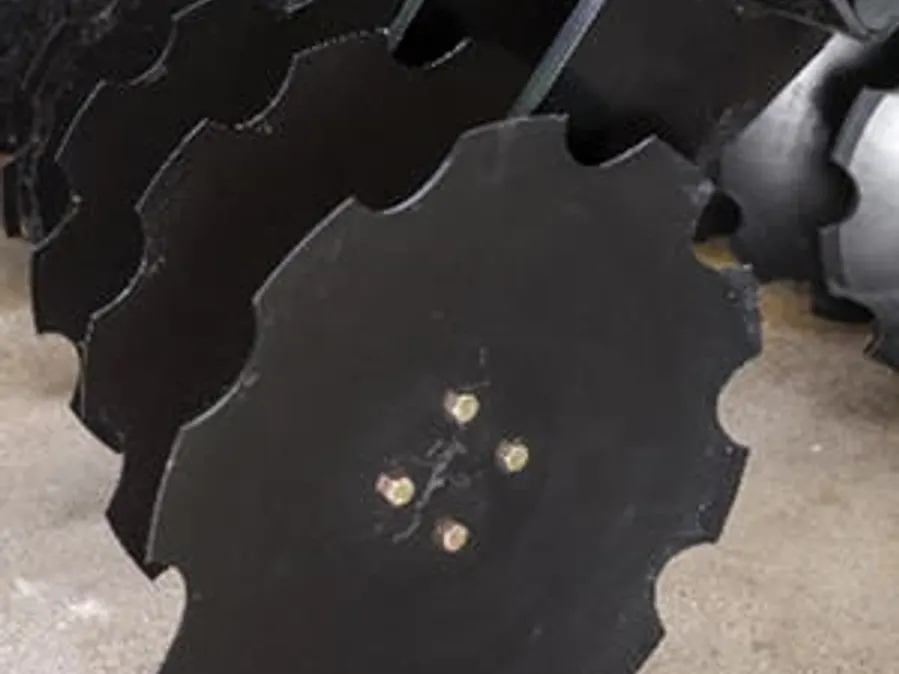

John Deere 2680H High‑Performance Disk covers acres fast—up to 14 mph—with 20‑in. blades and TruSet in‑cab control. Available in 3 widths, it sizes and buries residue for a firm, level seedbed and matches a wide range of tractor power.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 6803XF
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs8 specifications
- Working Width (Imperial)
- 11, 8 ft, in.
- Working Width (Metric)
- 3.6 m
- Transport Width (Imperial)
- 12, 7 ft, in.
- Transport Width (Metric)
- 3.8 m
- Disk Spacing (Imperial)
- 10.0 in.
- Disk Spacing (Metric)
- 25.4 cm
- Working Depth (Imperial)
- 2 - 6 in.
- Working Depth (Metric)
- 5.1 - 15.2 cm
Dimensions10 specifications
- Working Width (Imperial)
- 11, 8 ft, in.
- Working Width (Metric)
- 3.6 m
- Unfolded Width (Imperial)
- 12, 7 ft, in.
- Unfolded Width (Metric)
- 3.8 m
- Transport Width (Imperial)
- 12, 7 ft, in.
- Transport Width (Metric)
- 3.8 m
- Unfolded Length (Imperial)
- 8, 3 ft, in.
- Unfolded Length (Metric)
- 2.51 m
- Transport Length (Imperial)
- 8, 3 ft, in.
- Transport Length (Metric)
- 2.51 m
Compatibility2 specifications
- Recommended Engine Power (Imperial)
- 175.0 hp
- Recommended Engine Power (Metric)
- 130.5 kW
Frame2 specifications
- Frame Clearance (Imperial)
- 22.0 in.
- Frame Clearance (Metric)
- 55.9 cm
Ground Engaging11 specifications
- Disk Spacing (Imperial)
- 10.0 in.
- Disk Spacing (Metric)
- 25.4 cm
- Number Of Disks
- 28
- Working Depth (Imperial)
- 2 - 6 in.
- Working Depth (Metric)
- 5.1 - 15.2 cm
- Arm Travel (Imperial)
- 9.0 in.
- Arm Travel (Metric)
- 22.9 cm
- Front Rank Angle
- 17.0 degree (angle)
- Front Rank Tilt
- 0.0 degree (angle)
- Rear Rank Angle
- 14.0 degree (angle)
- Rear Rank Tilt
- 0.0 degree (angle)
