John Deere

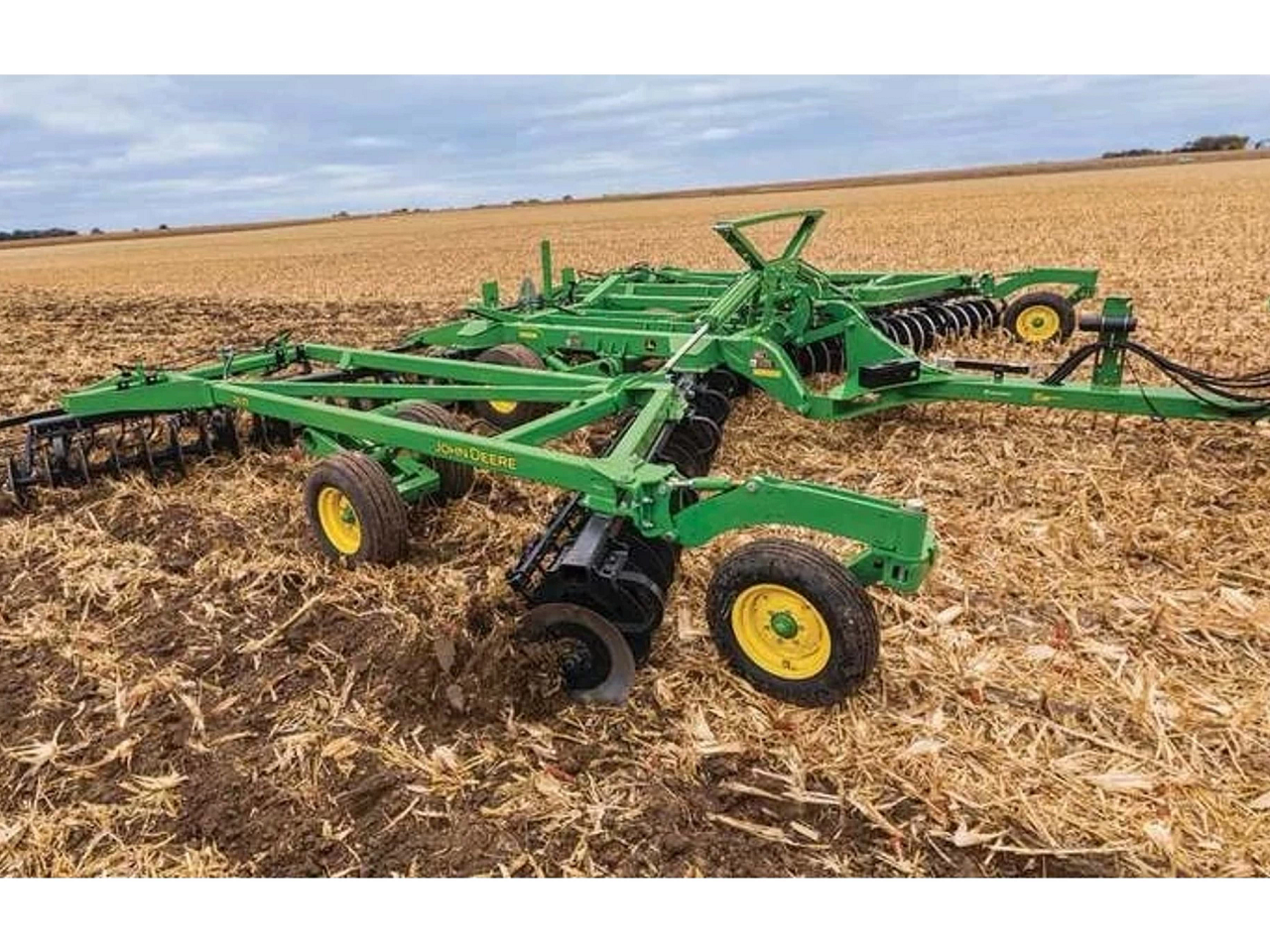

2630 - 49 ft, 3 in. Three- and Five-Section Tandem Disk
Disks
Enhance soil preparation with the John Deere 2630 Three and Five-Section Tandem Disk, providing robust construction, efficient residue management, and precise soil penetration for optimal tillage results.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 04NAN
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Working Width (Imperial)
- 49.25 ft
- Working Width (Metric)
- 15.01 m
- Transport Width (Imperial)
- 16.25 ft
- Transport Width (Metric)
- 4.95 m
- Transport Height (Imperial)
- 13.0 ft
- Transport Height (Metric)
- 3.96 m
- Working Depth (Imperial)
- 3-5 in.
- Working Depth (Metric)
- 7.6-12.7 cm
- Blade Spacing (Imperial)
- 7.25, 9 in.
- Blade Spacing (Metric)
- 18.4, 22.9 cm
- Horsepower Per Foot (Imperial)
- 9-11 hp/ft
- Horsepower Per Foot (Metric)
- 6.7-8.2 kwPerMeter
- Operating Speed (Imperial)
- 5-7 mph
- Operating Speed (Metric)
- 8-11.3 km/h
Machine19 specifications
- Working Width (Imperial)
- 49.25 ft
- Working Width (Metric)
- 15.01 m
- Transport Width (Imperial)
- 16.25 ft
- Transport Width (Metric)
- 4.95 m
- Transport Height (Imperial)
- 13.0 ft
- Transport Height (Metric)
- 3.96 m
- Gang Angle
- 21/19 degree (angle)
- Working Depth (Imperial)
- 3-5 in.
- Working Depth (Metric)
- 7.6-12.7 cm
- Weight Per Blade (Imperial)
- 200.0 lb.
- Weight Per Blade (Metric)
- 90.72 kg
- Blade Size (Imperial)
- 22, 24 in.
- Blade Size (Metric)
- 56, 61 cm
- Blade Spacing (Imperial)
- 7.25, 9 in.
- Blade Spacing (Metric)
- 18.4, 22.9 cm
- Horsepower Per Foot (Imperial)
- 9-11 hp/ft
- Horsepower Per Foot (Metric)
- 6.7-8.2 kwPerMeter
- Operating Speed (Imperial)
- 5-7 mph
- Operating Speed (Metric)
- 8-11.3 km/h
