John Deere
2430 Flexible, 15 ft Centerframe, 60 ft, 2 in. - 63 ft, 0 in. Chisel Plow
Chisel Plows and Coulter Chisels

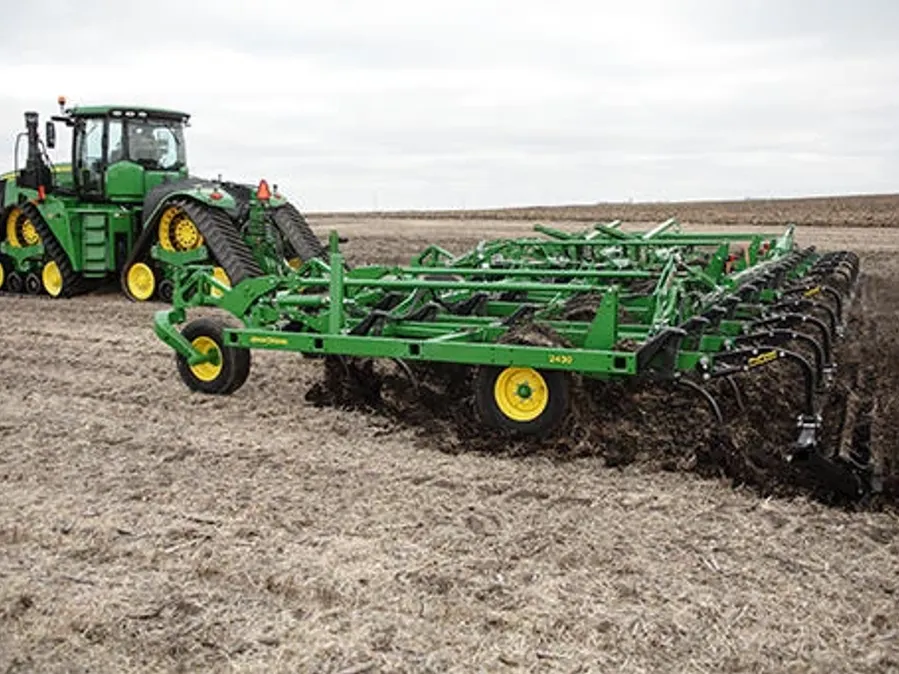

Enhance your tillage operations with the John Deere 2430 Chisel Plow, designed for efficient soil preparation, featuring robust construction, precise depth control, and advanced residue management, ideal for promoting healthy soil and maximizing crop yield.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 4756N
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Maximum Operating Depth
- Rigid, TruPosition: 20.32 cm (8 in.); TruDepth: 30.5 cm (12 in.)
- Operating Speed (Imperial)
- 5 - 7 mph
- Operating Speed (Metric)
- 8 - 11.3 km/h
- Horsepower Required
- 14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in.)- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in.)
- Standard Spacings (Imperial)
- 12, 16 in.
- Standard Spacings (Metric)
- 30.5, 40.6 cm
Working Widths4 specifications
- 5 Section Option 2 (Imperial)
- 47 - 63 ft
- 5 Section Option 2 (Metric)
- 14.33 - 19.2 m
- 5 Section Option 2 Mainframe (Imperial)
- 15.0 ft
- 5 Section Option 2 Mainframe (Metric)
- 4.57 m
Transport Width4 specifications
- 5 Section Option 2 (Imperial)
- 20.0 ft
- 5 Section Option 2 (Metric)
- 6.1 m
- 5 Section Option 2 Mainframe (Imperial)
- 15 ft
- 5 Section Option 2 Mainframe (Metric)
- 4.57 m
Transport Height4 specifications
- 5 Section Option 2 (Imperial)
- 14.42 - 17.42 ft
- 5 Section Option 2 (Metric)
- 4.4 - 5.3 m
- 5 Section Option 2 Mainframe (Imperial)
- 15.0 ft
- 5 Section Option 2 Mainframe (Metric)
- 4.57 m
Operation Depth1 specifications
- Maximum Operating Depth
- Rigid, TruPosition: 20.32 cm (8 in.); TruDepth: 30.5 cm (12 in.)
Operating Speed2 specifications
- Operating Speed (Imperial)
- 5 - 7 mph
- Operating Speed (Metric)
- 8 - 11.3 km/h
Horsepower Required1 specifications
- Horsepower Required
- 14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in.)- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in.)
Depth Control2 specifications
- Option 1
- TruSet™ Tillage in-cab controls and single-point crank-adjust
- Option 2
- Single-point crank-adjust
Hitch1 specifications
- Hitch Description
- Floating tubular T-hitch: on Rigid and 3-section: 15.2x25.4 cm (6x10 in.); On 5-section: 15.2x30.5 cm (6x12 in.)
Frame4 specifications
- Tubing
- High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in.); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in.)
- Fore And Aft (Imperial)
- 134.0 in.
- Fore And Aft (Metric)
- 340.4 cm
- Underframe Clearance
- Rigid and TruPosition: 71.1 cm (28 in.); TruDepth: 81.3 cm (32 in.)
Standard Spacings2 specifications
- Standard Spacings (Imperial)
- 12, 16 in.
- Standard Spacings (Metric)
- 30.5, 40.6 cm
Standard Options18 specifications
- Option 2
- TruPosition
- Option 2 Trip Height (Imperial)
- 10.0 in.
- Option 2 Trip Height (Metric)
- 25.4 cm
- Option 2 Maximum Operating Depth (Imperial)
- 12.0 in.
- Option 2 Maximum Operating Depth (Metric)
- 30.5 cm
- Option 2 Underframe Clearance (Imperial)
- 28.0 in.
- Option 2 Underframe Clearance (Metric)
- 71.1 cm
- Option 3
- TruDepth
- Option 3 Spec (Imperial)
- 1.25x2x32 in.
- Option 3 Spec (Metric)
- 3.2x5.08x81.3 cm
- Option 3 Trip Height (Imperial)
- 11.0 in.
- Option 3 Trip Height (Metric)
- 27.9 cm
- Option 3 Maximum Operating Depth (Imperial)
- 12.0 in.
- Option 3 Maximum Operating Depth (Metric)
- 30.5 cm
- Option 3 Underframe Clearance (Imperial)
- 32.0 in.
- Option 3 Underframe Clearance (Metric)
- 81.3 cm
- Option 3 Spacing (Imperial)
- 12. 16 in.
- Option 3 Spacing (Metric)
- 30.5. 40.6 cm
Ground-Engaging Components1 specifications
- Ground Engaging Component Choices
- Variety of sweeps, shovels, and chisel points
Wheels5 specifications

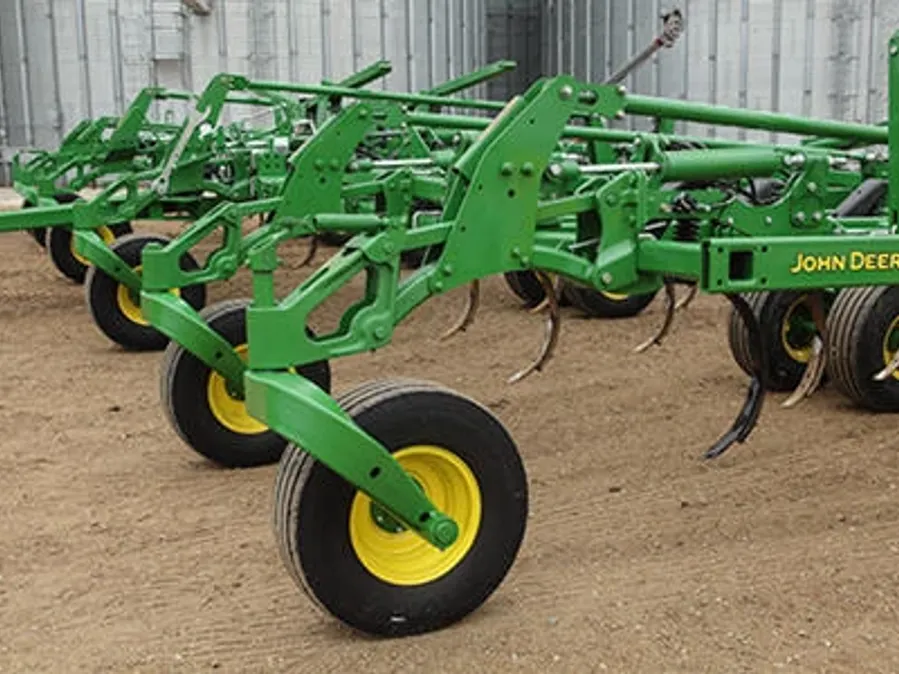

- Centerframe Depth Control Wheels And Tires Option 1
- Drawn rigid: Castering front and Walk-Over tandem rear with six IF280/70R15 134D tires
- Centerframe Depth Control Wheels And Tires Option 5
- 5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front and Walk-Over™ tandem rear with six IF 320/70R15 144D tires on center frame
- Centerframe Depth Control Wheels And Tires Option 6
- 5-section: 18.6 m (61 ft); Castering front and Walk-Over™ tandem rear with two IF 320/70R15 144D Tires on center frames, four 285/70R19.5
- Wing Frame Wheels And Tires Option 2
- 5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front with two 11L-15FI load range D and Walk-Over™ tandem rear with four 12.5L-15FI load range F on inner wing frames; Castering front and Walk-Over™ tandem rear with six 11L-15FI load range D on outer wing frames
- Wing Frame Wheels And Tires Option 3
- 5-section: 18.6 m (61 ft); Castering Front (2) 280/70R15 and Walk-over™ Tandem Rear with (4) 320/70R15 on Inner Wing Frames; Castering Front and Walk-over™ Tandem Rear with (6) 280/70R15 on Outer Wing Frames
Rear Hitch6 specifications
- Tubing Size
- Rectangular box construction: 7.62x12.7 cm (3x5 in.)
- Telescoping
- Yes
- Tongue Weight Rating (Imperial)
- 100.0 lb.
- Tongue Weight Rating (Metric)
- 45.4 kg
- Wiring Harness For Transport Lights
- Includes Y-harness, allowing both the 2430 and towed implement lights to work simultaneously
- Hydraulic Hoses And Couplers
- Available as field attachment
Warranty1 specifications
- Warranty Description
- 3-year frame and standard warranty
Additional Feature1 specifications
- Option 1

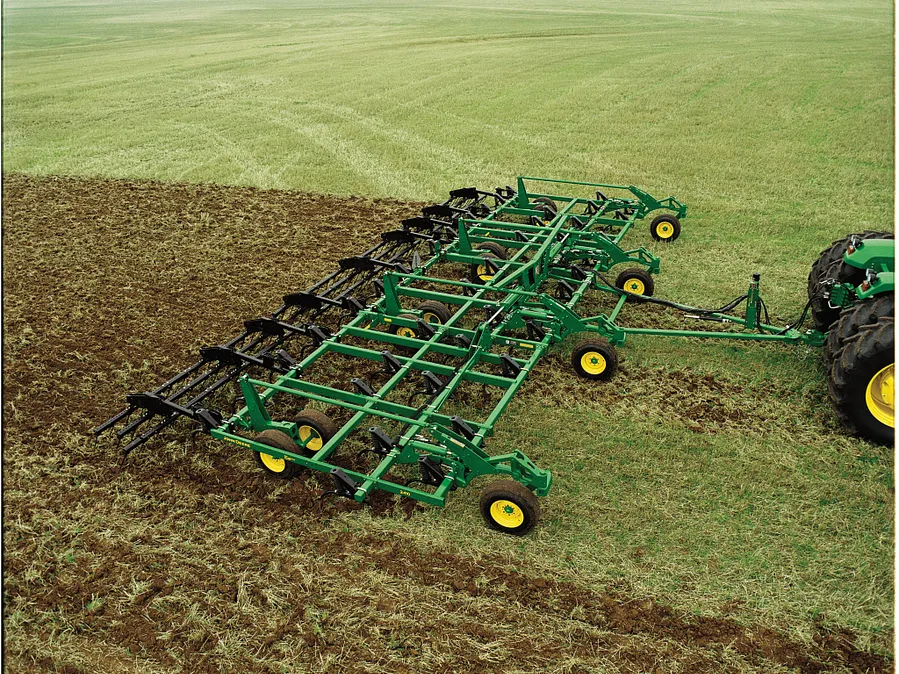

- Rear attachment options: Coil-tine harrow, Hydraulic knife-edge rolling basket
