John Deere

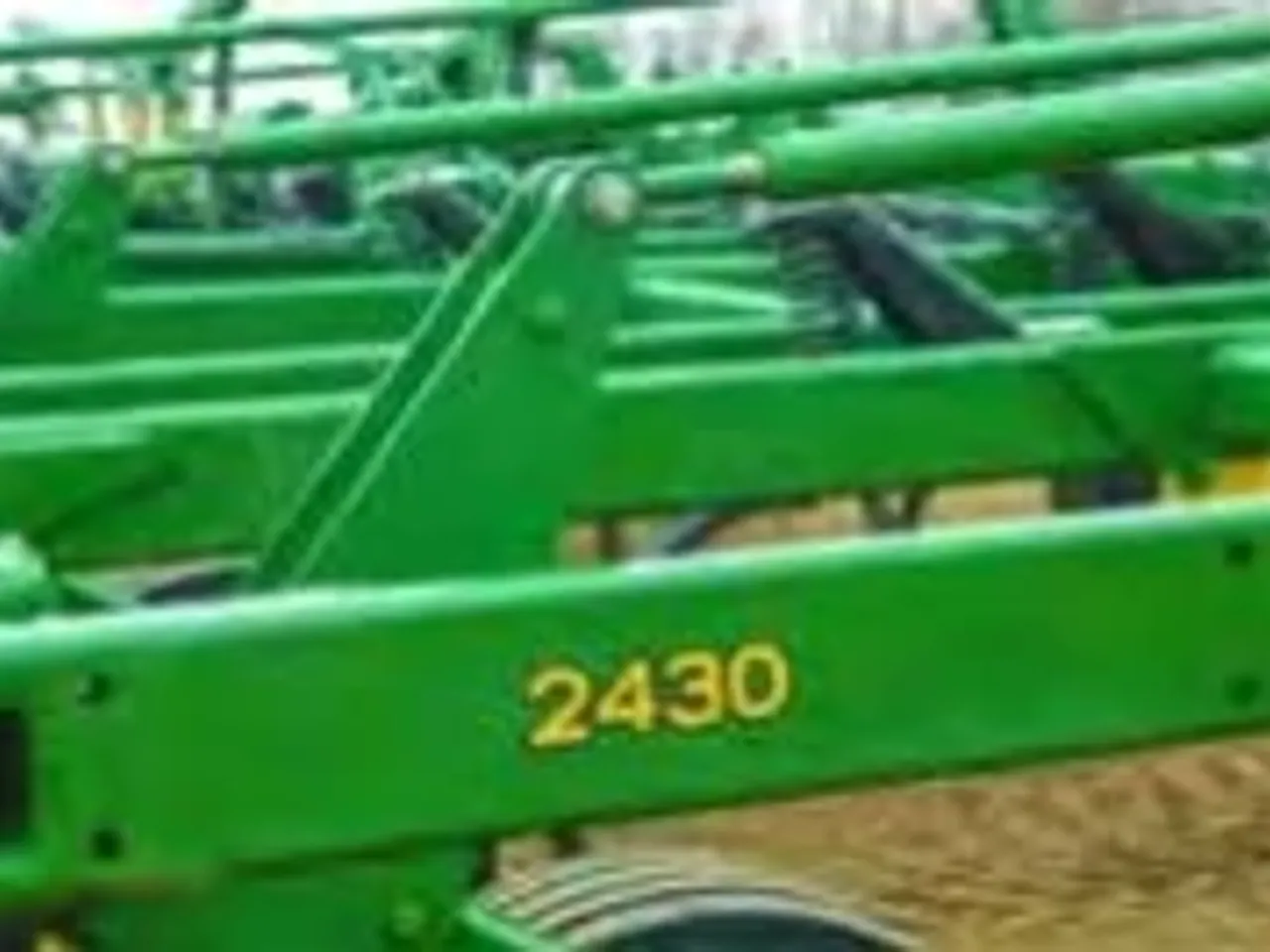

2430 5-Section Drawn Flexible C-Shank Chisel Plow 12 Ft. Centerframe, 46 Ft. 9 In to 50 Ft. 0 In. Chisel Plow
Chisel Plows and Coulter Chisels

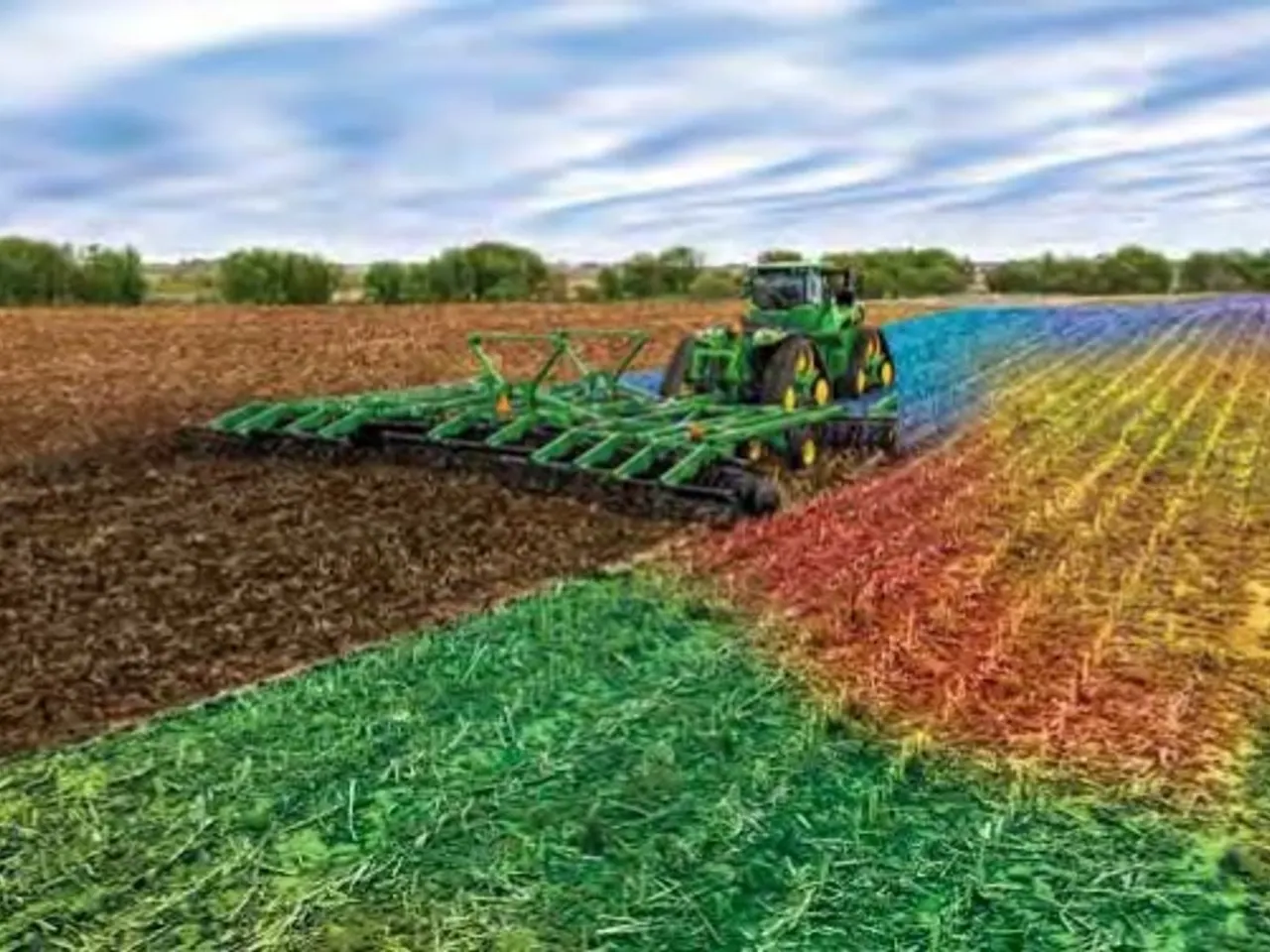

2430 5-section chisel plow for large-acreage residue management and field preparation.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 4752N
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Maximum Operating Depth
- Rigid, TruPosition: 20.32 cm (8 in.); TruDepth: 30.5 cm (12 in.)
- Operating Speed (Imperial)
- 5 - 7 mph
- Operating Speed (Metric)
- 8 - 11.3 km/h
- Horsepower Required
- 14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in.)- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in.)
- Standard Spacings (Imperial)
- 12, 16 in.
- Standard Spacings (Metric)
- 30.5, 40.6 cm
Working Widths4 specifications
- 5 Section Option 1 (Imperial)
- 44 - 54.67 ft
- 5 Section Option 1 (Metric)
- 13.4 - 16.66 m
- 5 Section Option 1 Mainframe (Imperial)
- 12.0 ft
- 5 Section Option 1 Mainframe (Metric)
- 3.66 m
Transport Width4 specifications
- 5 Section Option 1 (Imperial)
- 17.25 ft
- 5 Section Option 1 (Metric)
- 5.26 m
- 5 Section Option 1 Mainframe (Imperial)
- 12.0 ft
- 5 Section Option 1 Mainframe (Metric)
- 3.66 m
Transport Height4 specifications
- 5 Section Option 1 (Imperial)
- 14.33 - 16.33 ft
- 5 Section Option 1 (Metric)
- 4.37 - 14.33 m
- 5 Section Option 1 Mainframe (Imperial)
- 12.0 ft
- 5 Section Option 1 Mainframe (Metric)
- 3.66 m
Operation Depth1 specifications
- Maximum Operating Depth
- Rigid, TruPosition: 20.32 cm (8 in.); TruDepth: 30.5 cm (12 in.)
Operating Speed2 specifications
- Operating Speed (Imperial)
- 5 - 7 mph
- Operating Speed (Metric)
- 8 - 11.3 km/h
Horsepower Required1 specifications
- Horsepower Required
- 14.7 to 24.5 kW/m (6.0 to 10 hp/ft); Rigid and TruPosition standards on spacing: 30.5 cm (12 in.)- 11 to 18.35 kW/m (4.5 to 7.5 hp/ft); Rigid and TruPosition standards on spacing of: 40.6 cm (16 in.)
Depth Control2 specifications
- Option 1
- TruSet™ Tillage in-cab controls and single-point crank-adjust
- Option 2
- Single-point crank-adjust
Hitch1 specifications
- Hitch Description
- Floating tubular T-hitch: on Rigid and 3-section: 15.2x25.4 cm (6x10 in.); On 5-section: 15.2x30.5 cm (6x12 in.)
Frame4 specifications
- Tubing
- High strength, box beam steel cross tubes: 10.2x10.2 cm (4x4 in.); End tubes, patented four-bar tube-through-tube frame design, welded construction: 5.08x12.7 cm (2x5 in.)
- Fore And Aft (Imperial)
- 134.0 in.
- Fore And Aft (Metric)
- 340.4 cm
- Underframe Clearance
- Rigid and TruPosition: 71.1 cm (28 in.); TruDepth: 81.3 cm (32 in.)
Standard Spacings2 specifications
- Standard Spacings (Imperial)
- 12, 16 in.
- Standard Spacings (Metric)
- 30.5, 40.6 cm
Standard Options18 specifications
- Option 2
- TruPosition
- Option 2 Trip Height (Imperial)
- 10.0 in.
- Option 2 Trip Height (Metric)
- 25.4 cm
- Option 2 Maximum Operating Depth (Imperial)
- 12.0 in.
- Option 2 Maximum Operating Depth (Metric)
- 30.5 cm
- Option 2 Underframe Clearance (Imperial)
- 28.0 in.
- Option 2 Underframe Clearance (Metric)
- 71.1 cm
- Option 3
- TruDepth
- Option 3 Spec (Imperial)
- 1.25x2x32 in.
- Option 3 Spec (Metric)
- 3.2x5.08x81.3 cm
- Option 3 Trip Height (Imperial)
- 11.0 in.
- Option 3 Trip Height (Metric)
- 27.9 cm
- Option 3 Maximum Operating Depth (Imperial)
- 12.0 in.
- Option 3 Maximum Operating Depth (Metric)
- 30.5 cm
- Option 3 Underframe Clearance (Imperial)
- 32.0 in.
- Option 3 Underframe Clearance (Metric)
- 81.3 cm
- Option 3 Spacing (Imperial)
- 12. 16 in.
- Option 3 Spacing (Metric)
- 30.5, 40.6 cm
Ground-Engaging Components1 specifications
- Ground Engaging Component Choices
- Variety of sweeps, shovels, and chisel points
Wheels4 specifications
- Centerframe Depth Control Wheels And Tires Option 1
- Drawn rigid: Castering front and Walk-Over tandem rear with six IF280/70R15 134D tires
- Centerframe Depth Control Wheels And Tires Option 5
- 5-section: 13.4 to 16.8 m (44 to 55 ft); Castering front and Walk-Over™ tandem rear with six IF 320/70R15 144D tires on center frame
- Centerframe Depth Control Wheels And Tires Option 6
- 5-section: 18.6 m (61 ft); Castering front and Walk-Over™ tandem rear with two IF 320/70R15 144D Tires on center frames, four 285/70R19.5
- Wing Frame Wheels And Tires Option 3
- 5-section: 18.6 m (61 ft); Castering Front (2) 280/70R15 and Walk-over™ Tandem Rear with (4) 320/70R15 on Inner Wing Frames; Castering Front and Walk-over™ Tandem Rear with (6) 280/70R15 on Outer Wing Frames
Rear Hitch6 specifications
- Tubing Size
- Rectangular box construction: 7.62x12.7 cm (3x5 in.)
- Telescoping
- Yes
- Tongue Weight Rating (Imperial)
- 100.0 lb.
- Tongue Weight Rating (Metric)
- 45.4 kg
- Wiring Harness For Transport Lights
- Includes Y-harness, allowing both the 2430 and towed implement lights to work simultaneously
- Hydraulic Hoses And Couplers
- Available as field attachment
Warranty1 specifications
- Warranty Description
- 3-year frame and standard warranty
Additional Feature1 specifications
- Option 1
- Rear attachment options: -Coil-tine harrow -Hydraulic knife-edge rolling basket
