John Deere

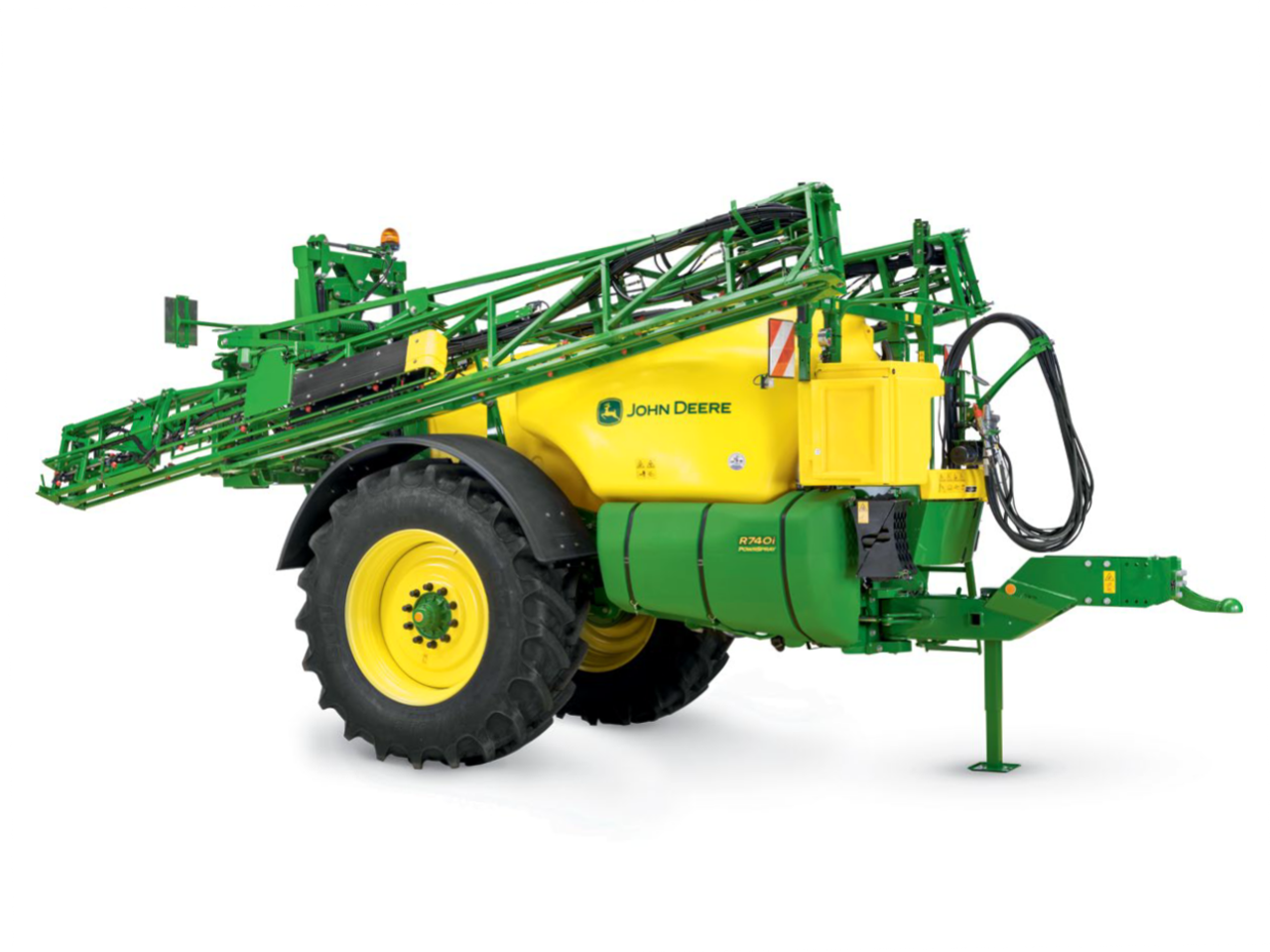

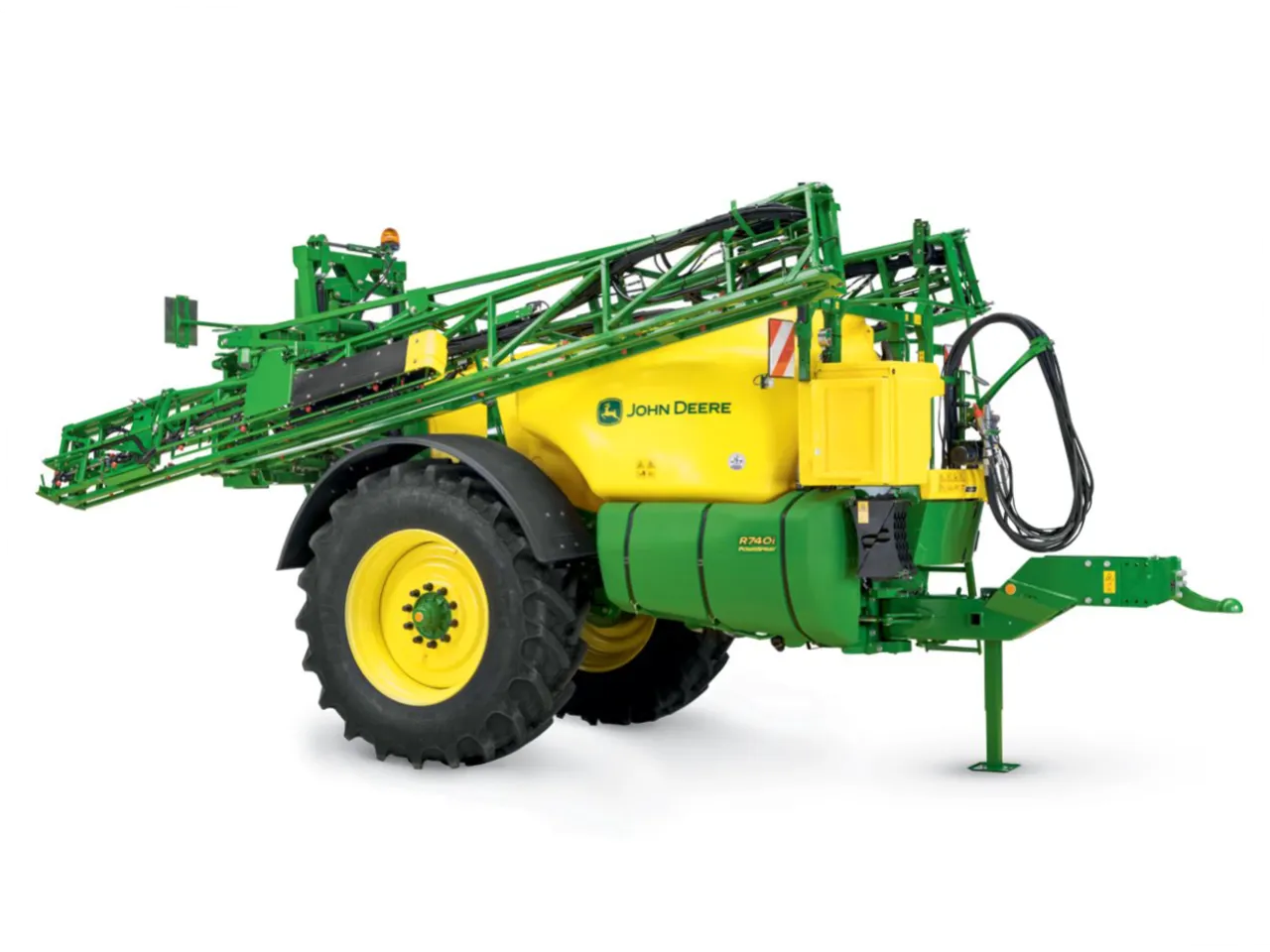

R740i Trailed Sprayer
Trailed Sprayers
John Deere R740i PowrSpray™ trailed sprayer with fast filling, precision application, advanced boom control, and efficient crop protection.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 059KWZ
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs8 specifications
- Solution Tank Nominal Volume (Metric)
- 4000.0 L
- Solution Tank Nominal Volume (Imperial)
- 1056.1 gal.
- Solution Tank Actual Volume (+ 5%) (Metric)
- 4200.0 L
- Solution Tank Actual Volume (+ 5%) (Imperial)
- 1109.5 gal.
- Tank Material
- Polyethylene
- Rinse Water Tank Volume (Metric)
- 400.0 L
- Rinse Water Tank Volume (Imperial)
- 105.7 gal.
- Tank Level Indicator
- Dry level indication with float Digital tank level indication
Tanks8 specifications
- Solution Tank Nominal Volume (Metric)
- 4000.0 L
- Solution Tank Nominal Volume (Imperial)
- 1056.1 gal.
- Solution Tank Actual Volume (+ 5%) (Metric)
- 4200.0 L
- Solution Tank Actual Volume (+ 5%) (Imperial)
- 1109.5 gal.
- Tank Material
- Polyethylene
- Rinse Water Tank Volume (Metric)
- 400.0 L
- Rinse Water Tank Volume (Imperial)
- 105.7 gal.
- Tank Level Indicator
- Dry level indication with float Digital tank level indication
Pumps4 specifications
- Pump
- Centrifugal spray pump (at 3 bar [43.5 psi]): 750 L/min (198.1 gpm) Centrifugal fast fill pump (self-priming): 600 L/min (158.5 gpm)
- Solution Pump Drive
- Load sense hydraulic pump drive for spray system with PowrSpray™ system
- Size Filling Hose Connection (Metric)
- 51.0 mm
- Size Filling Hose Connection (Imperial)
- 2.0 in.
Central Operation Station Control5 specifications
- Solution System Type
- PowrSpray
- Valve Control
- Electric operated valves
- Automatic Filling
- Base
- Automatic Agitation Control
- Base – on/off and intensity control based on tank volume
- Automatic Dilution And Rinsing
- AutoDilute: stepwise dilution and continuous dilution Boom rinse. system rinse. and rinse cycles
Spray Booms/Section Setup/Meter6 specifications
- Double Folded Boom – 2.55 m (8.4 ft) Transport Width (Metric)
- 24.0 m
- Double Folded Boom – 2.55 m (8.4 ft) Transport Width (Imperial)
- 78.7 ft
- Triple Folded Boom – 3 m (9.8 ft) Transport Width (Metric)
- 27.0 m
- Triple Folded Boom – 3 m (9.8 ft) Transport Width (Imperial)
- 88.6 ft
- Nozzle Body
- Five-way nozzle holder
- Spray Line System
- Base: Pressure circulation spray system (no section valves. nozzles opened with air shutoff valves)
Spray Boom Positioning, Stabilization System5 specifications
- Horizontal Sprayboom Stabilization System
- Base: Center frame with pendulum with shock absorbers Optional: Boom suspension kit for spraying hilly fields
- Vertical Boom Suspension System To Prevent Boom Yawing
- Base: Center frame with hinge point with shock absorbers and polyurethane dampers Optional: Independent yaw suspension and damping (push rod system)
- Boom Tilt Control
- Hydraulic boom tilt cylinder
- Automatic Boom Leveling
- Optional John Deere TerrainControl™ Pro John Deere TerrainCommand™ Pro
- Variable Geometry Adjustment
- Optional degree (angle)
Machine Control Hydraulics2 specifications
- Hydraulic Control Type
- Base: Electrohydraulic boom folding
- Machine Control
- Base: ISOBUS
Automatic Rate Controller4 specifications
- Power Supply
- ISOBUS connector (with optional ISOBUS control) V
- Rate Control
- Automatic rate control with pressure-and-flow sensor
- Section Control/Machine Operation
- GNSS section control ready
- Individual Nozzle Control
- Optional
Tractor Connection4 specifications
- Linkage To Tractor
- Lower linkage: Fixed drawbar or track-following drawbar Upper linkage: Fixed drawbar or track-following drawbar
- Ball Coupling Type
- K-80 or K-80 with RD-40 eye for harbor transport
- Ring Tow Eye Type (Metric)
- 40.0 mm
- Ring Tow Eye Type (Imperial)
- 1.6 in.
Steering System1 specifications
- Type
- Optional: Steering drawbar
Axle And wheels18 specifications
- Axle Suspension
- Double-linked axle suspension Optional double-linked axle suspension on Select and Premium editions
- Rims
- Fully welded
- Bolt Pattern
- 10 bolts
- Row Crop Tires
- 270/95R48 Factory choice brand (minimum 144A8/140B) 300/95R46 Factory choice brand (minimum 148A8/144B) 340/85R48 Factory choice brand (minimum 152A8/152B)
- Flotation Tires
- 420/85R38 Factory choice brand (minimum 144A8/141B) 480/70R38 Factory choice brand (minimum 145A8/142B) 520/70R38 Factory choice brand (minimum 150A8/147B) 520/85R38 Factory choice brand (minimum 155A8/152B)
- Speed (Depends On Local Legal Requirements) (Metric)
- 25.0 km/h
- Speed (Depends On Local Legal Requirements) (Imperial)
- 15.5 mph
- Brakes
- Base: Single line hydraulic brakes with parking brake Optional: Dual line air brakes with parking brake
- Fixed Axle Available Track Widths Minimum (Metric)
- 150.0 cm
- Fixed Axle Available Track Widths Minimum (Imperial)
- 70.9 in.
- Fixed Axle Available Track Widths Maximum (Metric)
- 225.0 cm
- Fixed Axle Available Track Widths Maximum (Imperial)
- 88.6 in.
- Sliding Axle Available Track Widths Minimum (Metric)
- 150.0 cm
- Sliding Axle Available Track Widths Minimum (Imperial)
- 59.1 in.
- Sliding Axle Available Track Widths Maximum (Metric)
- 210.0 cm
- Sliding Axle Available Track Widths Maximum (Imperial)
- 82.7 in.
- Fenders (Metric)
- 400.0 mm
- Fenders (Imperial)
- 15.7 in.
Accessories10 specifications
- Clothing Locker
- Base
- Chemical Storage Box
- Optional: Chemical storage box with lock function
- Transfer Valve
- Optional
- Eductor Station Light
- Optional
- Boom Working Lights
- Optional: Halogen or light-emitting diode (LED) field lighting kit
- Extremity Nozzle Holder
- Left-side mounted and/or right-side mounted (option) Electric or pneumatic operation Both edge nozzle and off-center nozzle functionality
- Closed Chemical Transfer Ready Connection
- Optional
- Hydraulic System Oil Filter
- Optional
- Self Cleaning Pressure Filter
- Optional
- Beacon Light
- Optional
Additional Information1 specifications
- Date Collected
- 2021-06-03
