John Deere

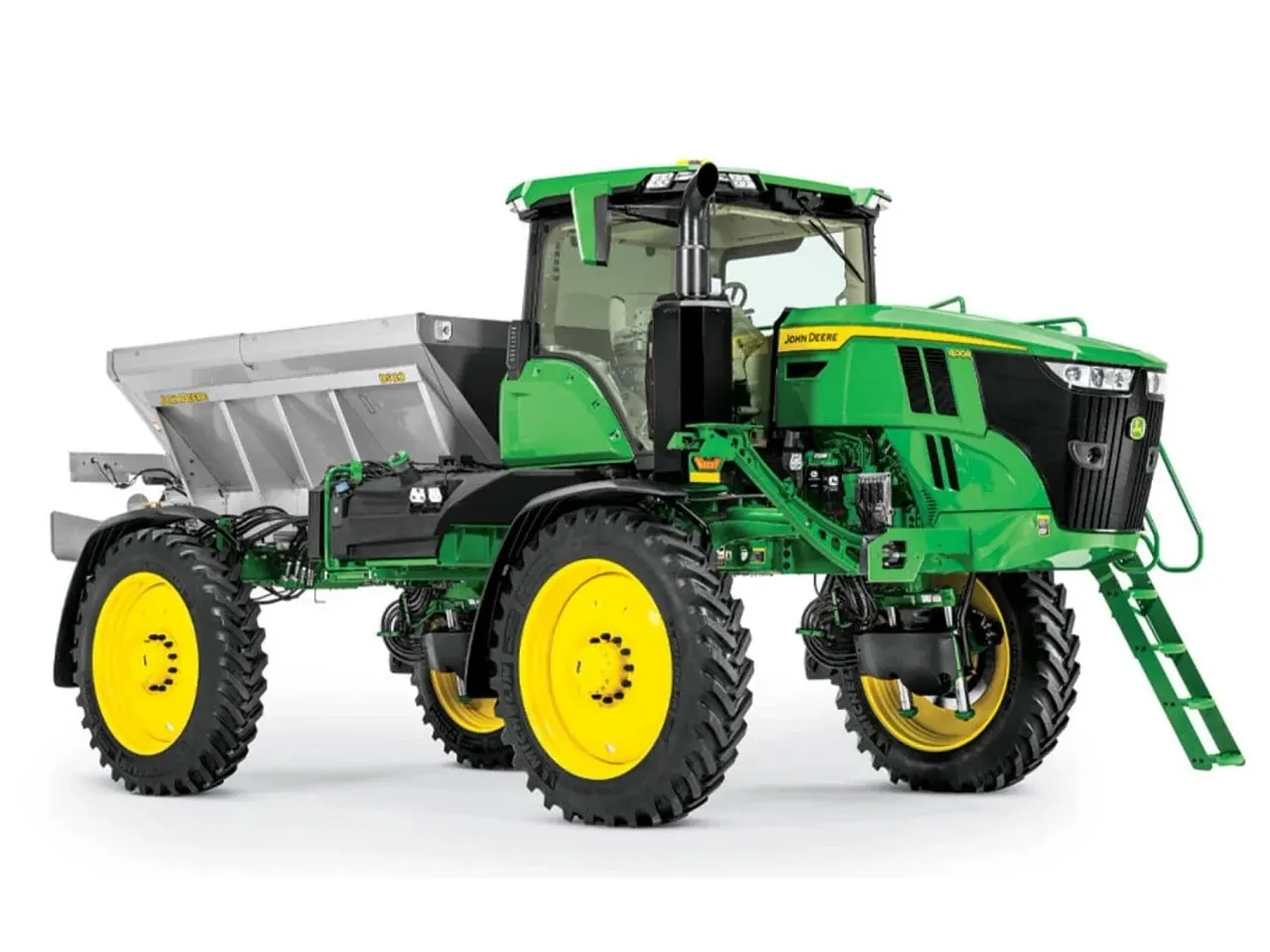

400R Dry Spinner Spreader
Self-Propelled Sprayers
Turn your liquid sprayer into a 3-season applicator with the 400R Dry Spinner Spreader.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 6866N
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs16 specifications
- Engine Make
- Final Tier 4/ Stage V / PowerTech™ Plus
- Rated Engine Power (Imperial)
- 326.0 hp
- Rated Engine Power (Metric)
- 243.0 kW
- Maximum Engine Power (Imperial)
- 382.0 hp
- Maximum Engine Power (Metric)
- 285.0 kW
- Spread Speed Range (Imperial)
- 0 to 25 mph
- Spread Speed Range (Metric)
- 0 to 40.2 km/h
- Maximum Transport Speed (Imperial)
- 35.0 mph
- Maximum Transport Speed (Metric)
- 56.3 km/h
- Dry Compatible Capacity (Imperial)
- 200.0 cu ft
- Dry Compatible Capacity (Metric)
- 5.6 m³
- Suspension
- Dual-strut independent wheel air-ride suspension
- Crop Clearance With Standard Tires (Imperial)
- 60.0 in.
- Crop Clearance With Standard Tires (Metric)
- 152.4 cm
- Weight (Empty) With DS20 (Imperial)
- 26636.0 lb.
- Weight (Empty) With DS20 (Metric)
- 12082.0 kg
Engine12 specifications
- Engine Make
- Final Tier 4/ Stage V / PowerTech™ Plus
- Rated Engine Power (Imperial)
- 326.0 hp
- Rated Engine Power (Metric)
- 243.0 kW
- Maximum Engine Power (Imperial)
- 382.0 hp
- Maximum Engine Power (Metric)
- 285.0 kW
- Number Of Cylinders
- 6
- Displacement (Imperial)
- 549.0 cu in.
- Displacement (Metric)
- 9.0 L
- Fuel Tank Capacity (Imperial)
- 149.2 gal.
- Fuel Tank Capacity (Metric)
- 565.0 L
- Diesel Exhaust Fluid (DEF) Tank Capacity (Imperial)
- 7.8 gal.
- Diesel Exhaust Fluid (DEF) Tank Capacity (Metric)
- 29.5 L
Drivetrain9 specifications
- Type
- CommandDrive™ - Hydrostatic 4WD
- Drive
- Full-time, four-wheel drive (4WD)
- Shifting
- Infinitely Variable – Operator Adjustable
- Hydraulic Reservoir Capacity (Imperial)
- 26.0 gal.
- Hydraulic Reservoir Capacity (Metric)
- 98.4 L
- Spread Speed Range (Imperial)
- 0 to 25 mph
- Spread Speed Range (Metric)
- 0 to 40.2 km/h
- Maximum Transport Speed (Imperial)
- 35.0 mph
- Maximum Transport Speed (Metric)
- 56.3 km/h
Chassis20 specifications
- Dry Compatible Capacity (Imperial)
- 200.0 cu ft
- Dry Compatible Capacity (Metric)
- 5.6 m³
- Suspension
- Dual-strut independent wheel air-ride suspension
- Crop Clearance With Standard Tires (Imperial)
- 60.0 in.
- Crop Clearance With Standard Tires (Metric)
- 152.4 cm
- Front Tires
- 320/90 R46, 380/90 R46, or 420/80 R46
- Rear Tires
- 320/90 R46, 380/90 R46, or 420/80 R46
- Flotation Tires
- 520/85R38 or 620/70R38 (field installed only)
- Hydraulic Tread Adjust
- Standard
- Wheel Tread Spacing (Imperial)
- 120 to 160 in.
- Wheel Tread Spacing (Metric)
- 305 to 406.4 cm
- Wheelbase (Imperial)
- 169.3 in.
- Wheelbase (Metric)
- 430.0 cm
- Turning Radius (Imperial)
- 28.5 ft
- Turning Radius (Metric)
- 8.7 m
- Parking Brake
- Spring-engaged, hydraulically disengaged wet disk pack
- Primary Brakes
- Hydrostatic
- Ladder Raise/Lower
- Automatic
- Weight (Empty) With DS20 (Imperial)
- 26636.0 lb.
- Weight (Empty) With DS20 (Metric)
- 12082.0 kg
Drybox2 specifications
- Spread Width (Imperial)
- 60 -105 ft
- Spread Width (Metric)
- 18.6 - 32 m
