John Deere

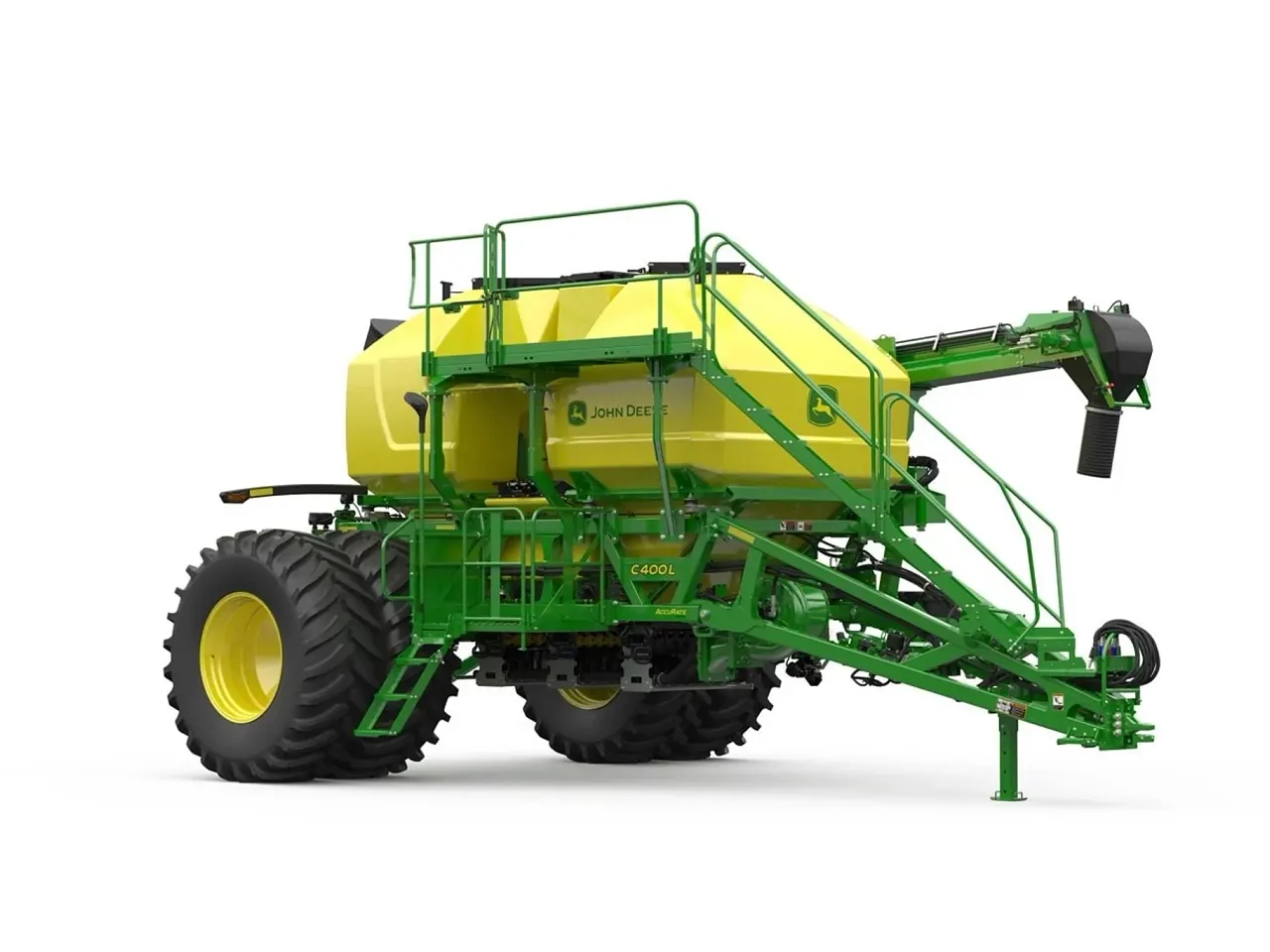

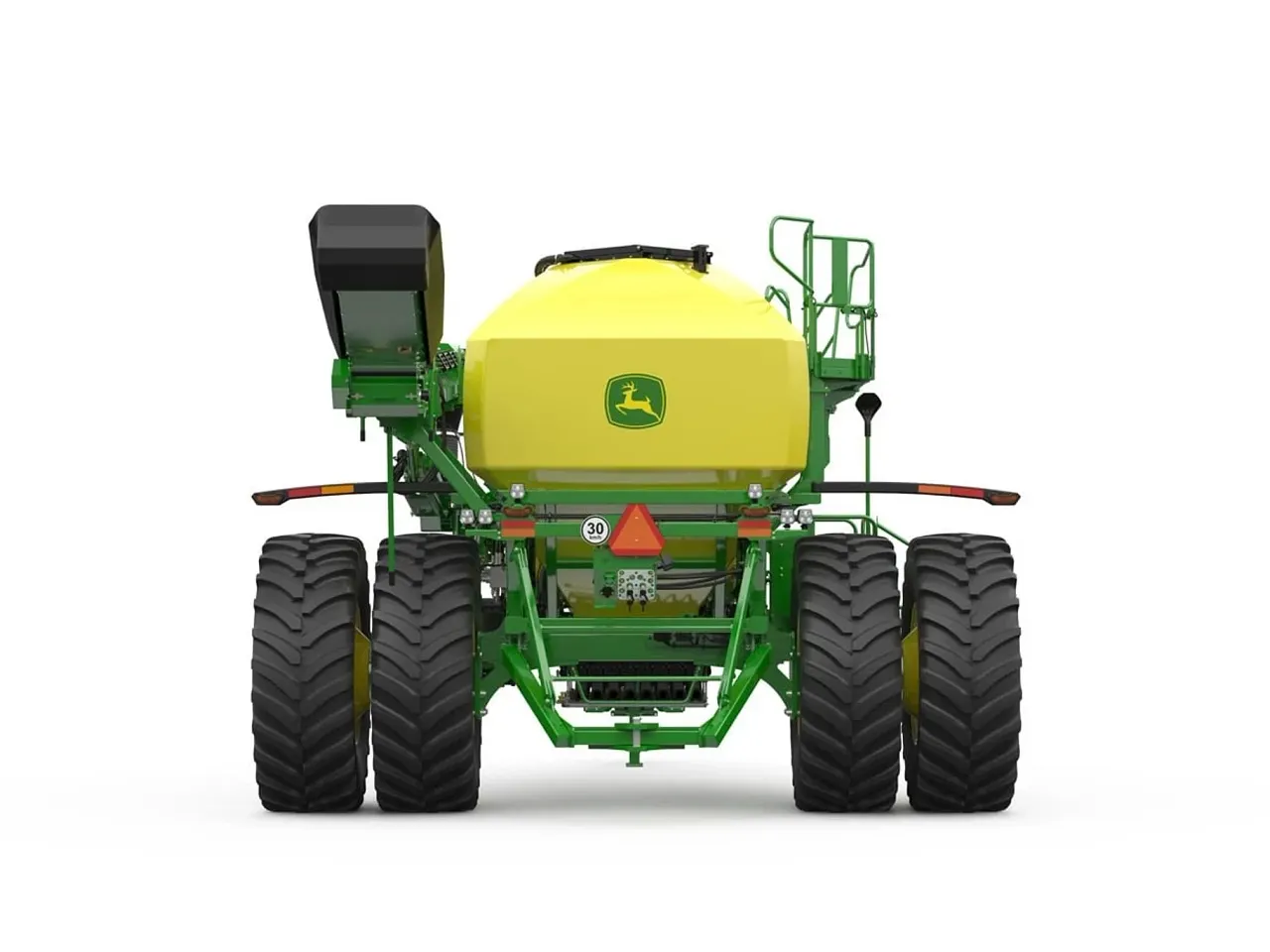

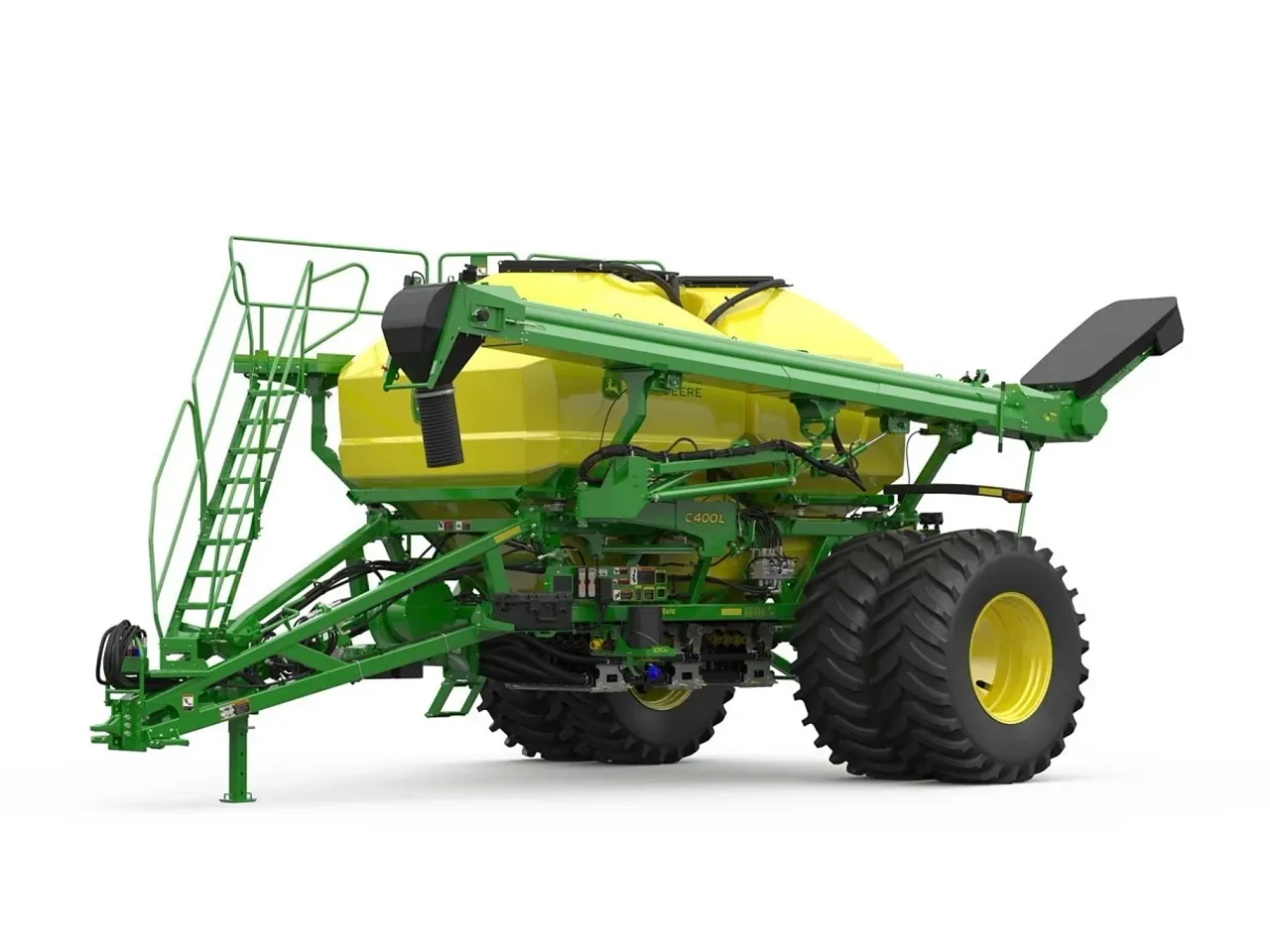

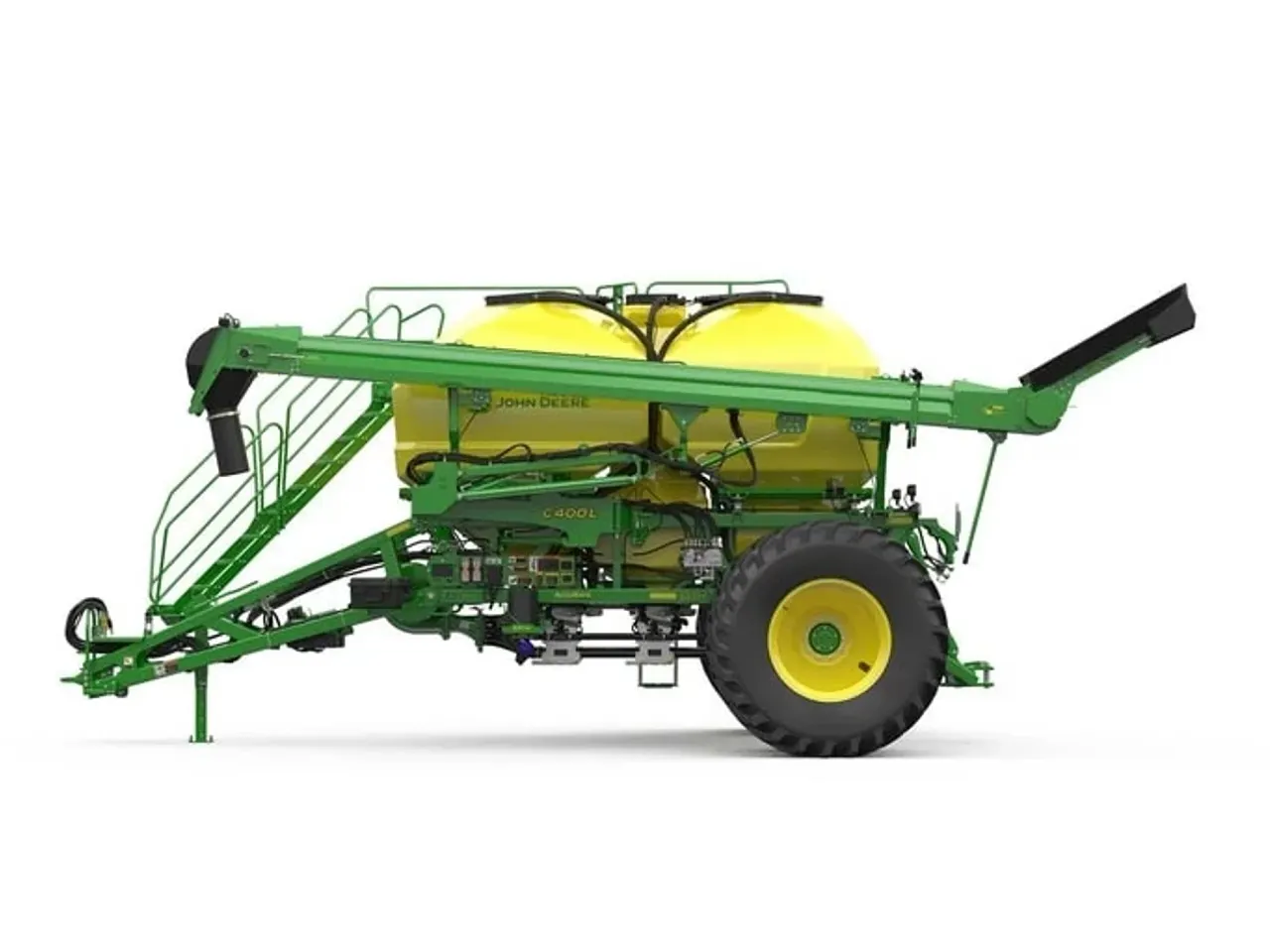

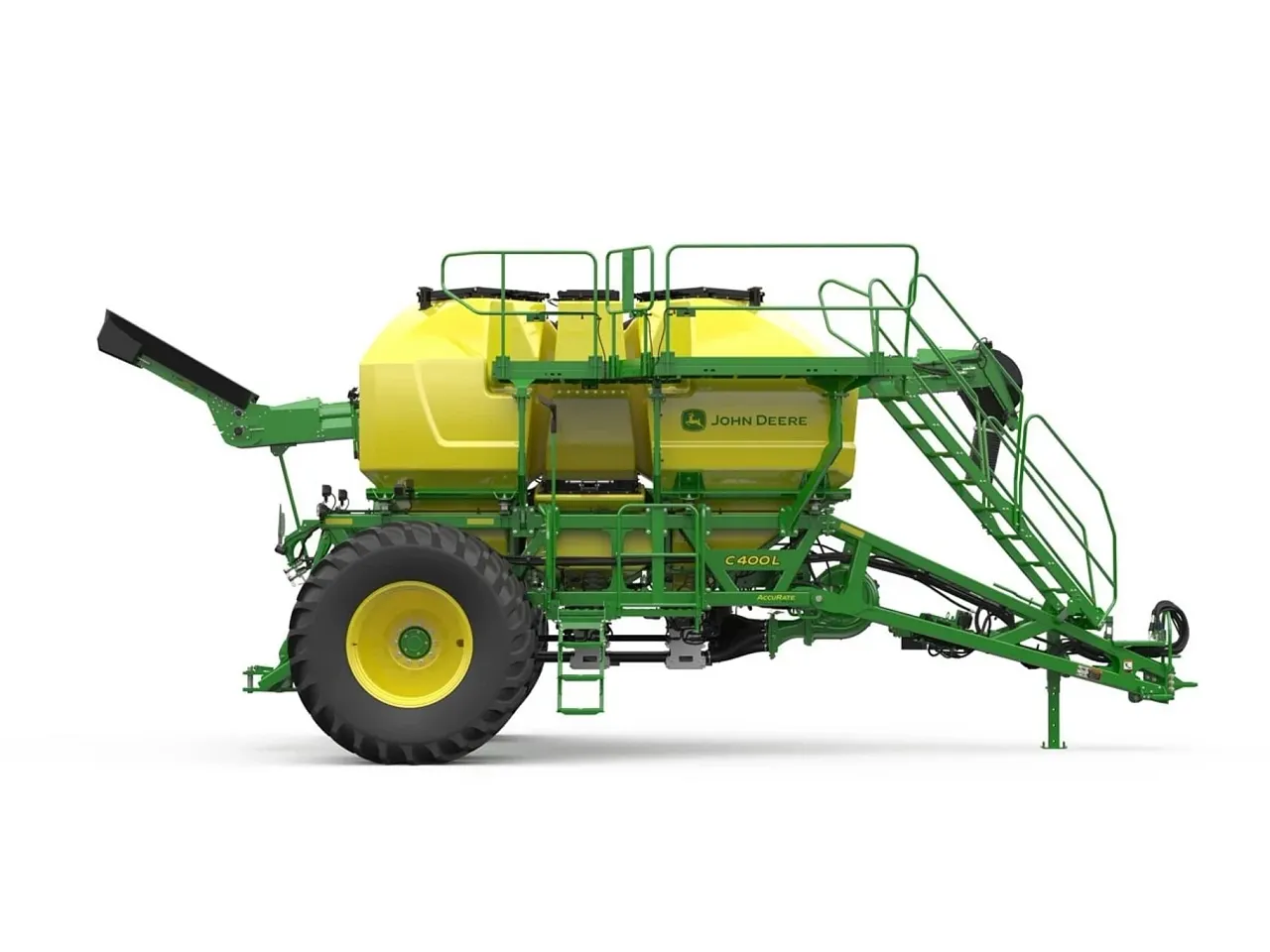

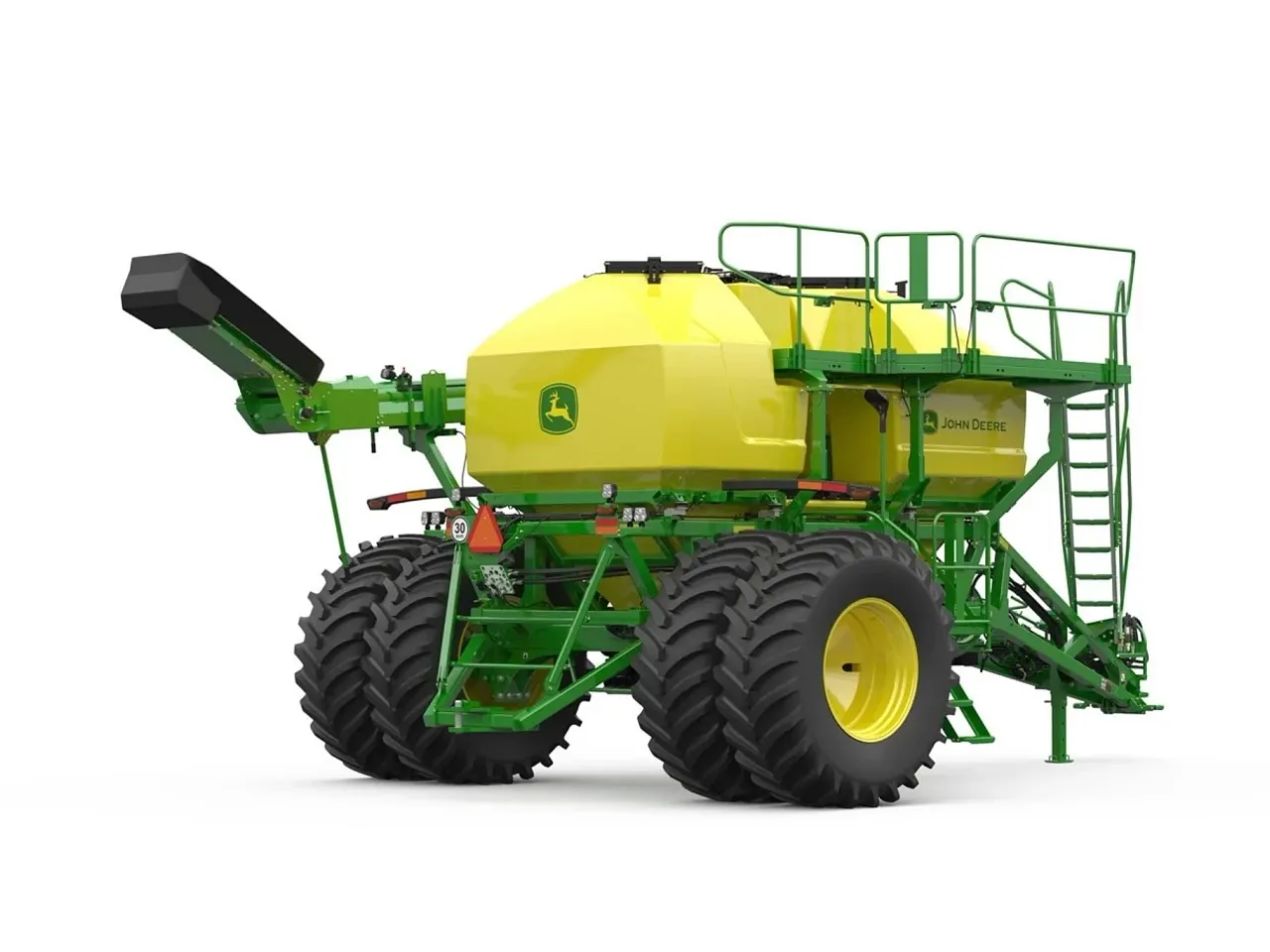

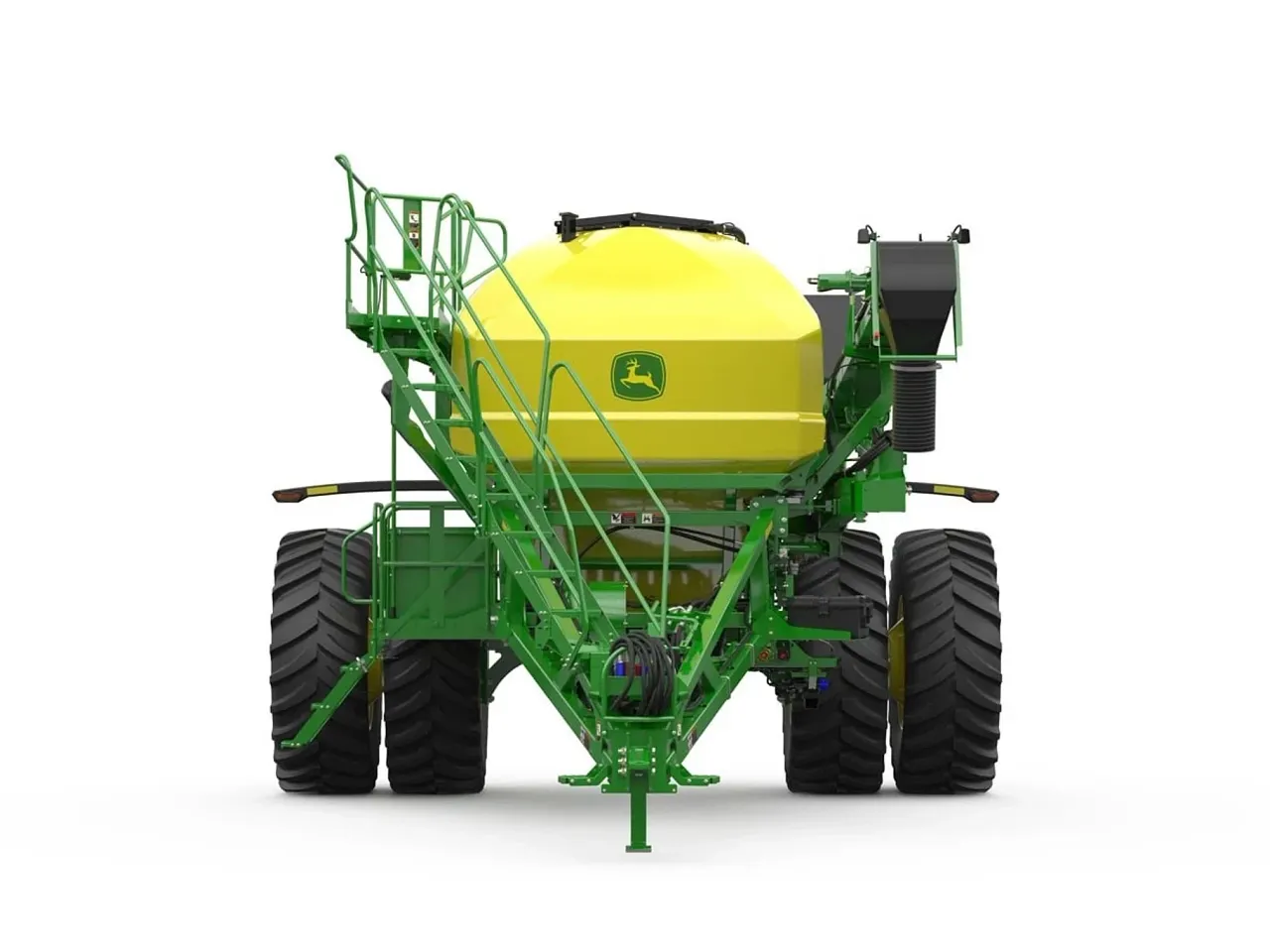

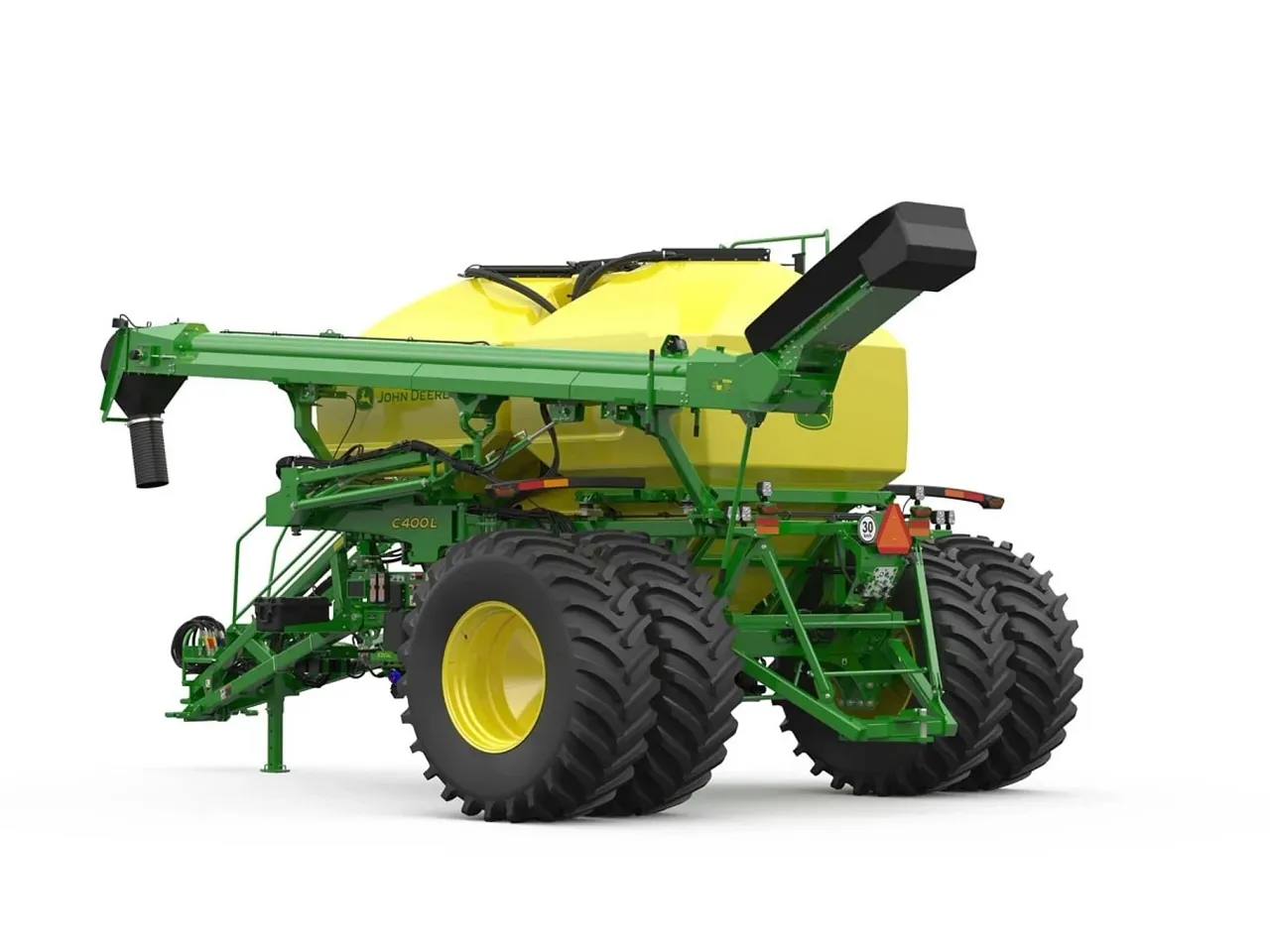

C400L Leading Air Cart
Commodity Carts
Boost seeding efficiency with the John Deere C400L—high capacity, accurate rates, and agile leading‑cart handling for faster turns and consistent stands.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 173CH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs14 specifications
- Tank Splits (Imperial)
- 50, 160, 190 bu
- Tank Splits (Metric)
- 1762, 5638.25, 6695.42 L
- Blower Options
- Standard capacity
- Number of Blowers
- Single or dual
- Number of Meters
- 6 or 8 per tank
- Meter Housing Material
- Stainless steel
- Height (Transport) (Imperial)
- 13.17 ft
- Height (Transport) (Metric)
- 4.0 m
- Length Overall (Imperial)
- 31.08 ft
- Length Overall (Metric)
- 9.47 m
- Width With High Flotation Tires (Imperial)
- 17.5 ft
- Width With High Flotation Tires (Metric)
- 5.34 m
- Shipping Weight High Flotation Option (Imperial)
- 17469 lb.
- Shipping Weight High Flotation Option (Metric)
- 7924 kg
Cart Capacity5 specifications
- Total (Imperial)
- 400.0 bu
- Total (Metric)
- 14095.63 L
- Number of Tanks
- 3
- Tank Splits (Imperial)
- 50, 160, 190 bu
- Tank Splits (Metric)
- 1762, 5638.25, 6695.42 L
Conveyance10 specifications
- Conveyor Belt Width (Imperial)
- 16.0 in.
- Conveyor Belt Width (Metric)
- 40.6 cm
- Conveyor Tube Diameter (Imperial)
- 10.0 in.
- Conveyor Tube Diameter (Metric)
- 25.4 cm
- Conveyor Capacity (Wheat) (Imperial)
- 66.0 buMin
- Conveyor Capacity (Wheat) (Metric)
- 2325.8 L/min
- Auger Diameter (Imperial)
- 10.0 in.
- Auger Diameter (Metric)
- 25.4 cm
- Auger Capacity (Wheat) (Imperial)
- 49.0 buMin
- Auger Capacity (Wheat) (Metric)
- 1726.72 L/min
Air System7 specifications
- Blower Options
- Standard capacity
- Number of Blowers
- Single or dual
- Max Meter Delivery Rate Per Blower Standard Capacity Blower
- 345.0 lb/acre
- Max Meter Delivery Rate per Blower Standard Capacity Blower
- 386.7 kgPerHa
- Drive
- Hydraulic, per blower: up to 98.4 L/min (26 gpm)
- Product Delivery Hoses (Imperial)
- 2.5 in.
- Product Delivery Hoses (Metric)
- 6.35 cm
Metering4 specifications
- Number of Meters
- 6 or 8 per tank
- Meter Housing Material
- Stainless steel
- Type
- Individual motor control per primary
- Metering Drive
- Electric: 56 V
Dimensions16 specifications
- Height (Transport) (Imperial)
- 13.17 ft
- Height (Transport) (Metric)
- 4.0 m
- Height (Field) (Imperial)
- 13.75 ft
- Height (Field) (Metric)
- 4.2 m
- Length Overall (Imperial)
- 31.08 ft
- Length Overall (Metric)
- 9.47 m
- Length (Hitch Pin to Axle) (Imperial)
- 22.17 ft
- Length (Hitch Pin to Axle) (Metric)
- 6.76 m
- Width With Base Equipment Tires (Imperial)
- 13.75 ft
- Width With Base Equipment Tires (Metric)
- 4.2 m
- Width With High Flotation Tires (Imperial)
- 17.5 ft
- Width With High Flotation Tires (Metric)
- 5.34 m
- Width With 3 M Tire Option (Imperial)
- 12.33 ft
- Width With 3 M Tire Option (Metric)
- 3.75 m
- Ground Clearance (Empty) (Imperial)
- 27.0 in.
- Ground Clearance (Empty) (Metric)
- 68.8 cm
Shipping Weight8 specifications
- Base Equipment (Imperial)
- 14692 lb.
- Base Equipment (Metric)
- 6664 kg
- Shipping Weight High Flotation Option (Imperial)
- 17469 lb.
- Shipping Weight High Flotation Option (Metric)
- 7924 kg
- 3 M Wheel Tread Option (Imperial)
- 14692 lb.
- 3 M Wheel Tread Option (Metric)
- 6664 kg
- Row Crop Option (Imperial)
- 16239 lb.
- Row Crop Option (Metric)
- 7366 kg
Tires4 specifications
- Rear Tires Base Equipment
- 710/70R-38R1W (Singles)
- Rear Tires High Flotation Option
- 650/85R38 173B R-1W FS (Duals)
- Rear Tires 3 M Wheel Tread Option
- 710/70R-38R1W (Singles)
- Rear Tires Row Crop Option
- 18.4R-42 R1 153A8 (Duals)
Additional Information1 specifications
- Date Collected
- 2024-02-28
