John Deere
Model1725C (Twelve Row - 36 or 38 in.) Planter
Mounted Planters

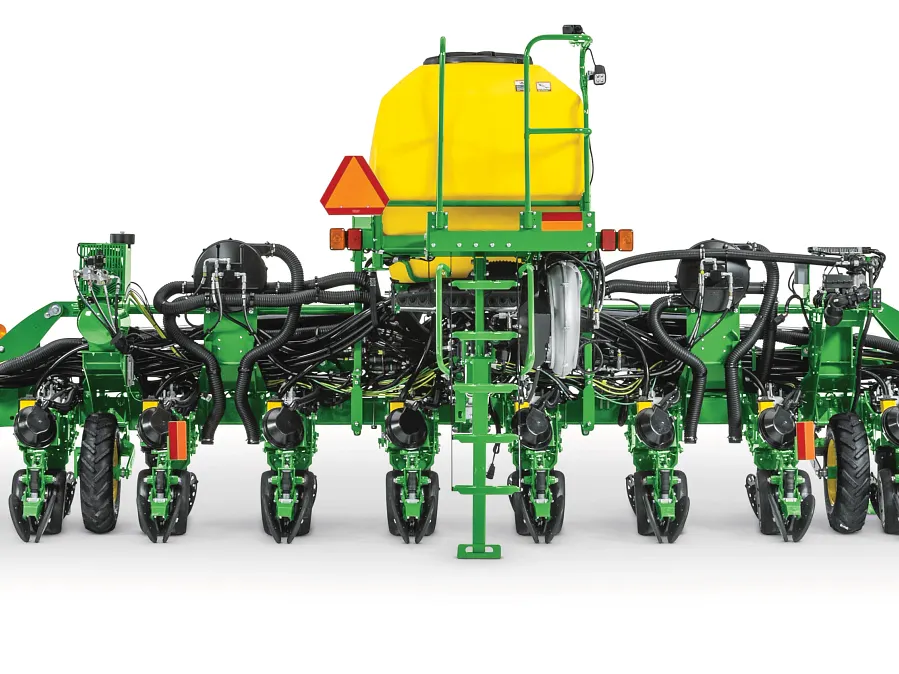

The John Deere 1725C Planter offers precision ag technology with a stack-fold frame, customizable settings for high-speed planting, and active pneumatic downforce for depth consistency. Ideal for modern farming, it ensures efficient operations with seamless tractor integration.
Model / part number: 355XH
Key specifications
- Number Of Rows
- 12
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
Technical specifications
29 specifications
Key Specs6 details
- Number Of Rows
- 12
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
- Row Unit Seed Hoppers
- Mini-hoppers
- Base Seed Meter
- Vacuum
Rows and Row Spacing3 details
- Number Of Rows
- 12
- Row Spacing (Imperial)
- 36, 38 in.
- Row Spacing (Metric)
- 91.4, 96.5 cm
Frame3 details
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
Lift System1 detail
- Type
- Integral only
Tires1 detail
- Base
- 12.5L-15SL 20 ply implement: 303 kPa 3.0 bar 44 psi; 7.60-15 8 ply implement: 359 kPa 3.6 bar 52 psi; 7.6-15 6 ply - traction: 276 kPa 2.8 bar 40 psi
Row Units4 details
- Type
- ExactEmerge™ row units or MaxEmerge™ 5e row units
- Opener
- Tru-Vee double disk
- Row Unit Seed Hoppers
- Mini-hoppers
- Row Unit Down Force
- Active pneumatic downforce or individual row hydraulic downforce (IRHD)
Seed Meters3 details
- Base Seed Meter
- Vacuum
- CCS Seed Capacity (Imperial)
- 55 bu
- CCS Seed Capacity (Metric)
- 1938 L
Drive System1 detail
- Base
- Electric drive: EPTO only: 56 V
Seed Monitor System1 detail
- Base
- SeedStar™ 4HP electronic system
Dimensions6 details
- Transport Width (Without Markers) (Imperial)
- 22, 23.17 ft
- Transport Width (Without Markers) (Metric)
- 6.7, 7.06 m
- Transport Height (Imperial)
- 13.42, 13.83 ft
- Transport Height (Metric)
- 4.1, 4.2 m
- Transport Underframe Clearance (Imperial)
- 13.2 ft
- Transport Underframe Clearance (Metric)
- 4 m
