John Deere

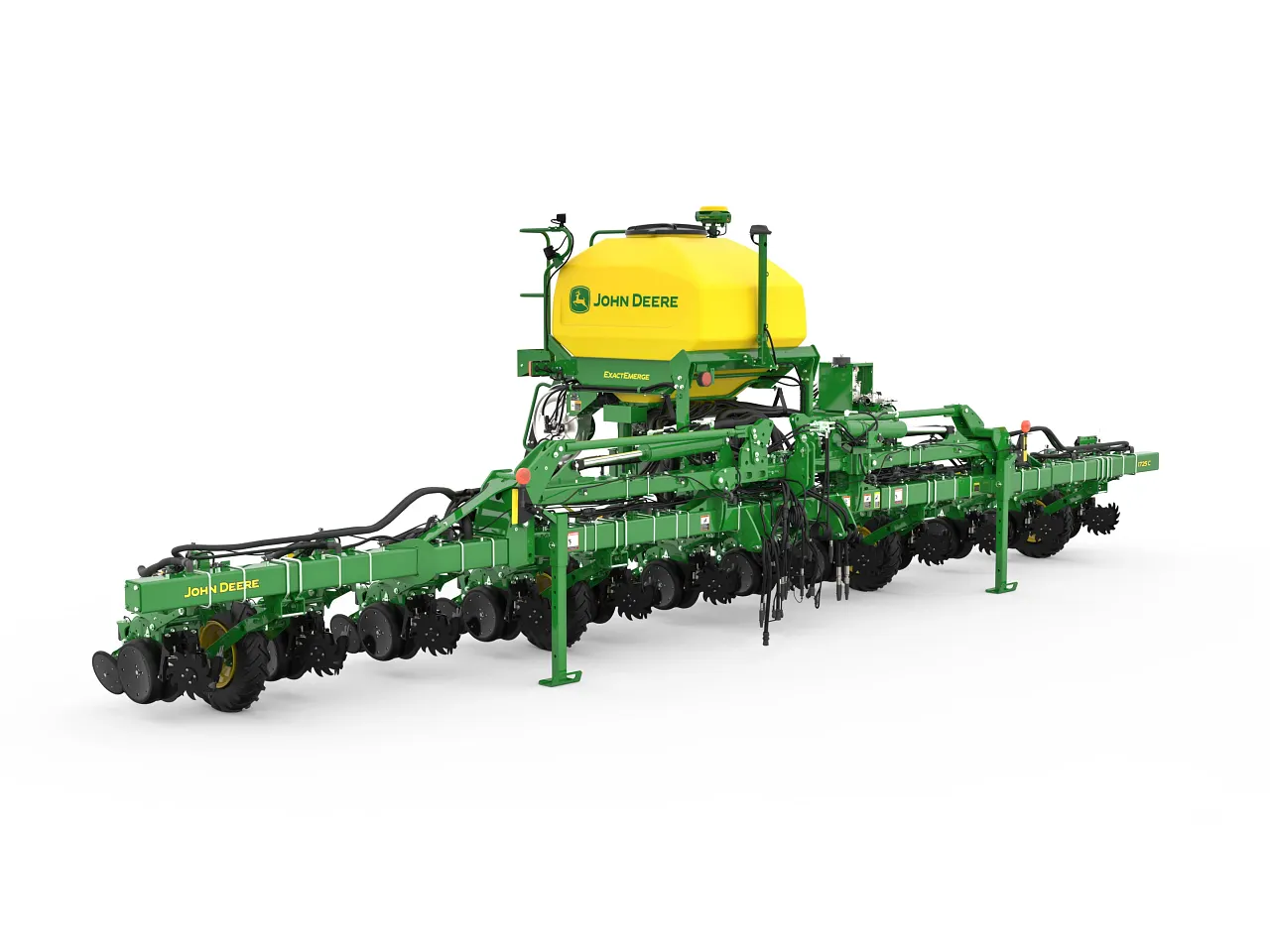

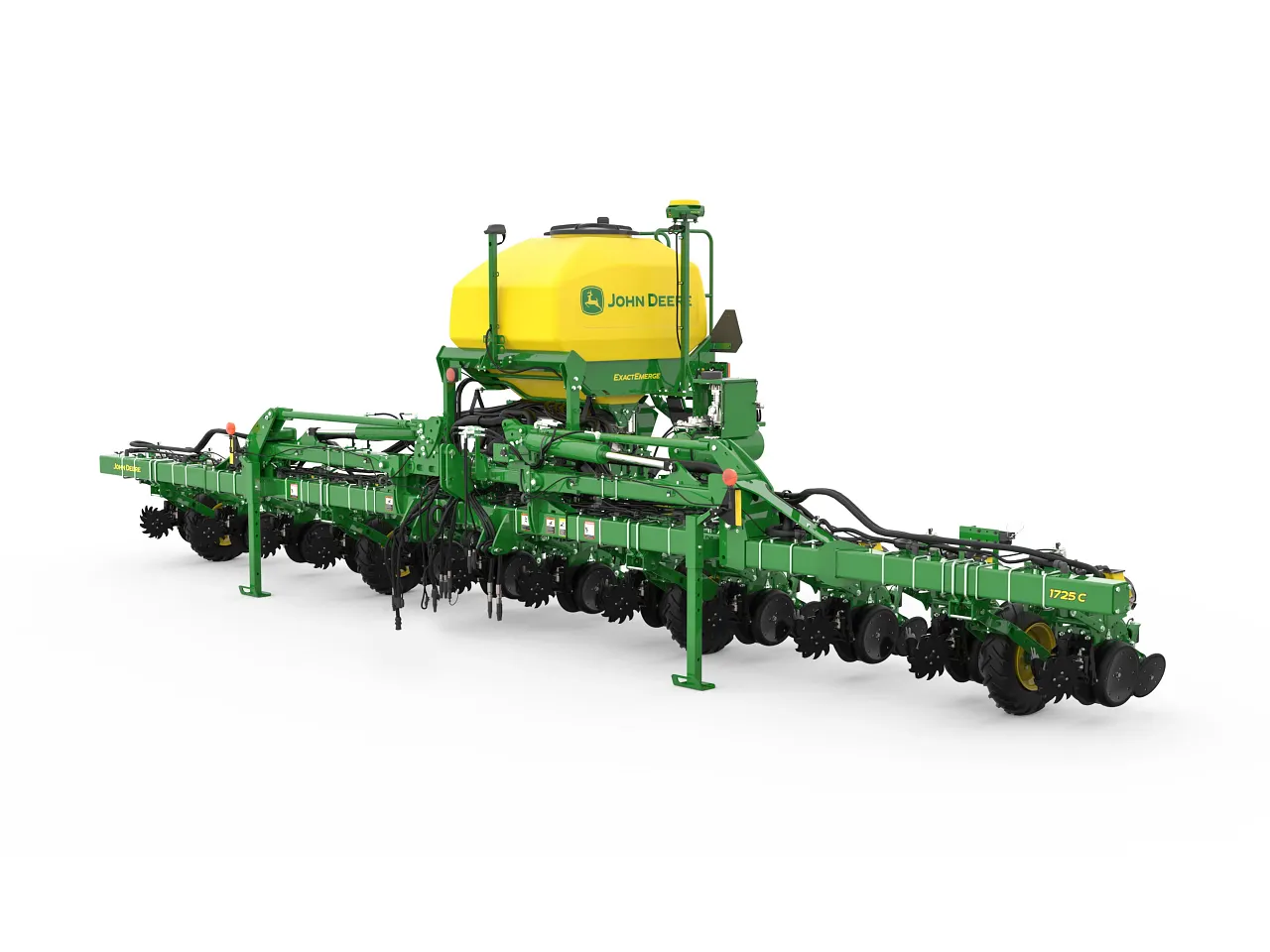

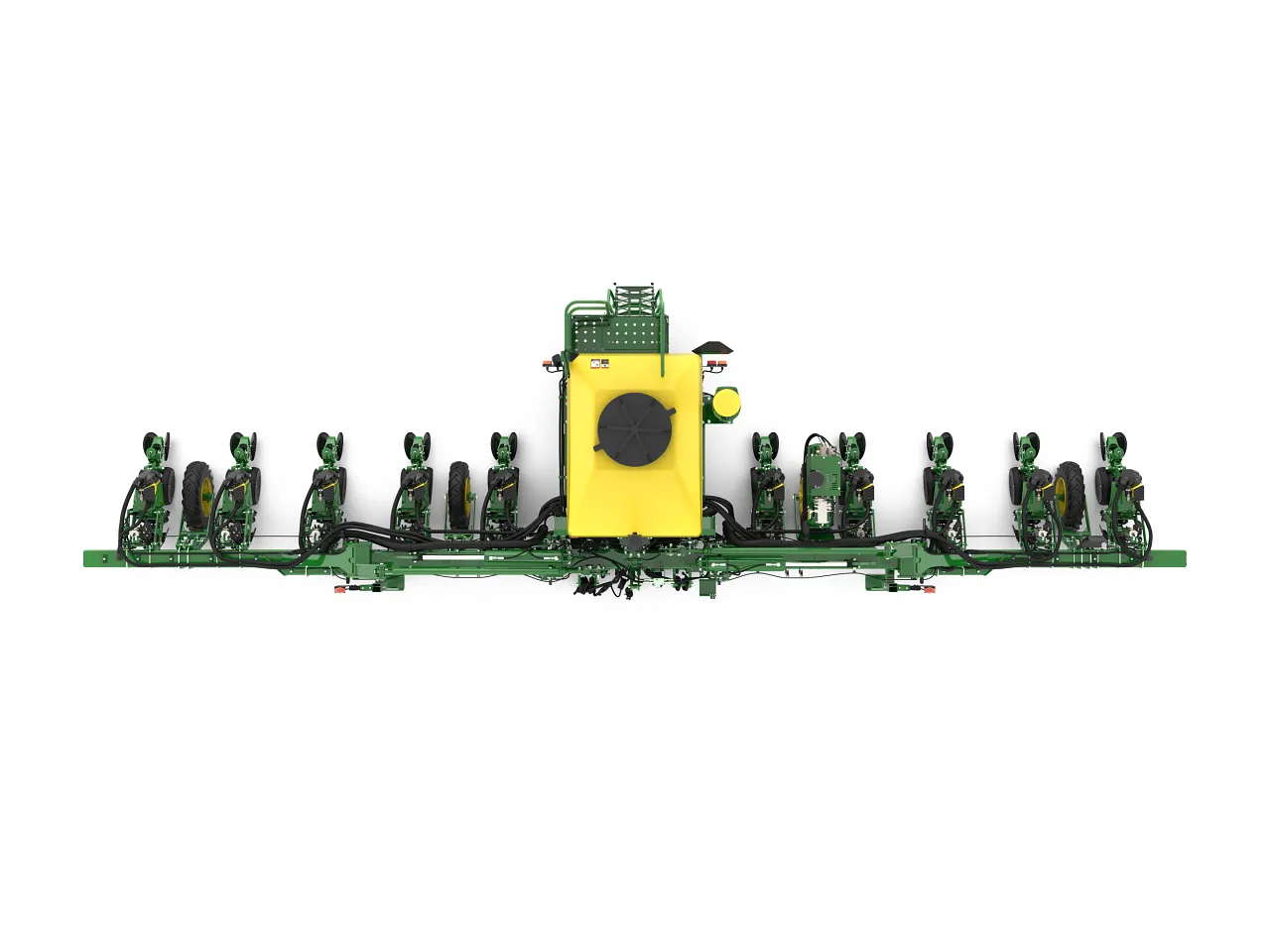

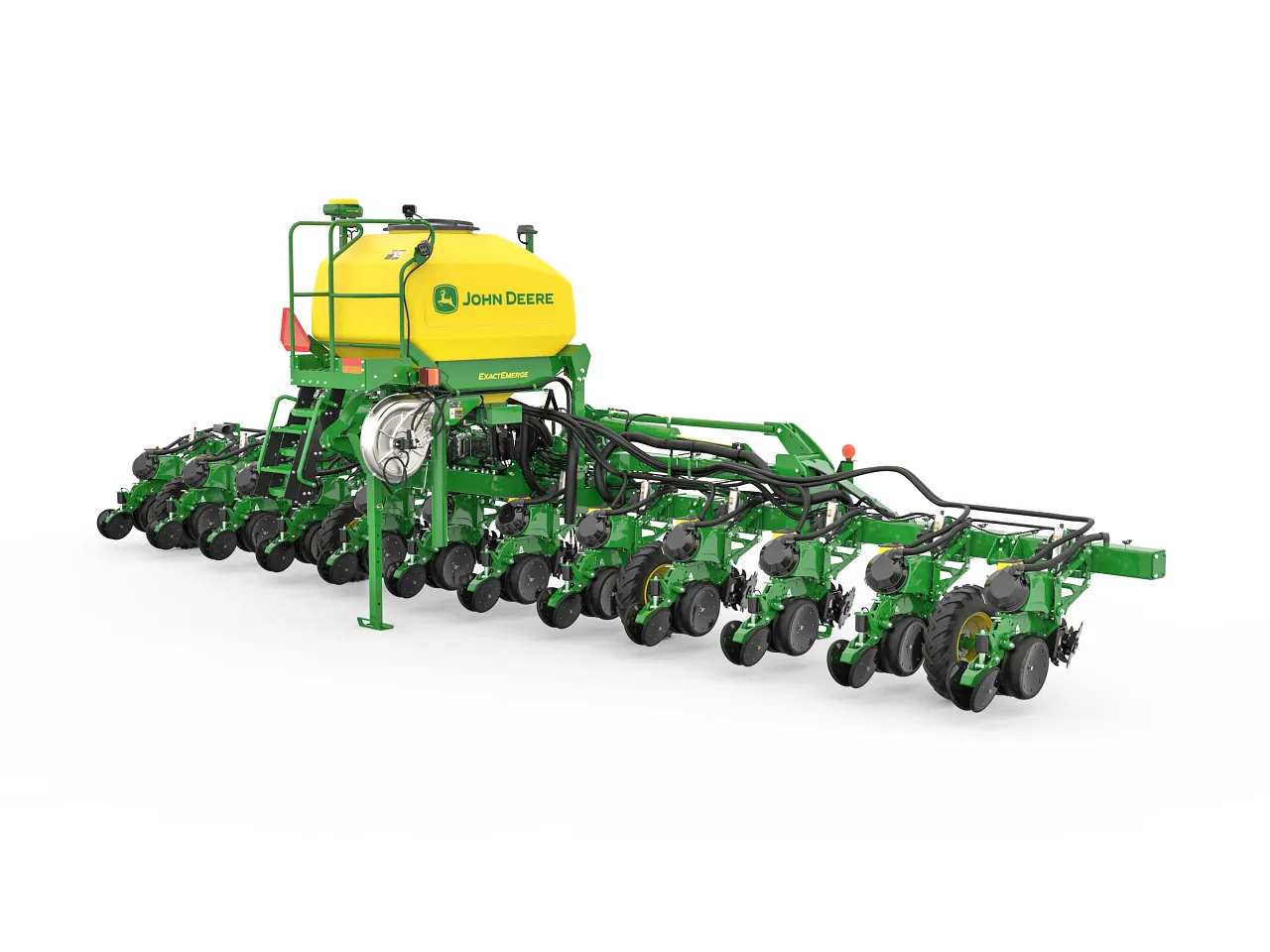

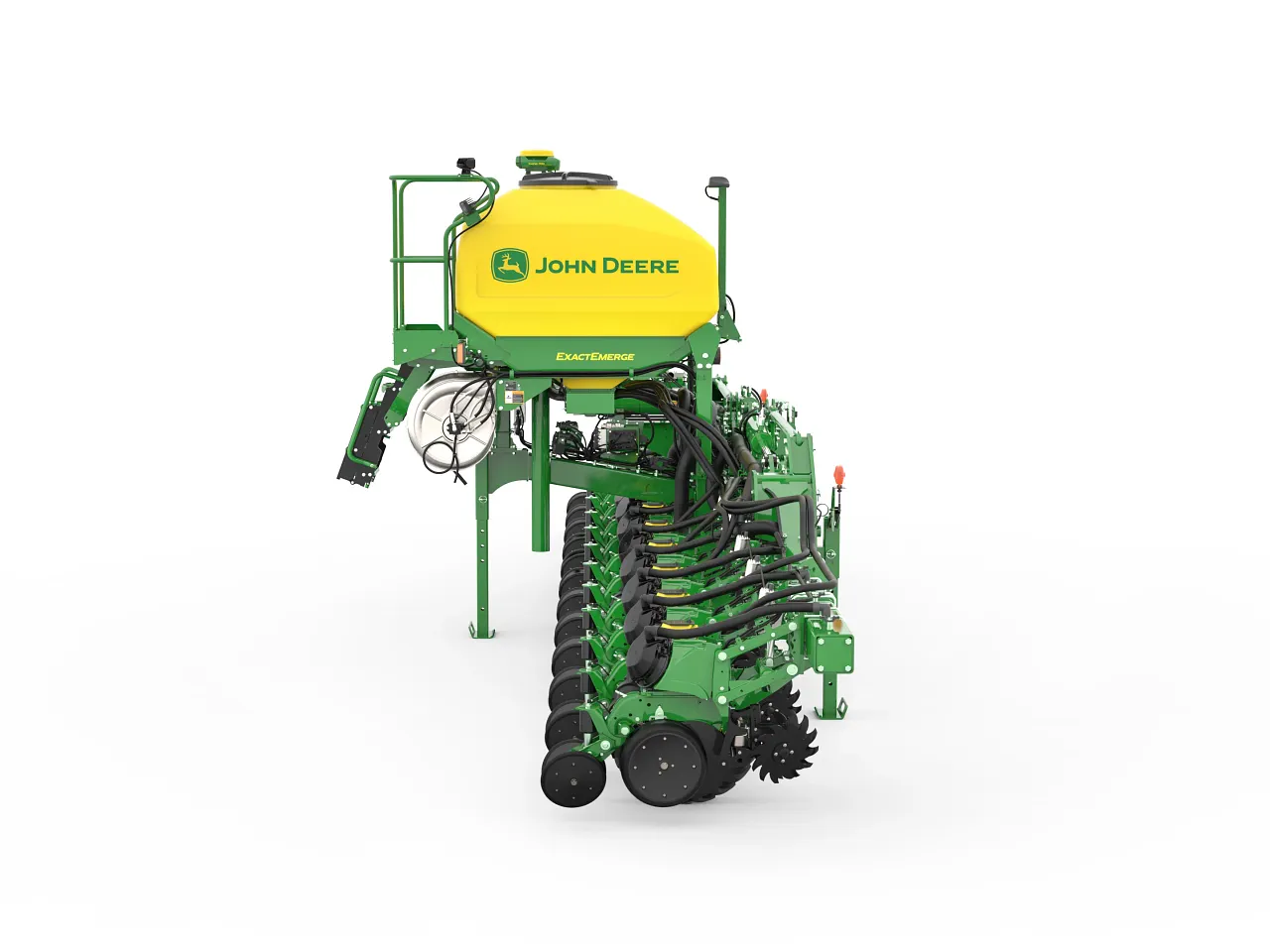

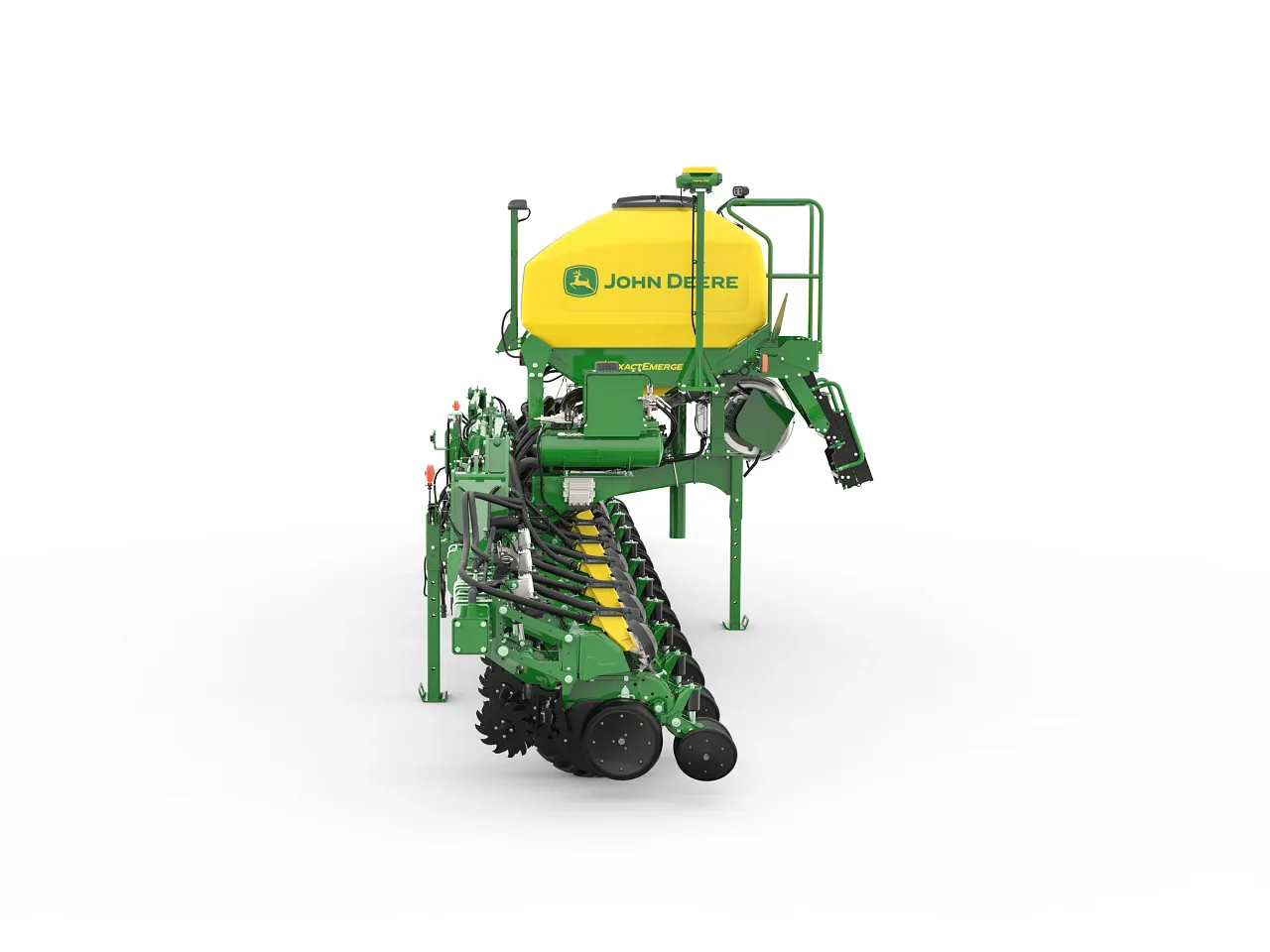

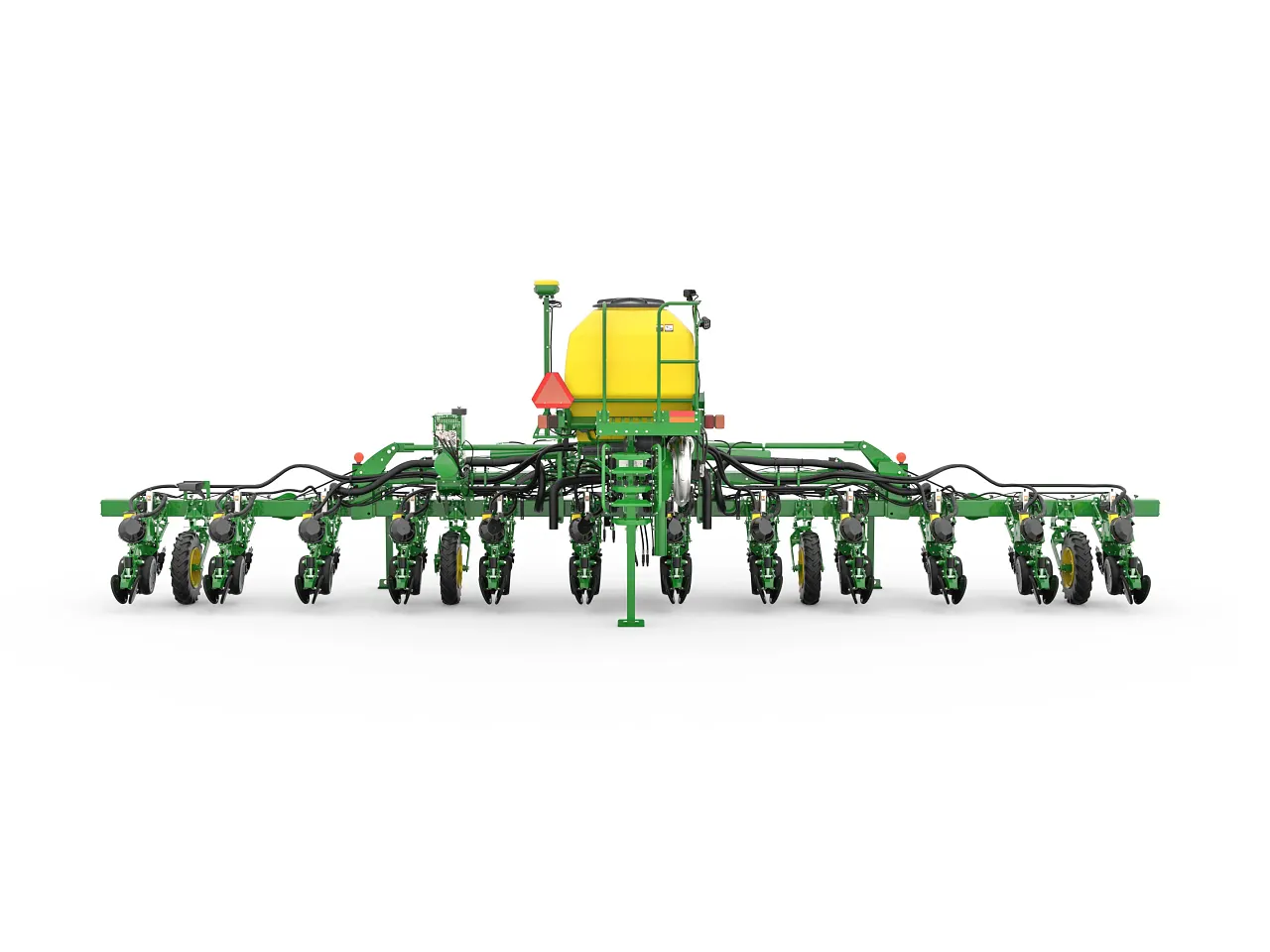

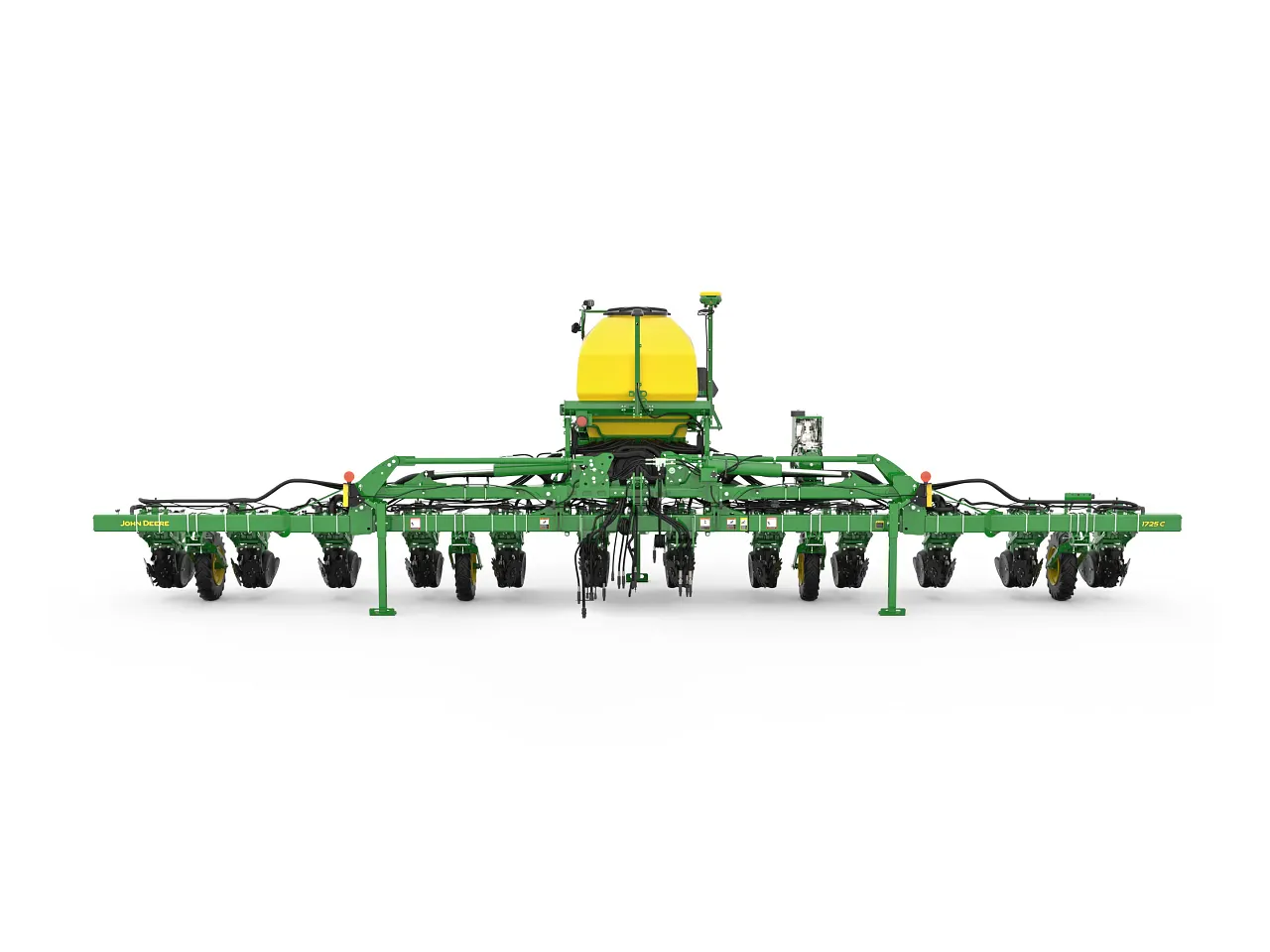

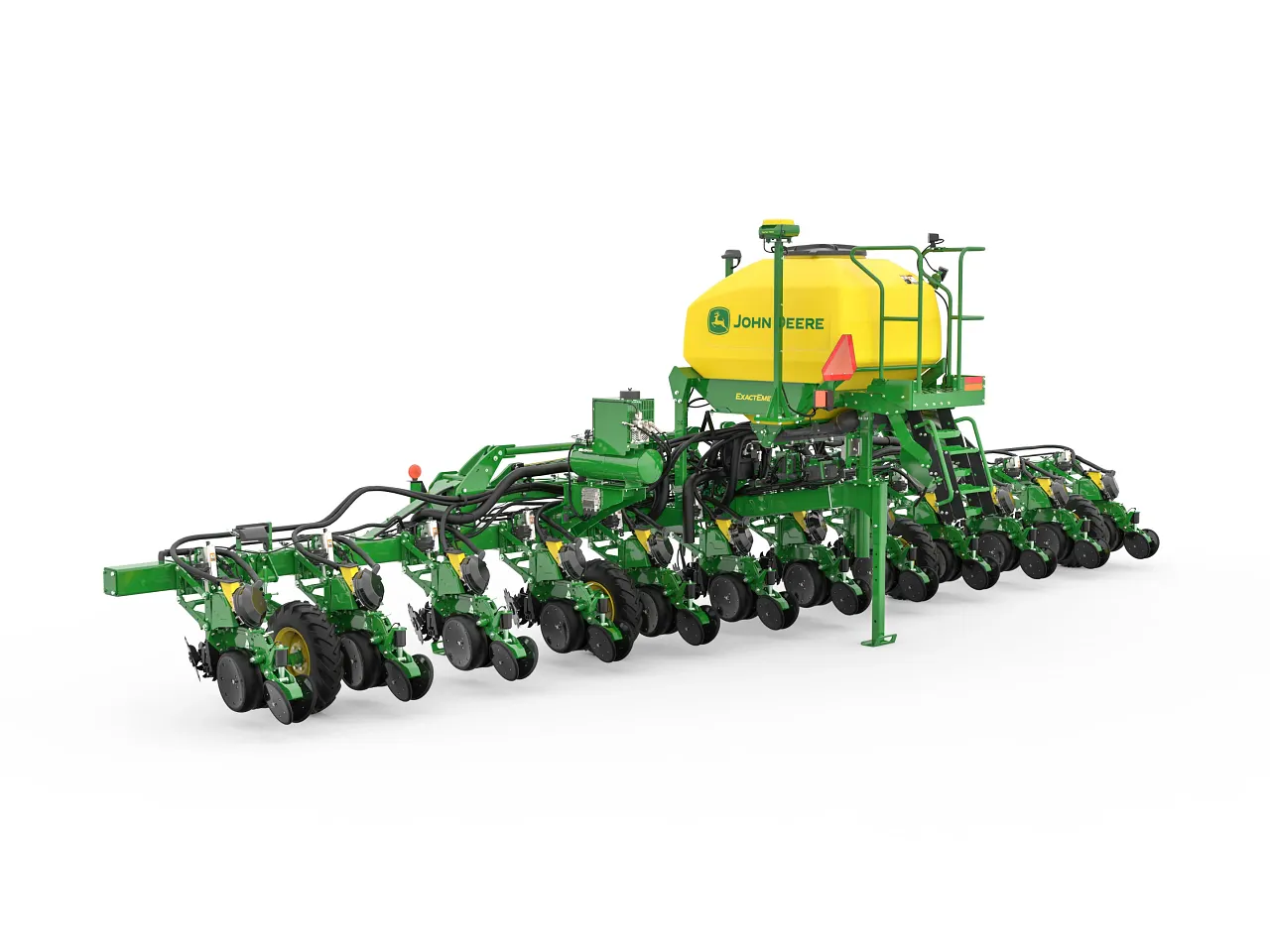

1725C (Twelve Row - 30 in.) Planter
Mounted Planters
The 1725C Planter - Twelve Row - 30 In. delivers precision planting with ExactEmerge trench delivery and curve compensation for optimal yields and efficiency. Perfect for diverse field conditions, it enhances productivity with a user-friendly design and advanced seed delivery system.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 355WH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs8 specifications
- Number Of Rows
- 12
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
- Row Unit Seed Hoppers
- Mini-Hoppers
- Seed Hopper Capacity (Imperial)
- 1.6, 3, 2.7 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7, 95.1 L
- Base Seed Meter
- Vacuum
Rows and Row Spacing3 specifications
- Number Of Rows
- 12
- Row Spacing (Imperial)
- 30 in.
- Row Spacing (Metric)
- 76.2 cm
Frame3 specifications
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
Lift System1 specifications
- Type
- Integral or semi-integral
Tires1 specifications
- Base
- 12.5L-15SL 20 ply implement: 303 kPa 3.0 bar (44 psi); 7.60-15 8 ply implement: 359 kPa 3.6 bar (52 psi); 7.6-15 6 ply - traction: 276 kPa 2.8 bar (40 psi)
Row Units7 specifications
- Type
- ExactEmerge™ row units or MaxEmerge™ 5e row units
- Opener
- Tru-Vee Double Disk
- Row Unit Seed Hoppers
- Mini-Hoppers
- Seed Hopper Capacity (Imperial)
- 1.6, 3, 2.7 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7, 95.1 L
- Row Unit Down Force
- Active pneumatic downforce or individual row hydraulic downforce (IRHD)
- Pneumatic Down Force
- Active pneumatic downforce
Seed Meters3 specifications
- Base Seed Meter
- Vacuum
- CCS Seed Capacity (Imperial)
- 55 bu
- CCS Seed Capacity (Metric)
- 1938 L
Drive System1 specifications
- Base
- Electric drive: EPTO only: 56 V
Seed Monitor System1 specifications
- Base
- SeedStar™ electronic system
Additional Information2 specifications
- Recommended Tractor Horsepower
- Vacuum system hydraulic drive: horsepower required: 4.5-10.4 kW 6-14 hp; Minimum tractor size: 201 kW 270 hp; Tractor recommendation: Current model (minimum) 8430 MFWD with dual rear tires and 20 front weights
- Recommended Tractor Hydraulics
- Hydraulic oil required to operate the planter: 227 L/min 60 gpm; Hydraulic system standby pressure: 15,513 kPa 155 bar (2250 psi); Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi); Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi)
