John Deere

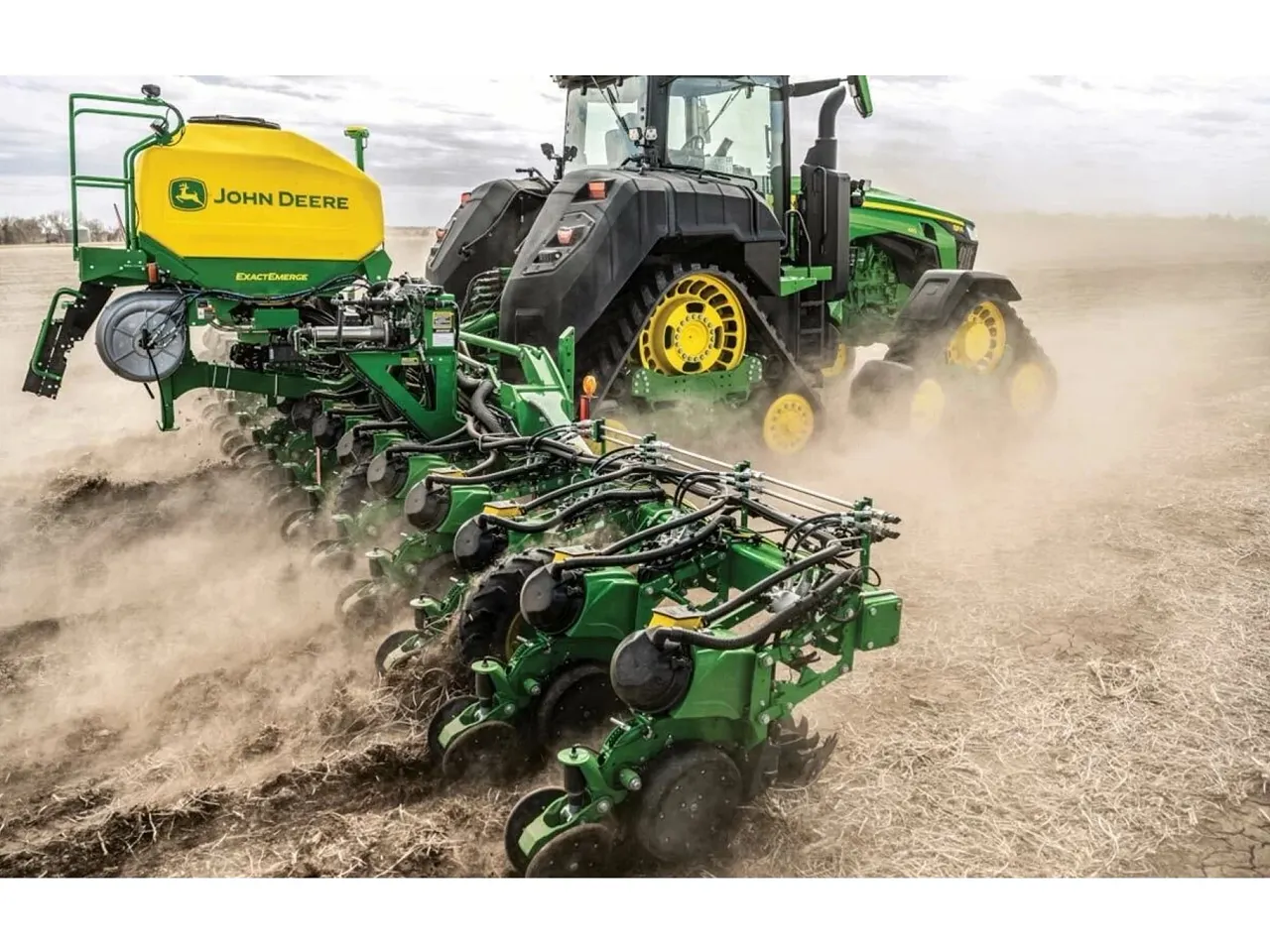

1725C (Sixteen Row - 30 in.) Planter
Mounted Planters
The John Deere 1725C 16‑row planter: stack‑fold, CCS, precision vacuum meters, and section control for high‑speed, accurate planting.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 355ZH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Number Of Rows
- 16
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
- Row Unit Seed Hoppers
- Mini-hoppers
- Base Seed Meter
- Dual vacuum
Rows and Row Spacing3 specifications
- Number Of Rows
- 16
- Row Spacing (Imperial)
- 30 in.
- Row Spacing (Metric)
- 76.2 cm
Frame3 specifications
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
Lift System1 specifications
- Type
- Integral or semi-integral
Tires1 specifications
- Base
- 12.5L-15SL 20 ply implement: 303 kPa 3.0 bar 44 psi; 7.60-15 8 ply implement: 359 kPa 3.6 bar 52 psi; 7.6-15 6 ply - traction: 276 kPa 2.8 bar 40 psi
Row Units4 specifications
- Type
- ExactEmerge™ row units or MaxEmerge™ 5e row units
- Opener
- Tru-Vee double disk
- Row Unit Seed Hoppers
- Mini-hoppers
- Row Unit Down Force
- Active pneumatic downforce or individual row hydraulic downforce (IRHD)
Seed Meters3 specifications
- Base Seed Meter
- Dual vacuum
- CCS Seed Capacity (Imperial)
- 55 bu
- CCS Seed Capacity (Metric)
- 1938 L
Drive System1 specifications
- Base
- Electric drive: EPTO only: 56 V
Seed Monitor System1 specifications
- Base
- SeedStar™ 4HP electronic system
Dimensions6 specifications
- Transport Width (Without Markers) (Imperial)
- 20.54 ft
- Transport Width (Without Markers) (Metric)
- 6.26 m
- Transport Height (Imperial)
- 21.92 ft
- Transport Height (Metric)
- 6.68 m
- Transport Underframe Clearance (Imperial)
- 13 ft
- Transport Underframe Clearance (Metric)
- 4.22 m
