John Deere

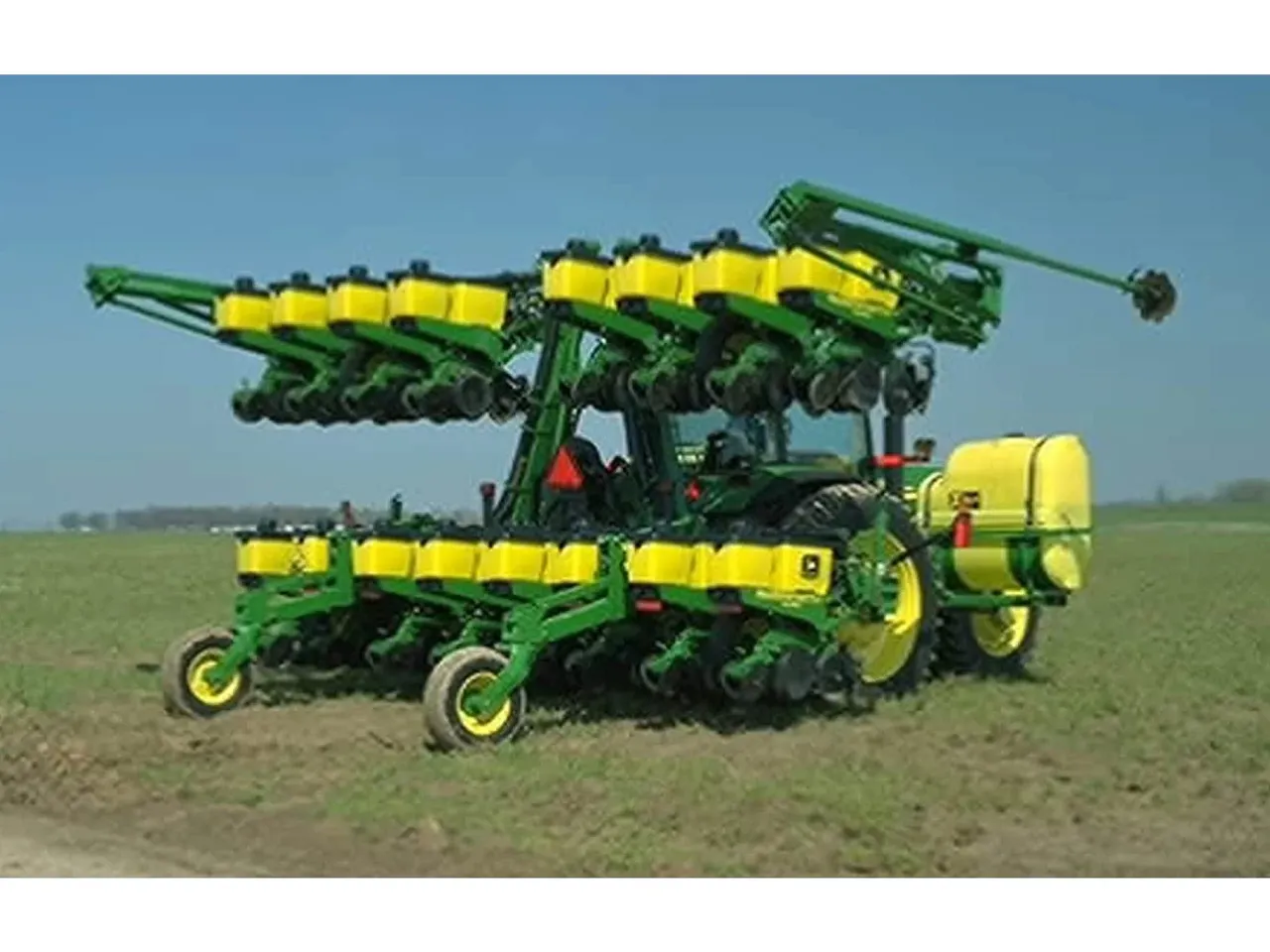

1725 Integral Stack-Fold Planter
Mounted Planters
The 1725 Stack-Fold Planter is an integral planter, mounting to the tractor's 3-point hitch, utilizing a flexible, folding frame. It is available in 8-, 12-, and 16-row configurations. Available row spacings are 36 in., 38 in., and 40 in. for 8-row and 12-row frames. The 12-row and 16-row frames are also available with 30-in. row spacing.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 349BH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs7 specifications
- Number Of Rows
- 12
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7 L
- Base Seed Meter
- Vacuum
Rows and Row Spacing3 specifications
- Number Of Rows
- 12
- Row Spacing (Imperial)
- 36 in.
- Row Spacing (Metric)
- 91.4 cm
Frame3 specifications
- Frame Fold Configuration
- Stack-folding
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
Lift System1 specifications
- Type
- Integral only
Tires1 specifications
- Base
- 12.5L-15SL 20 ply implement: 303 kPa 3.0 bar 44 psi; 7.60-15 8 ply implement: 359 kPa 3.6 bar 52 psi; 7.6-15 6 ply - traction: 276 kPa 2.8 bar 40 psi
Row Units8 specifications
- Type
- Tru-Vee double disk
- Opener
- Tru-Vee double disk
- Adjustment
- Adjustable heavy-duty spring or pneumatic downforce
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7 L
- Row Unit Down Force
- Adjustable heavy-duty spring or pneumatic downforce
- Adjustable Heavy Duty Down Force
- Yes
- Pneumatic Down Force
- Yes
Seed Meters3 specifications
- Base Seed Meter
- Vacuum
- CCS Seed Capacity (Imperial)
- 1.6, 3 bu
- CCS Seed Capacity (Metric)
- 56.4, 105.7 L
Drive System1 specifications
- Base
- Ground driven or hydraulic driven
Seed Monitor System1 specifications
- Base
- SeedStar™ electronic system
Dimensions6 specifications
- Transport Width (Without Markers) (Imperial)
- 19.5 ft
- Transport Width (Without Markers) (Metric)
- 5.9 m
- Transport Height (Imperial)
- 13.25 ft
- Transport Height (Metric)
- 4.1 m
- Transport Underframe Clearance (Imperial)
- 13.2 ft
- Transport Underframe Clearance (Metric)
- 4 m
Additional Information2 specifications
- Recommended Tractor Horsepower
- Vacuum system hydraulic drive: horsepower required: 4.5-10.4 kW 6-14 hp; Minimum tractor size: 201 kW 270 hp; Tractor recommendation: Current model (minimum) 8430 MFWD with dual rear tires and 20 front weights
- Recommended Tractor Hydraulics
- Hydraulic oil required to operate the planter: 227 L/min 60 gpm Hydraulic system standby pressure: 15,513 kPa 155 bar (2250 psi) Hydraulic system working pressure: 20,684 kPa 207 bar (3000 psi) Hydraulic system burst pressure: 82,737 kPa 827 bar (12,000 psi)
