John Deere

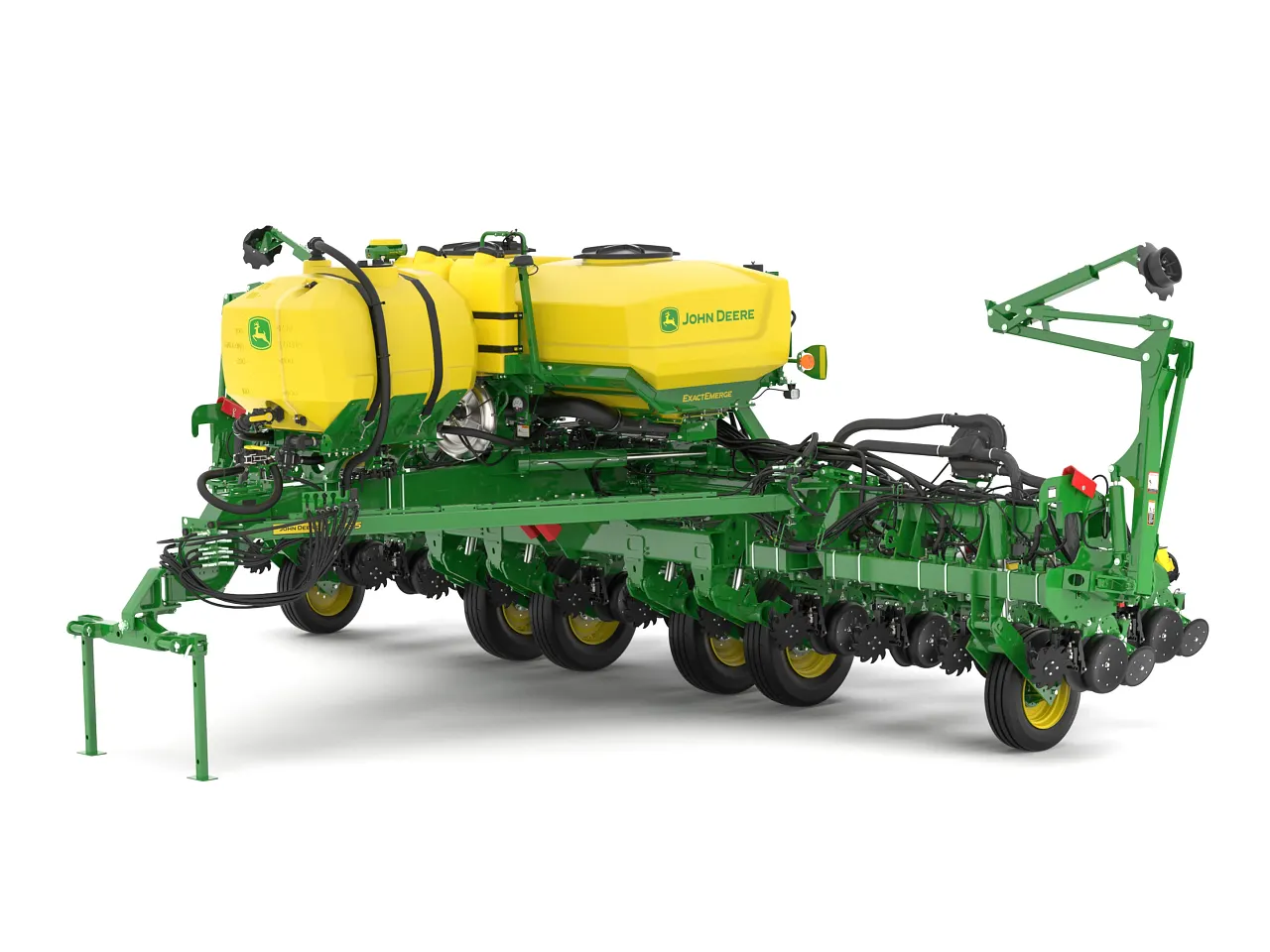

1795 Planter - Thirty-Two Row - 15 In. Planter
Drawn Planters

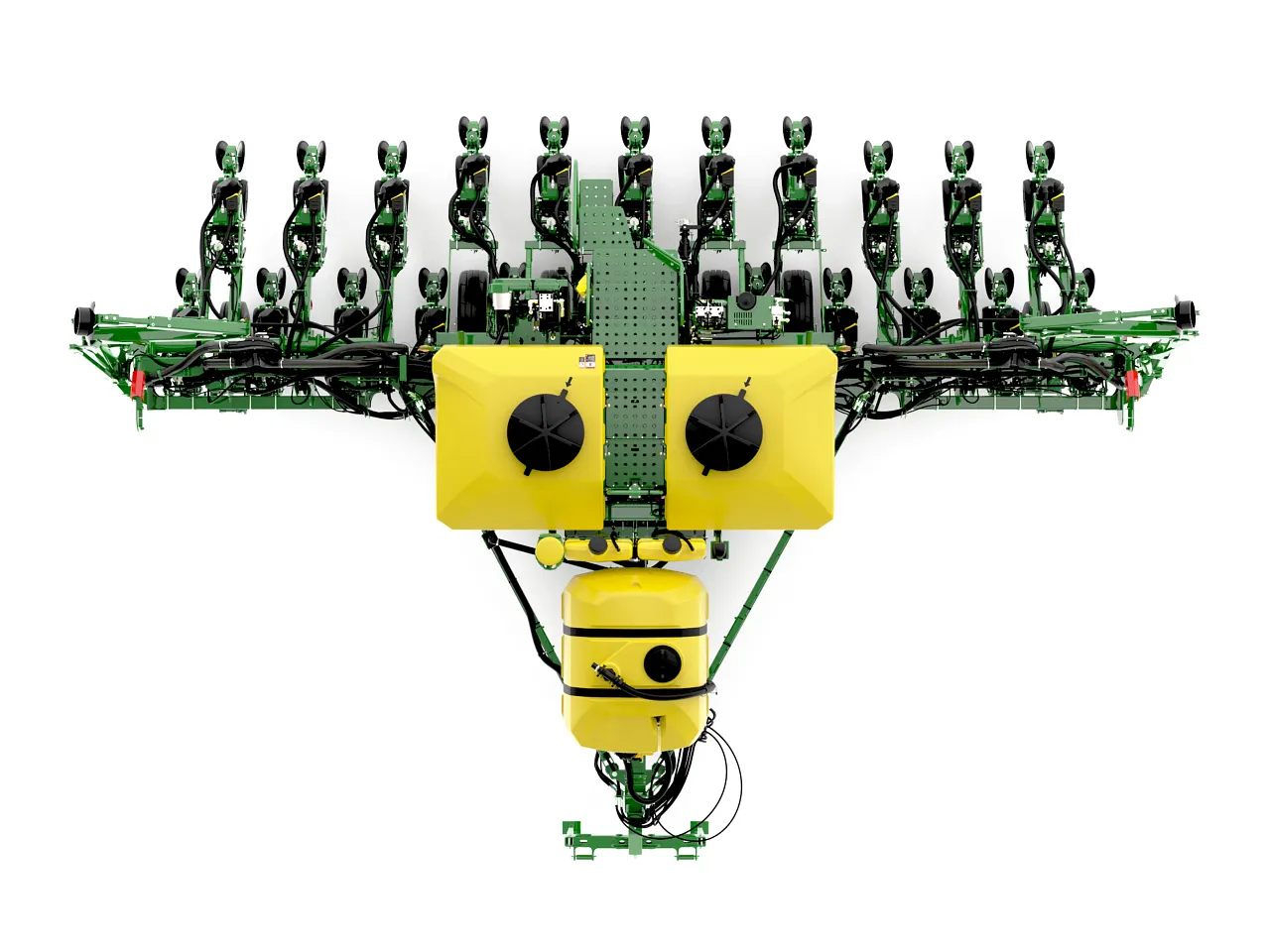

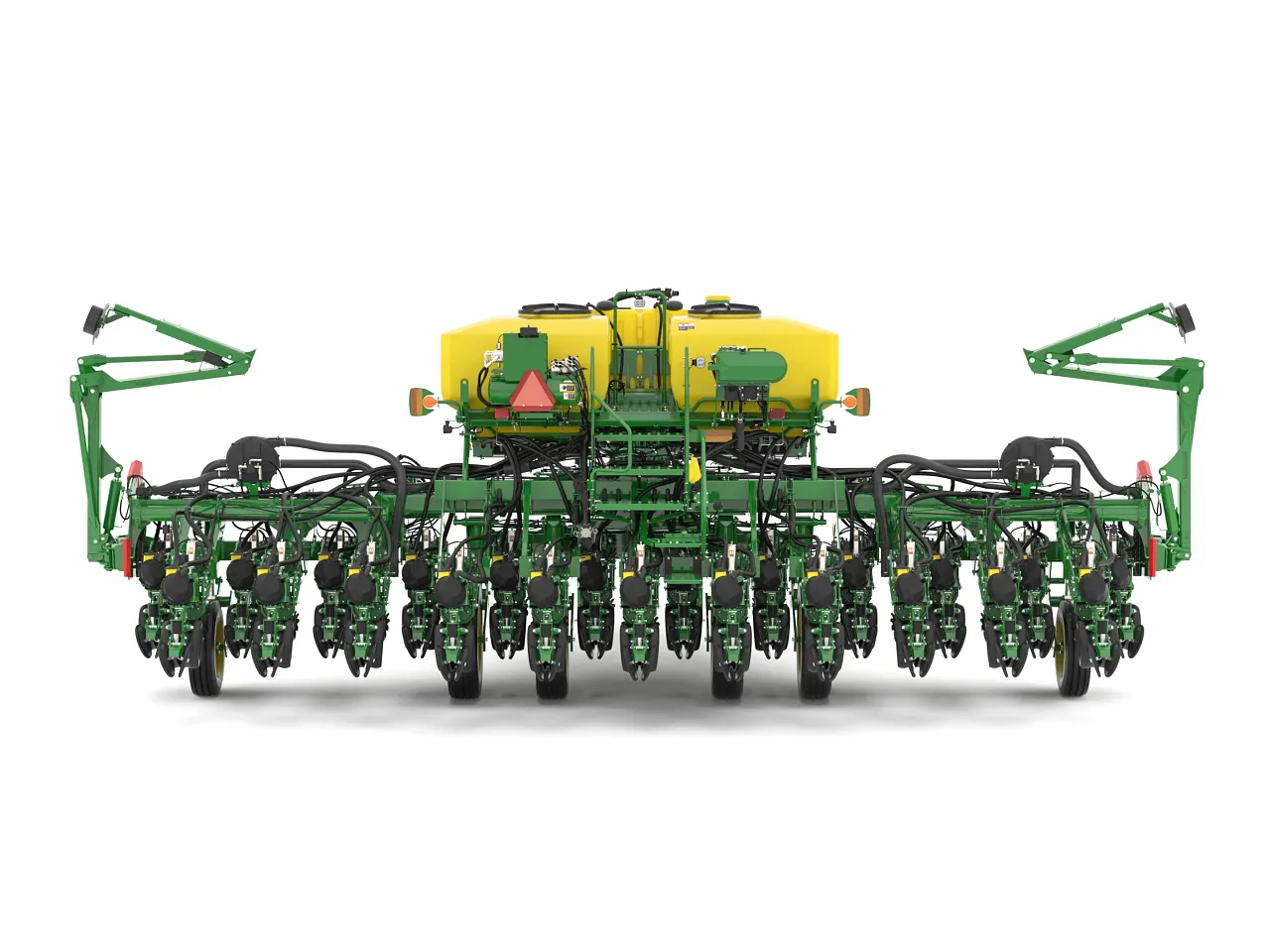

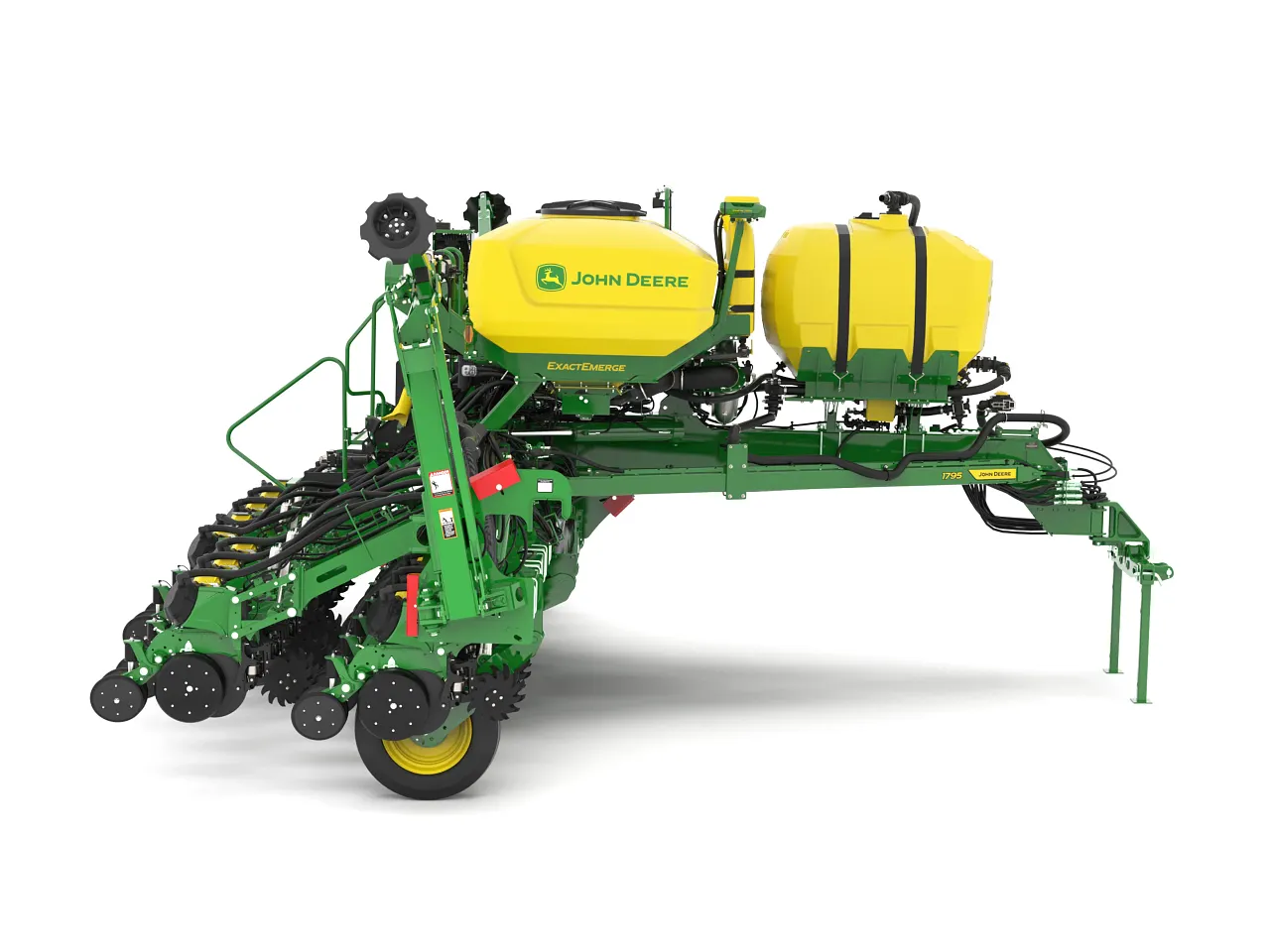

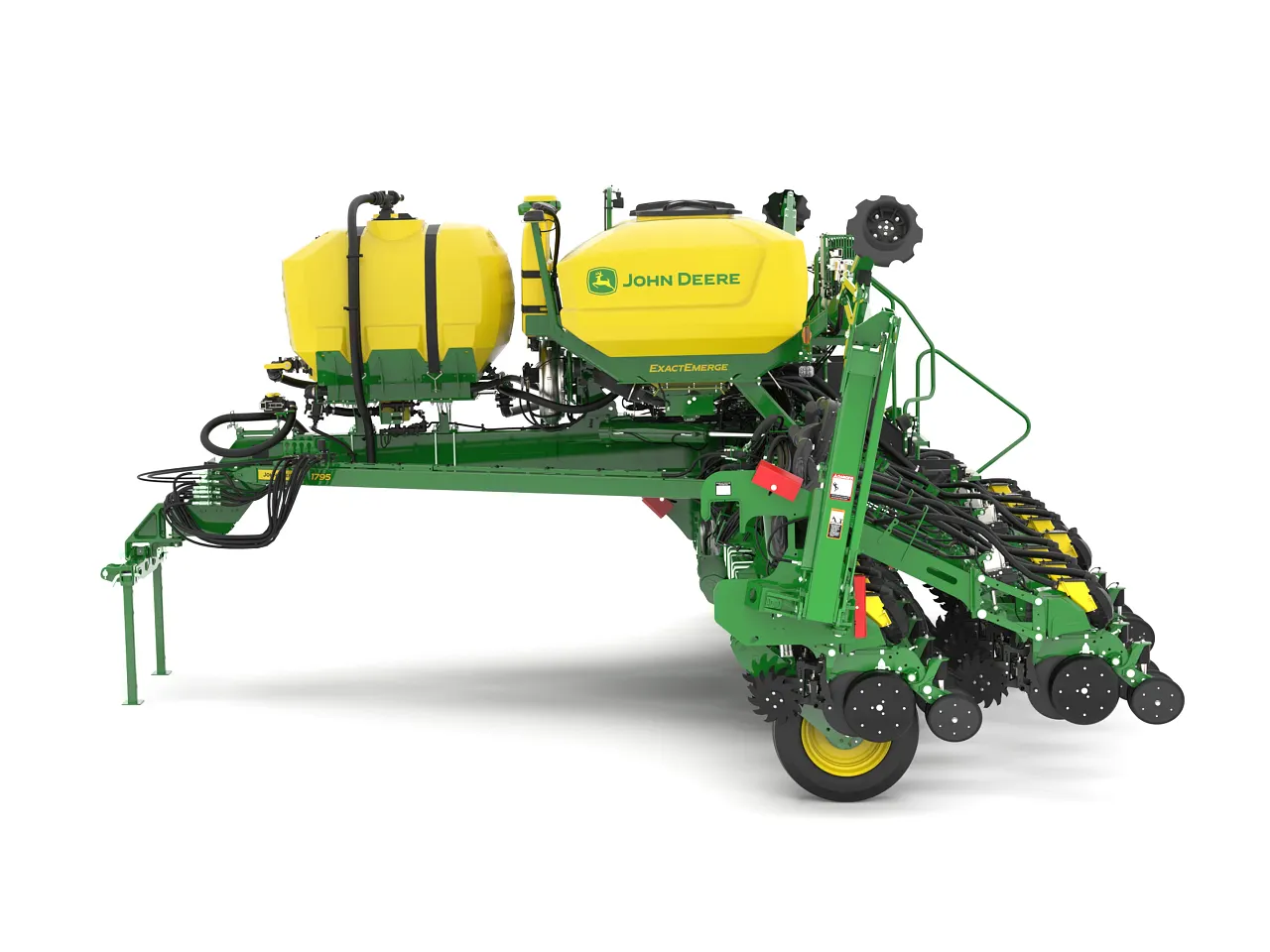

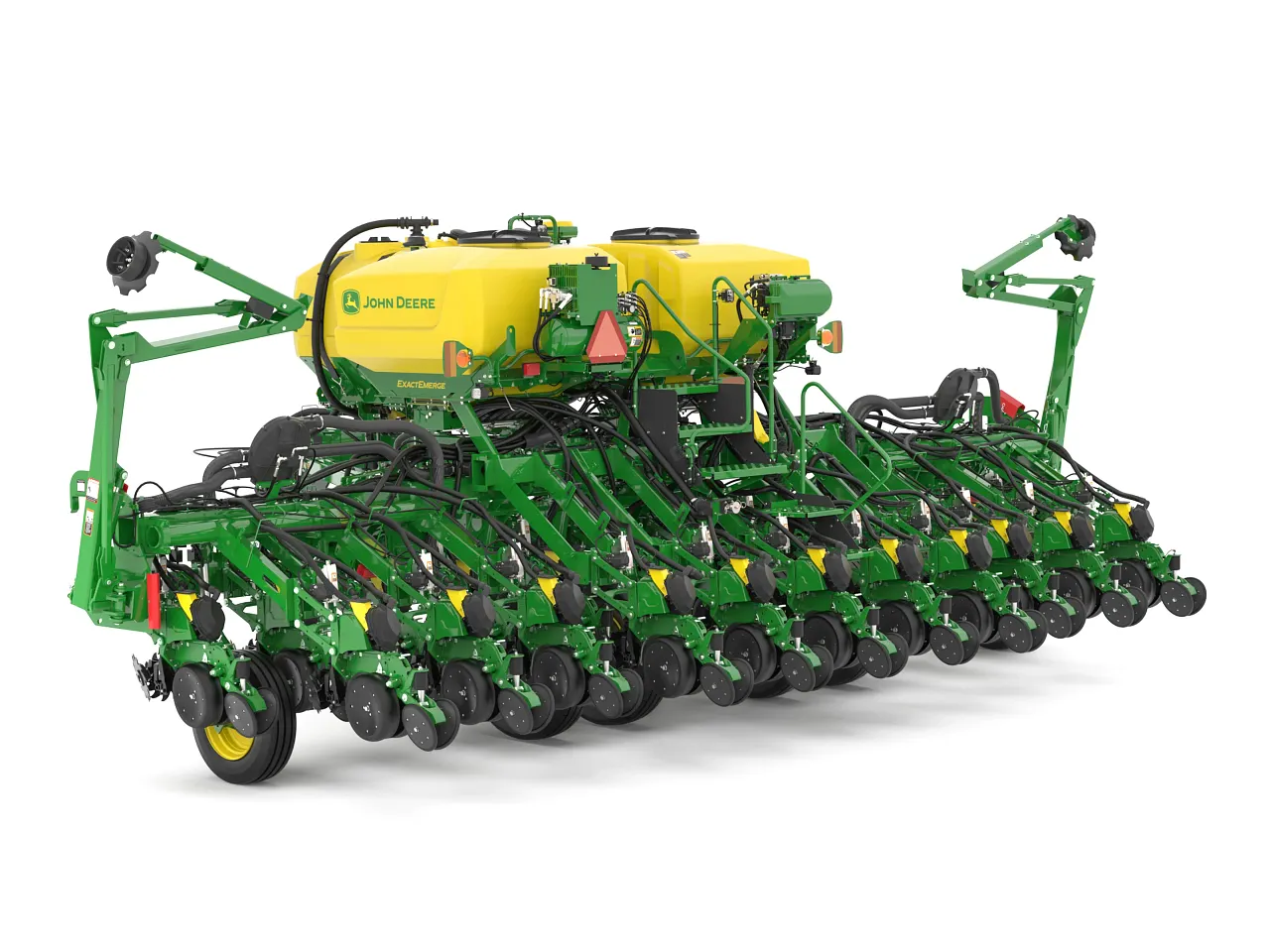

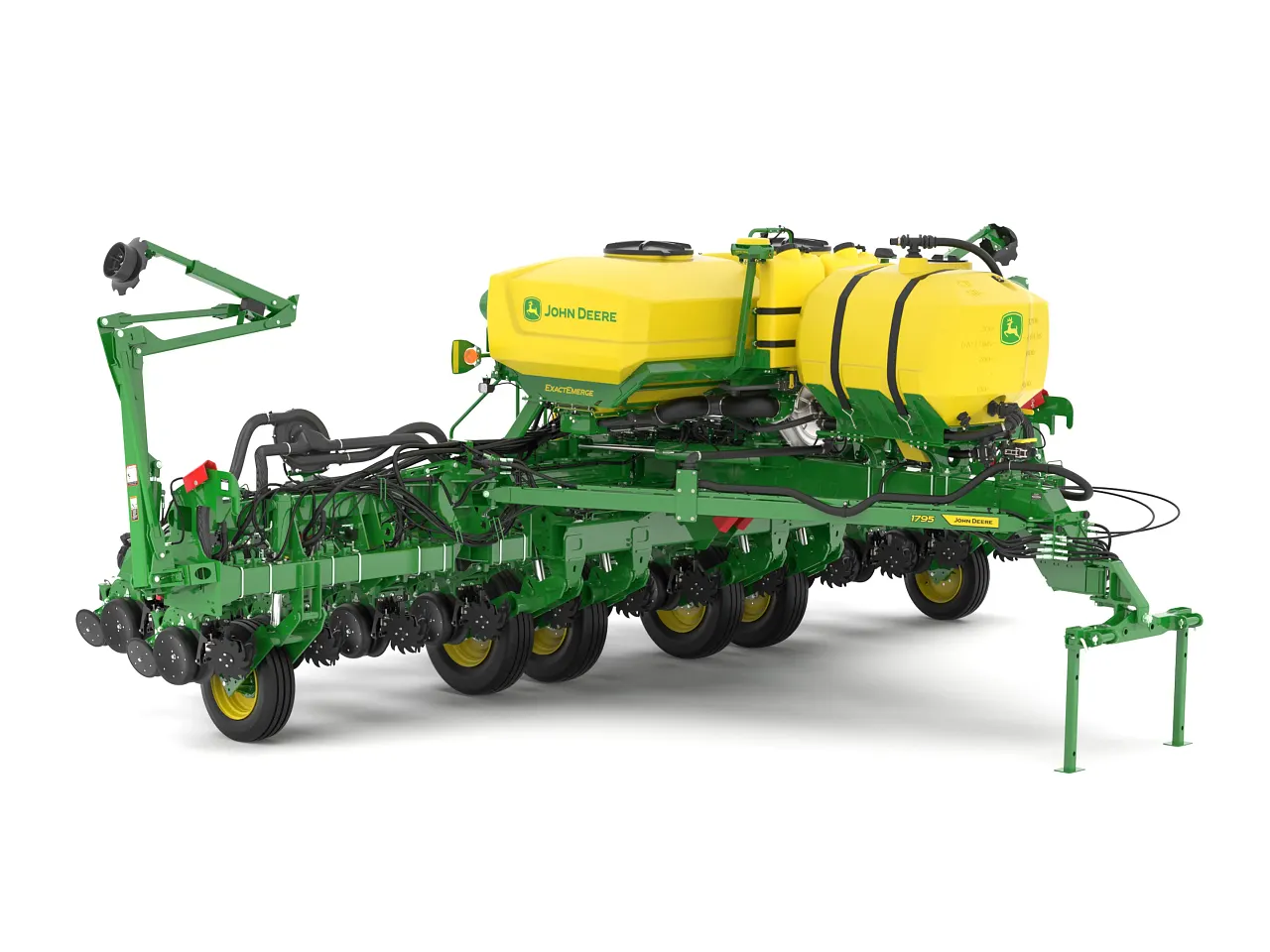

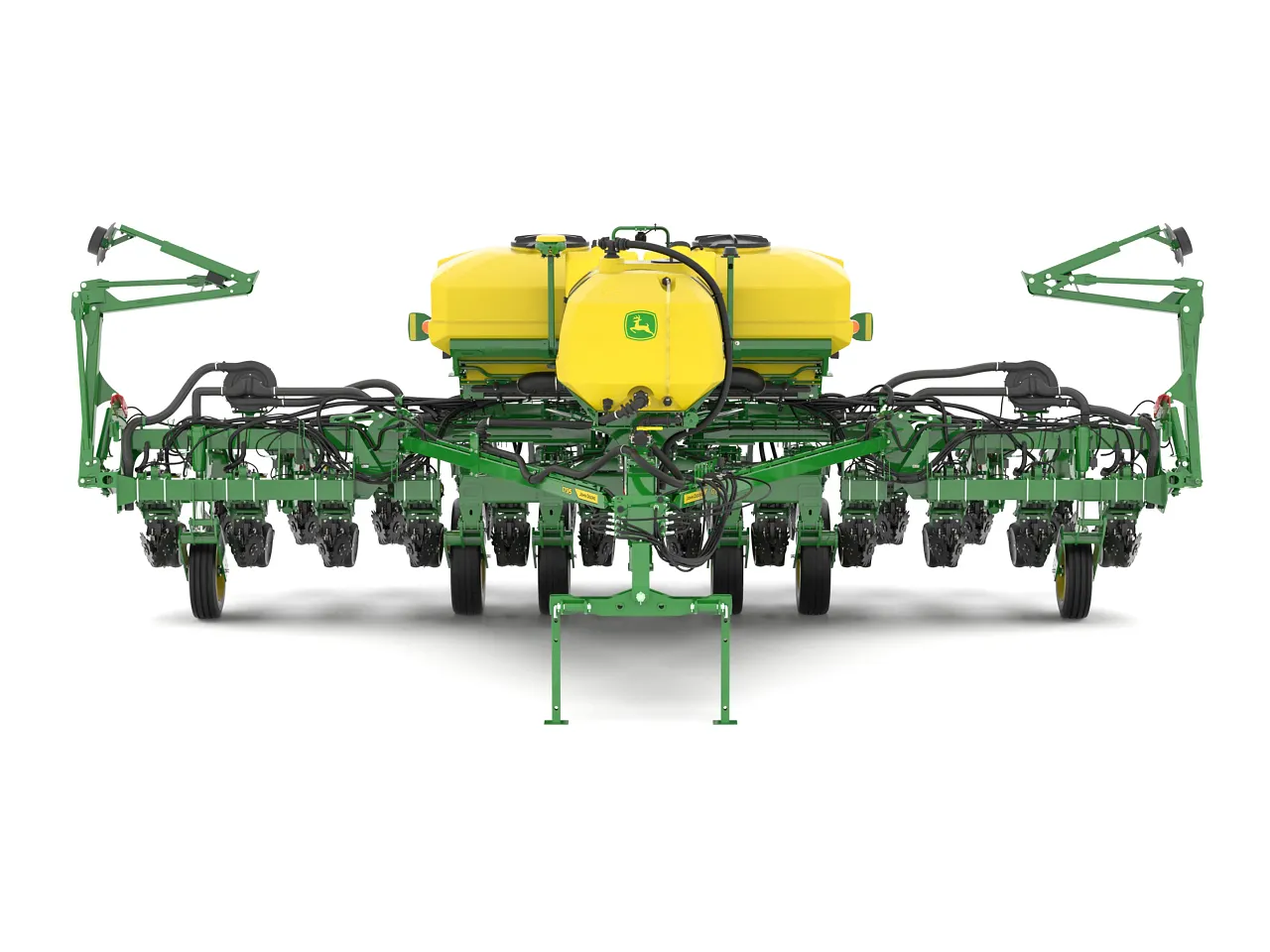

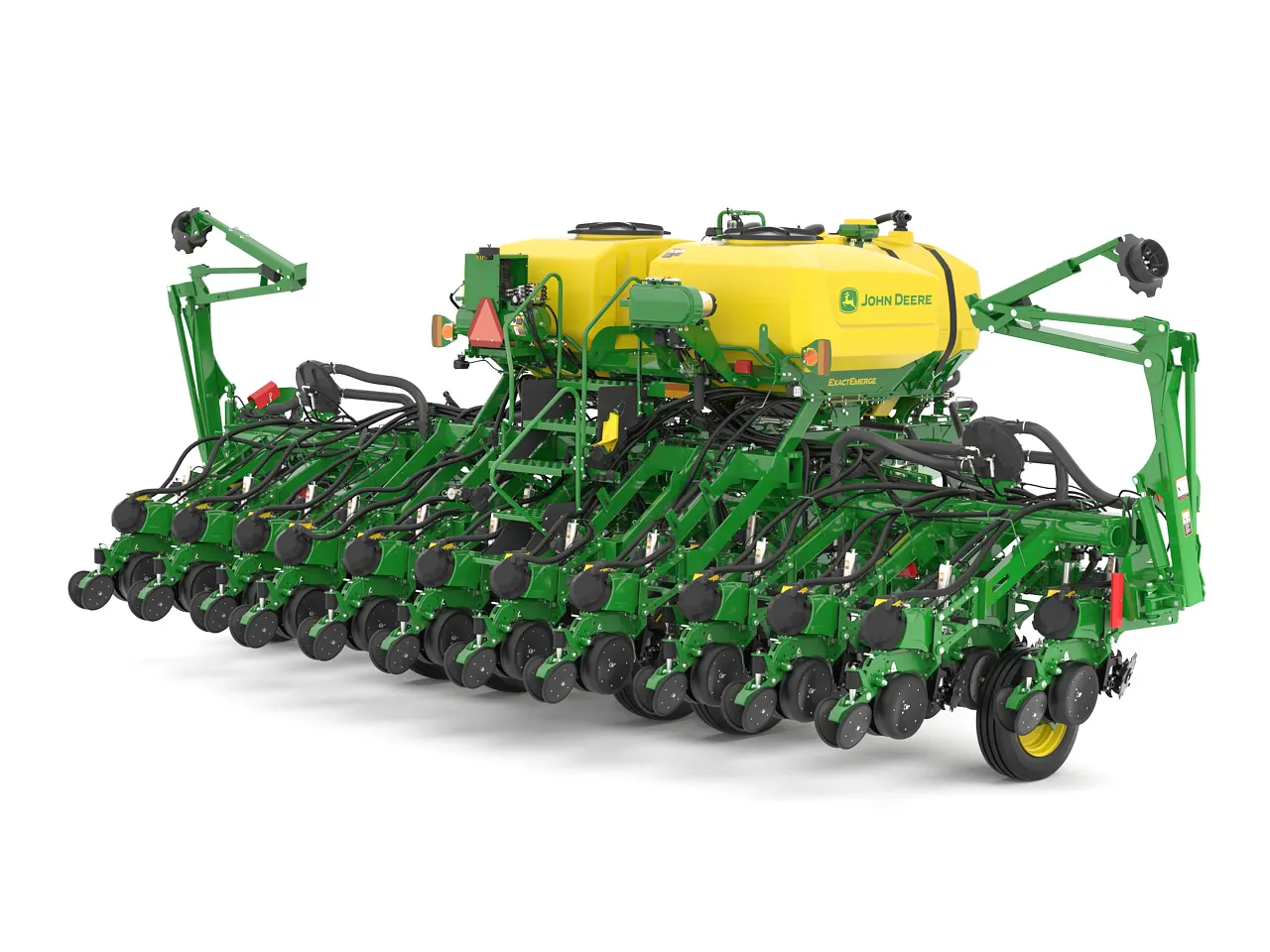

The 16/32 1795 drawn split-row planter attaches to the drawbar or 2-point hitch of the tractor. This 40-ft model is a 32-row split row planter in the 15-in. row spacing configuration.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 6189H
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs6 specifications
- Number Of Rows
- 24
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
- Base Seed Meter
- Vacuum
Rows and Row Spacing3 specifications
- Number Of Rows
- 24
- Row Spacing (Imperial)
- 15 in.
- Row Spacing (Metric)
- 38 cm
Frame2 specifications
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
Lift System1 specifications
- Type
- Wheel modules with rephasing hydraulic cylinders
Tires1 specifications
- Base
- Wing tires: VF245/70R19.5; Center tires: VF295/75R22.5
Row Units4 specifications
- Type
- Standard: MaxEmerge™ 5 row units; Optional: ExactEmerge™ row units MaxEmerge 5e row units
- Opener
- Tru-Vee™ double disk
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Seed Meters5 specifications
- Base Seed Meter
- Vacuum
- CCS Seed Capacity Without Liquid Tank (Imperial)
- 100.0 bu
- CCS Seed Capacity Without Liquid Tank (Metric)
- 3524.0 L
- CCS Seed Capacity With Liquid Tank (Imperial)
- 70.0 bu
- CCS Seed Capacity With Liquid Tank (Metric)
- 2467.0 L
Drive System1 specifications
- Base
- Hydraulic variable rate drive
Markers1 specifications
- Type
- Automatic alternating or independent control
Seed Monitor System1 specifications
- Base
- SeedStar™ on GreenStar™ displays
Fertilizer3 specifications
- Tank Capacity (Imperial)
- 420.0 gal.
- Tank Capacity (Metric)
- 1590.0 L
- Exact Rate Fluid Transfer System
- Available
Dimensions10 specifications
- Transport Width (With Markers) (Imperial)
- 13.27 ft
- Transport Width (With Markers) (Metric)
- 4.043 m
- Transport Length (Imperial)
- 29.25 ft
- Transport Length (Metric)
- 8.914 m
- Transport Height (Imperial)
- 13.48 ft
- Transport Height (Metric)
- 4.111 m
- Field Operation Width (Imperial)
- 32.39 ft
- Field Operation Width (Metric)
- 9.874 m
- Field Operation Length (Imperial)
- 23.46 ft
- Field Operation Length (Metric)
- 7.151 m
Additional Information2 specifications
- Recommended Tractor Horsepower
- Minimum required for 9.1 m (30 ft) models: 270 hp 201.3 kW; Minimum required for 12.2 m (40 ft) models: 360 hp 268.5 kW
- Recommended Tractor Hydraulics
- Hydraulic oil pump required to operate ExactEmerge™ planter: 60 gpm 227 L/min; Tractor standby pressure: 2300 psi 158.6 bar; Hydraulic system working pressure: 3000 psi 206.8 bar; Hydraulic system burst pressure: 12,000 psi 827.4 bar
