John Deere

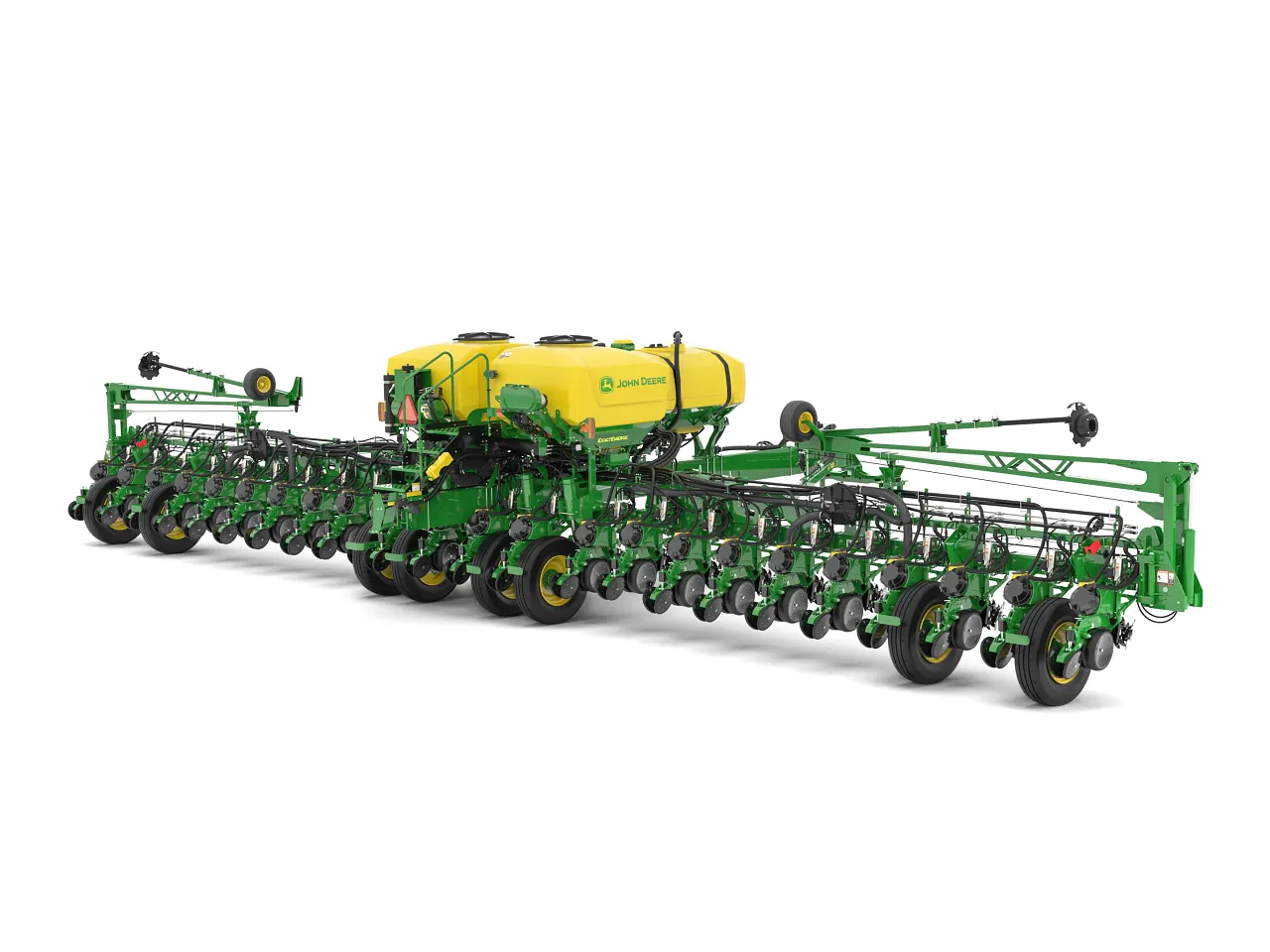

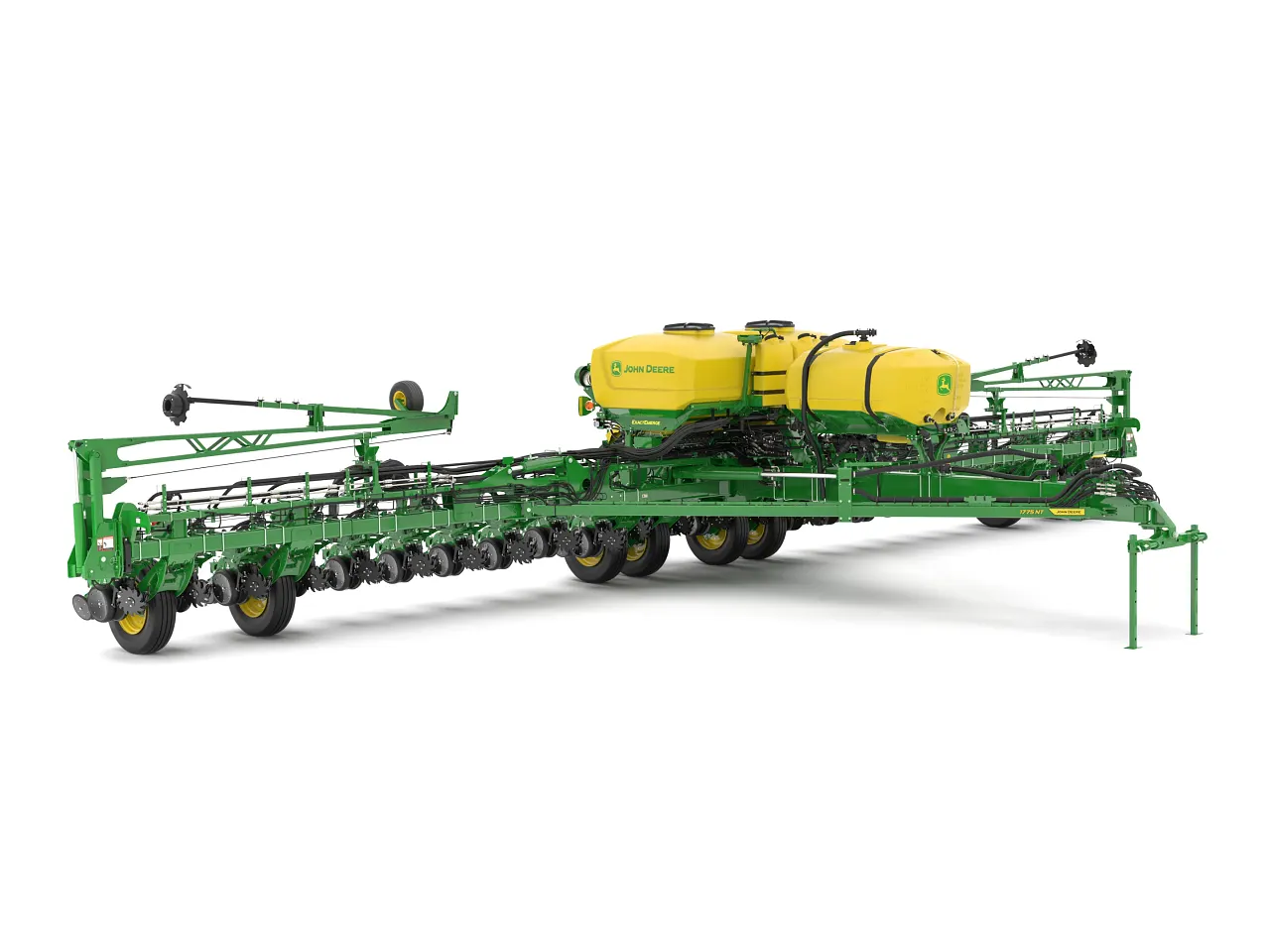

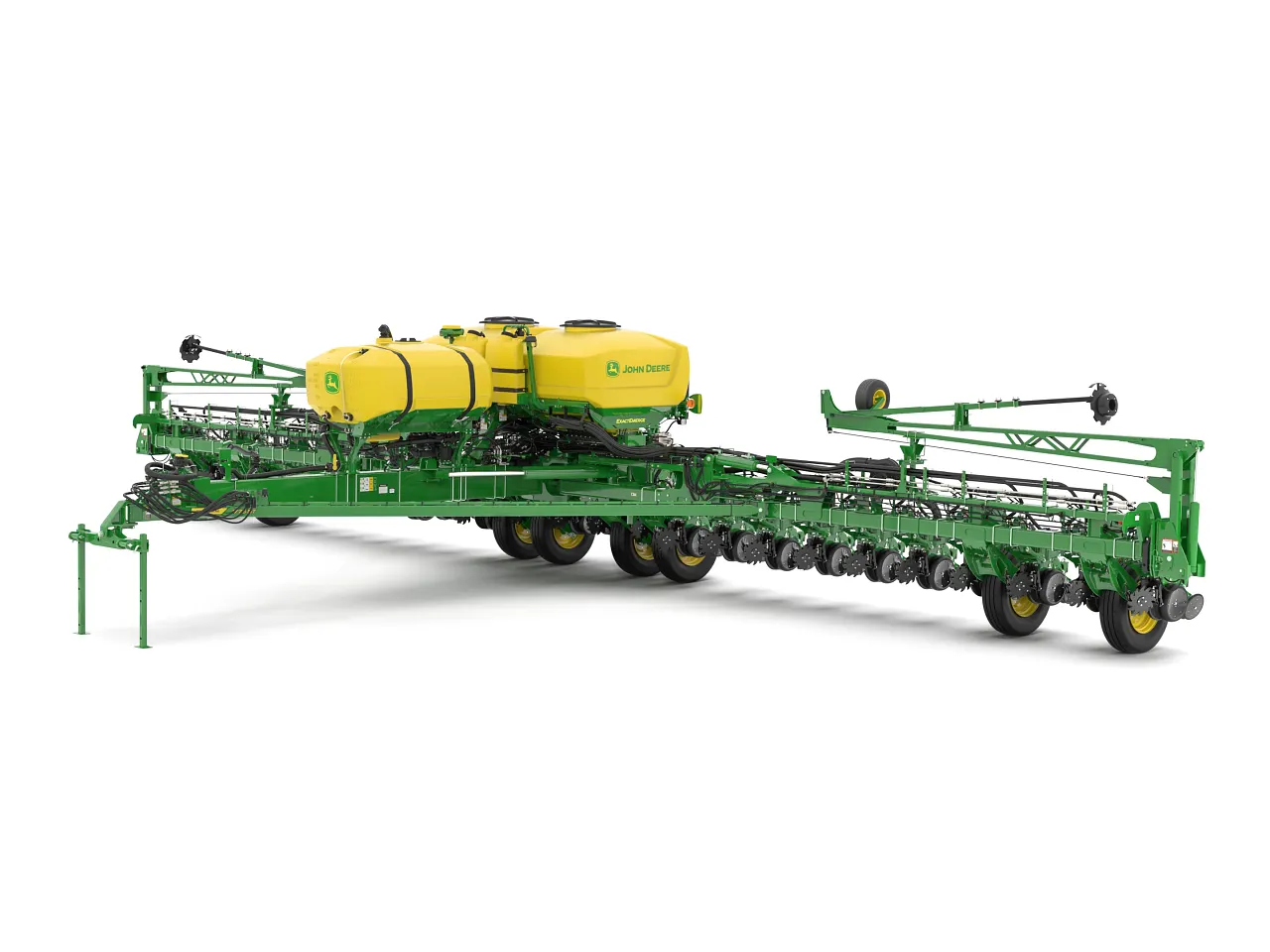

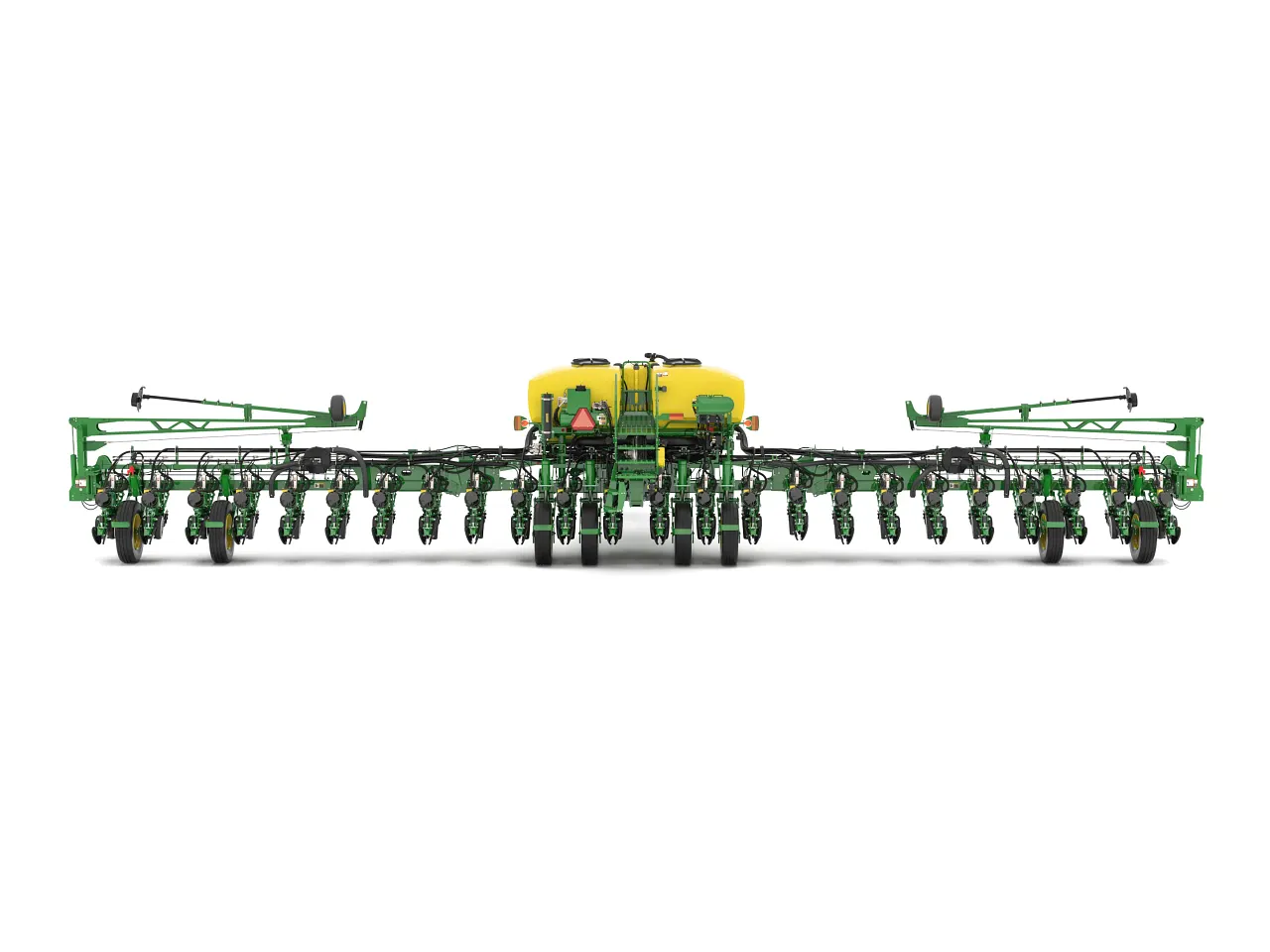

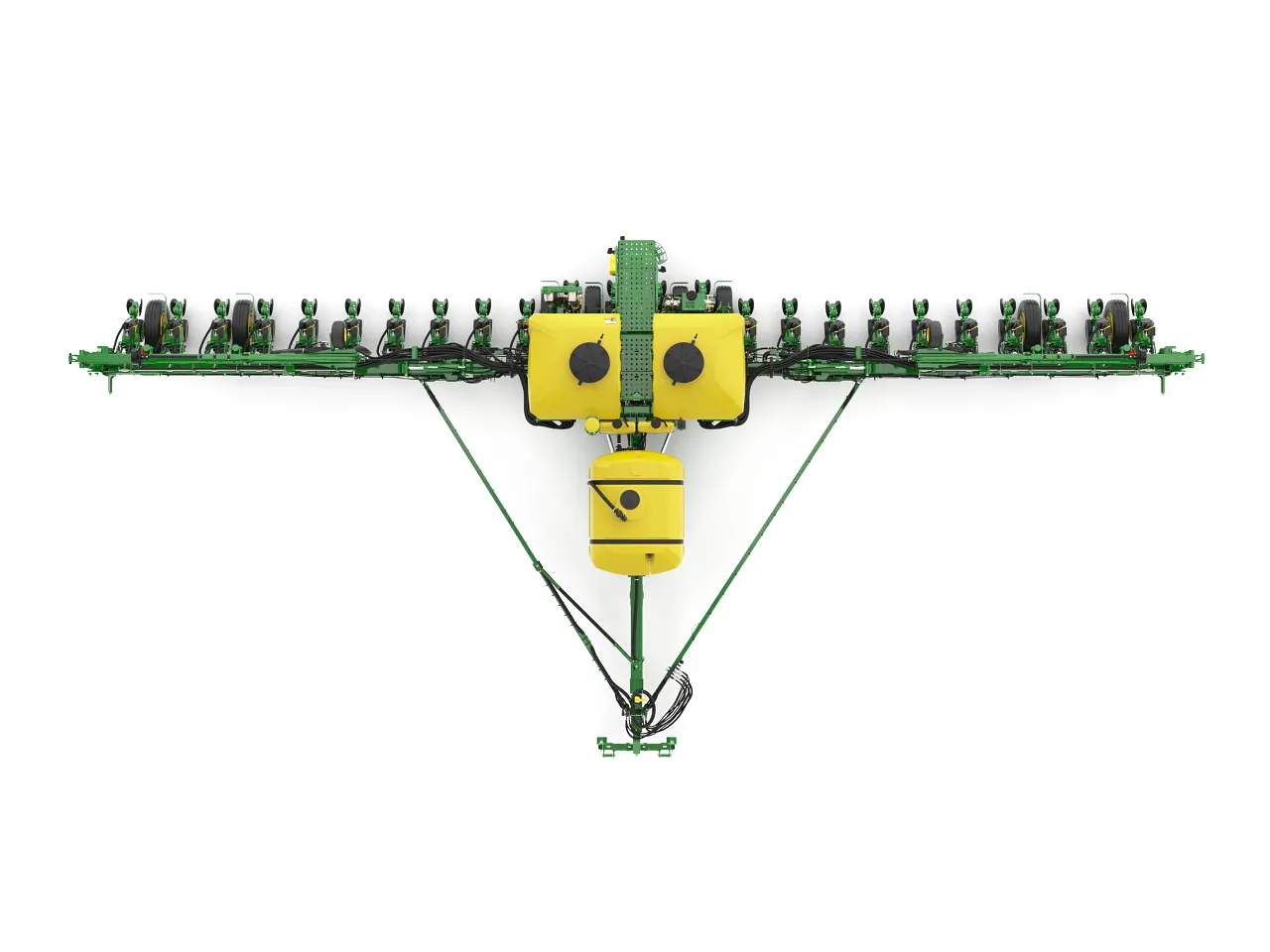

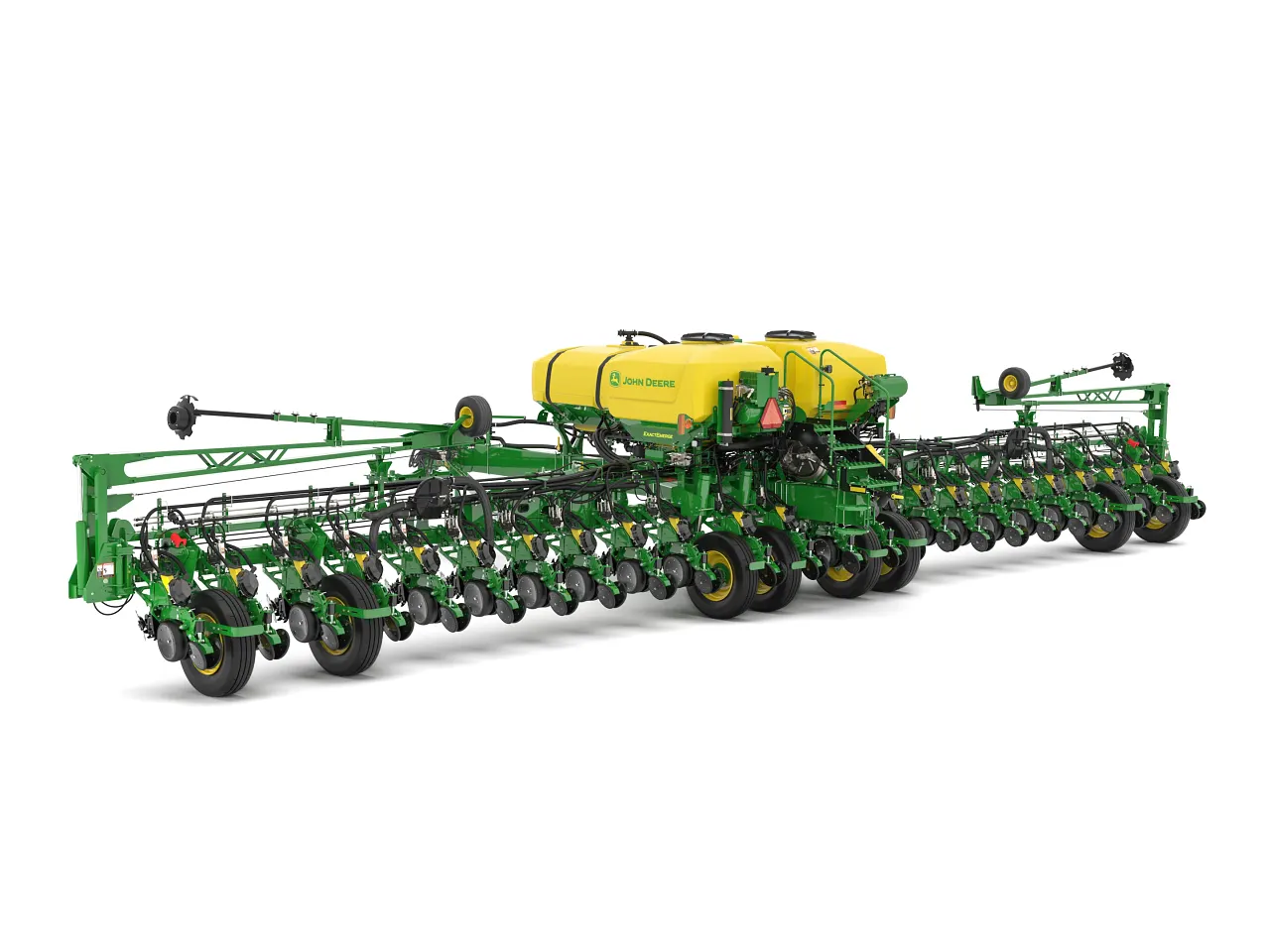

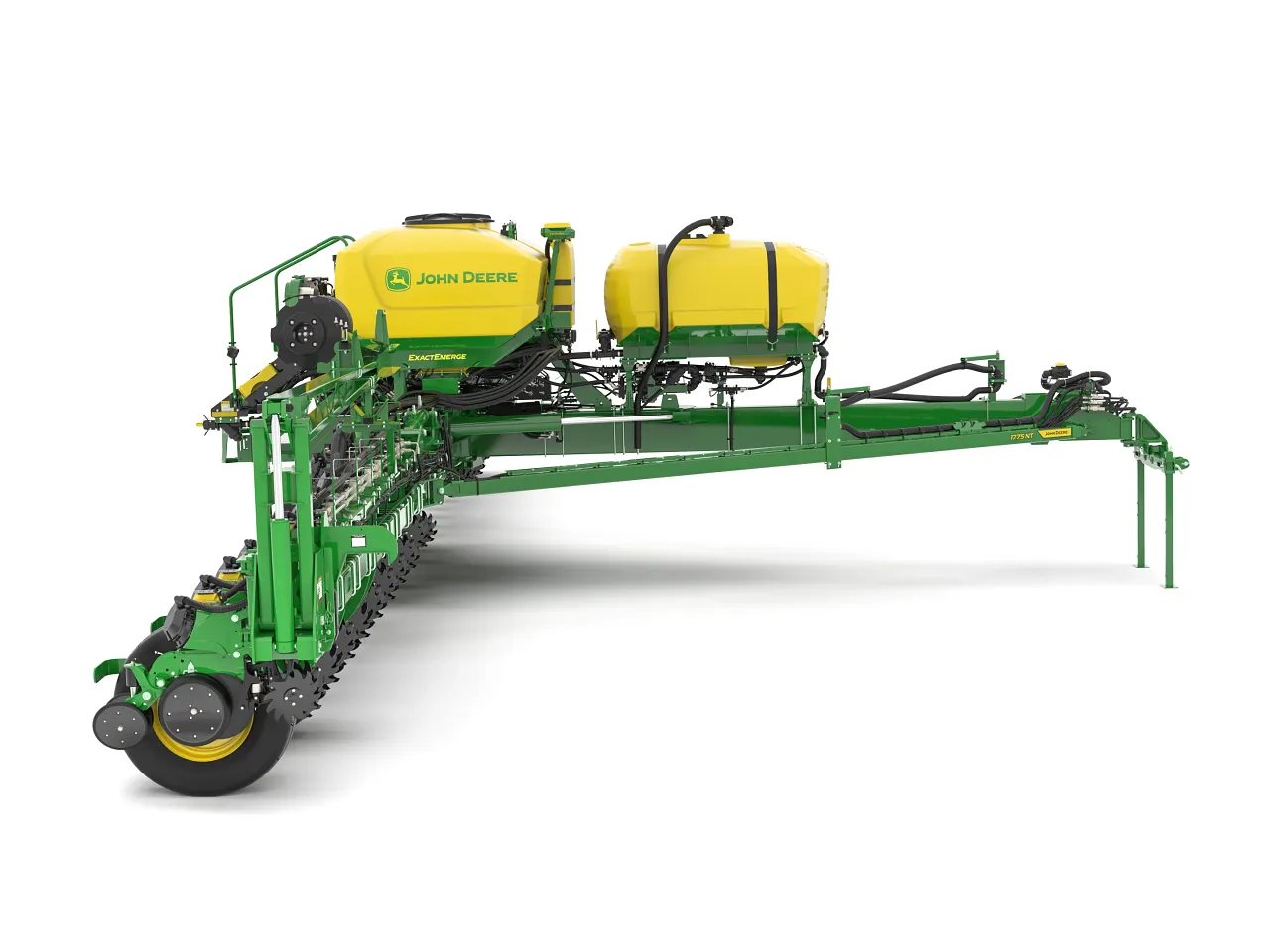

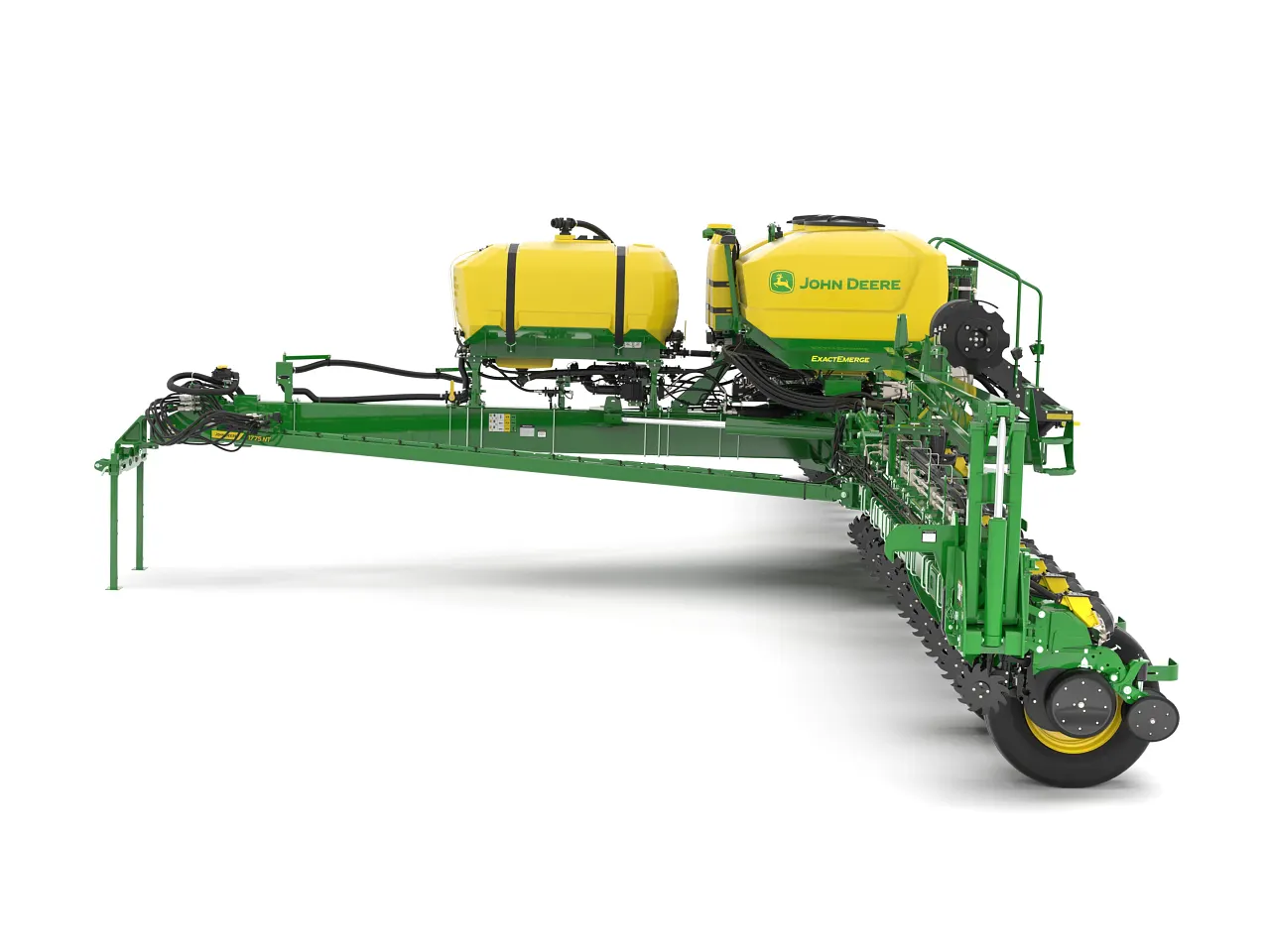

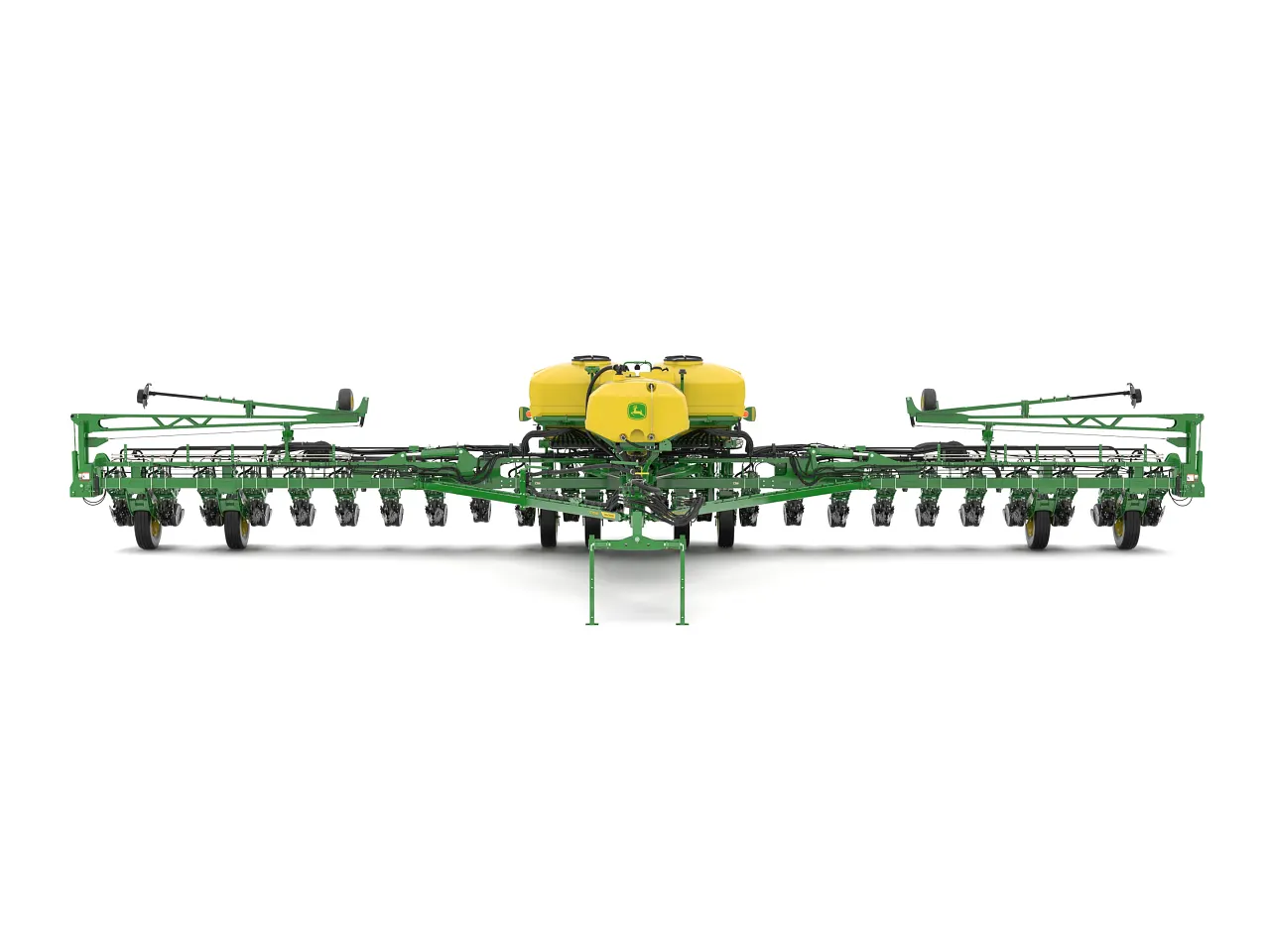

Model1775NT 24Row30 Drawn Planter
Drawn Planters
The 1775NT Drawn Planter is a 12-row, 76.2-cm (30-in.) planter that attaches to the drawbar or 2-point hitch of the tractor.
Model / part number: 621ZH
Key specifications
- Number Of Rows
- 24
- Frame Flexibility Up
- 21.0 degree (angle)
- Frame Flexibility Down
- 21.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062, 1.65, 3.0 bu
Technical specifications
26 specifications
Key Specs5 details
- Number Of Rows
- 24
- Frame Flexibility Up
- 21.0 degree (angle)
- Frame Flexibility Down
- 21.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062, 1.65, 3.0 bu
- Seed Hopper Capacity (Metric)
- 2.2, 58, 106 L
Rows and Row Spacing3 details
- Number Of Rows
- 24
- Row Spacing (Imperial)
- 30 in.
- Row Spacing (Metric)
- 76 cm
Frame2 details
- Frame Flexibility Up
- 21.0 degree (angle)
- Frame Flexibility Down
- 21.0 degree (angle)
Row Units2 details
- Seed Hopper Capacity (Imperial)
- 0.062, 1.65, 3.0 bu
- Seed Hopper Capacity (Metric)
- 2.2, 58, 106 L
Seed Meters2 details
- CCS Seed Capacity (Imperial)
- 130 bu
- CCS Seed Capacity (Metric)
- 4581 L
Fertilizer2 details
- Tank Capacity (Imperial)
- 600.0 gal.
- Tank Capacity (Metric)
- 2271.0 L
Dimensions10 details
- Transport Width (With Markers) (Imperial)
- 11.48 ft
- Transport Width (With Markers) (Metric)
- 3.5 m
- Transport Length (Imperial)
- 43.7 ft
- Transport Length (Metric)
- 13.32 m
- Transport Height (Imperial)
- 11.77 ft
- Transport Height (Metric)
- 3.588 m
- Field Operation Width (Imperial)
- 62.26 ft
- Field Operation Width (Metric)
- 18.977 m
- Field Operation Length (Imperial)
- 29.075 ft
- Field Operation Length (Metric)
- 8.862 m
