John Deere
Model1775NT 12Row30 Drawn Planter
Drawn Planters

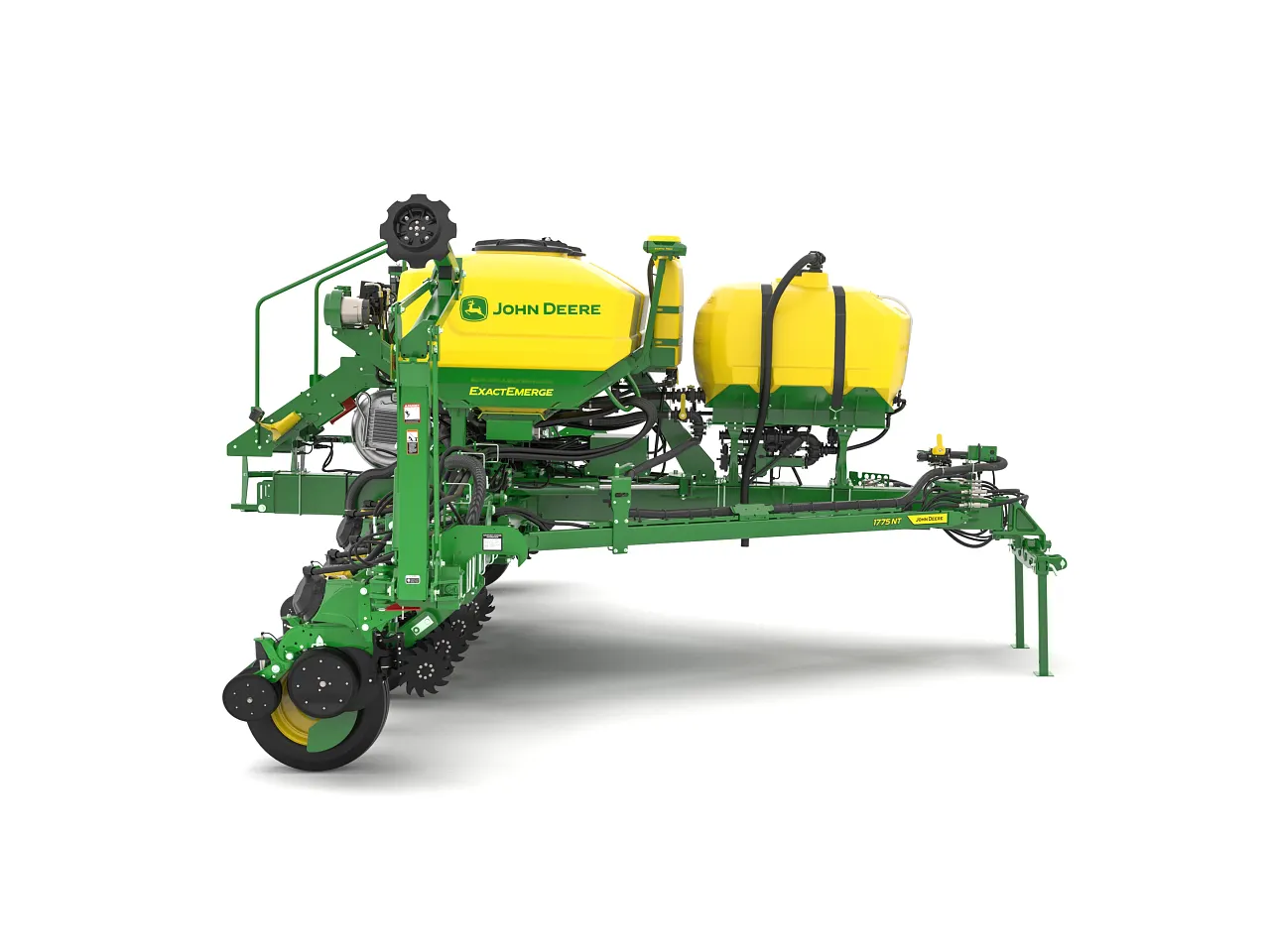

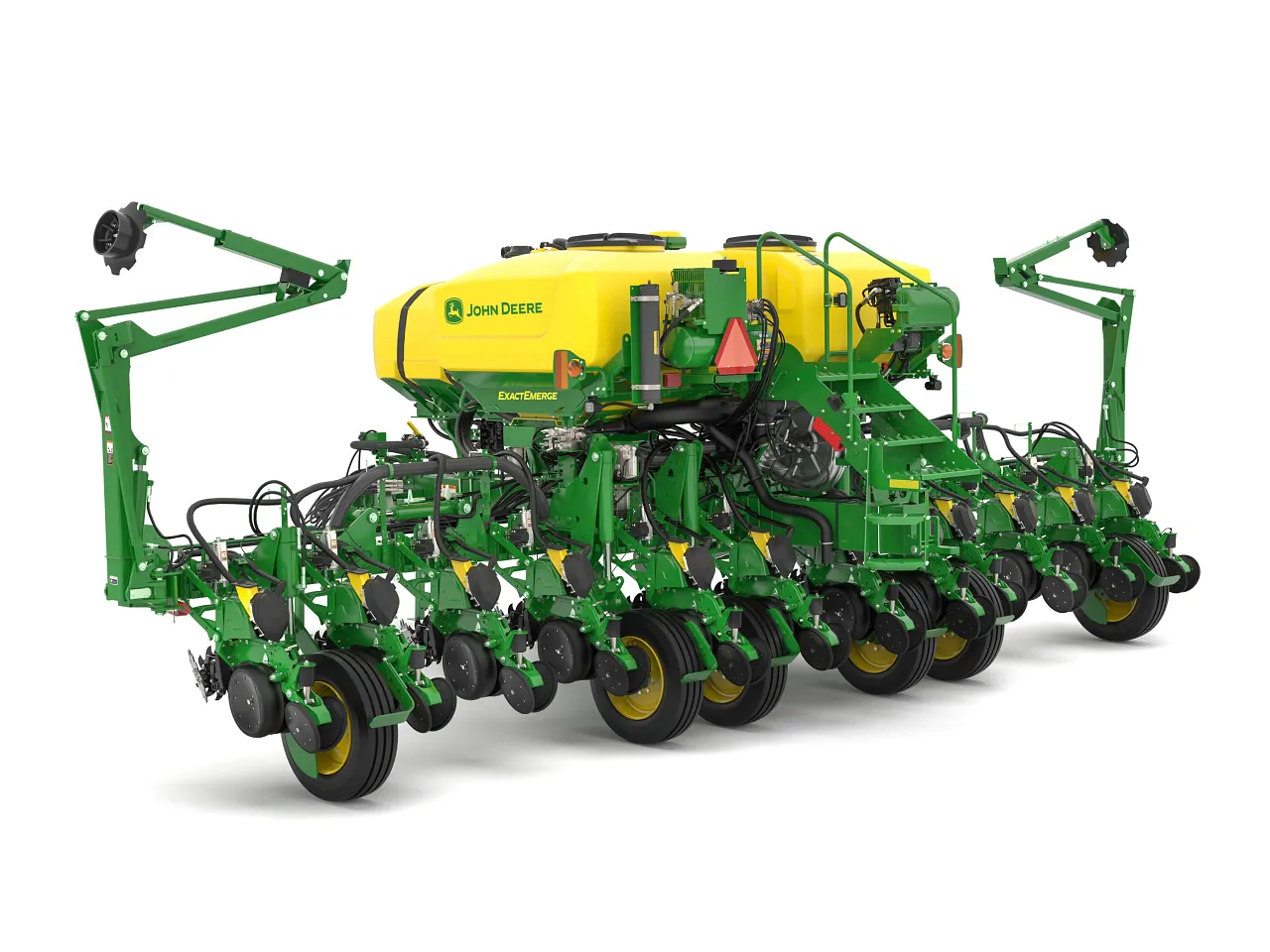

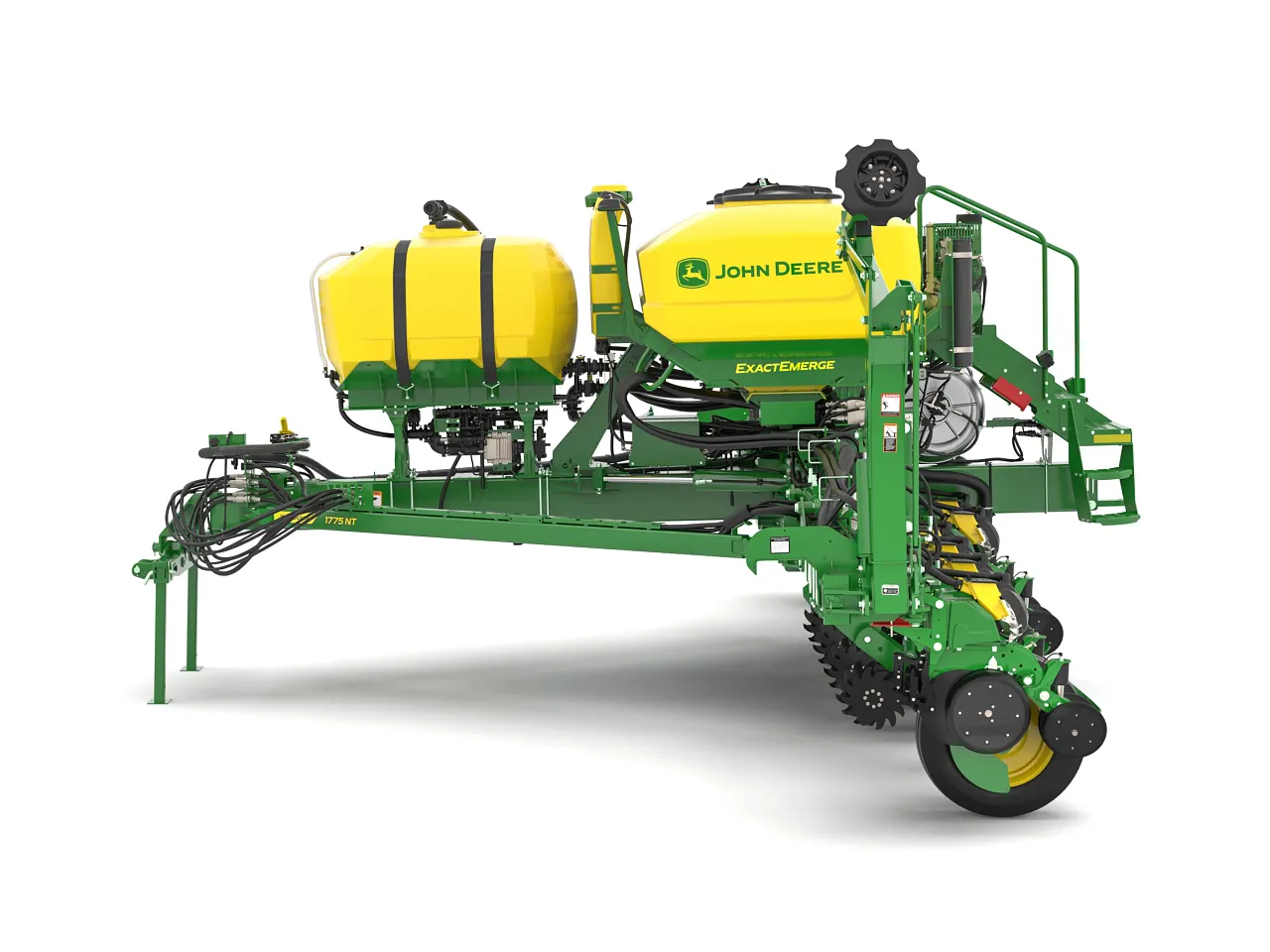

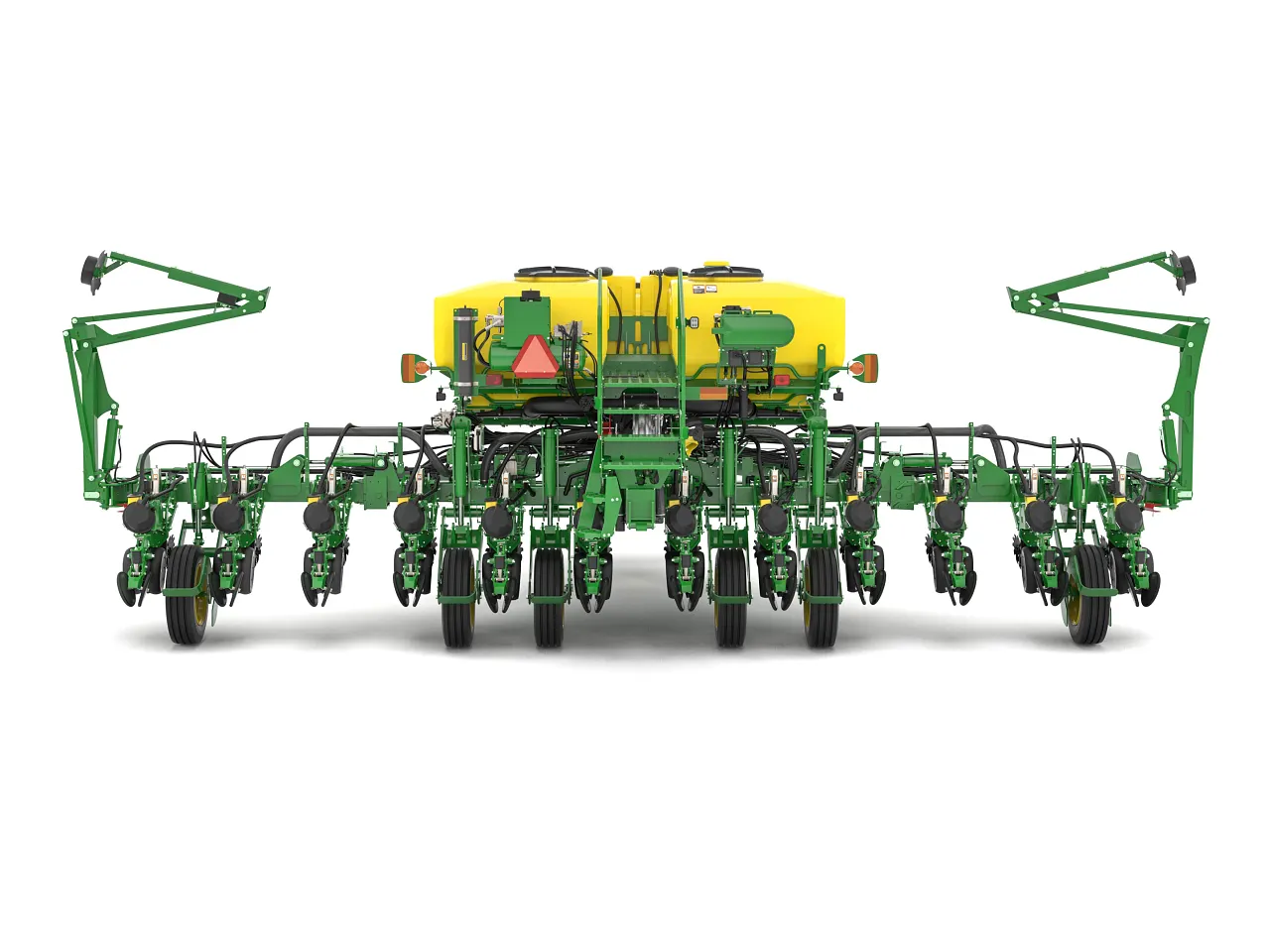

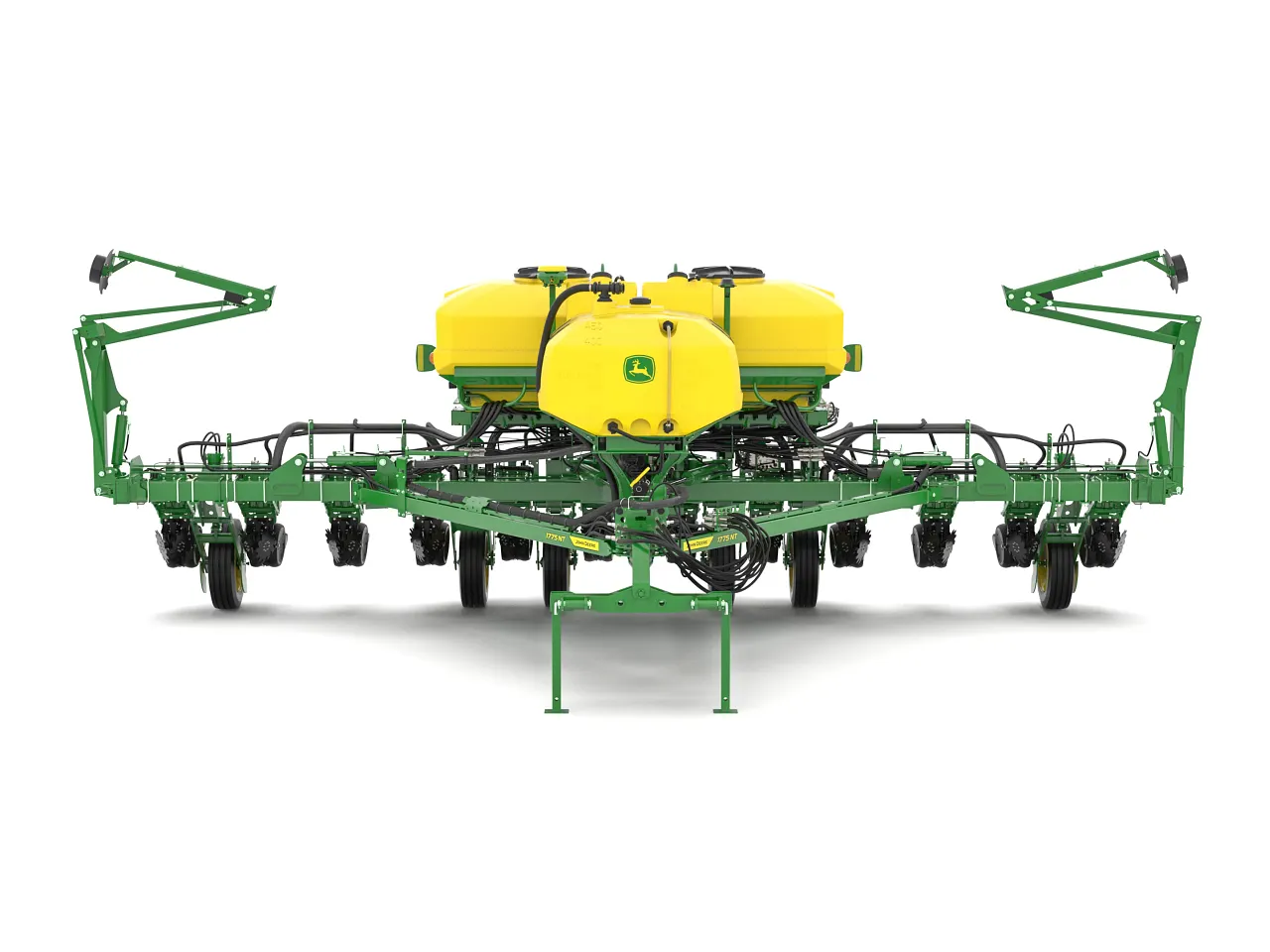

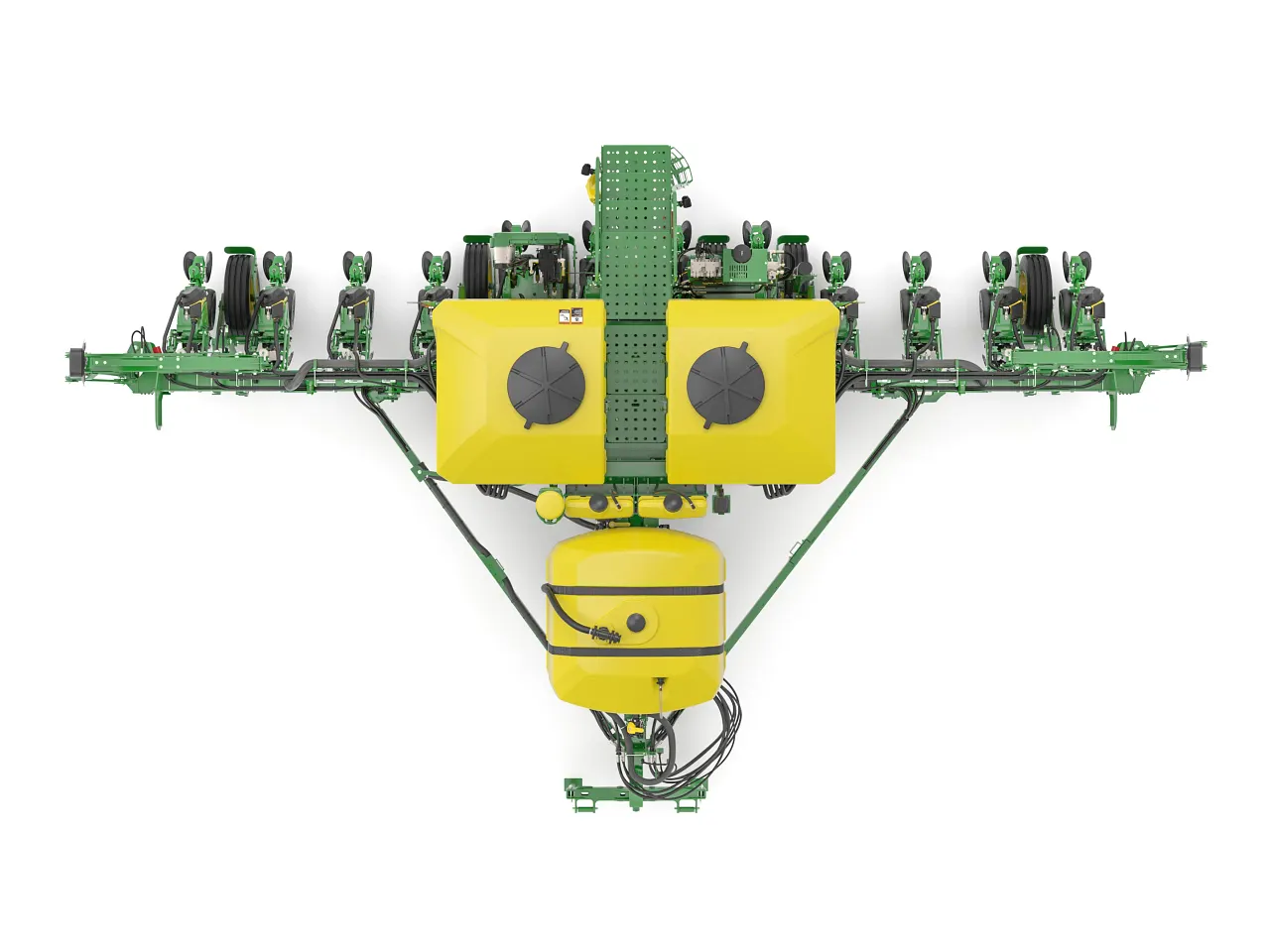

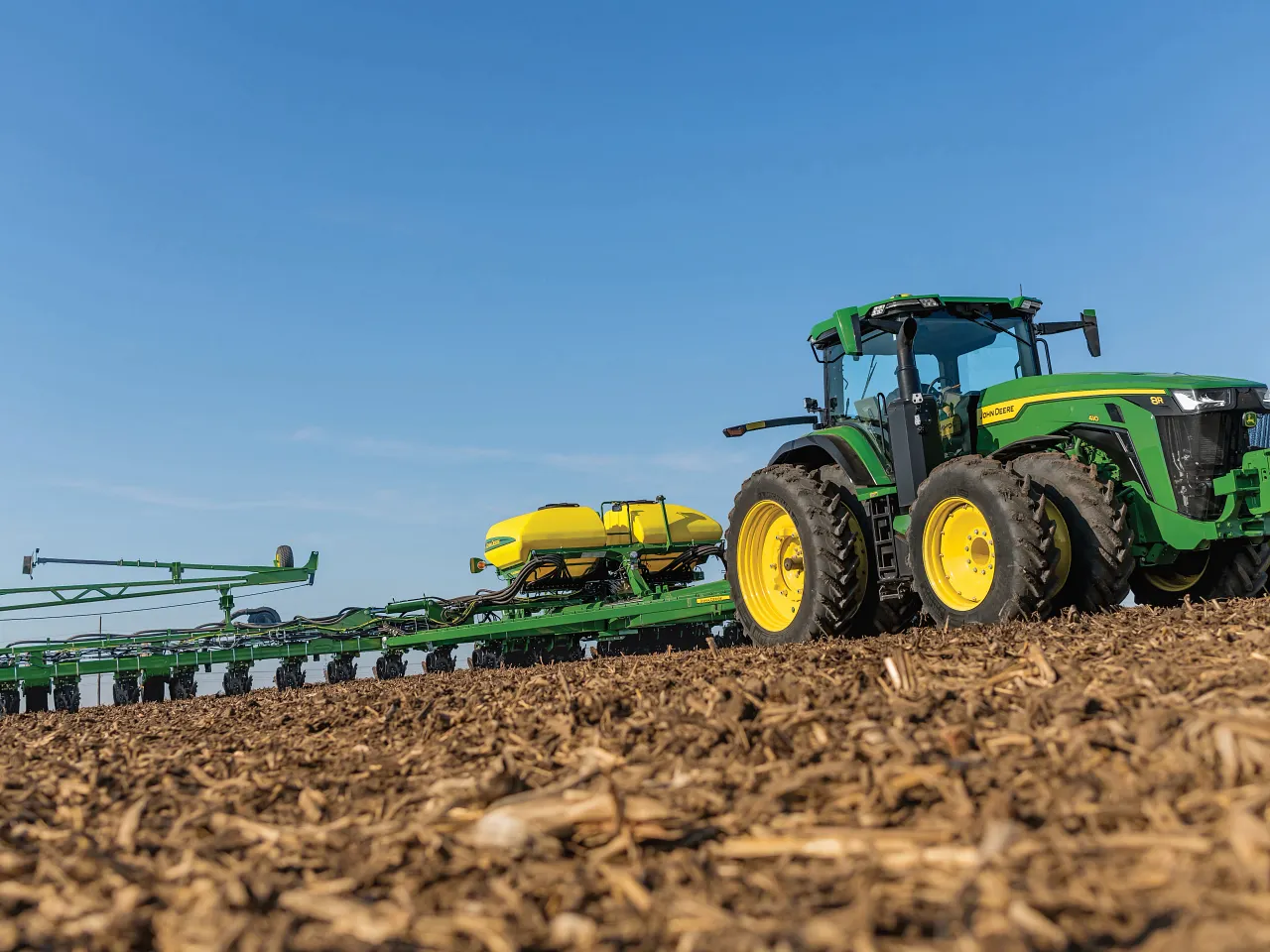

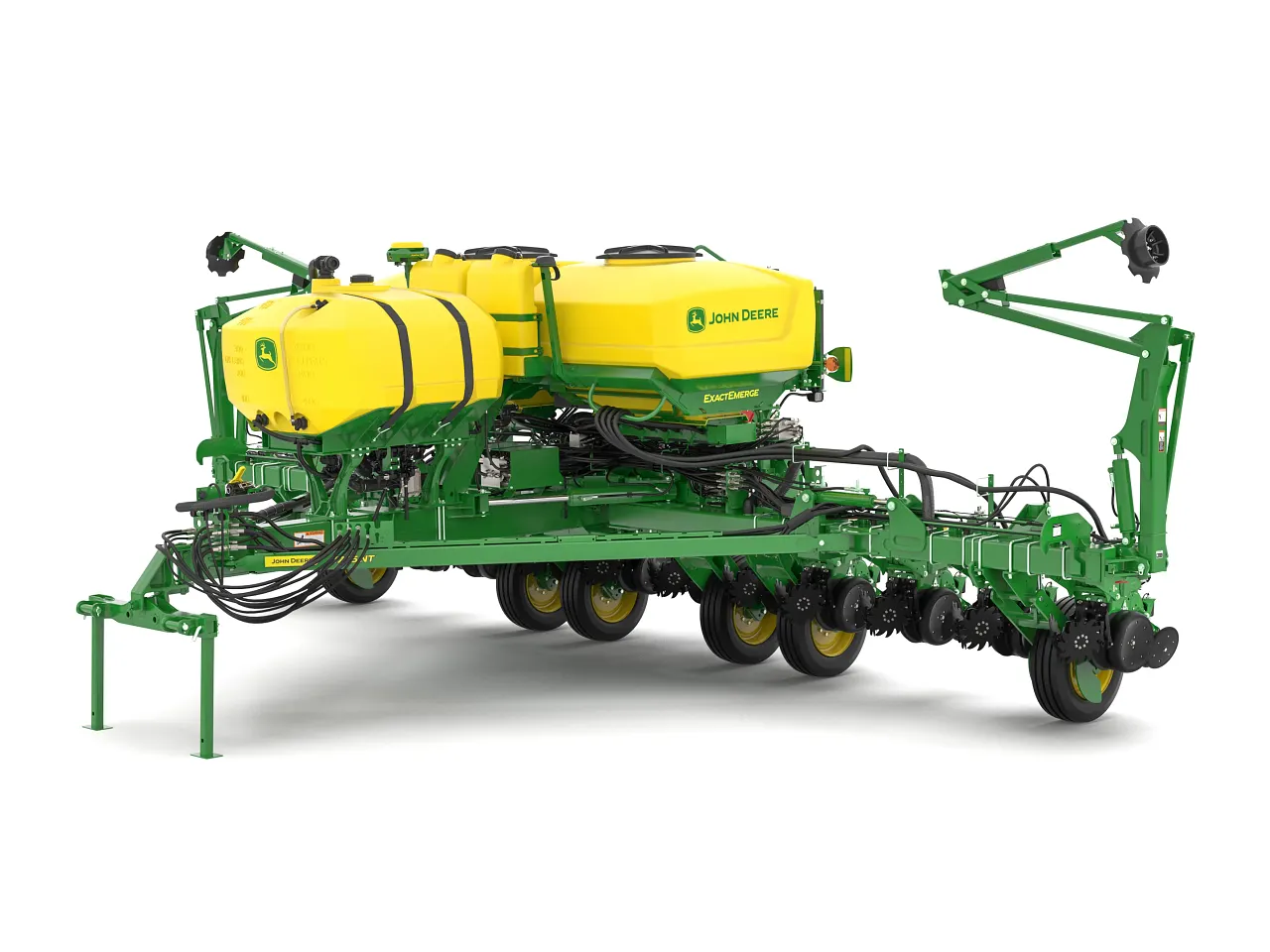

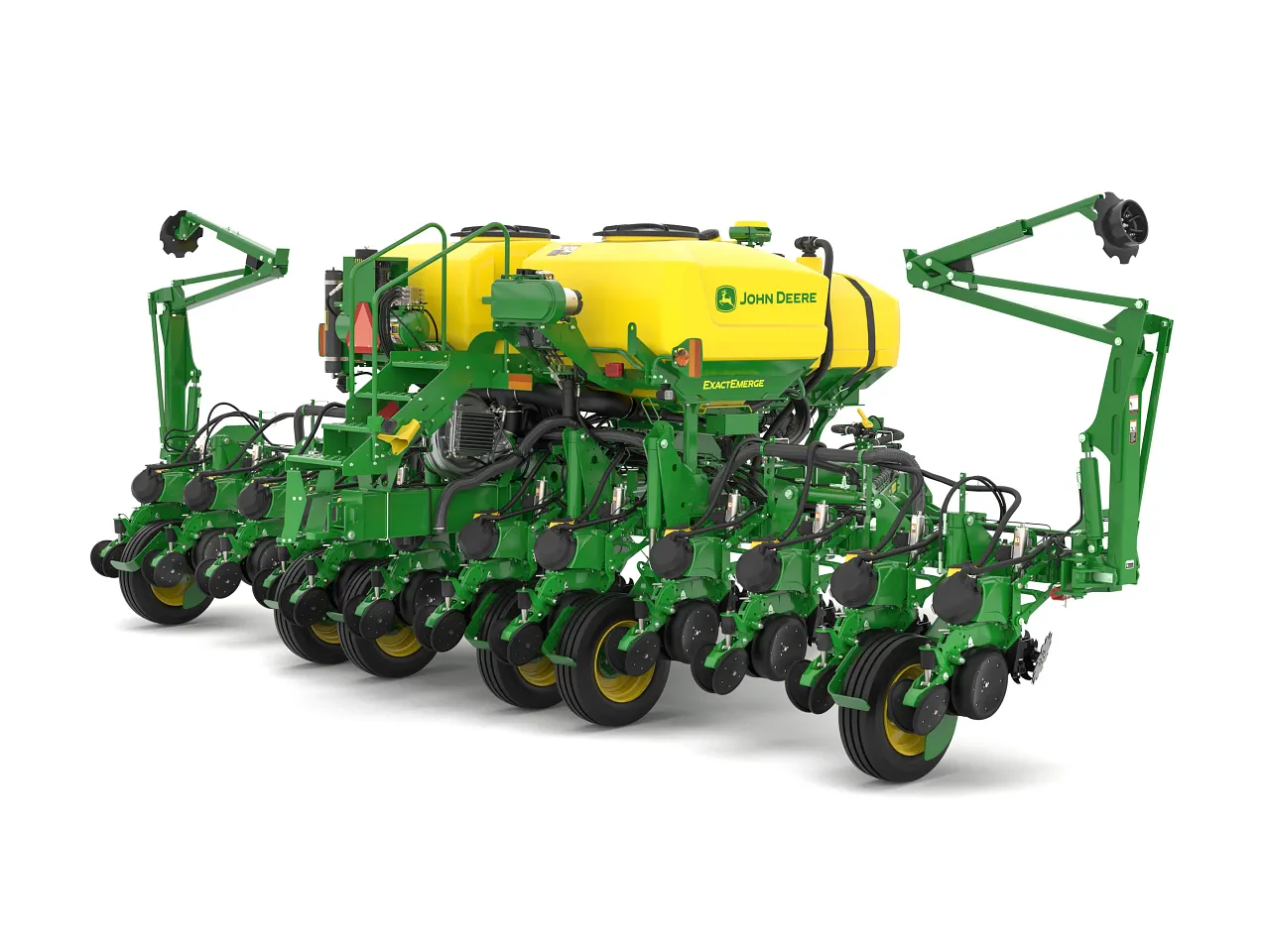

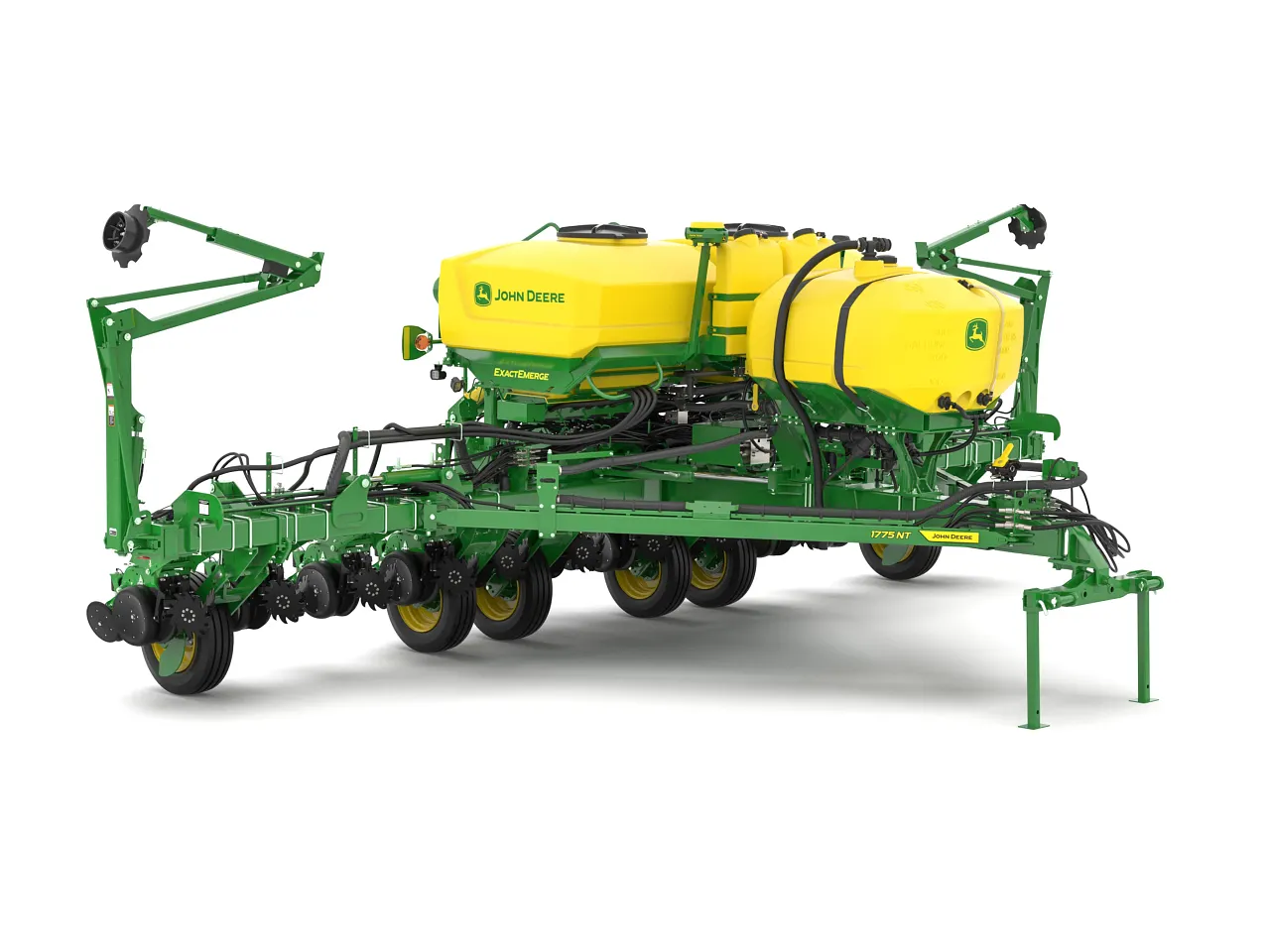

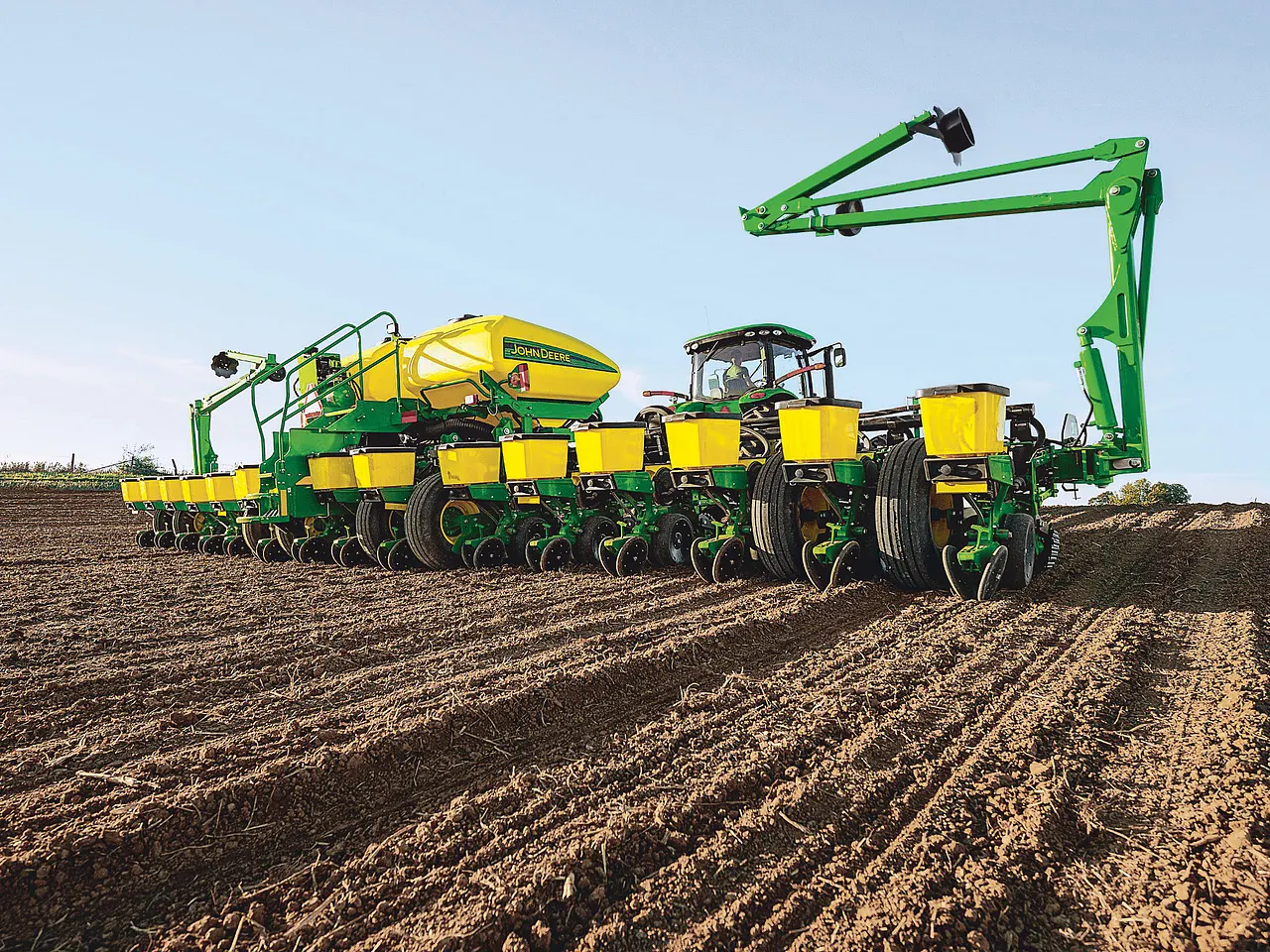

The 1775NT Drawn Planter is a 12-row, 76.2-cm (30-in.) planter that attaches to the drawbar or 2-point hitch of the tractor.
Model / part number: 6218H
Key specifications
- Number Of Rows
- 12
- Frame Flexibility Up
- 21.0 degree (angle)
- Frame Flexibility Down
- 21.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062, 1.65, 3.0 bu
Technical specifications
26 specifications
Key Specs5 details
- Number Of Rows
- 12
- Frame Flexibility Up
- 21.0 degree (angle)
- Frame Flexibility Down
- 21.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062, 1.65, 3.0 bu
- Seed Hopper Capacity (Metric)
- 2.2, 58, 106 L
Rows and Row Spacing3 details
- Number Of Rows
- 12
- Row Spacing (Imperial)
- 30 in.
- Row Spacing (Metric)
- 76 cm
Frame2 details
- Frame Flexibility Up
- 21.0 degree (angle)
- Frame Flexibility Down
- 21.0 degree (angle)
Row Units2 details
- Seed Hopper Capacity (Imperial)
- 0.062, 1.65, 3.0 bu
- Seed Hopper Capacity (Metric)
- 2.2, 58, 106 L
Seed Meters2 details
- CCS Seed Capacity (Imperial)
- 100 bu
- CCS Seed Capacity (Metric)
- 3524 L
Fertilizer2 details
- Tank Capacity (Imperial)
- 420.0 gal.
- Tank Capacity (Metric)
- 1590.0 L
Dimensions10 details
- Transport Width (With Markers) (Imperial)
- 11.46 ft
- Transport Width (With Markers) (Metric)
- 3.494 m
- Transport Length (Imperial)
- 30.17 ft
- Transport Length (Metric)
- 9.197 m
- Transport Height (Imperial)
- 11.44 ft
- Transport Height (Metric)
- 3.487 m
- Field Operation Width (Imperial)
- 32.6 ft
- Field Operation Width (Metric)
- 9.937 m
- Field Operation Length (Imperial)
- 20.43 ft
- Field Operation Length (Metric)
- 6.226 m
