John Deere

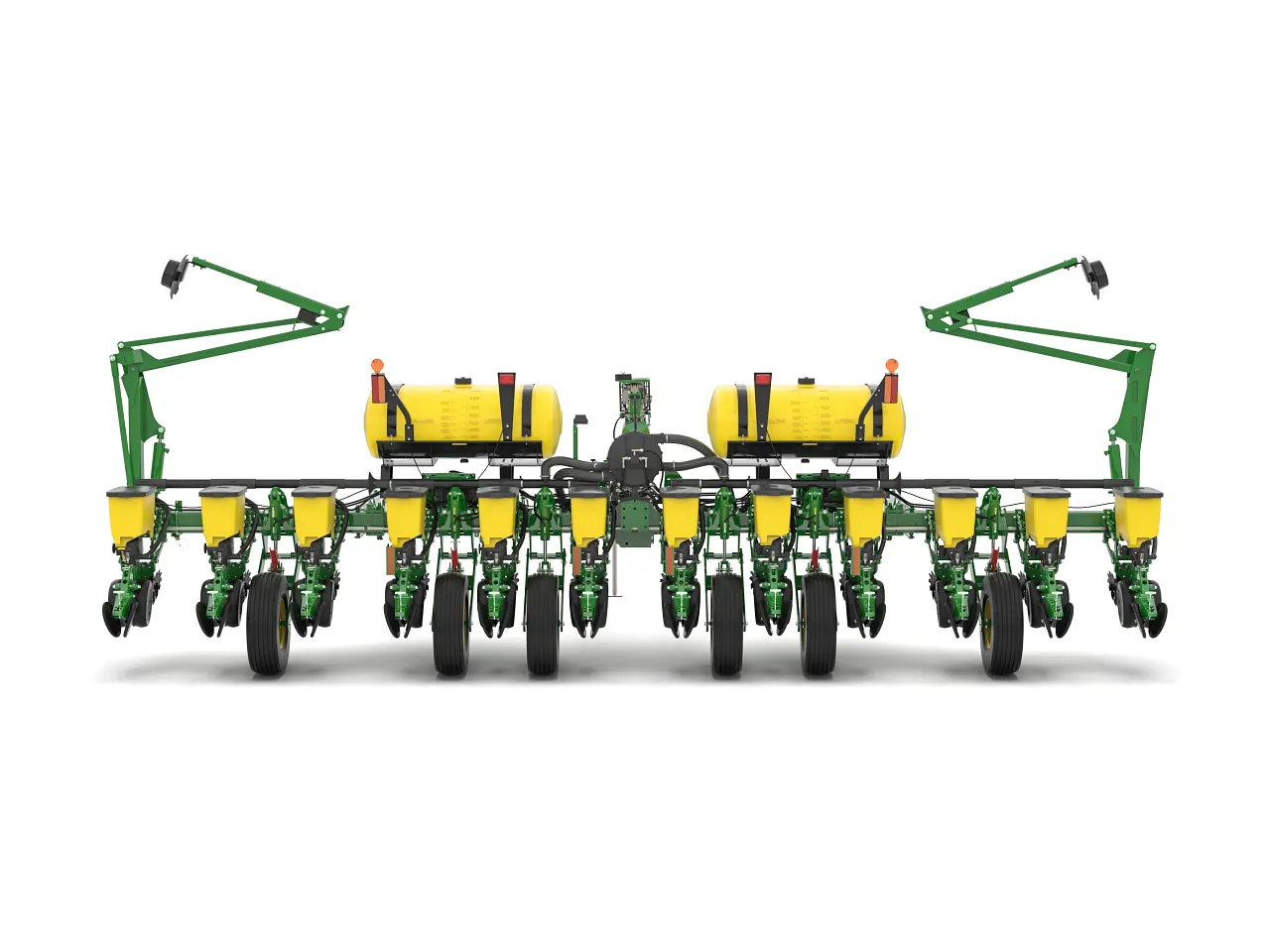

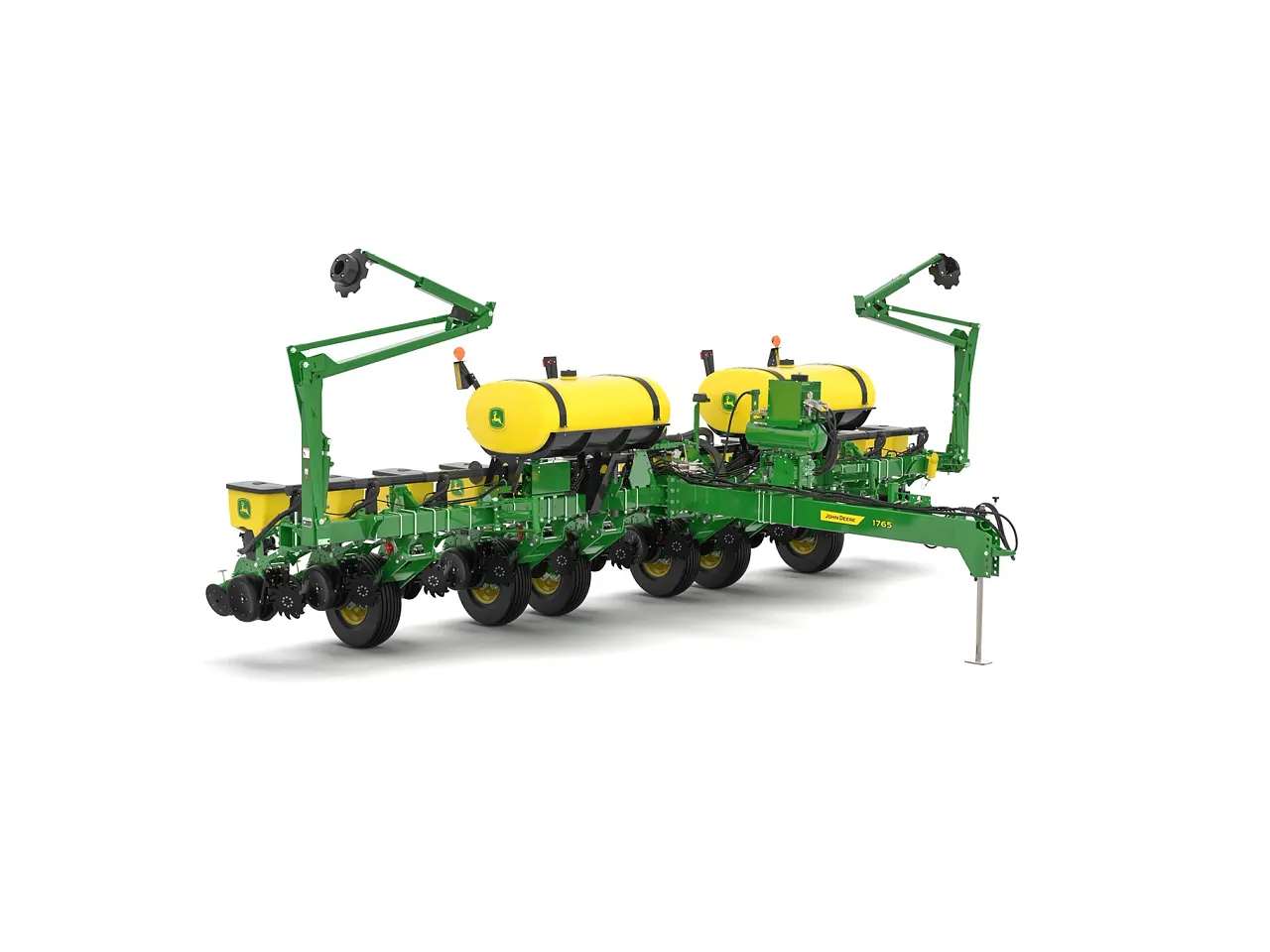

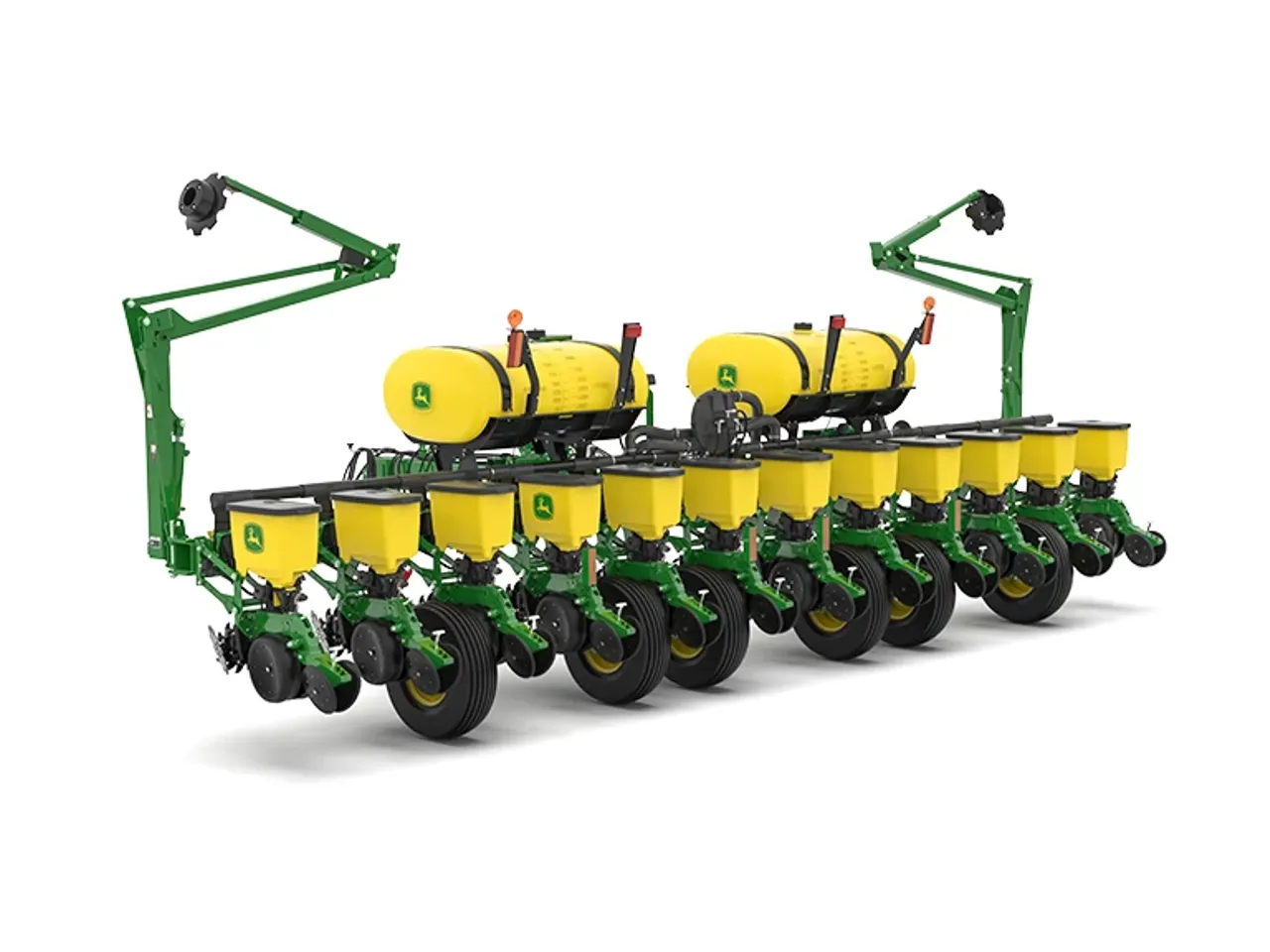

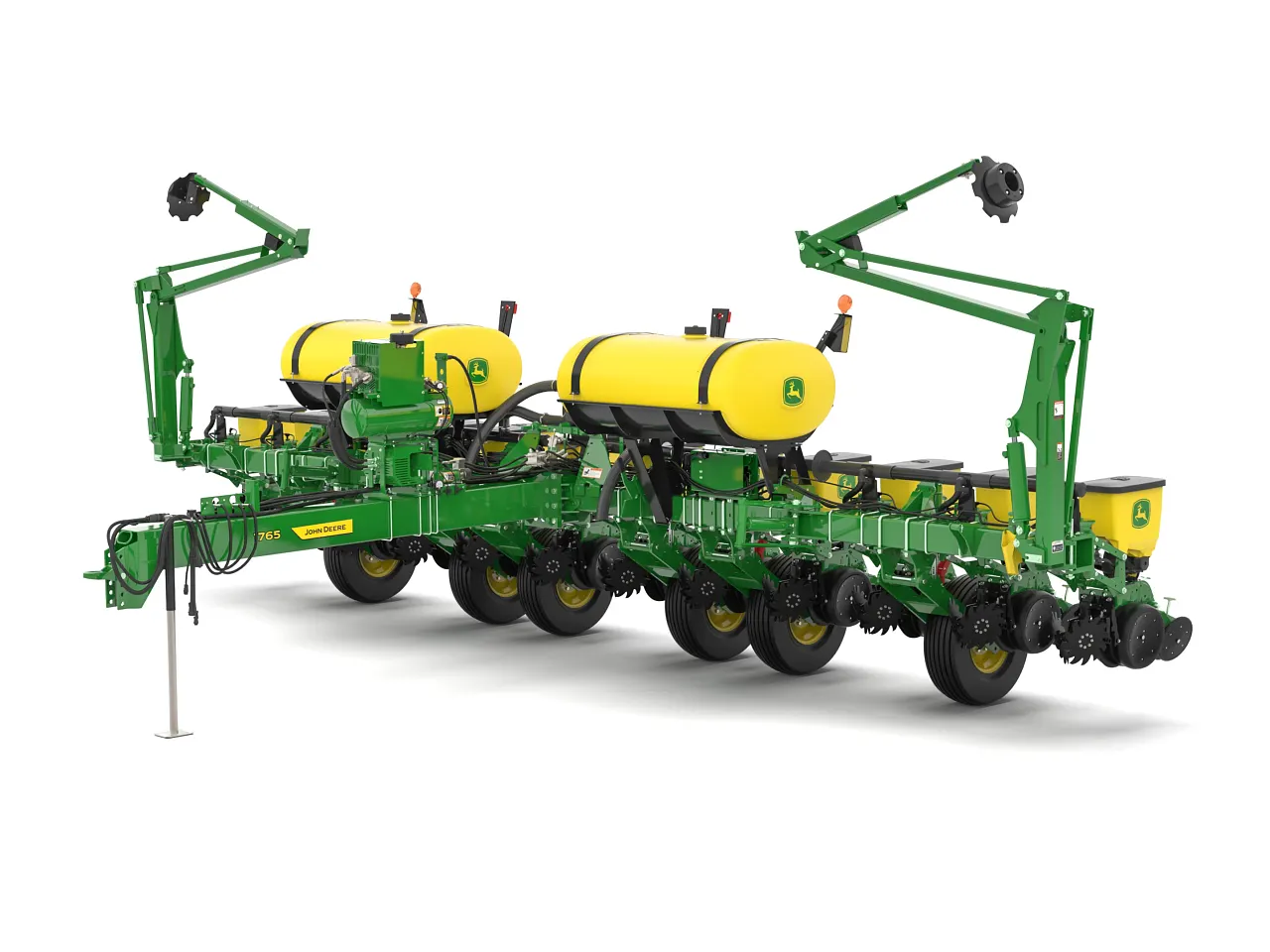

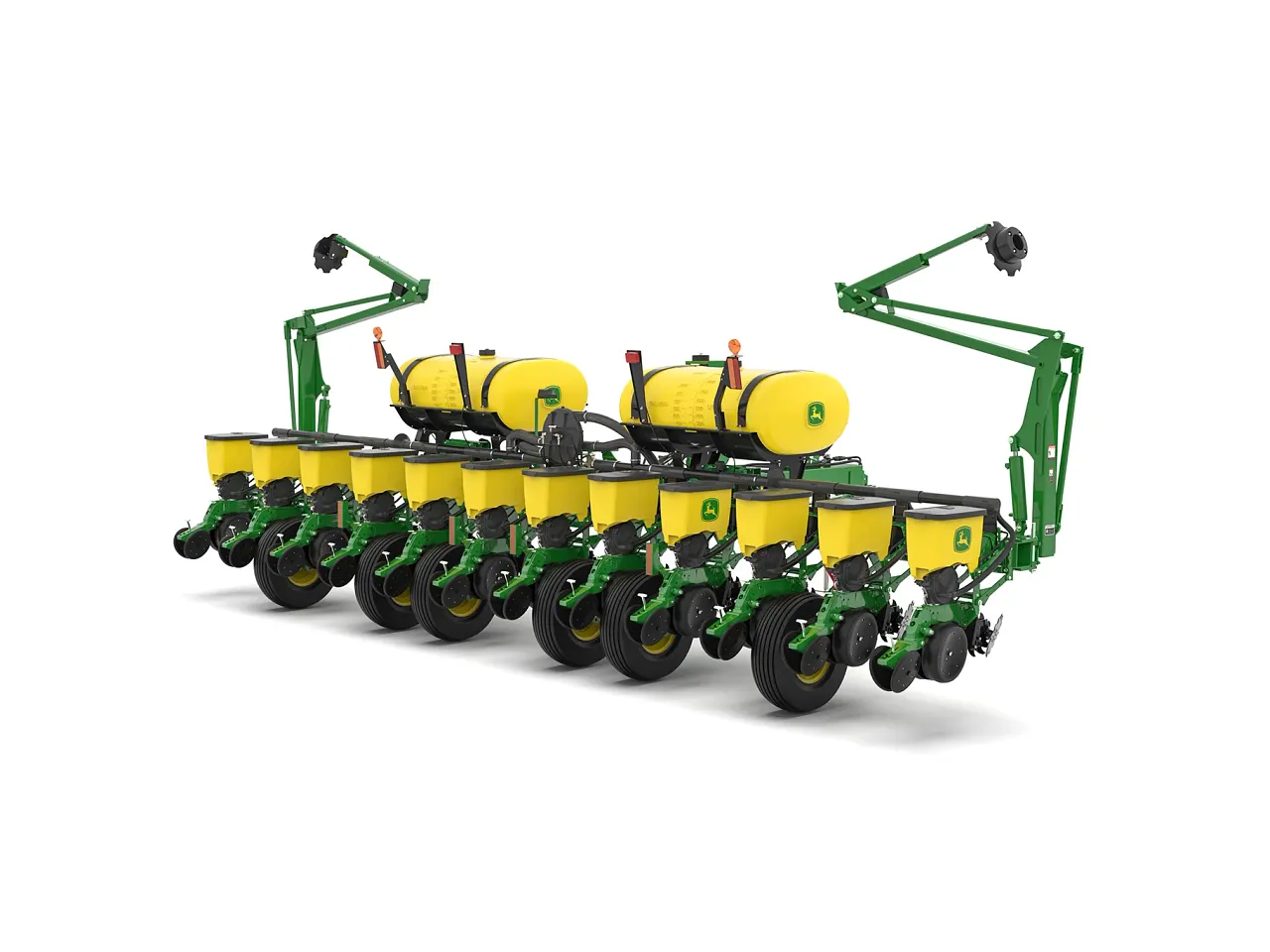

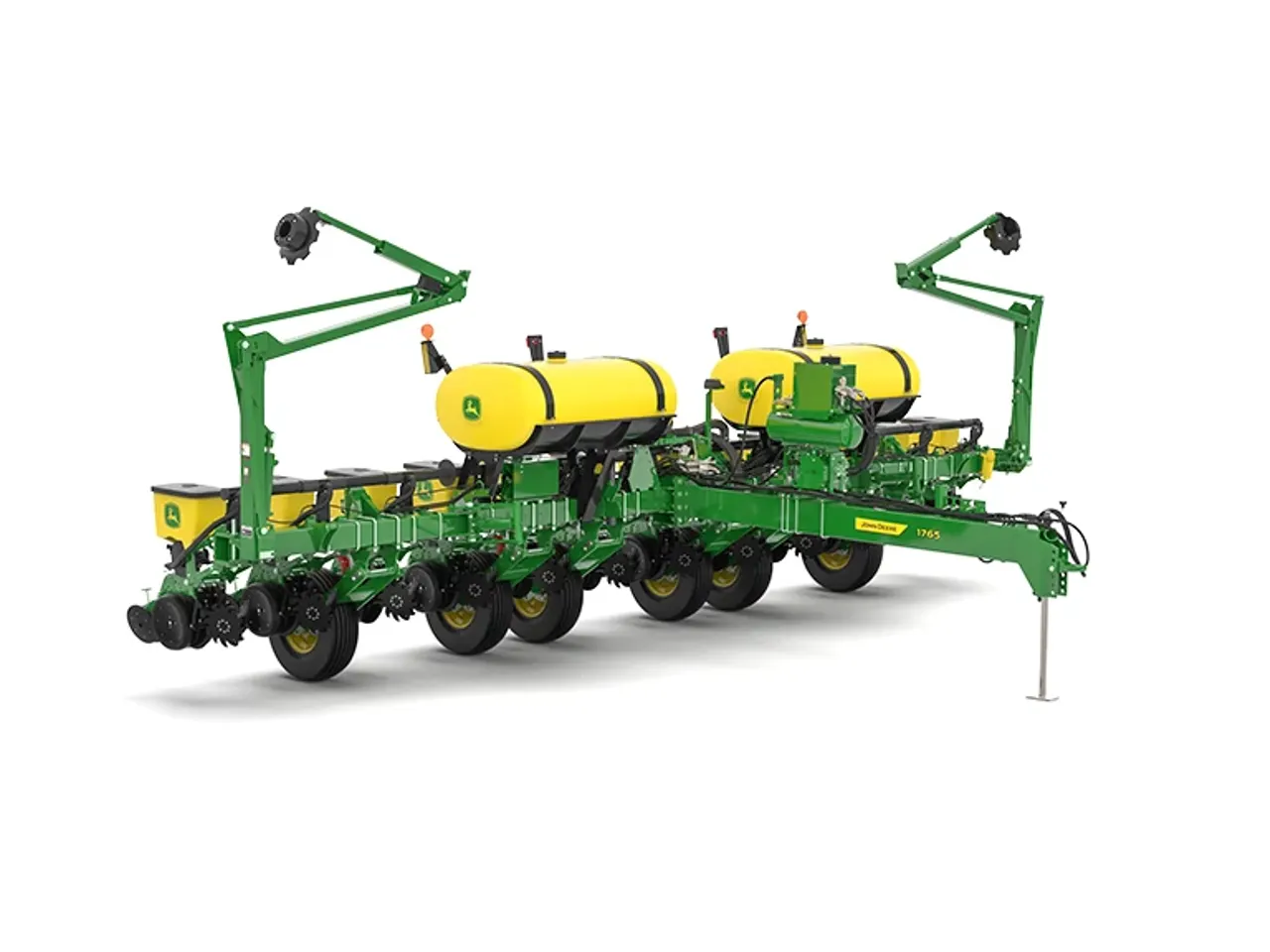

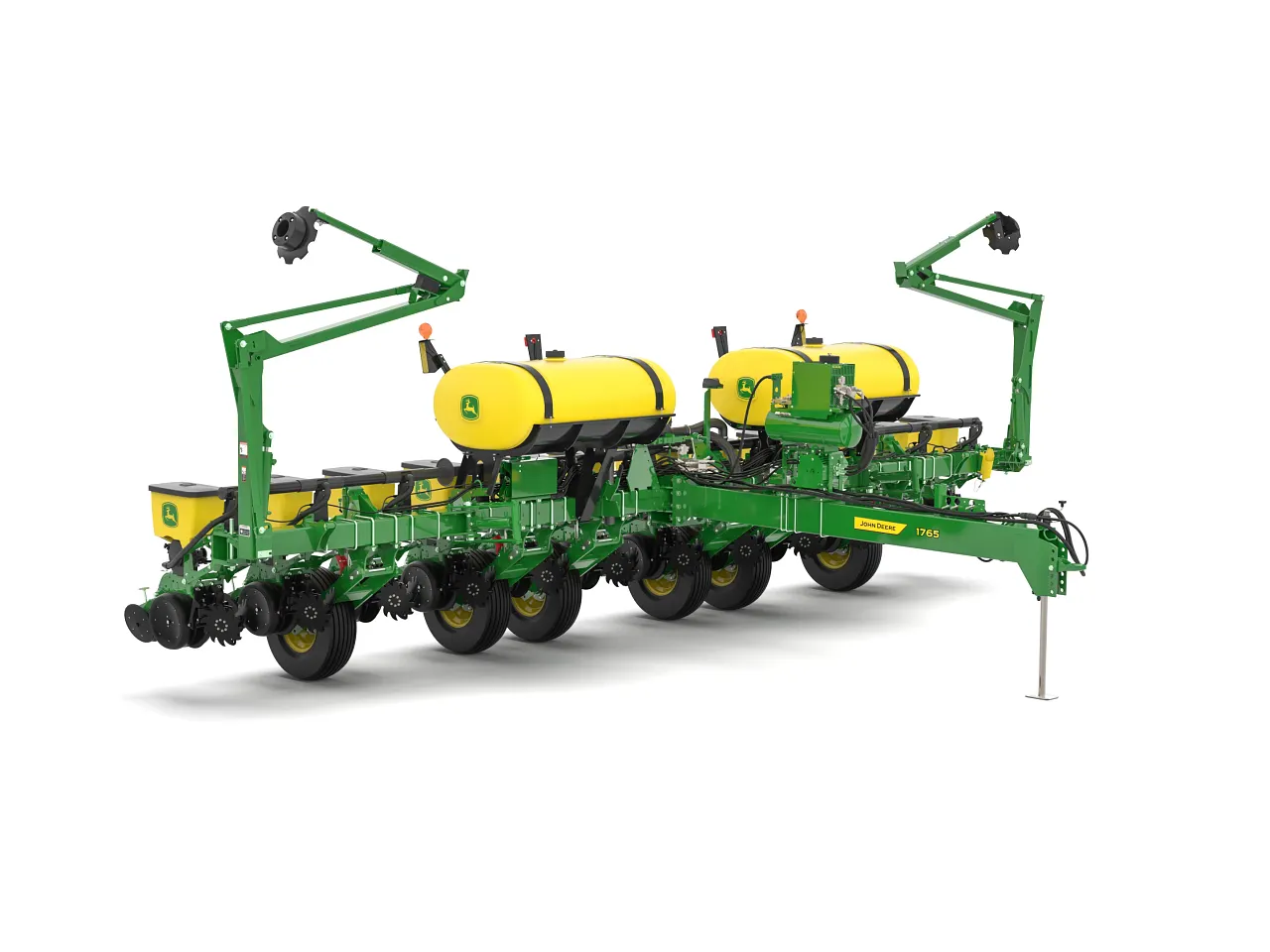

1765 Flex Drawn Planter
Drawn Planters

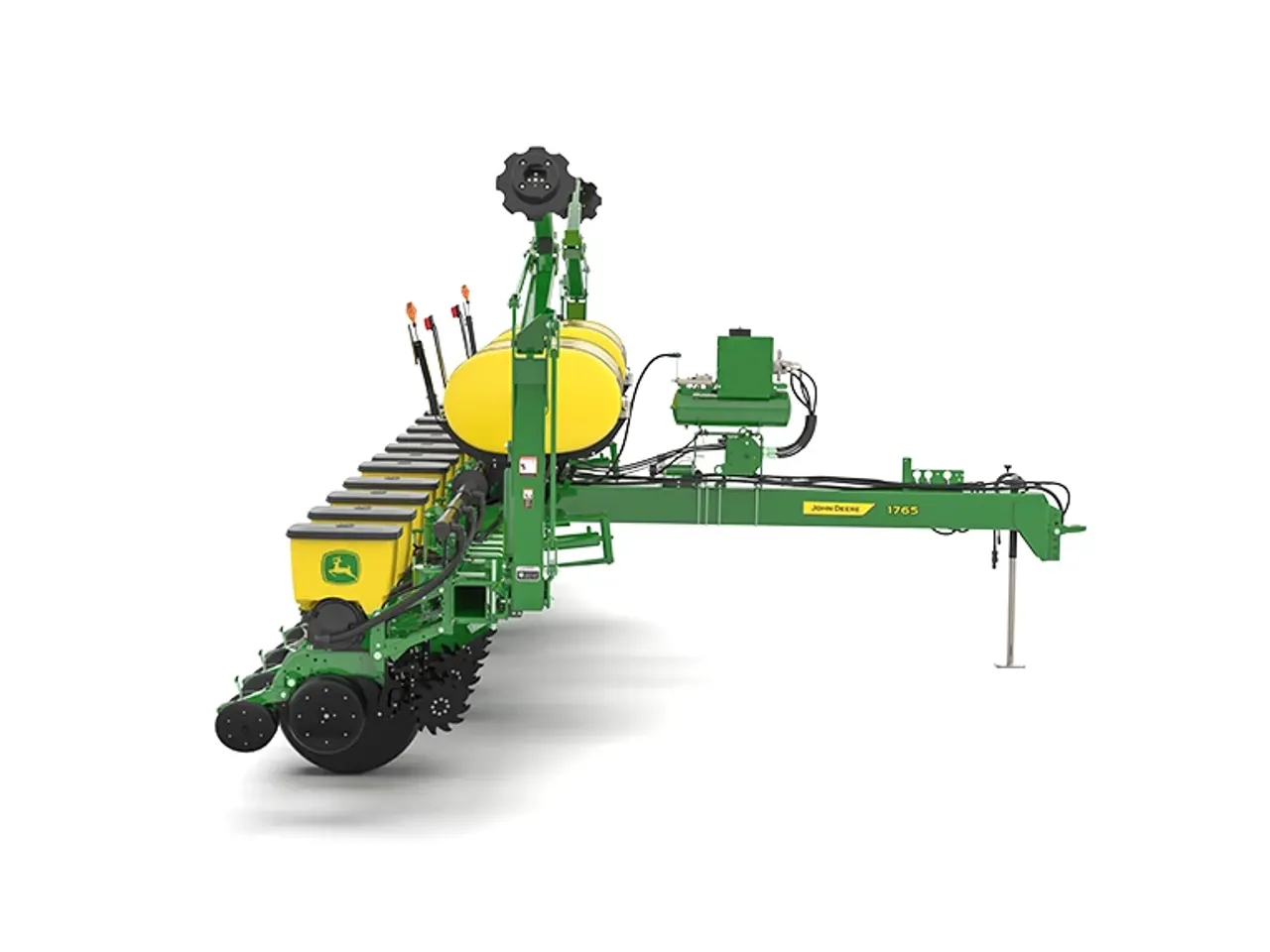

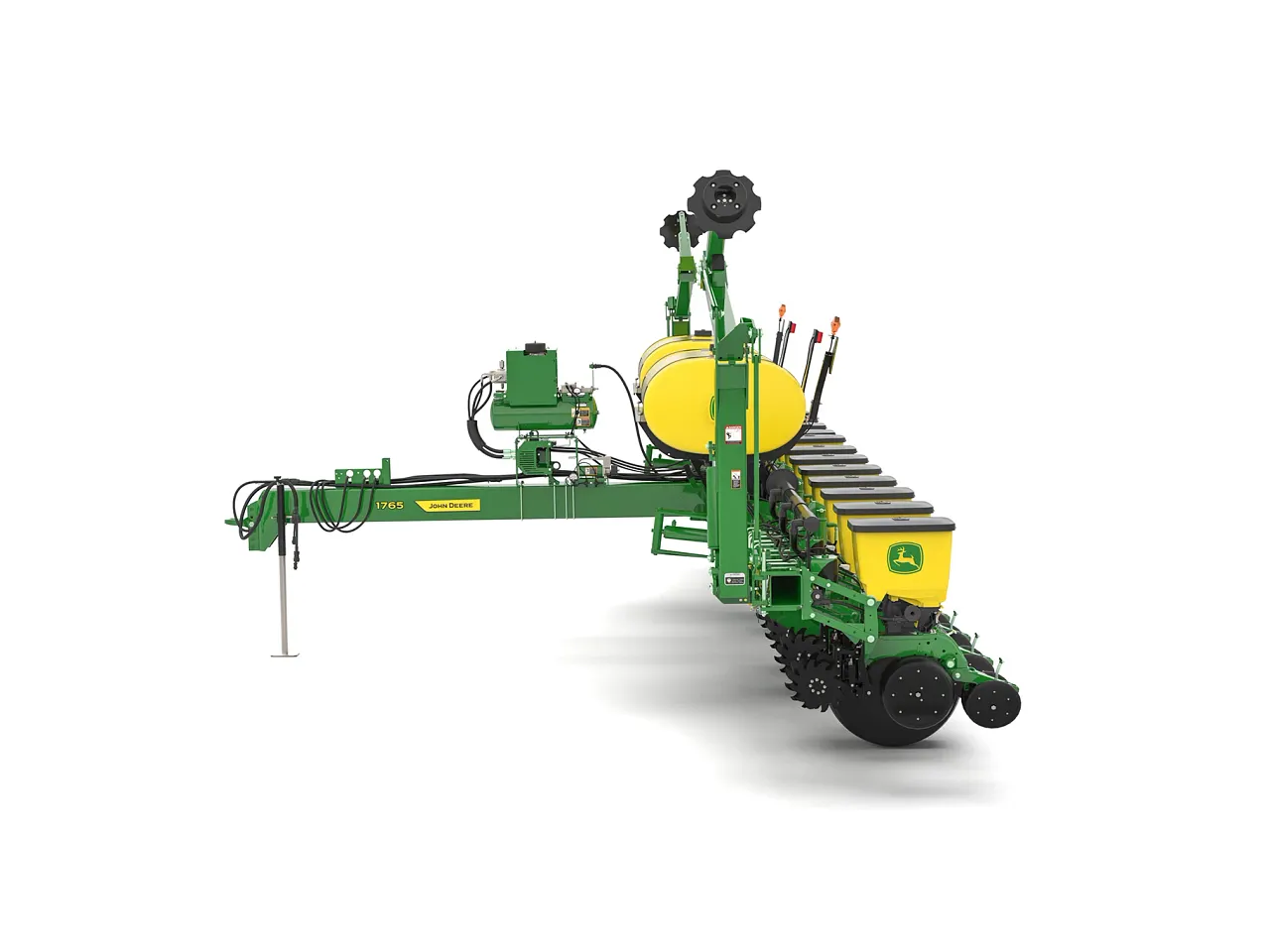

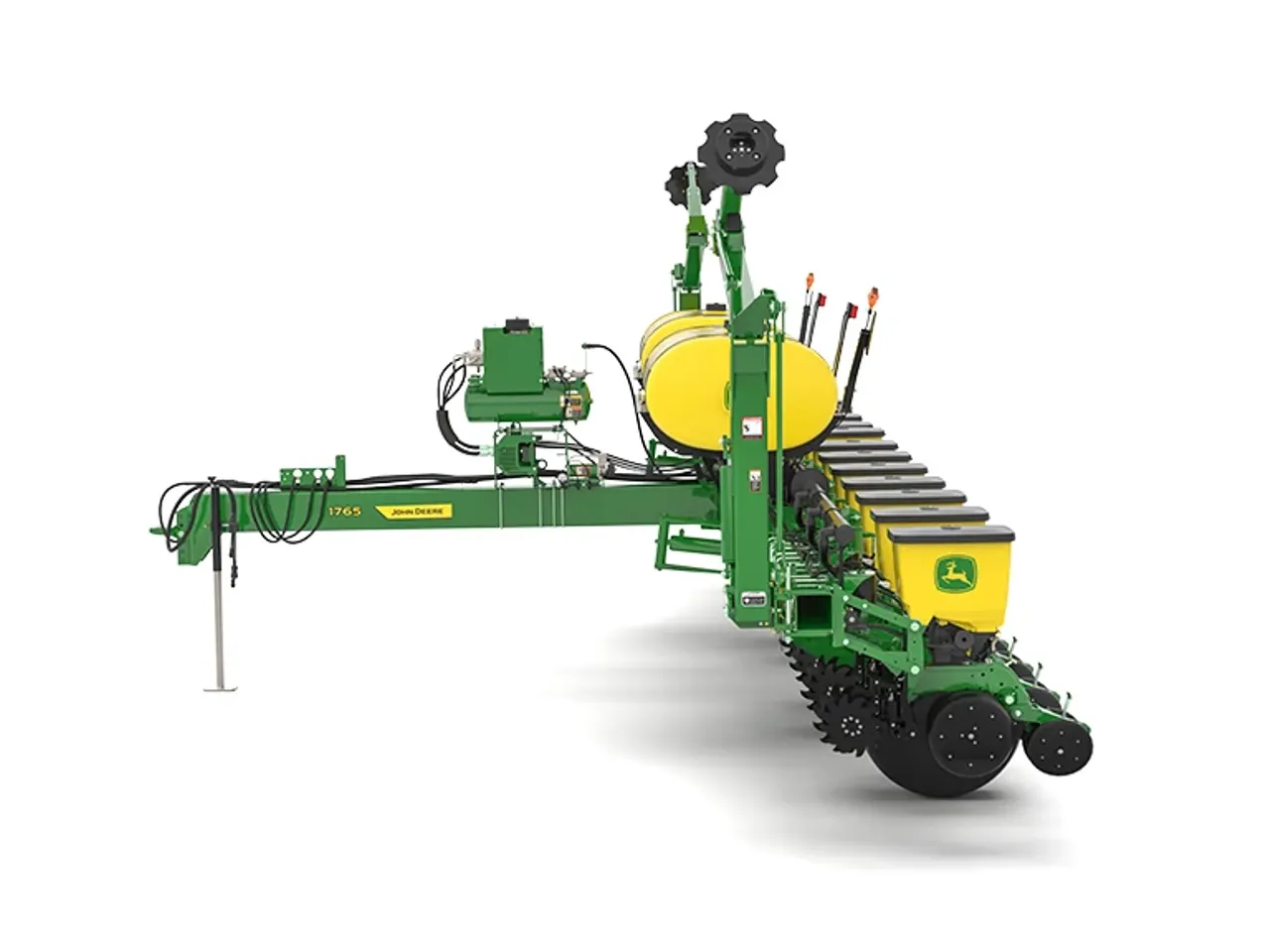

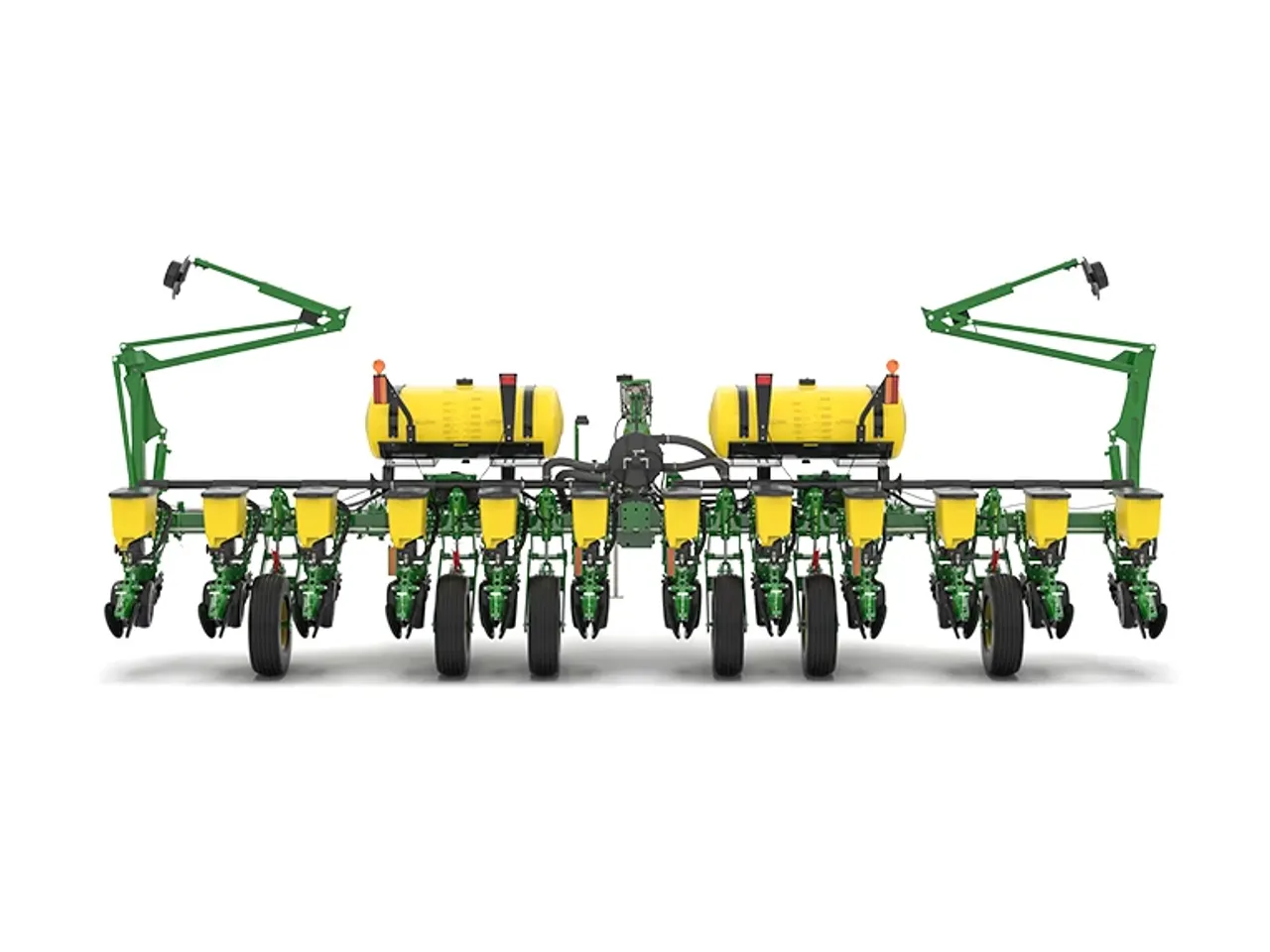

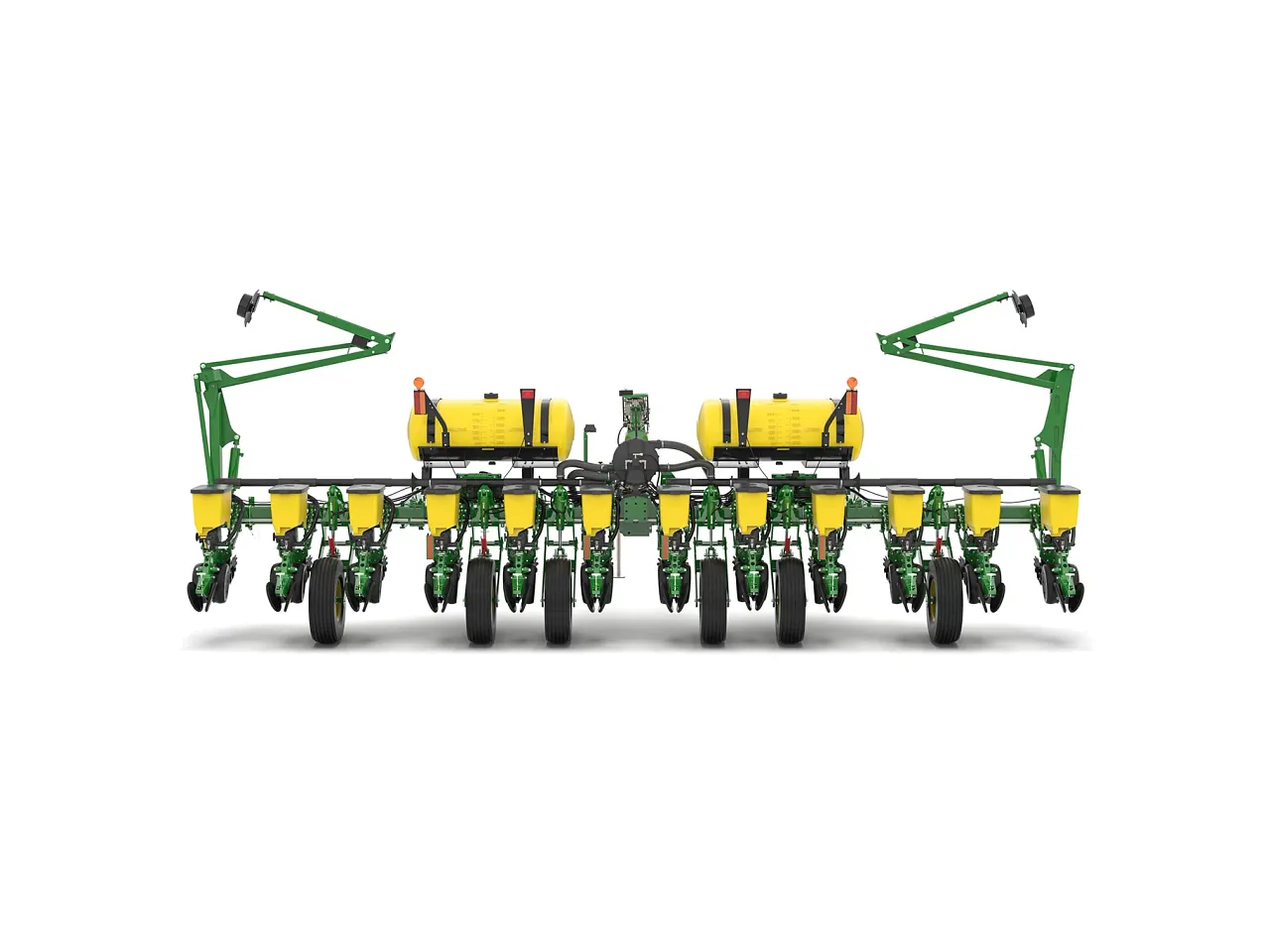

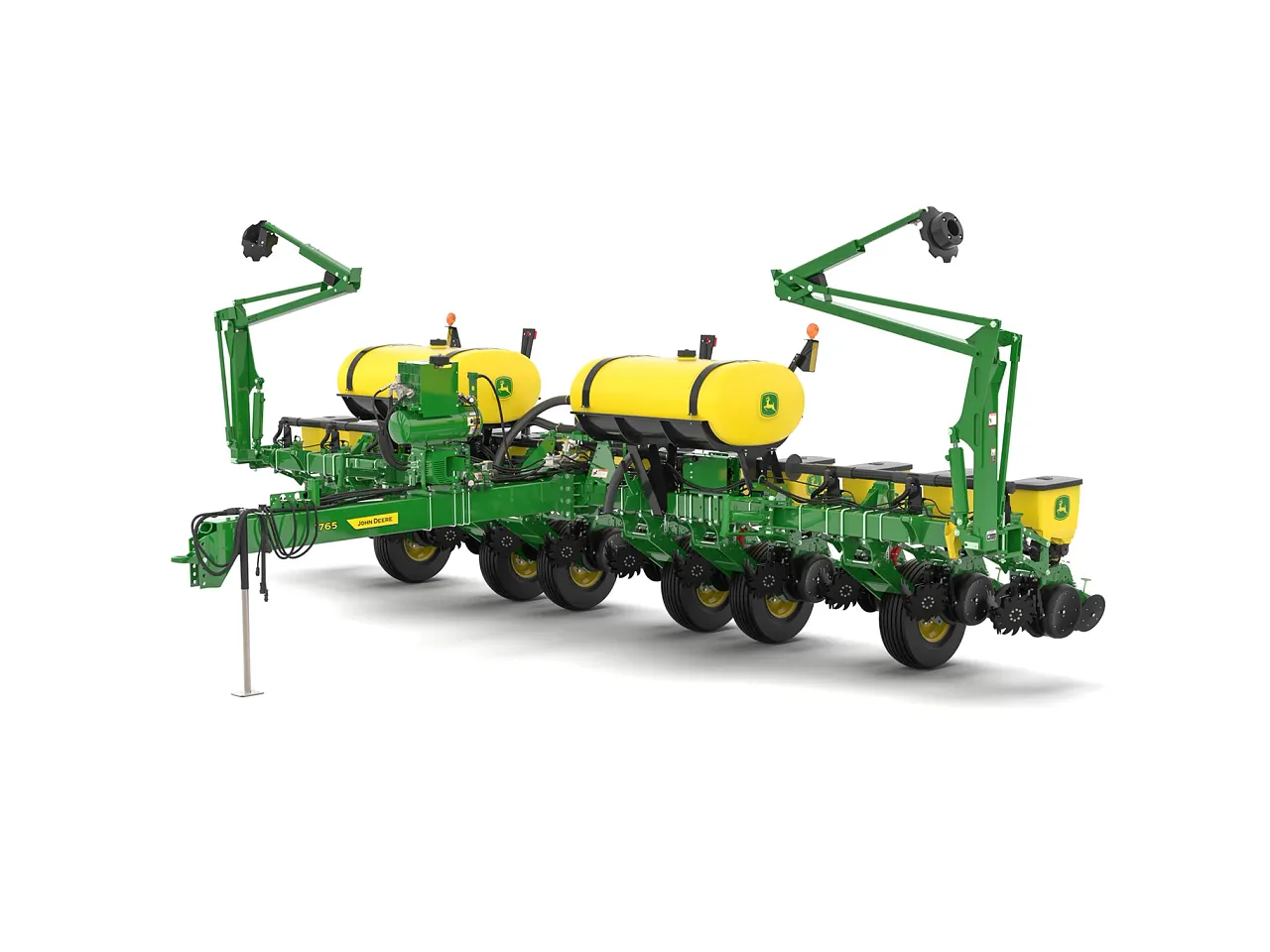

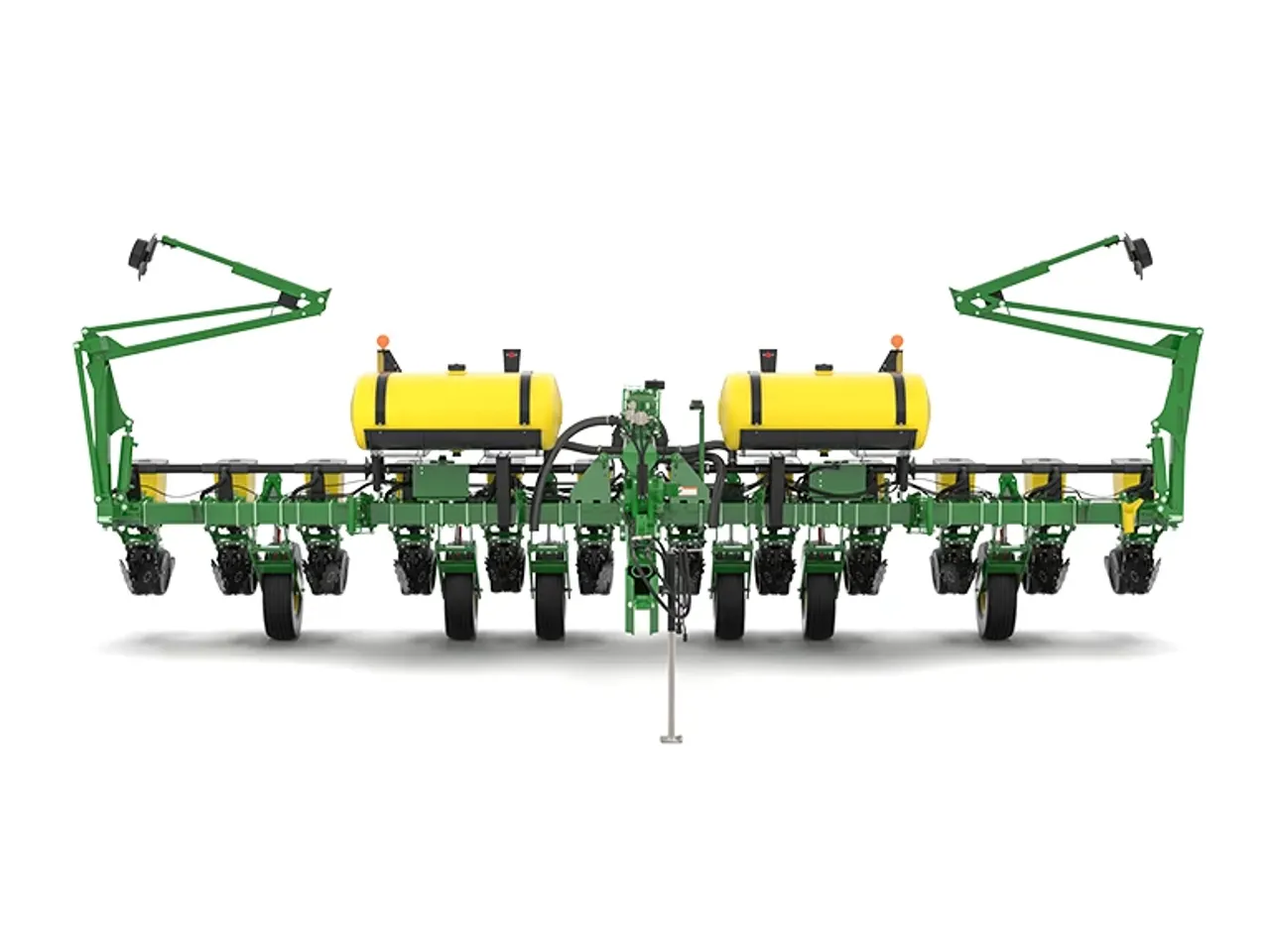

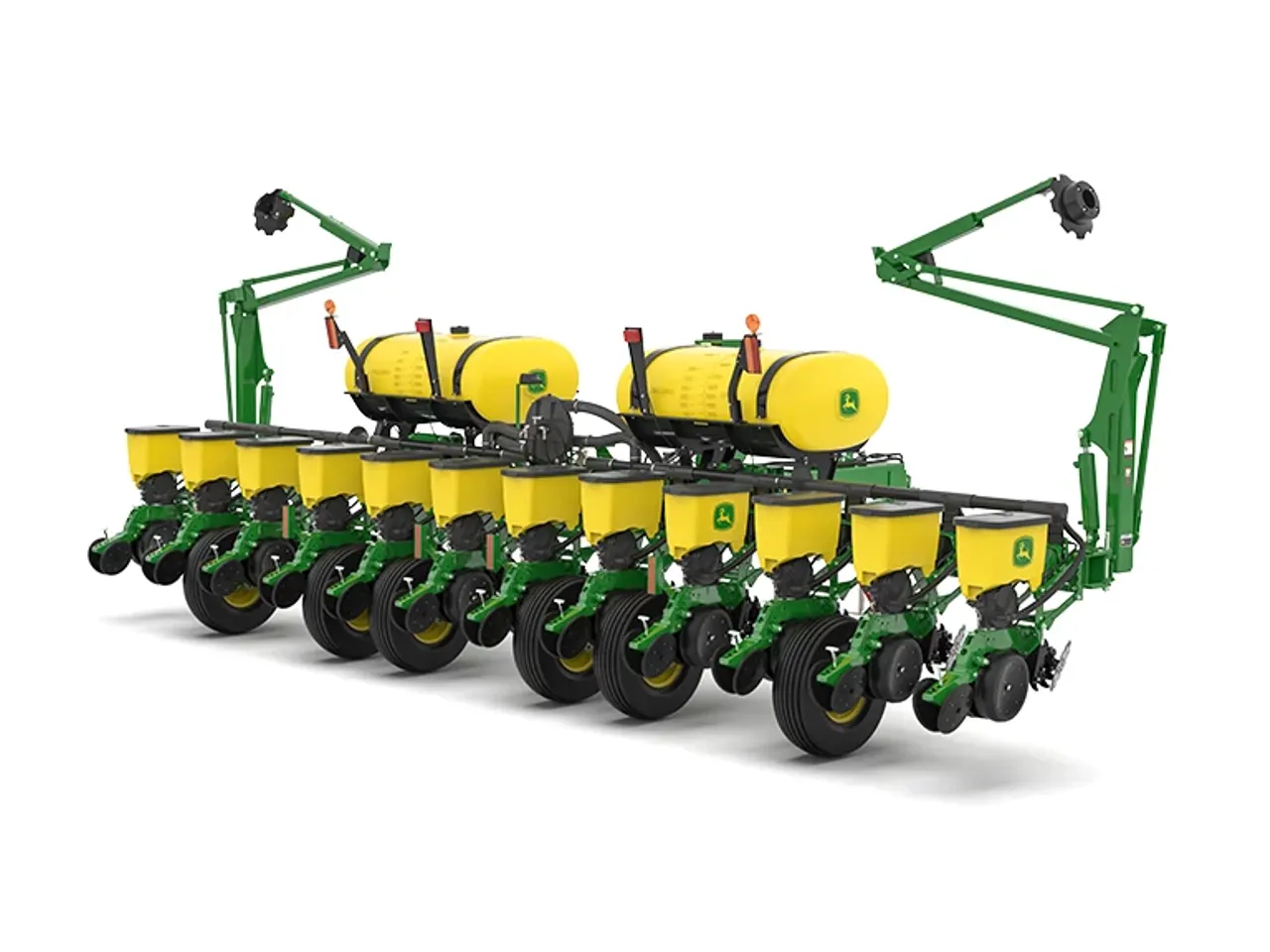

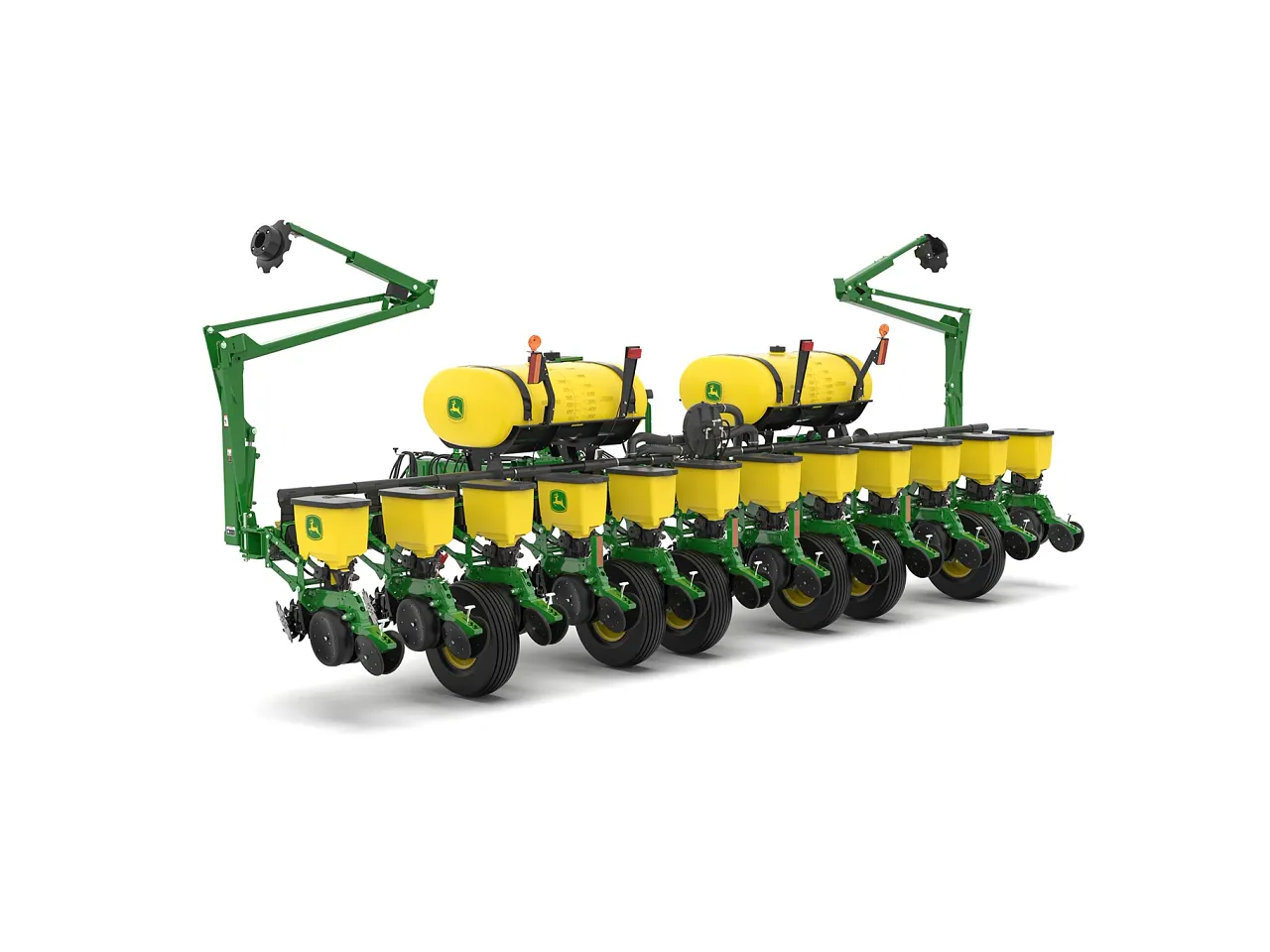

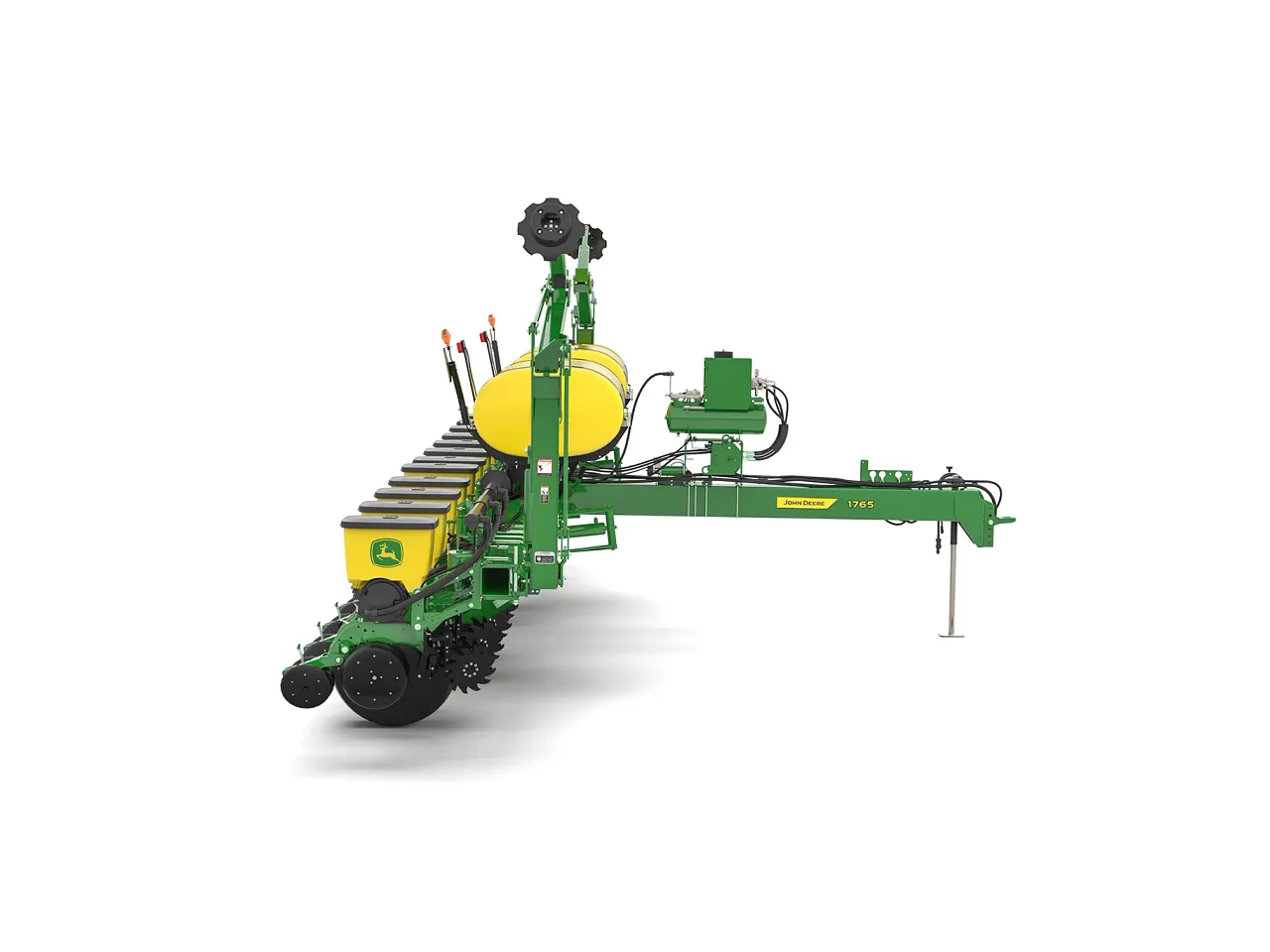

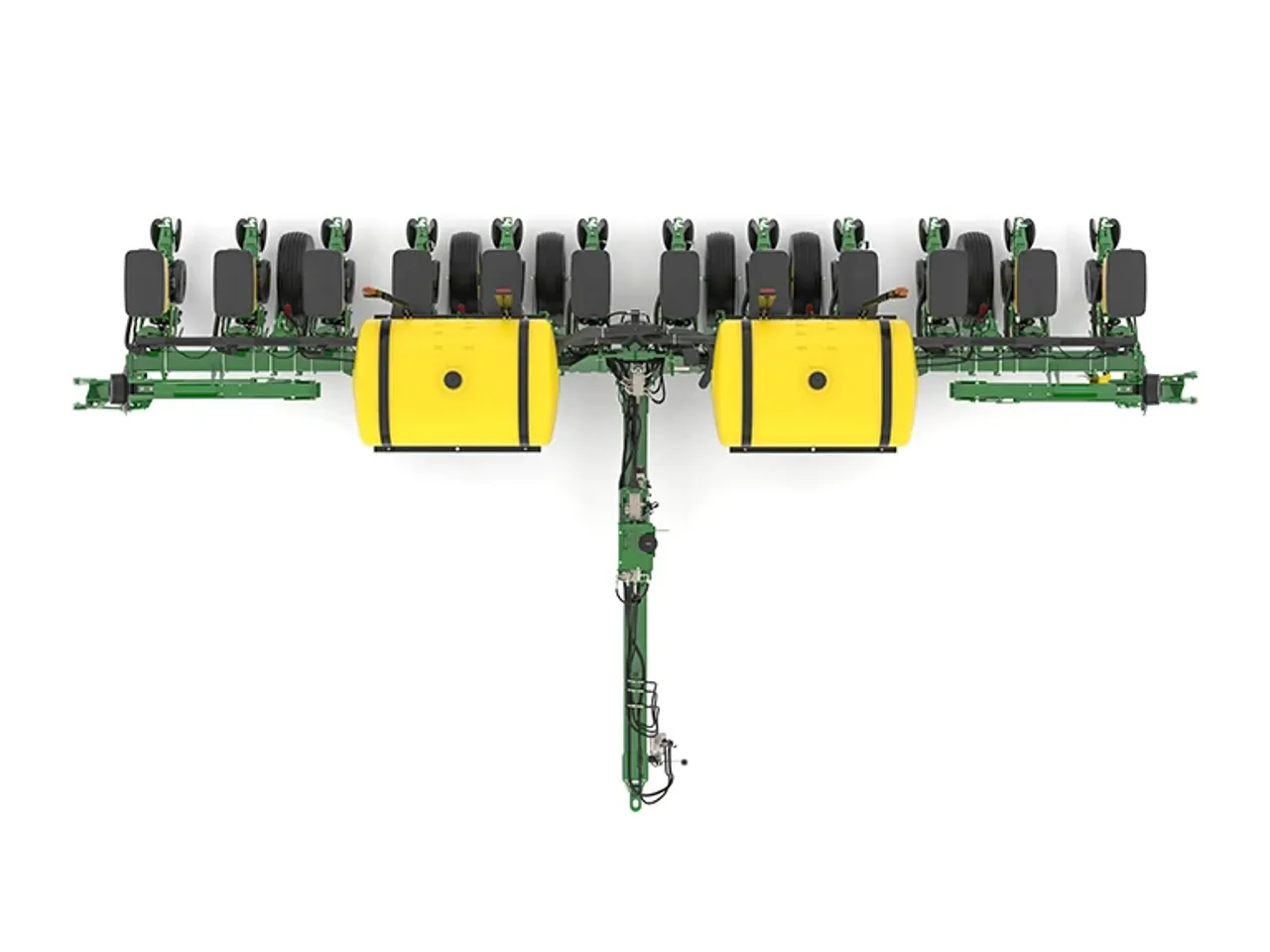

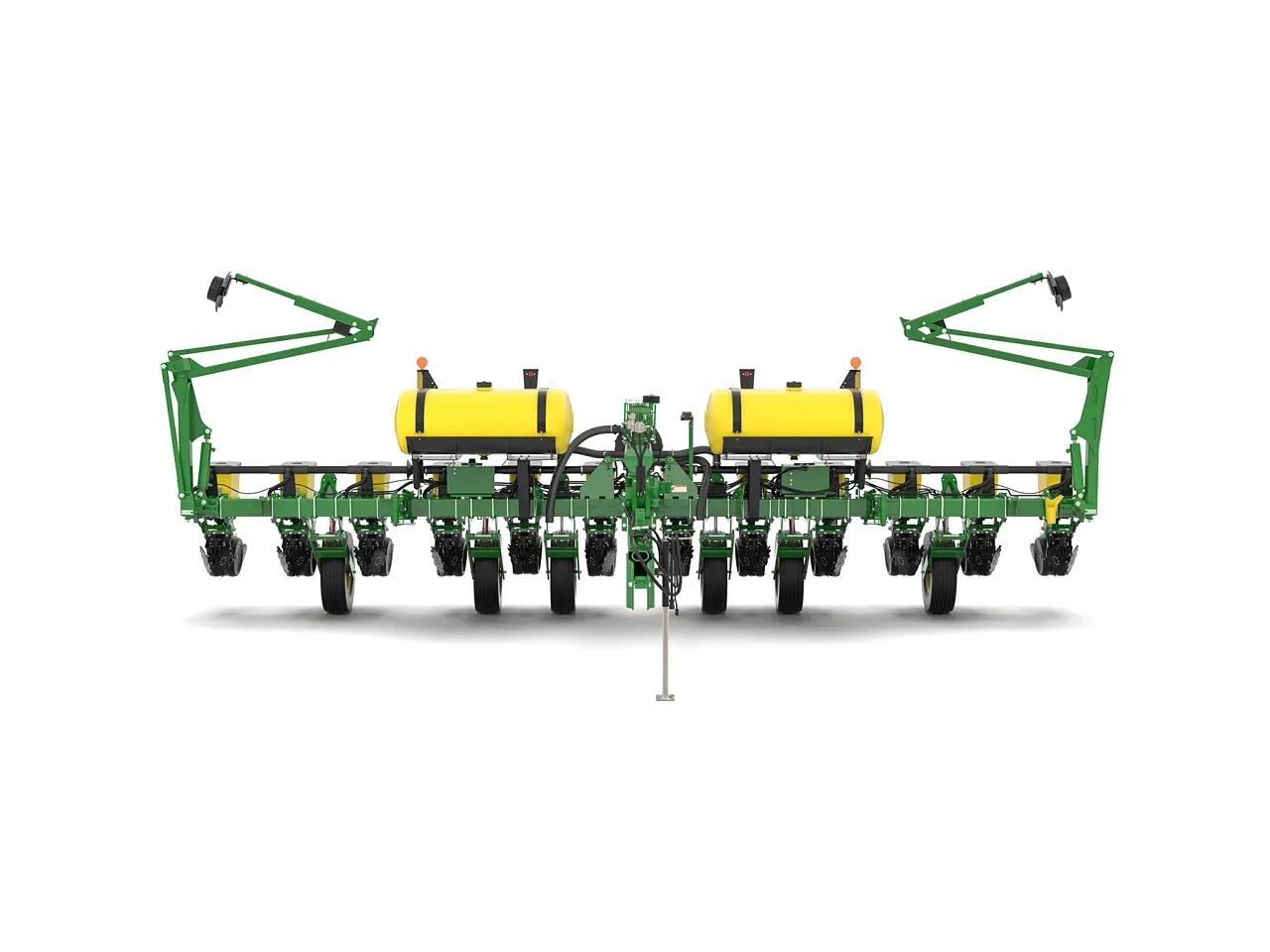

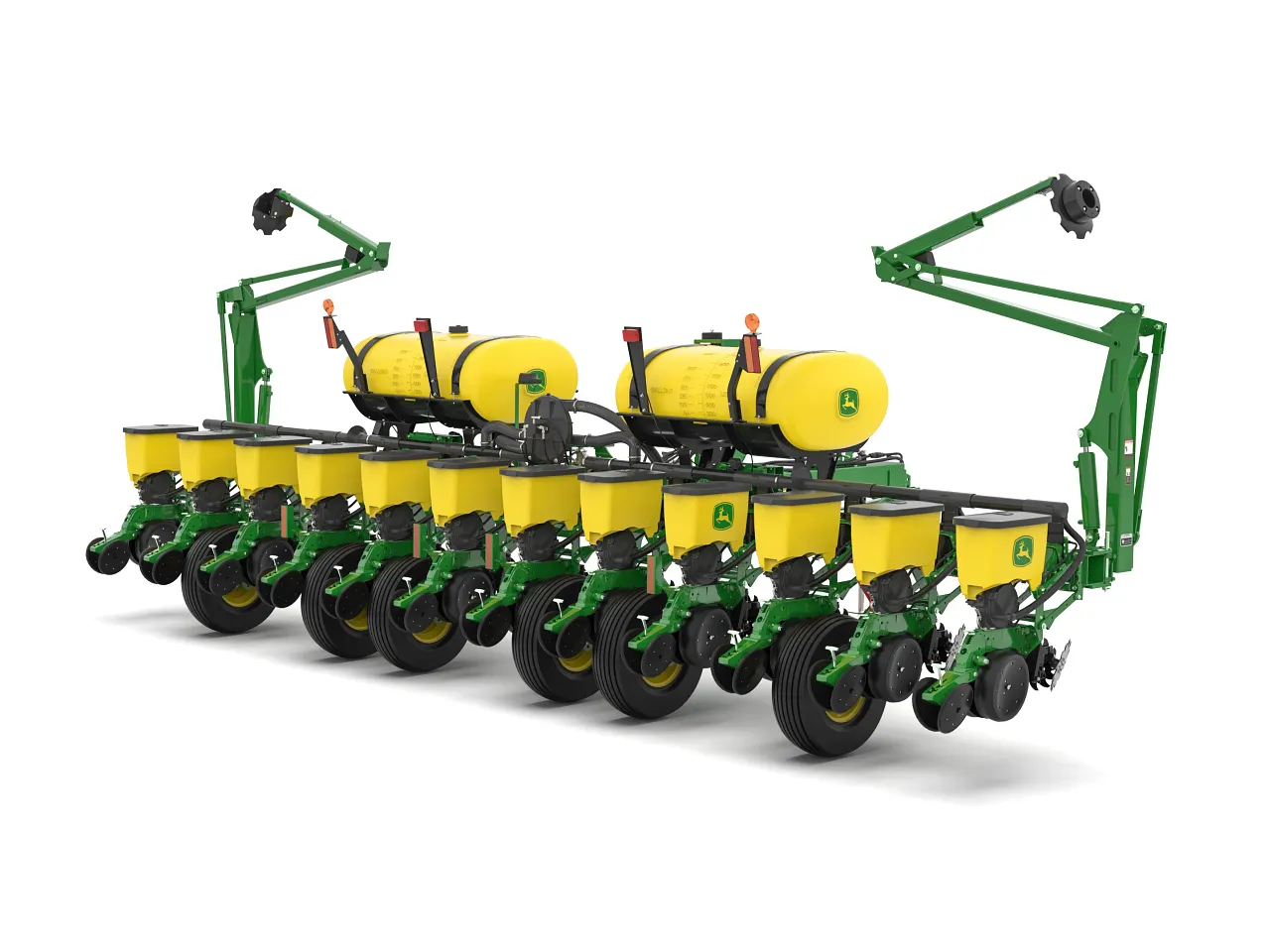

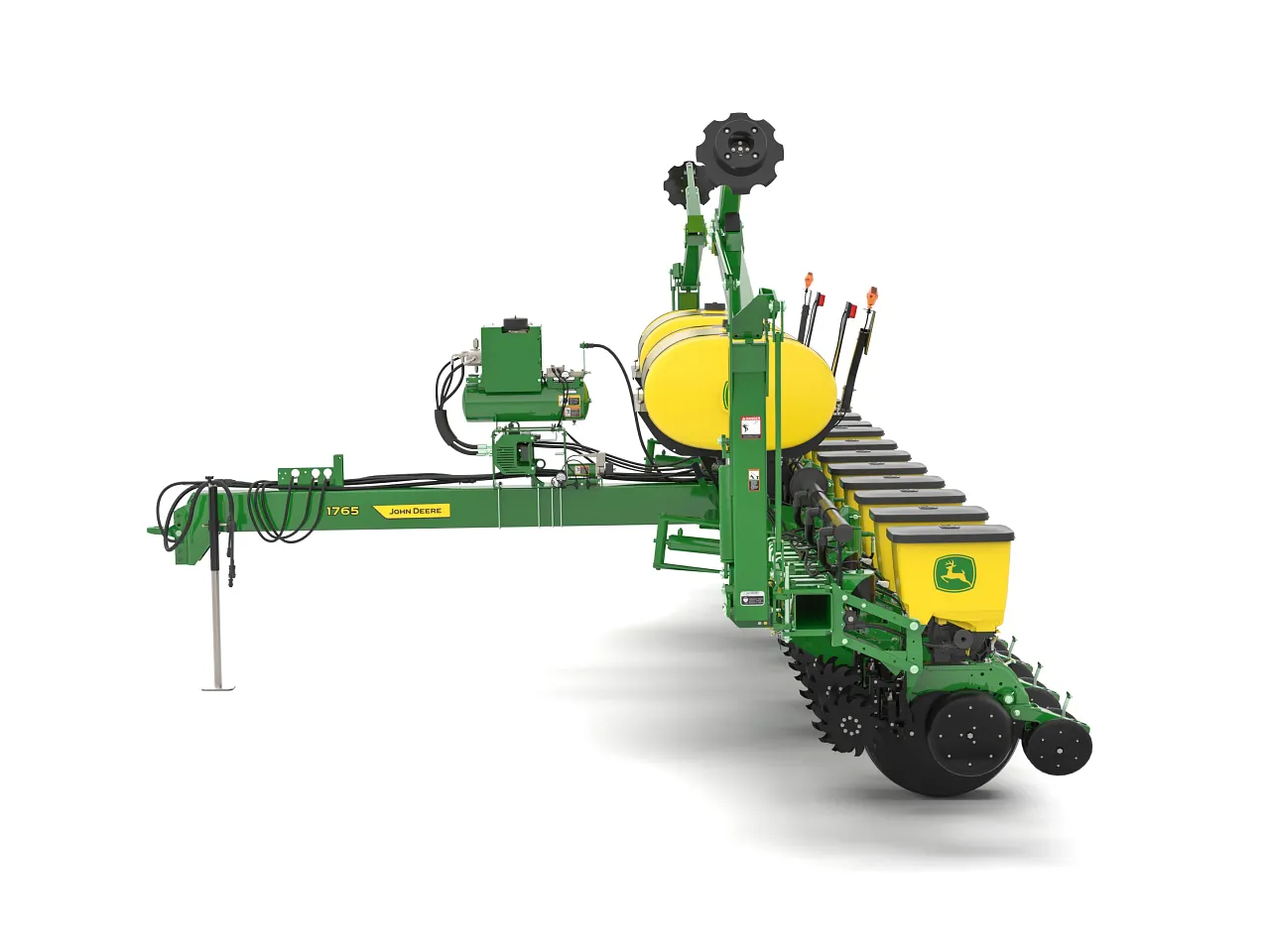

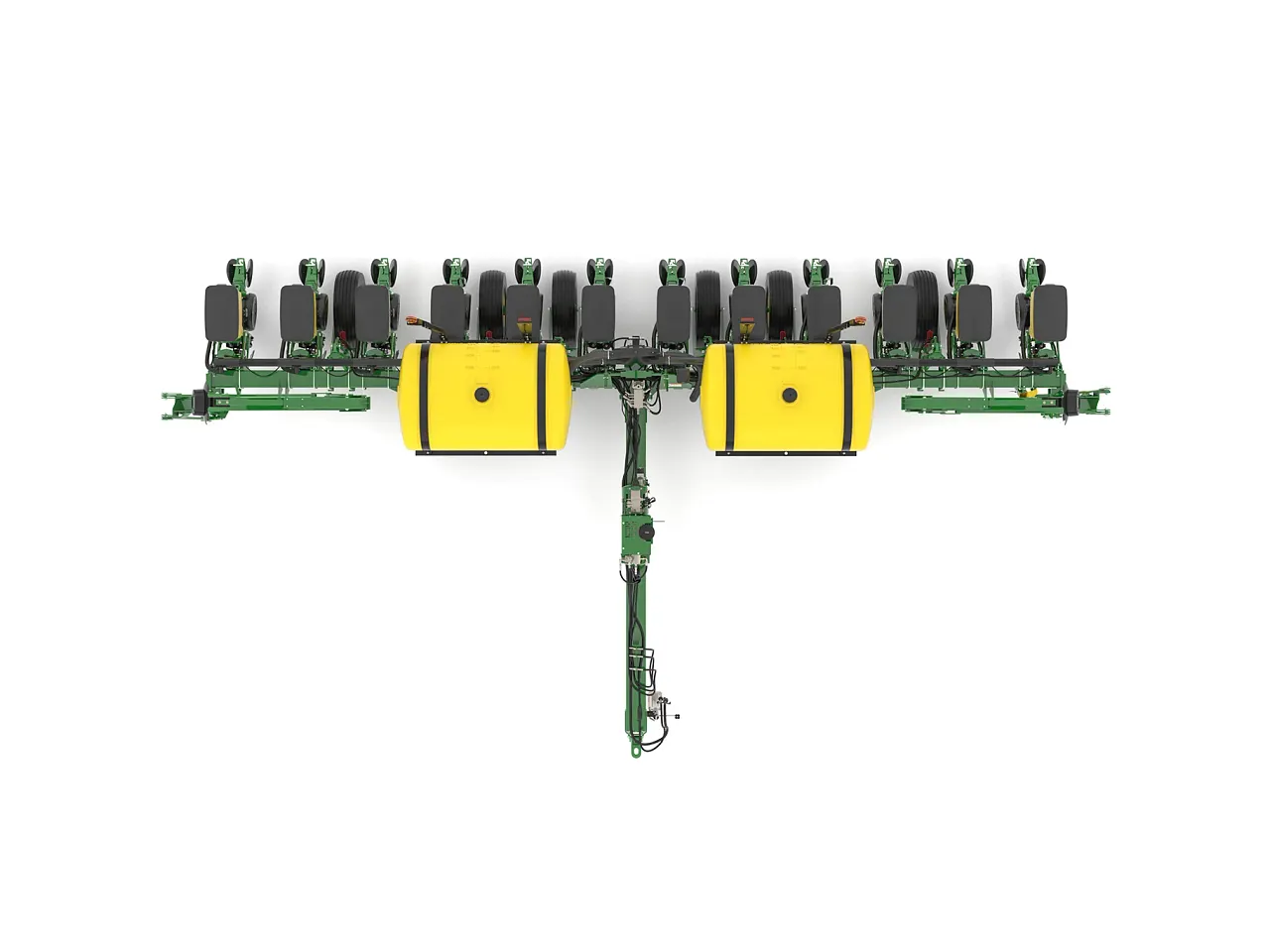

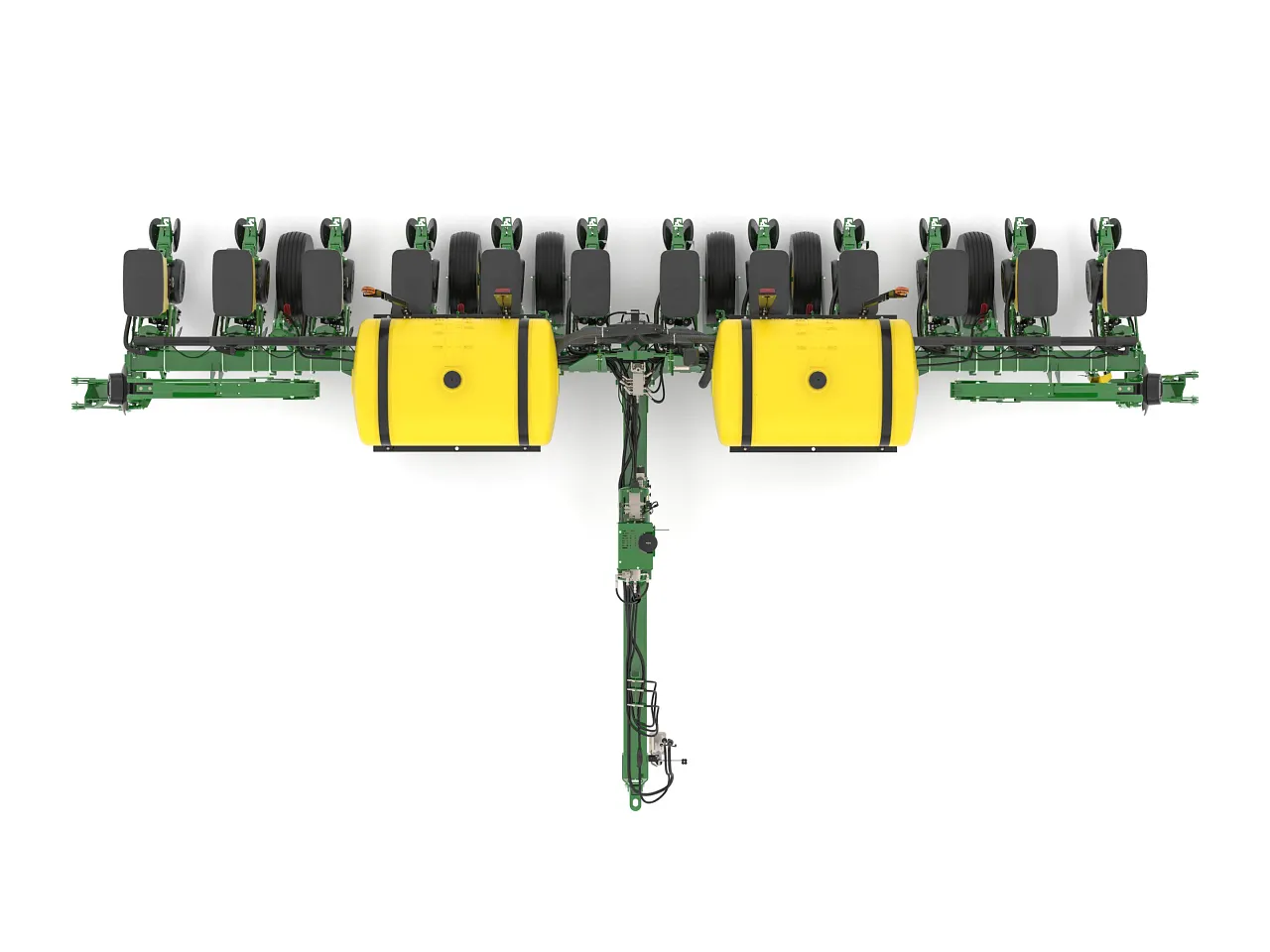

The 1765 Flex Wing-Fold Planter is an economical drawn planter with a flexible frame that provides narrow transport. It is available in a 12-row, 30-inch configuration.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 652GH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs3 specifications
- Number Of Rows
- 8, 12
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7 L
Rows and Row Spacing3 specifications
- Number Of Rows
- 8, 12
- Row Spacing (Imperial)
- 30 in.
- Row Spacing (Metric)
- 76 cm
Row Units2 specifications
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7 L
Dimensions10 specifications
- Transport Width (With Markers) (Imperial)
- 15.67 ft
- Transport Width (With Markers) (Metric)
- 4.775 m
- Transport Height (Imperial)
- 11.25 ft
- Transport Height (Metric)
- 3.429 m
- Field Operation Width (Imperial)
- 28.92 ft
- Field Operation Width (Metric)
- 8.811 m
- Field Operation Length Short Hitch (Imperial)
- 15.24 ft
- Field Operation Length Short Hitch (Metric)
- 4.647 m
- Field Operation Length Long Hitch (Imperial)
- 17.74 ft
- Field Operation Length Long Hitch (Metric)
- 5.406 m
