John Deere
ModelDR18 Planter
DR Planters

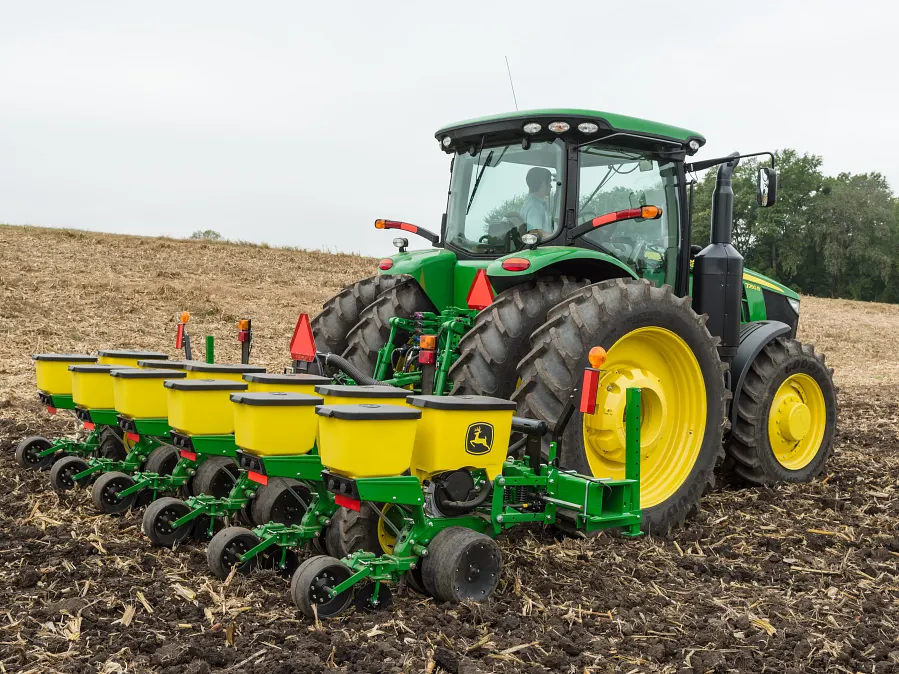

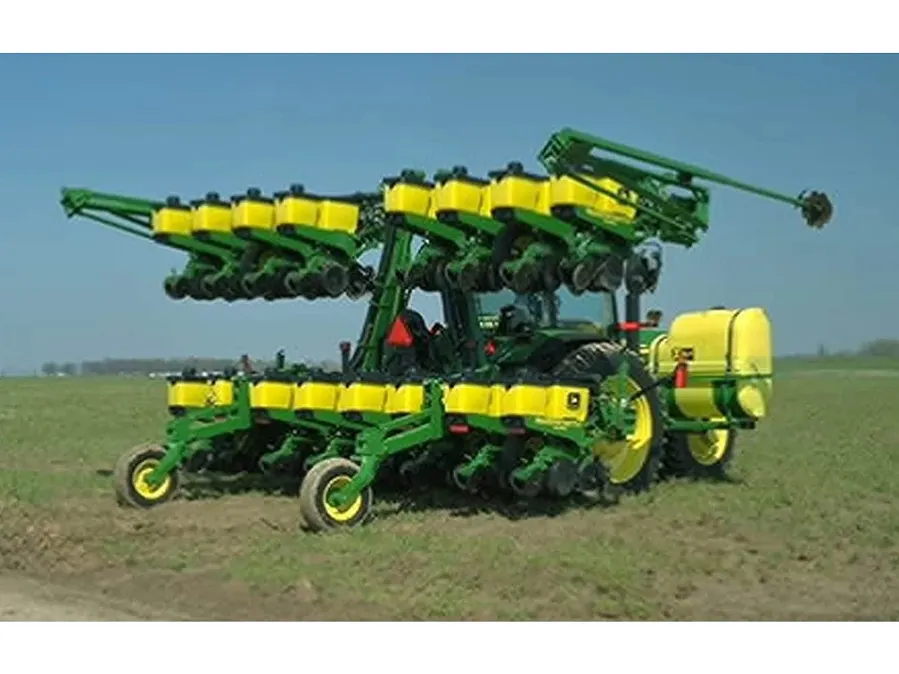

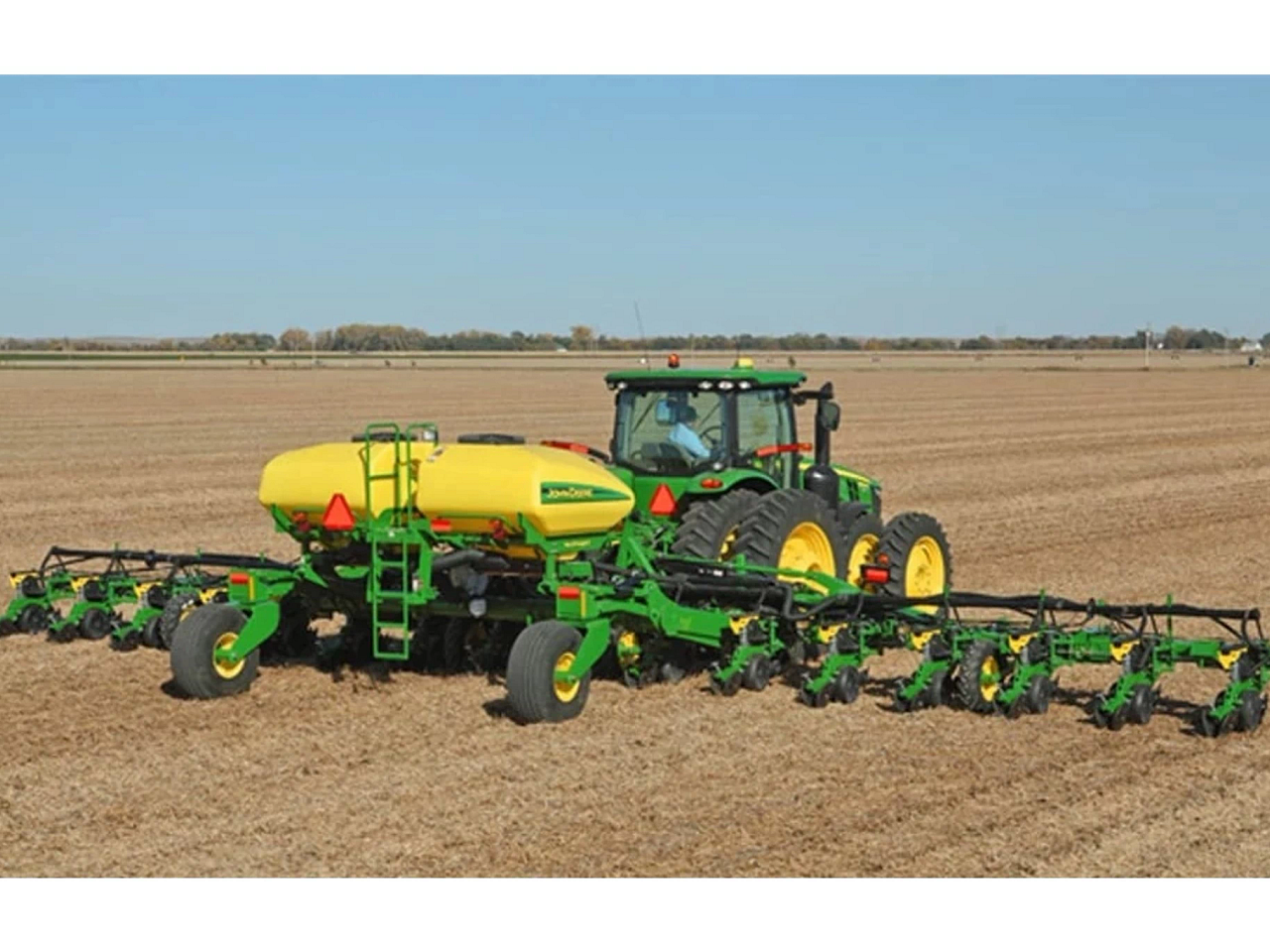

The John Deere DR18 Planter offers precision planting technology, robust construction, and an efficient seed delivery system. Designed for optimal performance and yield, it features advanced controls for ease of operation in diverse planting conditions.
Model / part number: 359DH
Key specifications
- Number Of Rows
- 18
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
Technical specifications
20 specifications
Key Specs5 details
- Number Of Rows
- 18
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7 L
Rows and Row Spacing3 details
- Number Of Rows
- 18
- Row Spacing (Imperial)
- 20, 22, 30 in.
- Row Spacing (Metric)
- 50.8, 55.9, 76.2 cm
Frame2 details
- Frame Flexibility Up
- 10.0 degree (angle)
- Frame Flexibility Down
- 7.0 degree (angle)
Row Units2 details
- Seed Hopper Capacity (Imperial)
- 1.6, 3 bu
- Seed Hopper Capacity (Metric)
- 56.4, 105.7 L
Seed Meters2 details
- CCS Seed Capacity (Imperial)
- 55, 70, 100 bu
- CCS Seed Capacity (Metric)
- 1938.2, 2466.7, 3523.9 L
Dimensions6 details
- Transport Width (Without Markers) (Imperial)
- 18.92-30.17 ft
- Transport Width (Without Markers) (Metric)
- 5.78-9.2 m
- Transport Height (Imperial)
- 5.17-13.17 ft
- Transport Height (Metric)
- 1.58-4.01 m
- Transport Underframe Clearance (Imperial)
- 13.2 ft
- Transport Underframe Clearance (Metric)
- 4 m
