John Deere

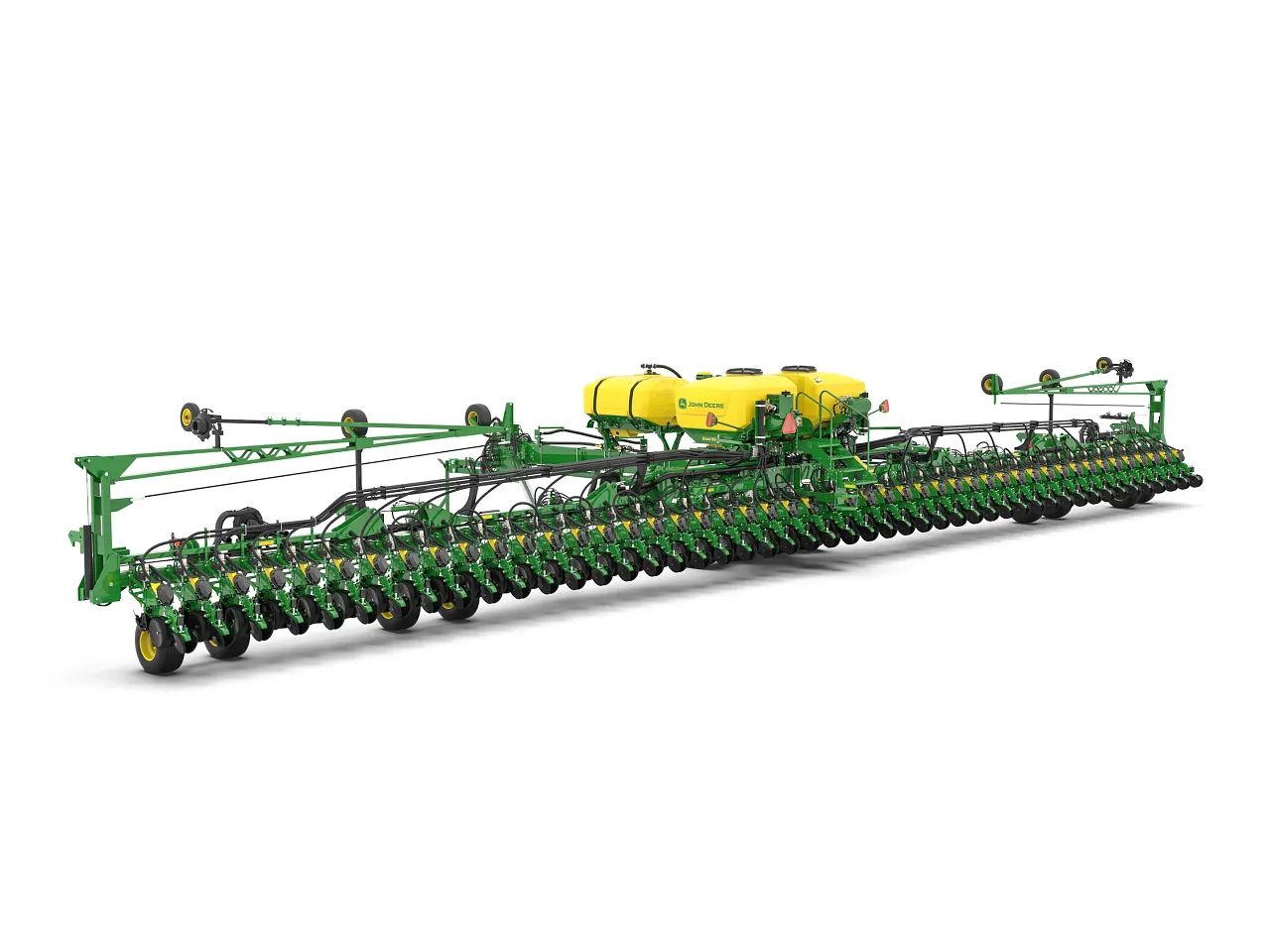

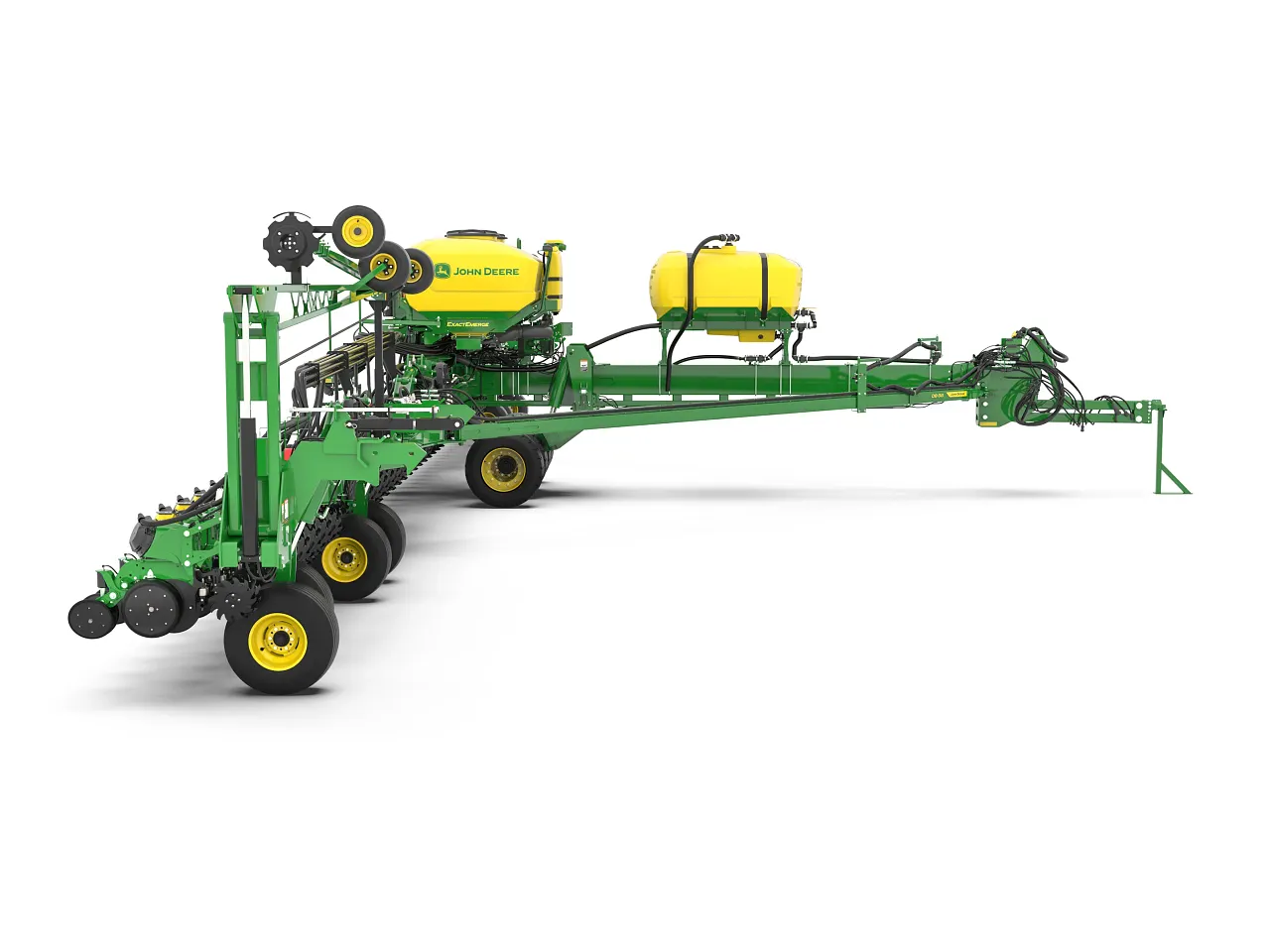

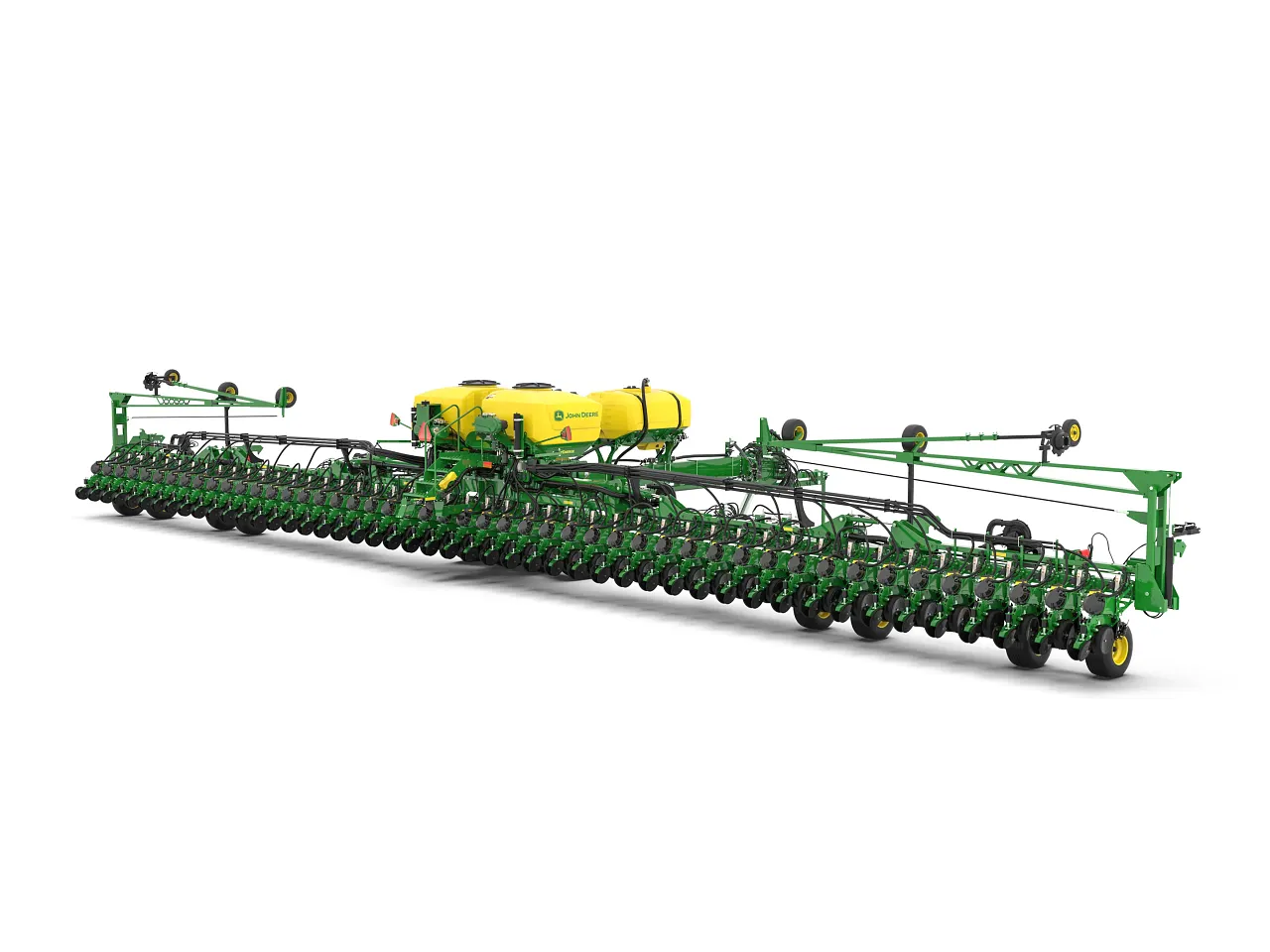

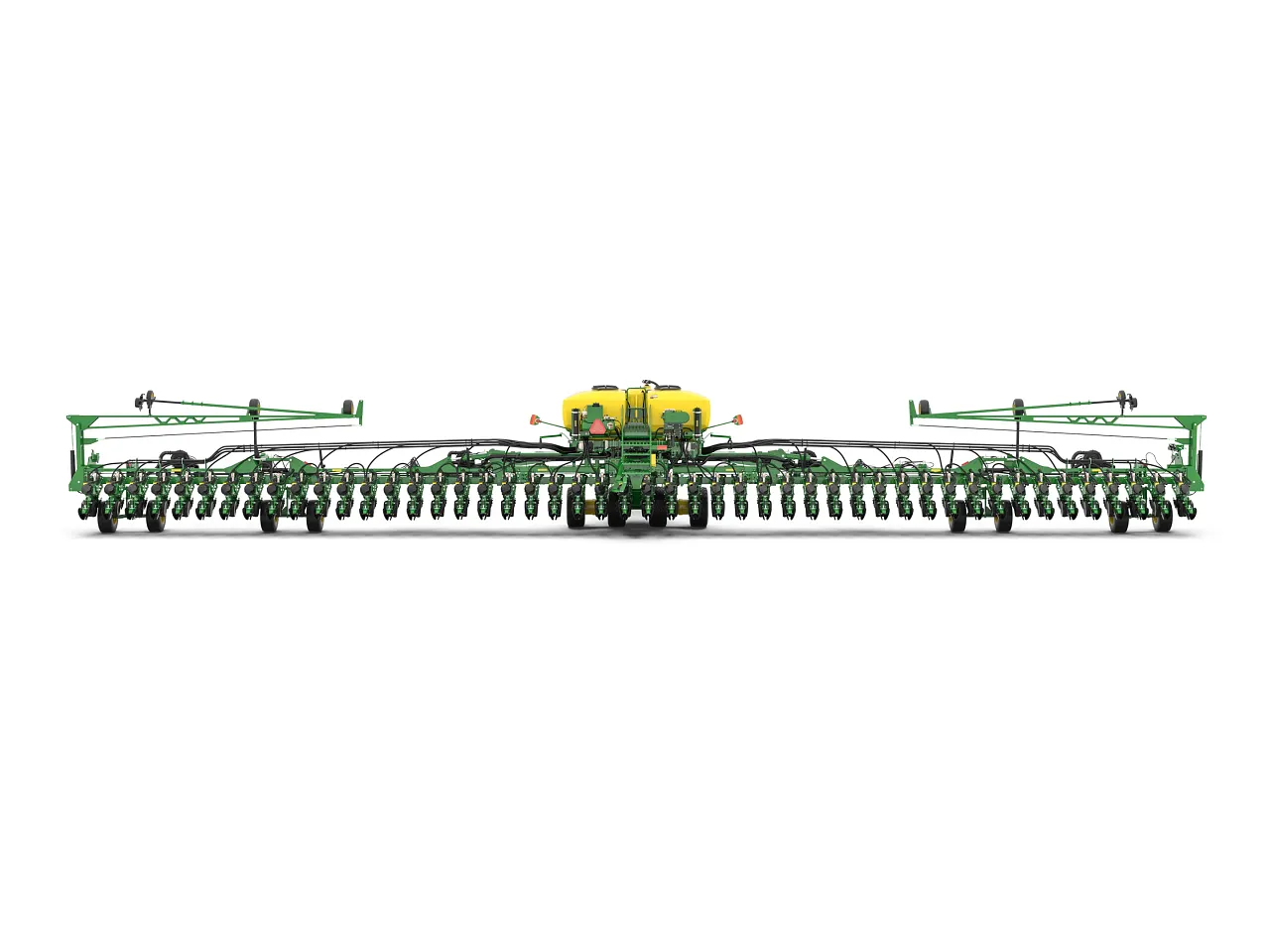

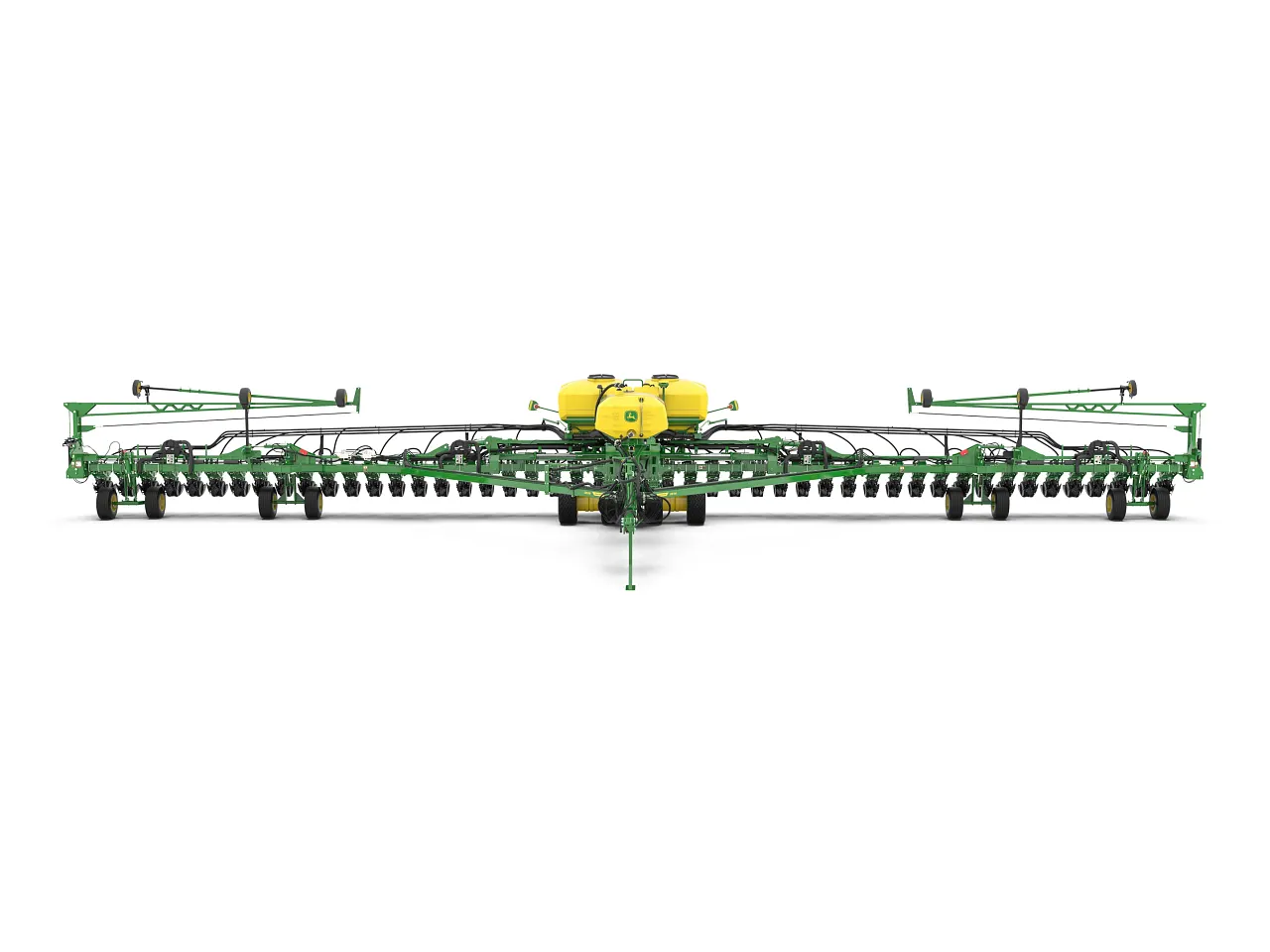

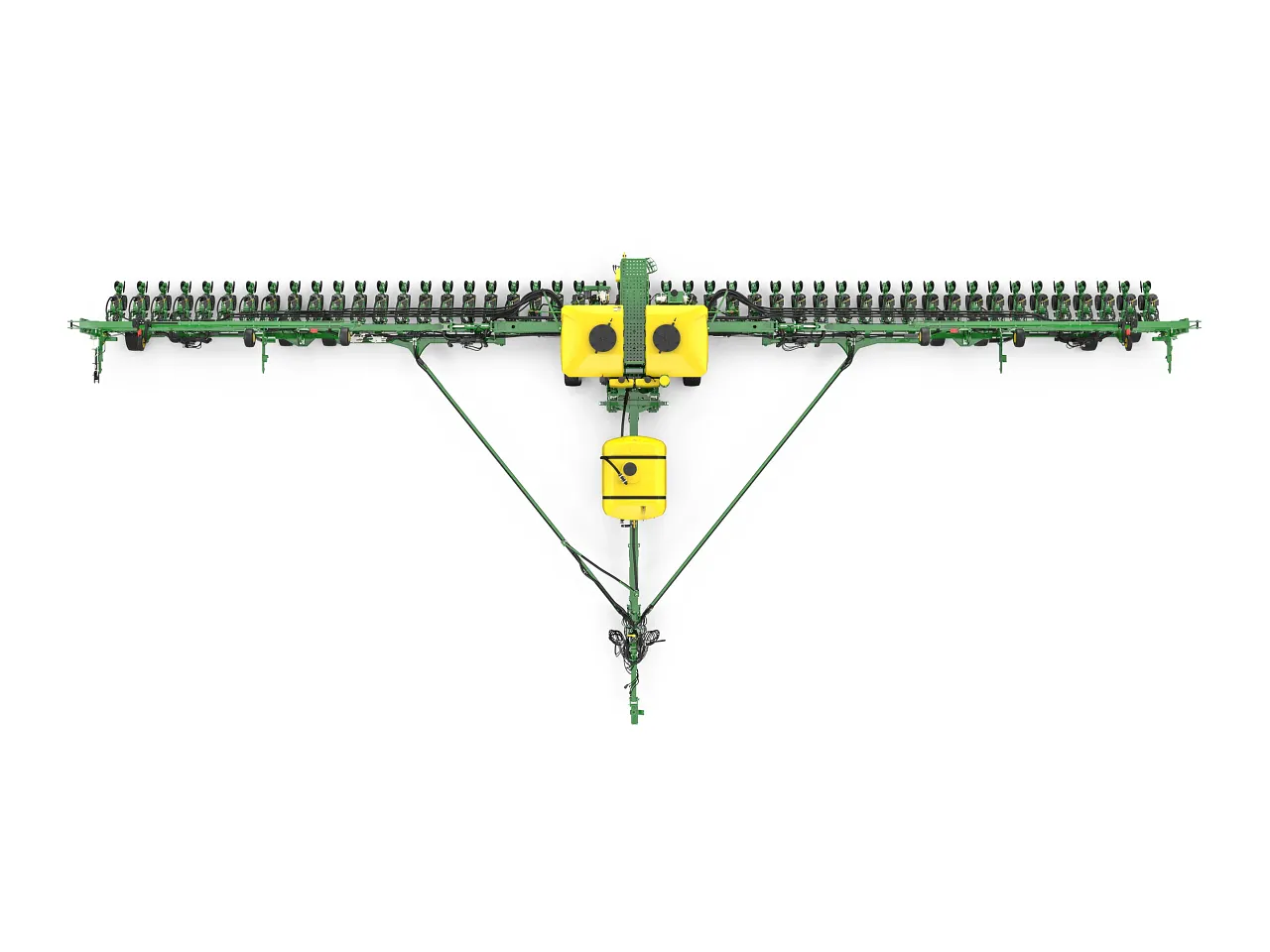

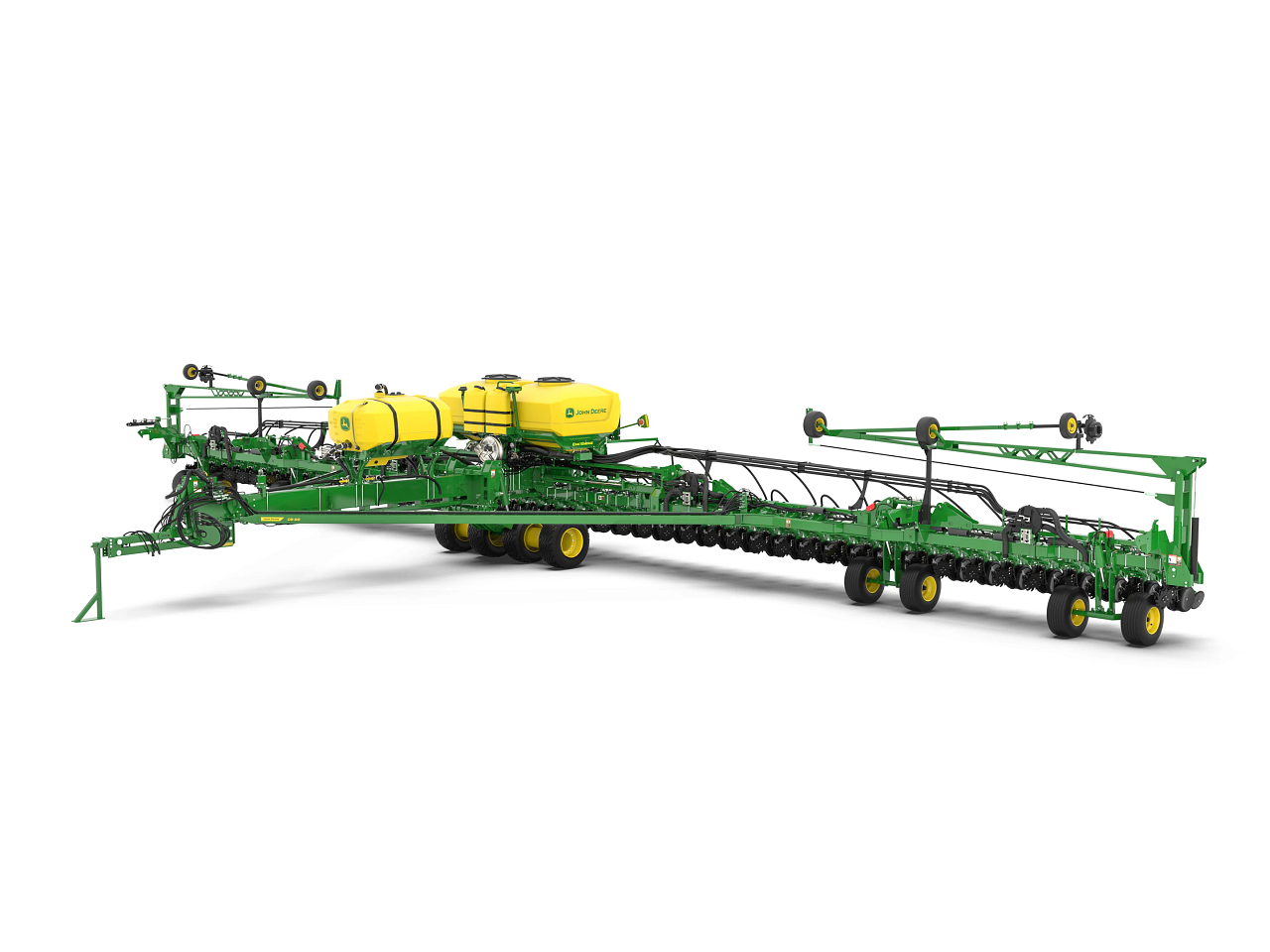

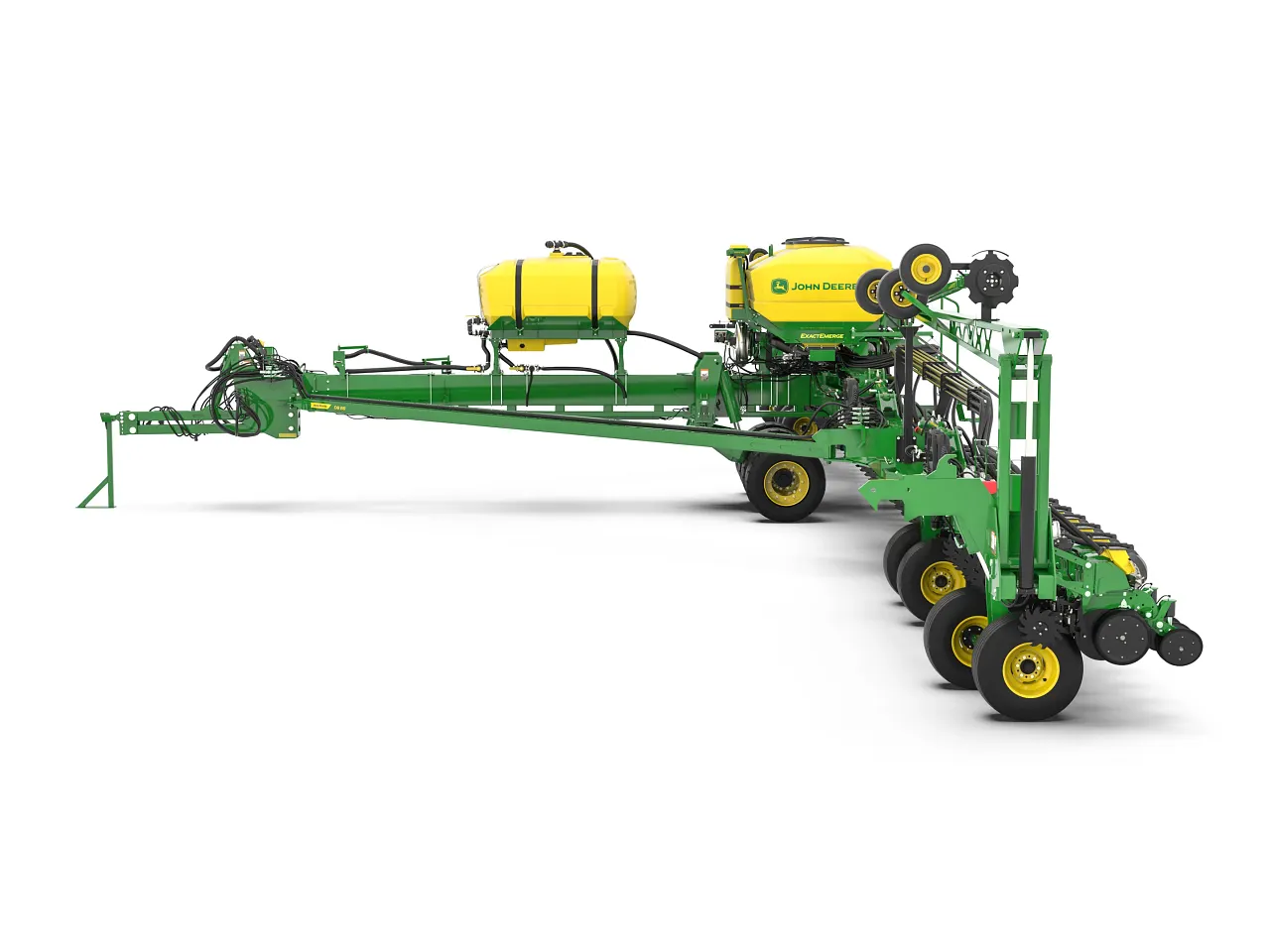

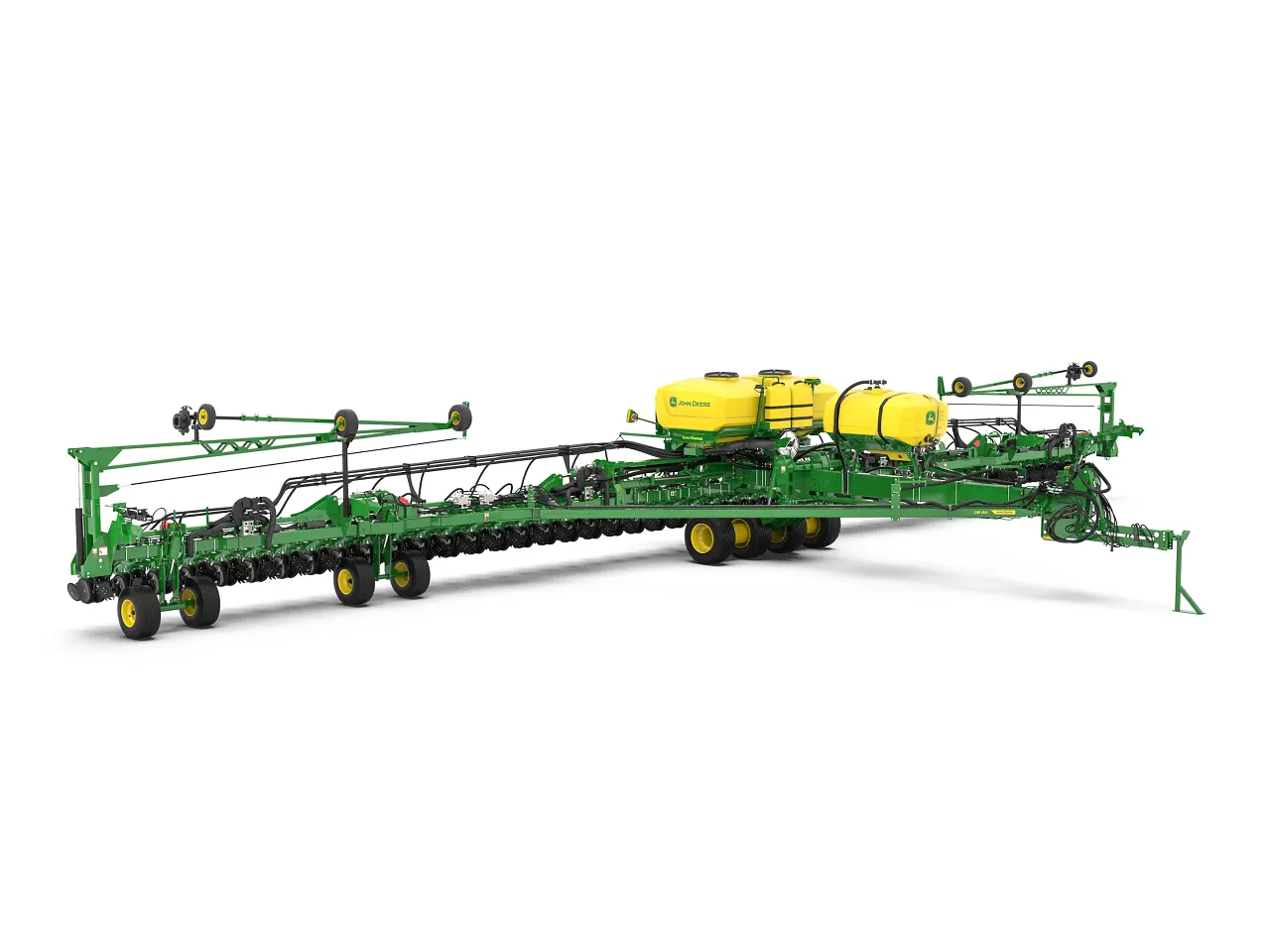

ModelDB88 48Row22 Planter
DB Planters
Optimize your planting with the DB88 48Row22 Planter, featuring advanced SeedStar™ 4HP monitoring, efficient CCS™ seed delivery, precise variable-rate drive, and IRHD for superior soil adjustment and productivity.
Model / part number: 95MGH
Key specifications
- Number Of Rows
- 48
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
Technical specifications
24 specifications
Key Specs5 details
- Number Of Rows
- 48
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Rows and Row Spacing3 details
- Number Of Rows
- 48
- Row Spacing (Imperial)
- 22 in.
- Row Spacing (Metric)
- 56 cm
Frame2 details
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
Row Units2 details
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Seed Meters2 details
- CCS Seed Capacity (Imperial)
- 130 bu
- CCS Seed Capacity (Metric)
- 4581 L
Fertilizer2 details
- Tank Capacity (Imperial)
- 600.0 gal.
- Tank Capacity (Metric)
- 2271.0 L
Dimensions8 details
- Transport Width (With Markers) (Imperial)
- 17.5 ft
- Transport Width (With Markers) (Metric)
- 5.4 m
- Transport Length (Imperial)
- 55 ft
- Transport Length (Metric)
- 16.8 m
- Transport Height (Imperial)
- 12 ft
- Transport Height (Metric)
- 3.7 m
- Transport Underframe Clearance (Imperial)
- 2.17 ft
- Transport Underframe Clearance (Metric)
- 0.66 m
