John Deere

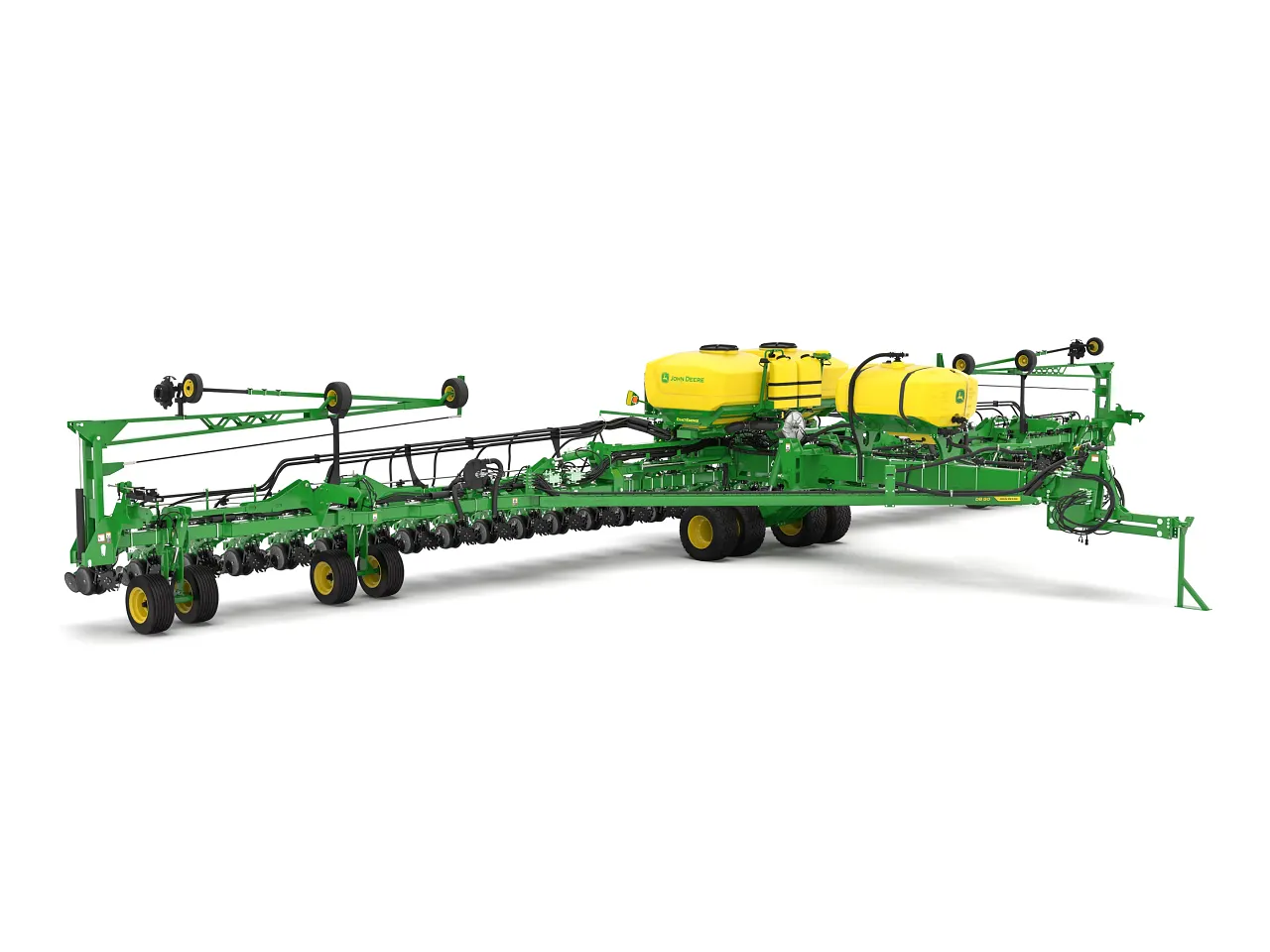

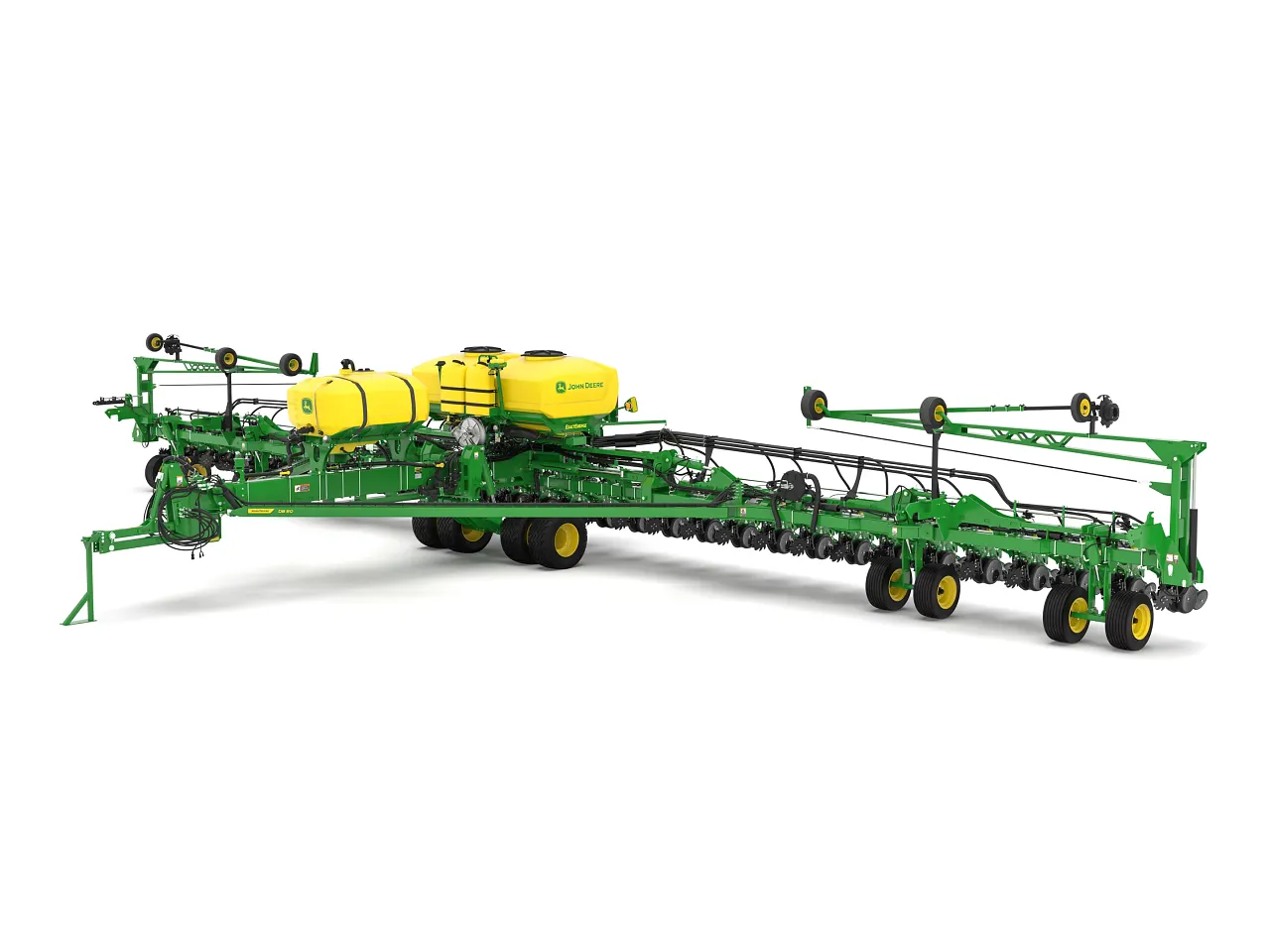

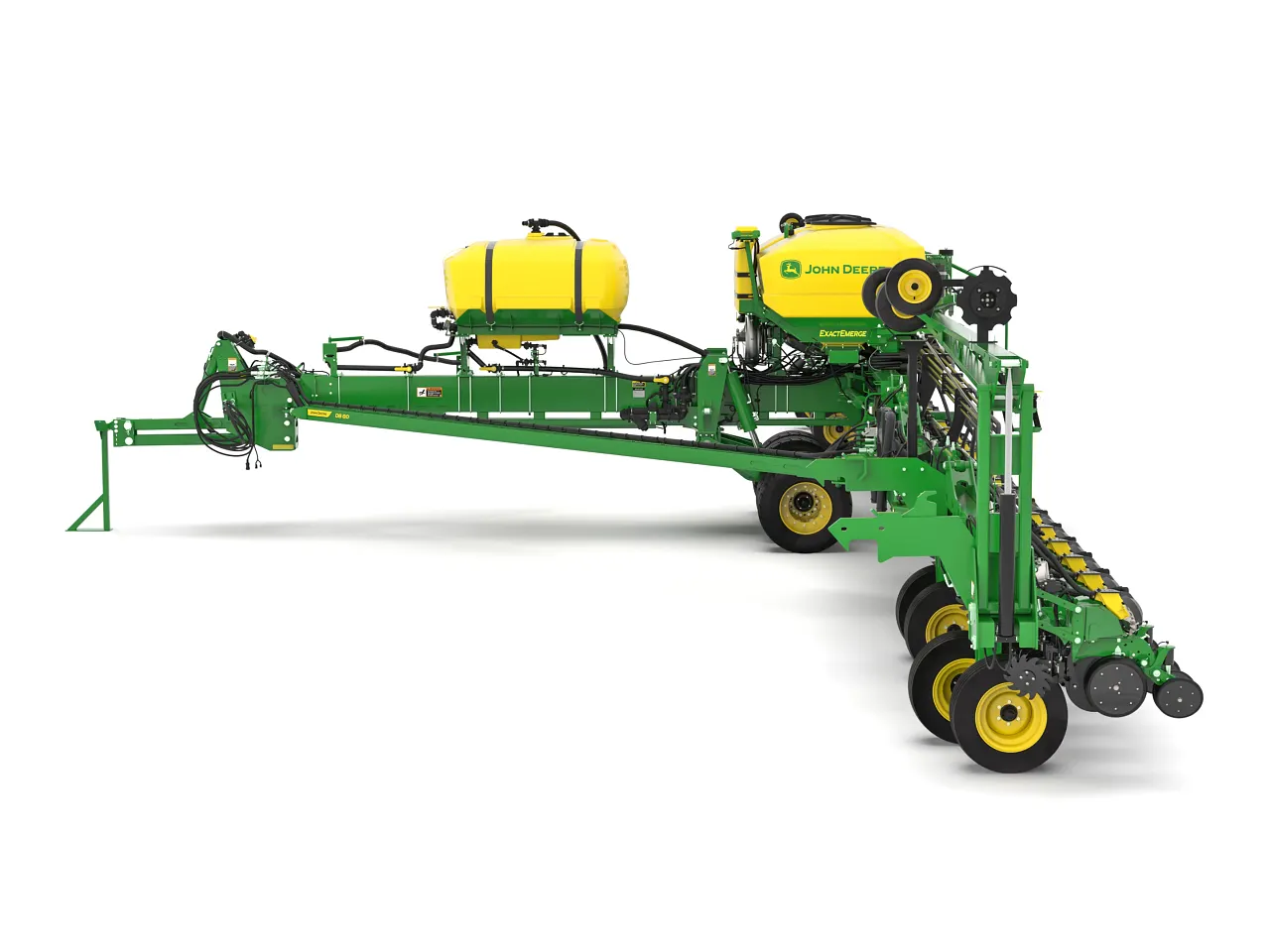

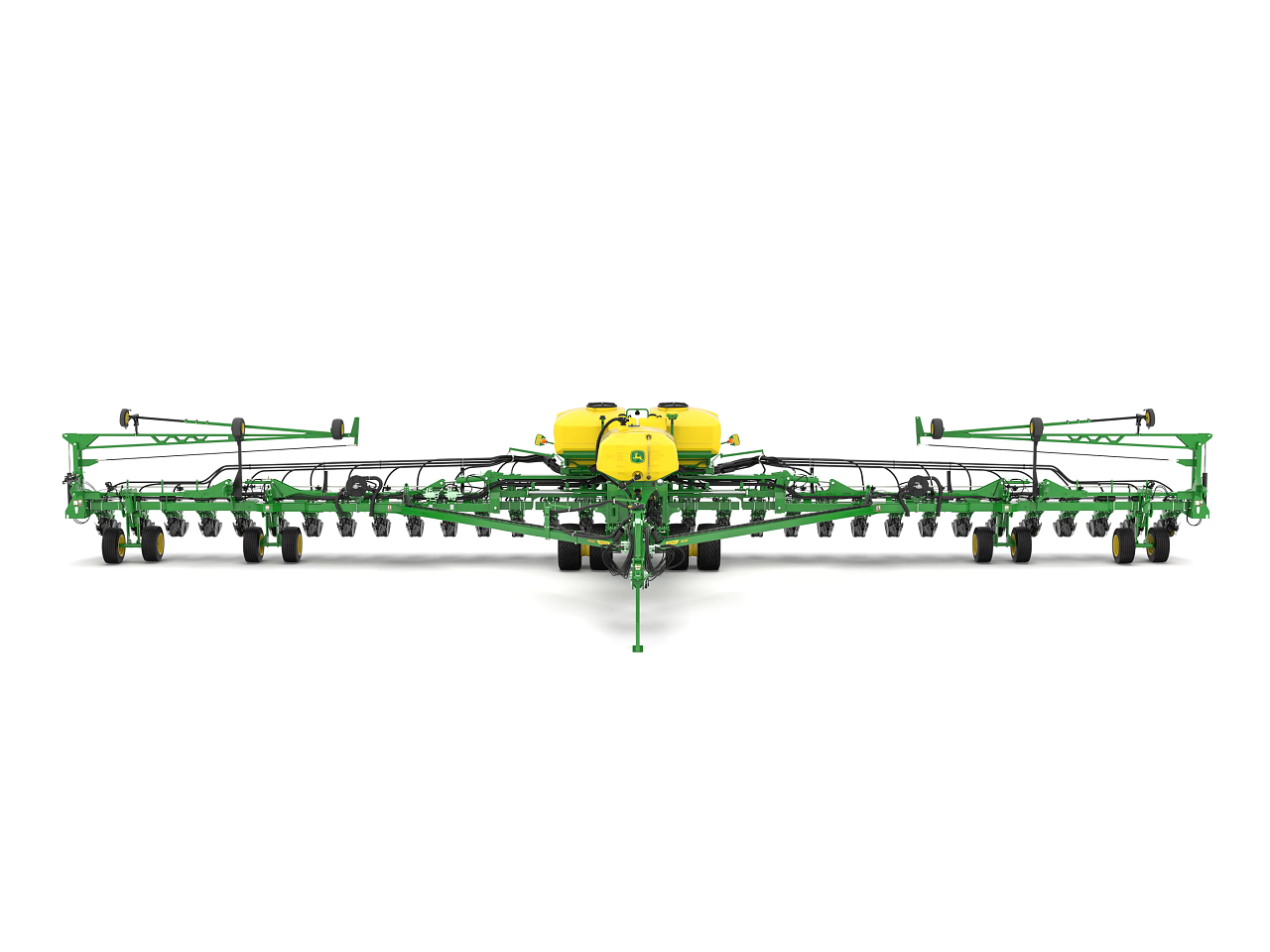

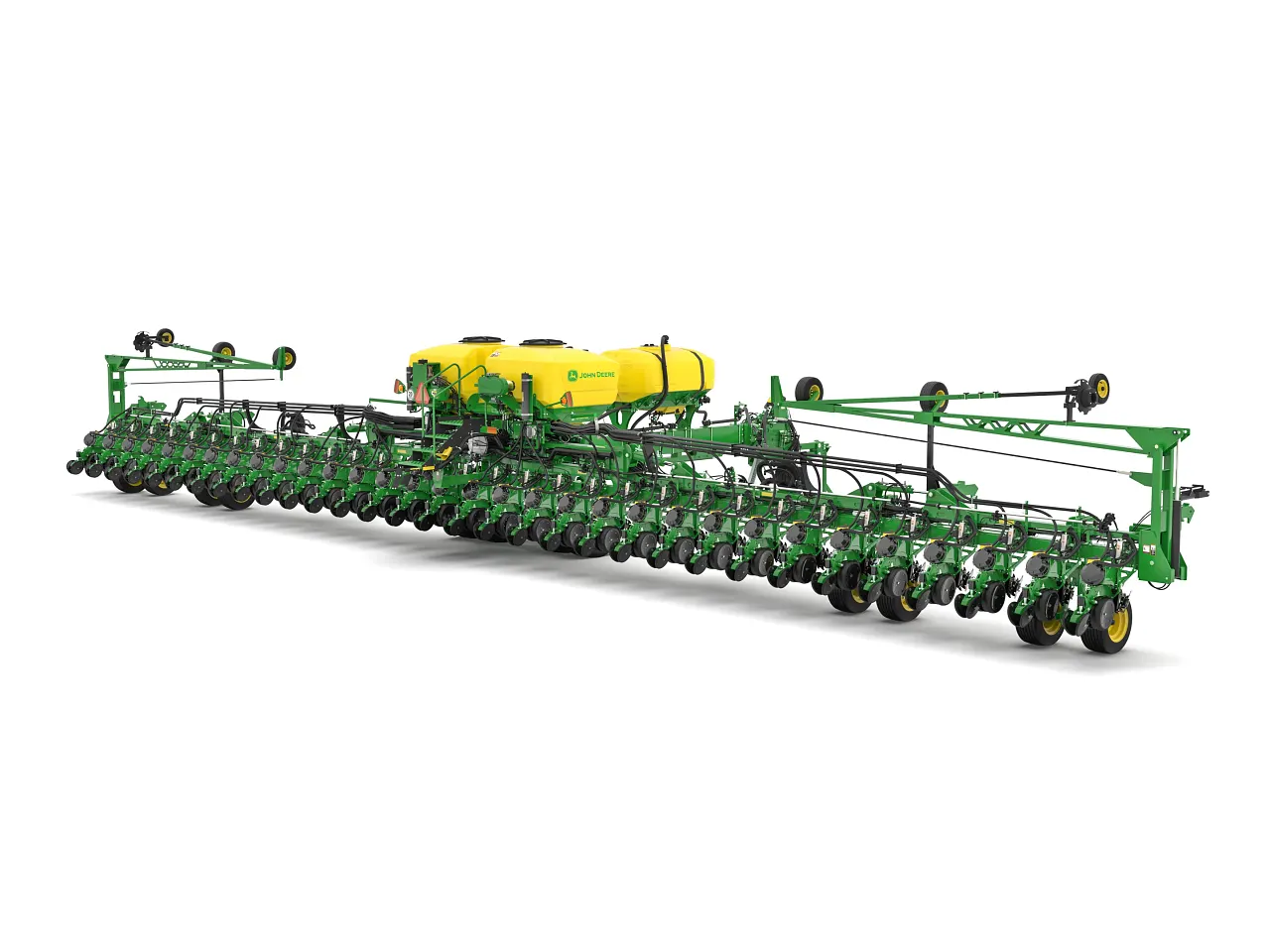

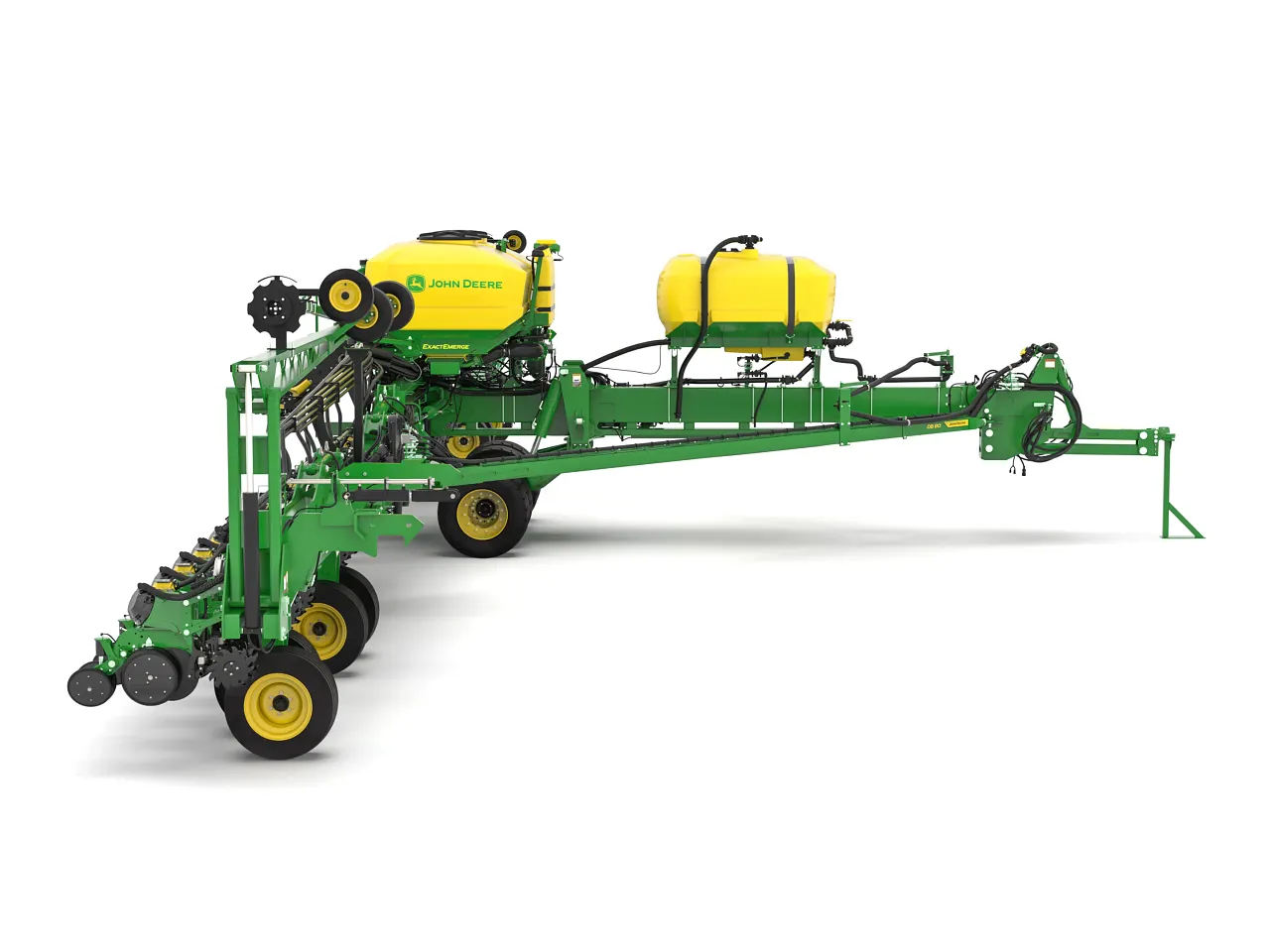

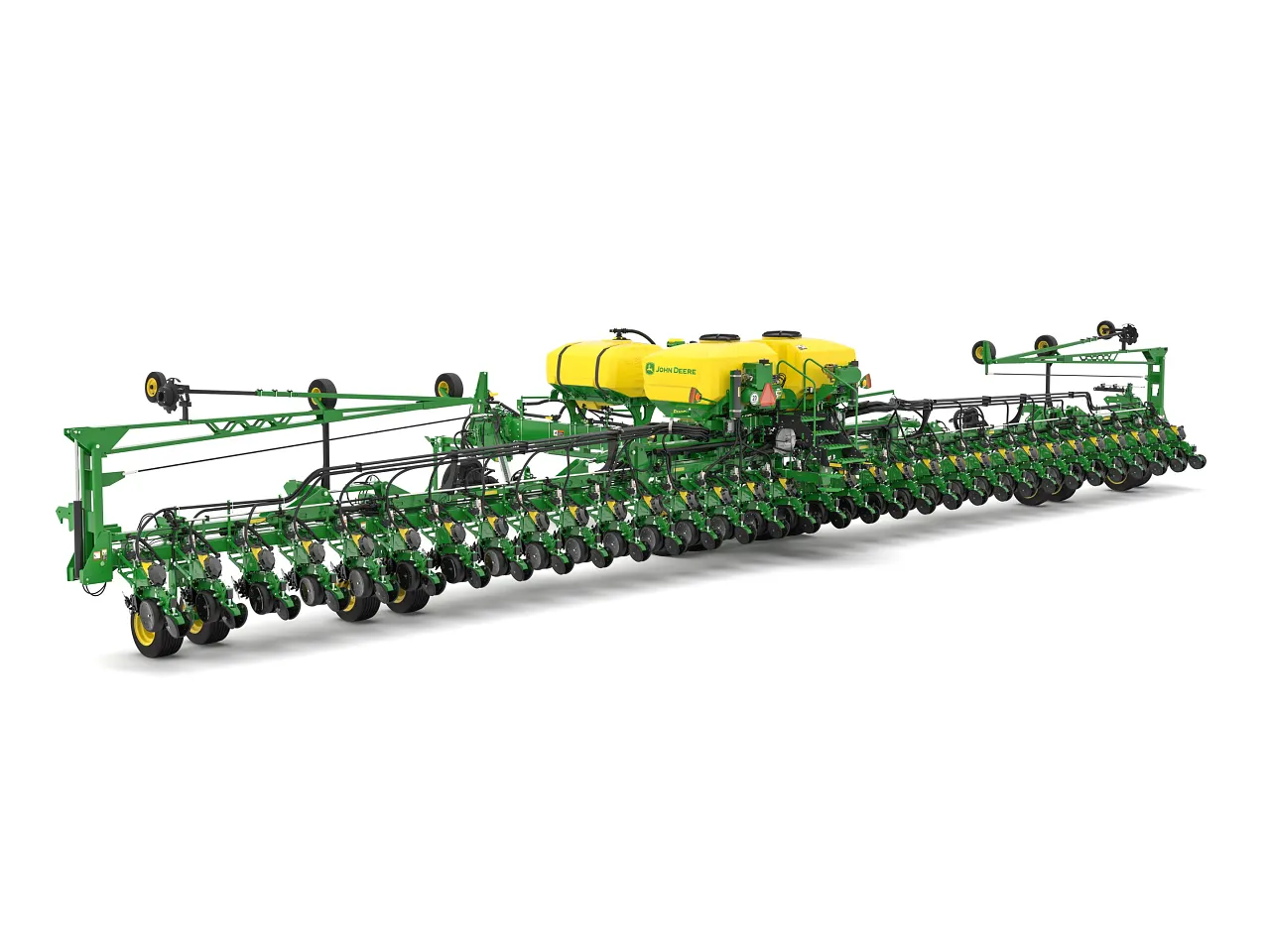

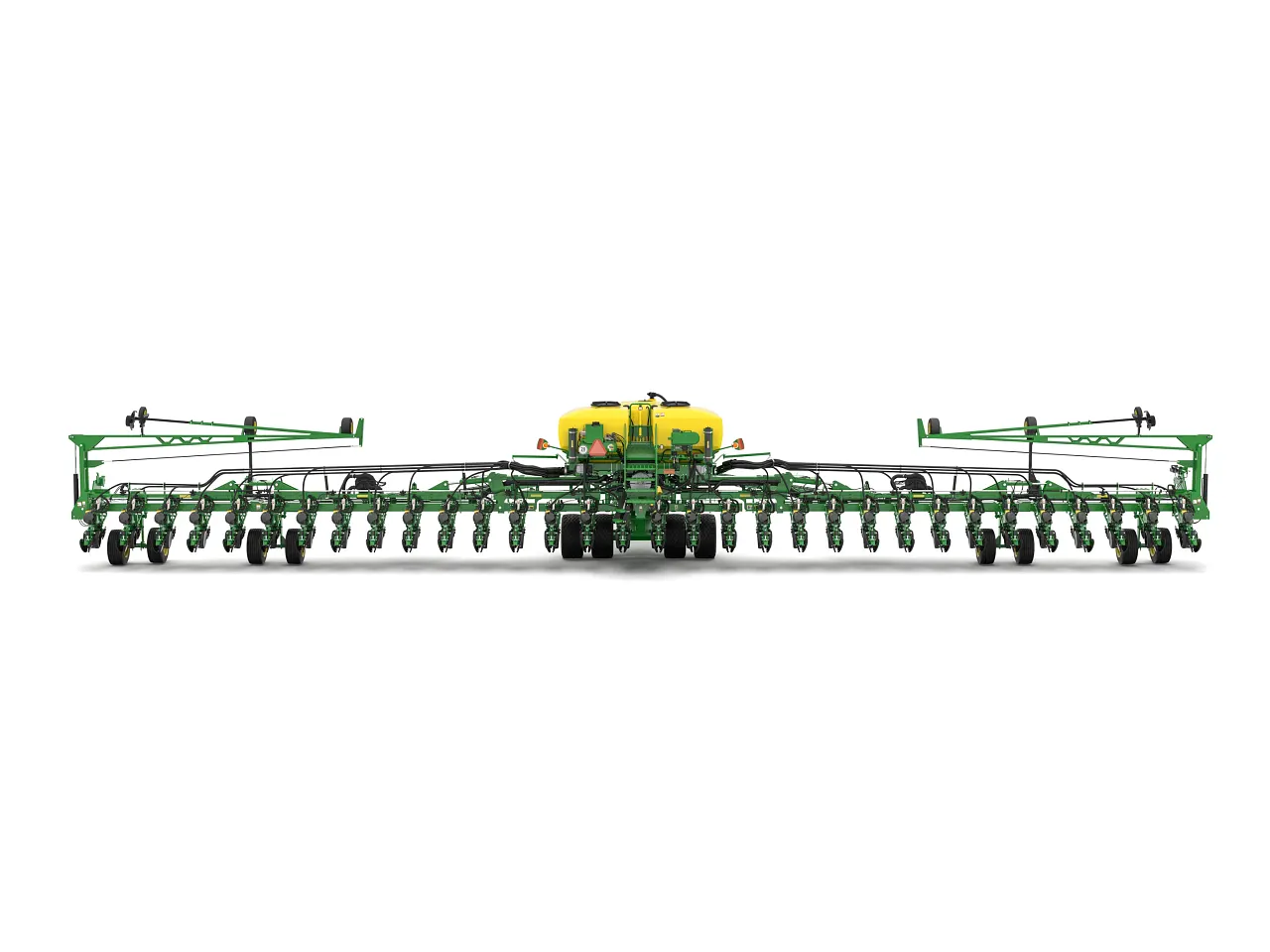

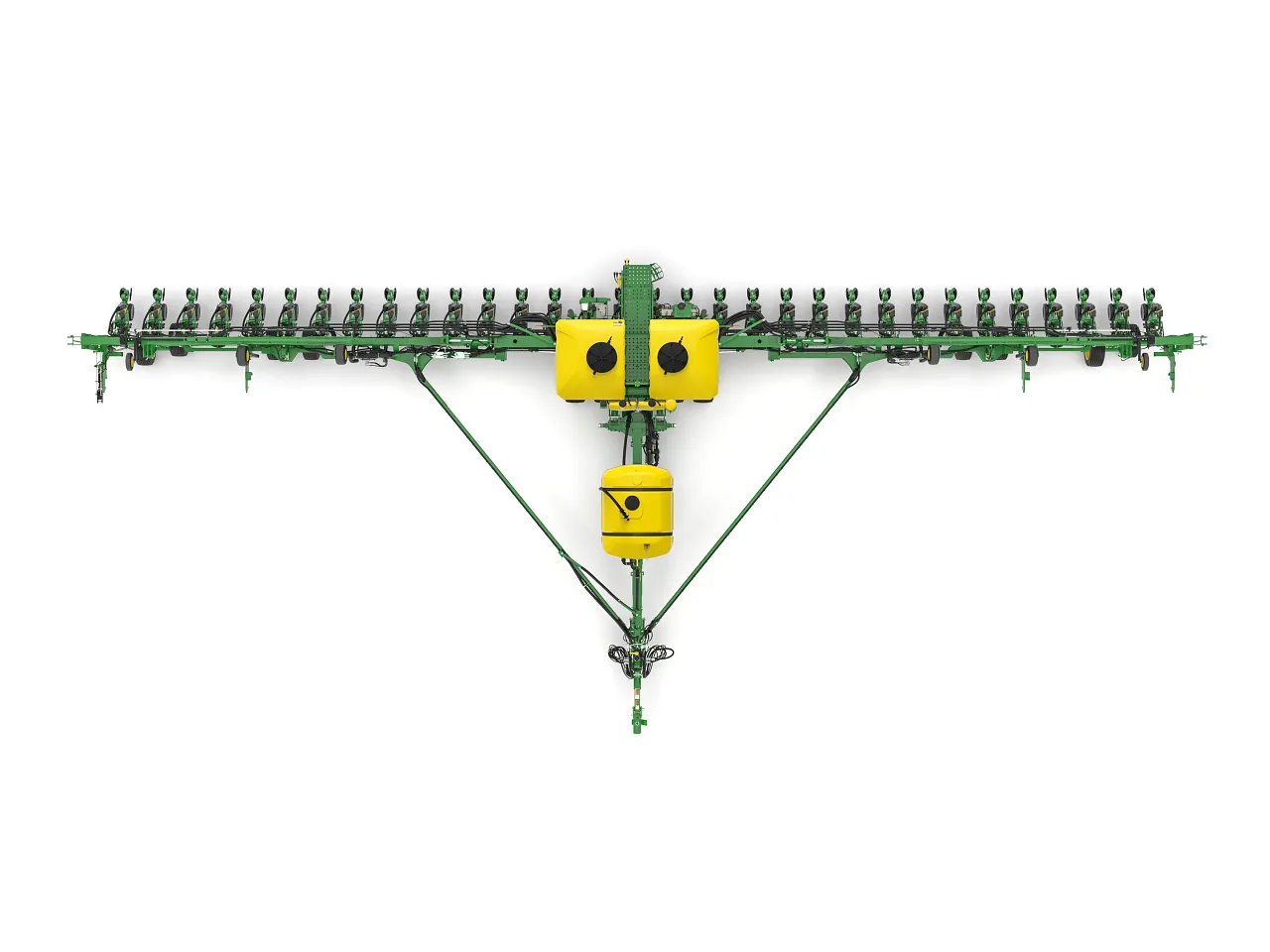

DB80 32Row30 Planter
DB Planters
Maximize planting efficiency with the DB80 32Row30 Planter. Features include precise nutrient placement and versatile seed options for better crop yields and productivity.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 95KNH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Number Of Rows
- 32
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Rows and Row Spacing3 specifications
- Number Of Rows
- 32
- Row Spacing (Imperial)
- 30 in.
- Row Spacing (Metric)
- 76 cm
Frame2 specifications
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
Row Units2 specifications
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Seed Meters2 specifications
- CCS Seed Capacity (Imperial)
- 130 bu
- CCS Seed Capacity (Metric)
- 4581 L
Fertilizer2 specifications
- Tank Capacity (Imperial)
- 600.0 gal.
- Tank Capacity (Metric)
- 2271.0 L
Dimensions8 specifications
- Transport Width (With Markers) (Imperial)
- 15 ft
- Transport Width (With Markers) (Metric)
- 4.6 m
- Transport Length (Imperial)
- 50 ft
- Transport Length (Metric)
- 15.3 m
- Transport Height (Imperial)
- 12 ft
- Transport Height (Metric)
- 3.7 m
- Transport Underframe Clearance (Imperial)
- 2.17 ft
- Transport Underframe Clearance (Metric)
- 0.66 m
