John Deere

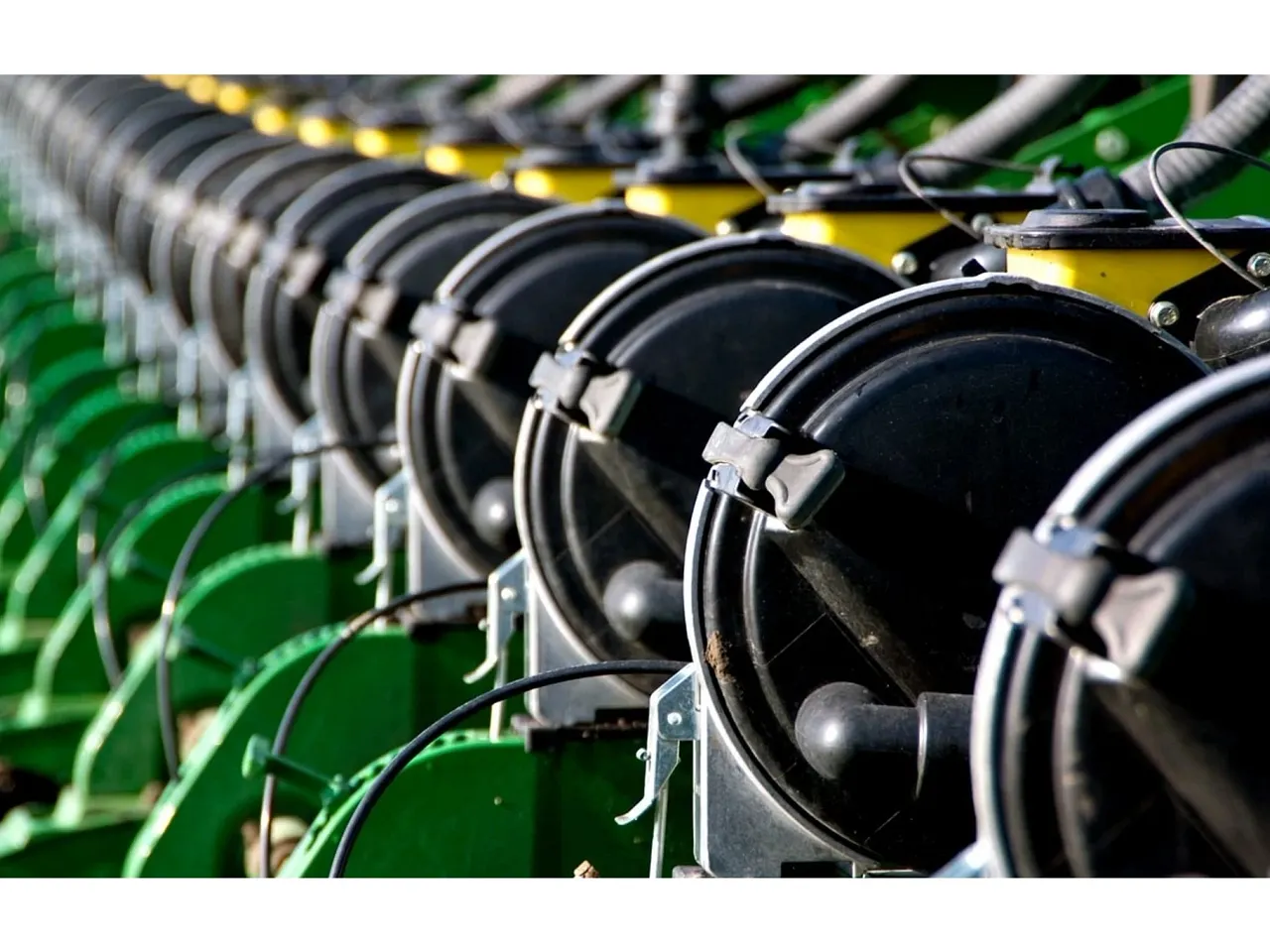

DB66 36Row22 Planter
DB Planters
Enhance your efficiency with the DB66 36Row22 Planter. Featuring high-capacity tanks and precision technology, it boosts crop yields while enduring tough field conditions.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 95HGH
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs5 specifications
- Number Of Rows
- 36
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Rows and Row Spacing3 specifications
- Number Of Rows
- 36
- Row Spacing (Imperial)
- 22 in.
- Row Spacing (Metric)
- 56 cm
Frame2 specifications
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
Row Units2 specifications
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Seed Meters2 specifications
- CCS Seed Capacity (Imperial)
- 130 bu
- CCS Seed Capacity (Metric)
- 4581 L
Fertilizer2 specifications
- Tank Capacity (Imperial)
- 600.0 gal.
- Tank Capacity (Metric)
- 2271.0 L
Dimensions8 specifications
- Transport Width (With Markers) (Imperial)
- 17.5 ft
- Transport Width (With Markers) (Metric)
- 5.4 m
- Transport Length (Imperial)
- 46 ft
- Transport Length (Metric)
- 14 m
- Transport Height (Imperial)
- 10 ft
- Transport Height (Metric)
- 3 m
- Transport Underframe Clearance (Imperial)
- 1.83 ft
- Transport Underframe Clearance (Metric)
- 0.559 m
