John Deere

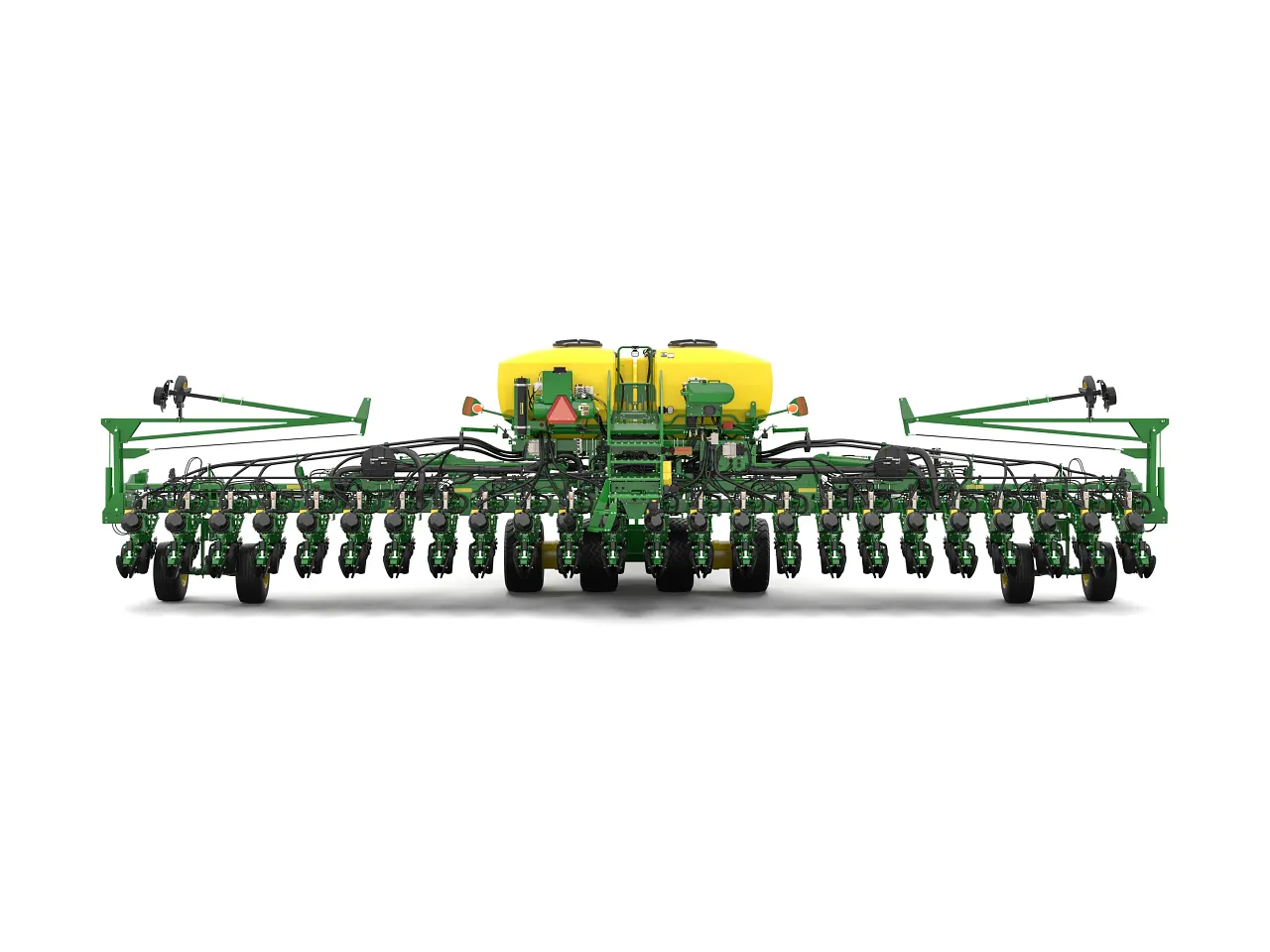

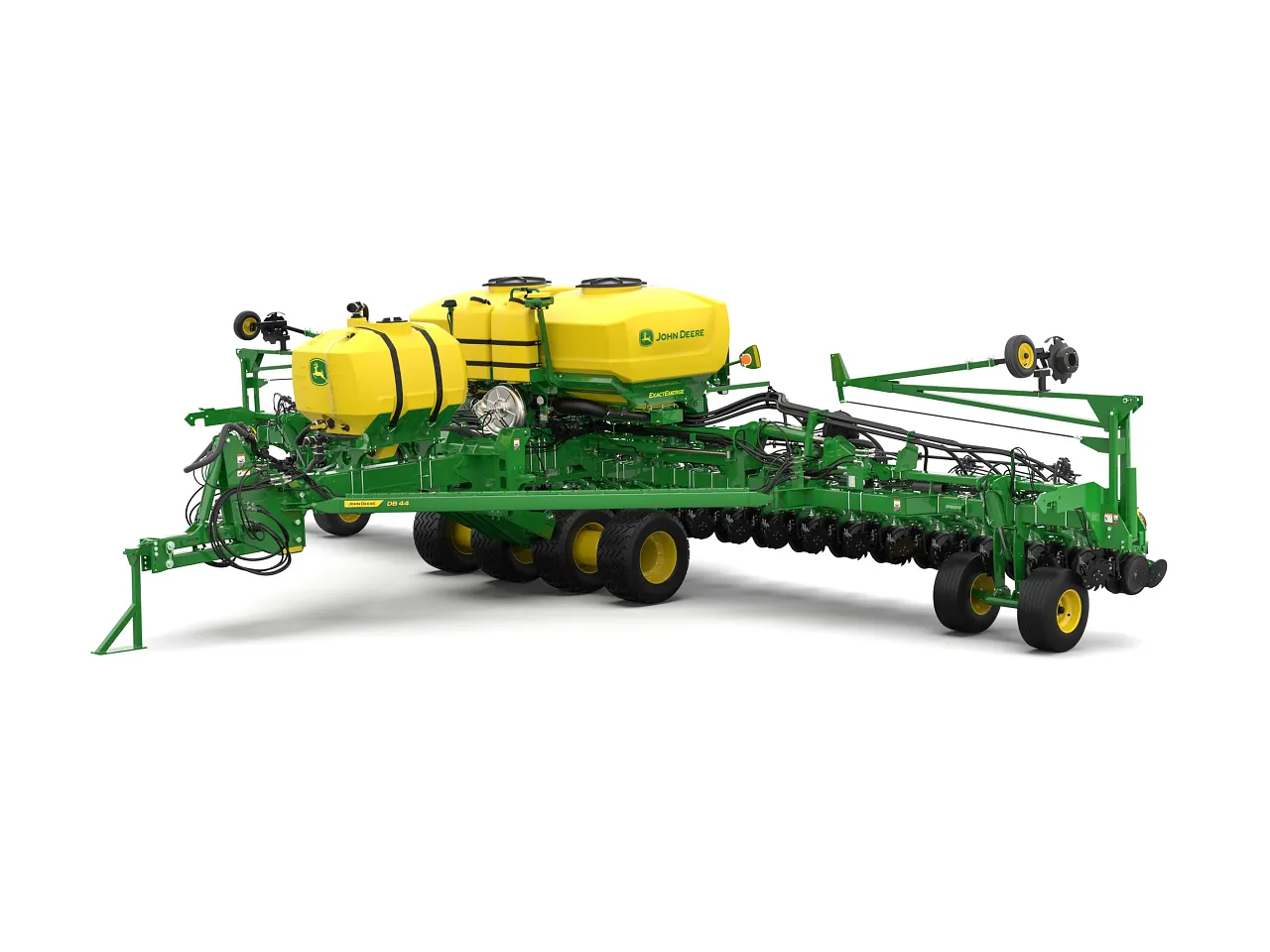

ModelDB44 24Row22 Planter
DB Planters
Optimize your planting operations with MaxEmerge 5e. Experience precise seed placement, electric drive consistency, and advanced downforce control for improved yields.
Model / part number: 95CGH
Key specifications
- Number Of Rows
- 24
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
Technical specifications
24 specifications
Key Specs5 details
- Number Of Rows
- 24
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Rows and Row Spacing3 details
- Number Of Rows
- 24
- Row Spacing (Imperial)
- 22 in.
- Row Spacing (Metric)
- 55.9 cm
Frame2 details
- Frame Flexibility Up
- 15.0 degree (angle)
- Frame Flexibility Down
- 15.0 degree (angle)
Row Units2 details
- Seed Hopper Capacity (Imperial)
- 0.062 bu
- Seed Hopper Capacity (Metric)
- 2.2 L
Seed Meters2 details
- CCS Seed Capacity (Imperial)
- 130 bu
- CCS Seed Capacity (Metric)
- 4581 L
Fertilizer2 details
- Tank Capacity (Imperial)
- 420.0 gal.
- Tank Capacity (Metric)
- 1590.0 L
Dimensions8 details
- Transport Width (With Markers) (Imperial)
- 14 ft
- Transport Width (With Markers) (Metric)
- 4.3 m
- Transport Length (Imperial)
- 37 ft
- Transport Length (Metric)
- 11.3 m
- Transport Height (Imperial)
- 10 ft
- Transport Height (Metric)
- 3 m
- Transport Underframe Clearance (Imperial)
- 1.83 ft
- Transport Underframe Clearance (Metric)
- 0.559 m
