John Deere

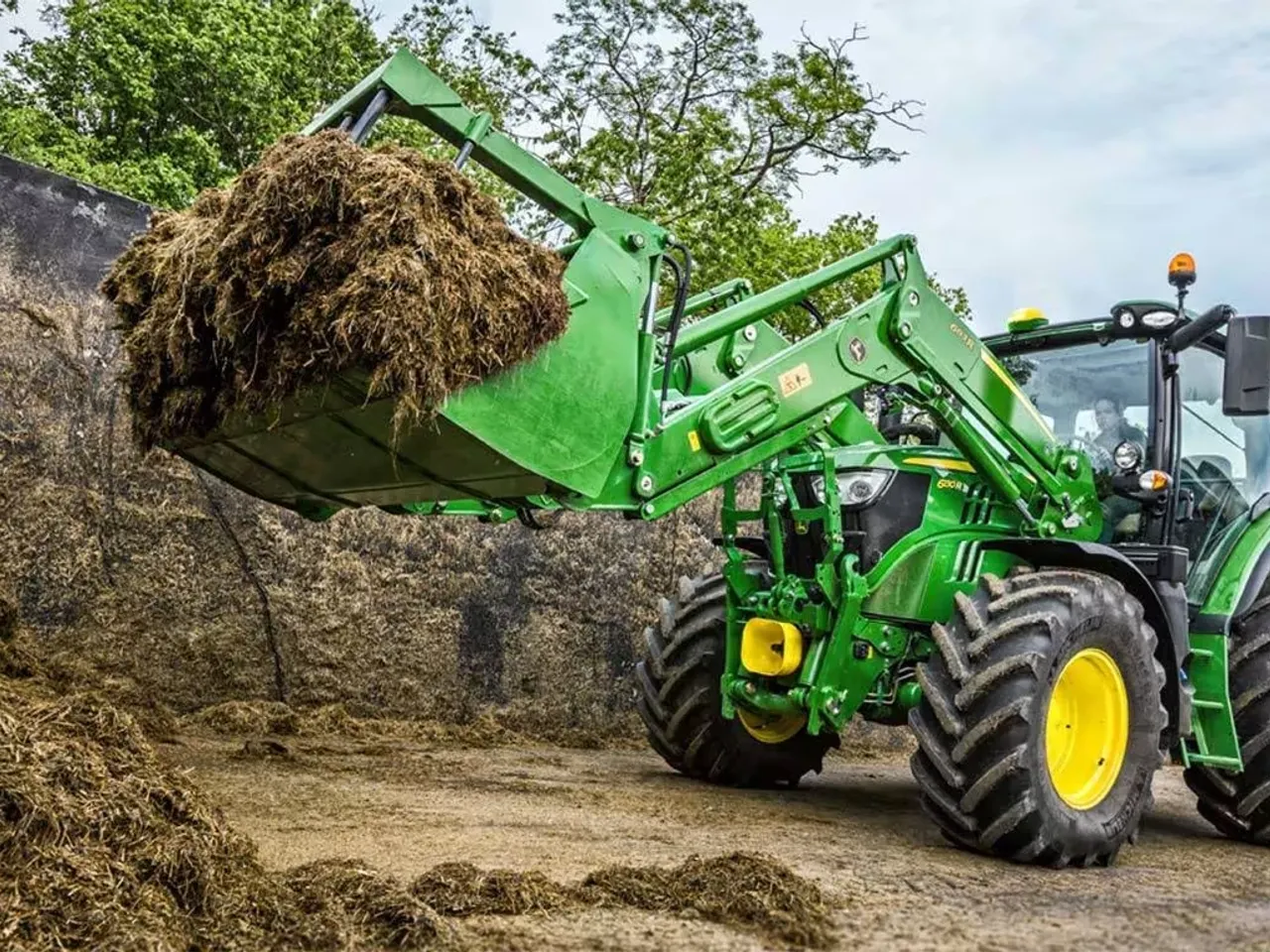

683R Frontloader
Front End Loaders
The 683R front loader fits your 6 Series tractor perfectly. It's compatible with John Deere front hitches, works with reliable precision and durability.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1732C
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2522.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5560.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 3435.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 7573.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4421.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 9747.0 lb.
- Maximum Lift Height (A) (Metric)
- 4520.0 mm
- Maximum Lift Height (A) (Imperial)
- 178.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 3480.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 137.0 in.
- Dump Angle (E)
- -56.0 degree (angle)
- Rollback Angle (G)
- 53.0 degree (angle)
Tractor7 specifications
- Model
- 6175/6195M/R, 6215R
- Front Tire
- 600/65R28
- Rear Tire
- 710/70R38
- Wheelbase
- 2900.0 mm
- Pump Capacity
- 114.0 L/min
- Rated Pressure (Metric)
- 200.0 bar
- Rated Pressure (Imperial)
- 2900.0 psi
Loader43 specifications
- Leveling Configuration
- 683R MSL
- Bucket Used
- Heavy Duty 2450 mm
- Bucket Weight (Metric)
- 355.0 kg
- Bucket Weight (Imperial)
- 783.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2522.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5560.0 lb.
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric)
- 2538.0 kg
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial)
- 5595.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric)
- 3041.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial)
- 6704.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric)
- 2870.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial)
- 6327.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 3435.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 7573.0 lb.
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric)
- 3016.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial)
- 6649.0 lb.
- At Maximum Height (VV) (Metric)
- 2972.0 kg
- At Maximum Height (VV) (Imperial)
- 6552.0 lb.
- At 59 in. (1500 mm) Lift Height (XX) (Metric)
- 4464.0 kg
- At 59 in. (1500 mm) Lift Height (XX) (Imperial)
- 9841.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4421.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 9747.0 lb.
- Maximum Lift Height (A) (Metric)
- 4520.0 mm
- Maximum Lift Height (A) (Imperial)
- 178.0 in.
- At Full Height Bucket Level (B) (Metric)
- 4250.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 167.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 3480.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 137.0 in.
- Overall Length (I+F) (Metric)
- 5791.0 mm
- Overall Length (I+F) (Imperial)
- 228.0 in.
- Digging Depth (H) (Metric)
- -85.0 mm
- Digging Depth (H) (Imperial)
- -3.0 in.
- Reach At Maximum Height (D) (Metric)
- 1215.0 mm
- Reach At Maximum Height (D) (Imperial)
- 48.0 in.
- Reach At Ground Level Bucket Level (Metric)
- 2891.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 114.0 in.
- Dump Angle (E)
- -56.0 degree (angle)
- Rollback Angle (G)
- 53.0 degree (angle)
- Dump Angle, Ground
- -117.0 degree (angle)
- Loader Raise
- 4.2 seconds
- Loader Lower
- 2.9 seconds
- Bucket Dump
- 1.8 seconds
- Bucket Rollback
- 1.8 seconds
