John Deere

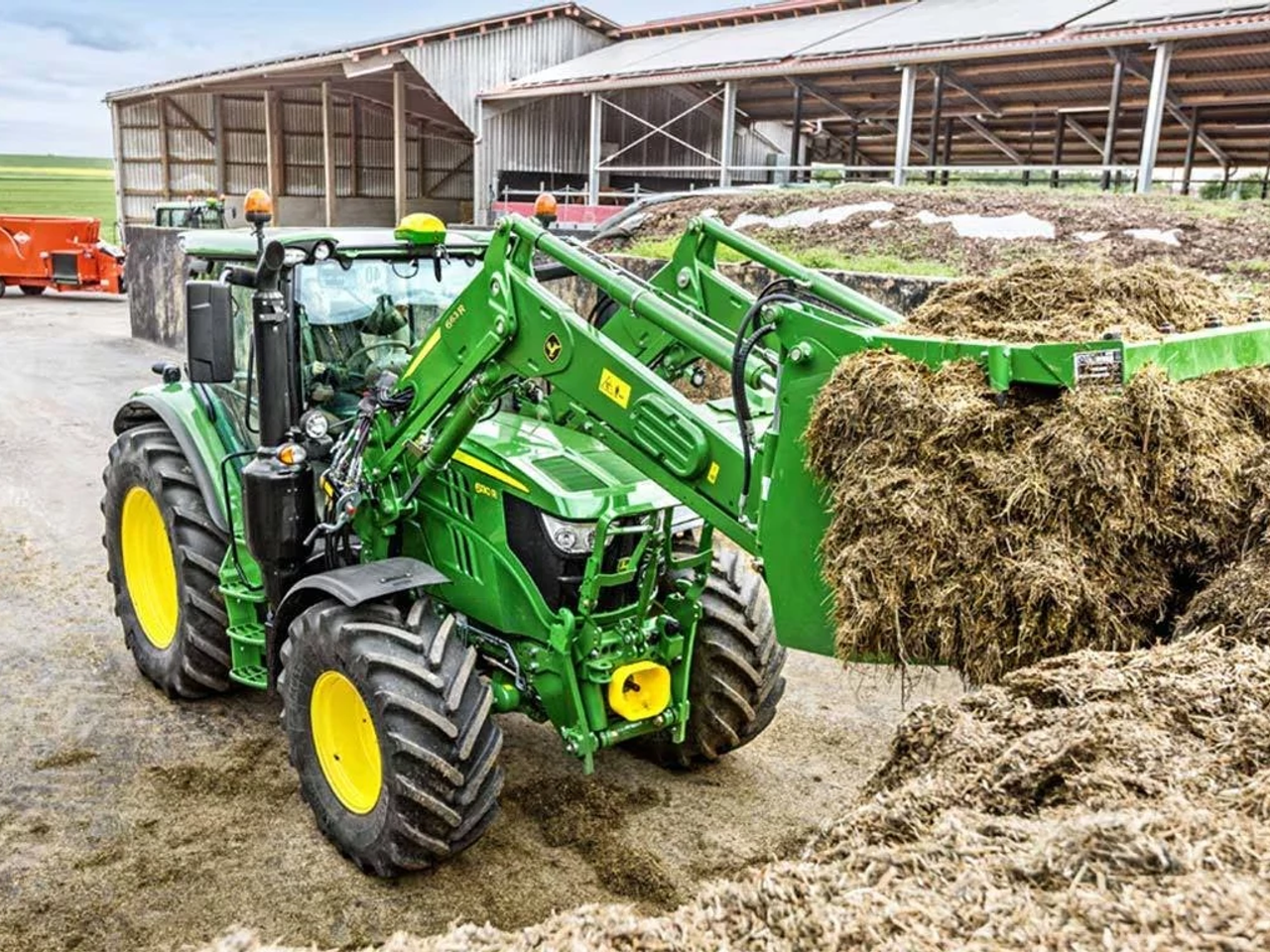

663R Frontloader
Front End Loaders
The 663R front loader fits your 6 Series tractor perfectly. It's compatible with John Deere front hitches, works with reliable precision and durability.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1722C
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2563.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5650.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2928.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 6455.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4550.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 10031.0 lb.
- Maximum Lift Height (A) (Metric)
- 4520.0 mm
- Maximum Lift Height (A) (Imperial)
- 178.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 3492.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 137.0 in.
- Dump Angle (E)
- -58.0 degree (angle)
- Rollback Angle (G)
- 48.0 degree (angle)
Tractor7 specifications
- Model
- 6135M/R
- Front Tire
- 540/65R28
- Rear Tire
- 650/65R38
- Wheelbase
- 2800.0 mm
- Pump Capacity
- 114.0 L/min
- Rated Pressure (Metric)
- 200.0 bar
- Rated Pressure (Imperial)
- 2900.0 psi
Loader43 specifications
- Leveling Configuration
- 663R MSL
- Bucket Used
- Heavy Duty 2450 mm
- Bucket Weight (Metric)
- 355.0 kg
- Bucket Weight (Imperial)
- 783.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2563.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5650.0 lb.
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric)
- 1857.0 kg
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial)
- 4094.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric)
- 2787.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial)
- 6144.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric)
- 2211.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial)
- 4874.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2928.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 6455.0 lb.
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric)
- 2217.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial)
- 4888.0 lb.
- At Maximum Height (VV) (Metric)
- 2744.0 kg
- At Maximum Height (VV) (Imperial)
- 6049.0 lb.
- At 59 in. (1500 mm) Lift Height (XX) (Metric)
- 4526.0 kg
- At 59 in. (1500 mm) Lift Height (XX) (Imperial)
- 9978.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4550.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 10031.0 lb.
- Maximum Lift Height (A) (Metric)
- 4520.0 mm
- Maximum Lift Height (A) (Imperial)
- 178.0 in.
- At Full Height Bucket Level (B) (Metric)
- 4249.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 167.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 3492.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 137.0 in.
- Overall Length (I+F) (Metric)
- 5668.0 mm
- Overall Length (I+F) (Imperial)
- 223.0 in.
- Digging Depth (H) (Metric)
- -85.0 mm
- Digging Depth (H) (Imperial)
- -3.0 in.
- Reach At Maximum Height (D) (Metric)
- 1004.0 mm
- Reach At Maximum Height (D) (Imperial)
- 40.0 in.
- Reach At Ground Level Bucket Level (Metric)
- 2868.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 113.0 in.
- Dump Angle (E)
- -58.0 degree (angle)
- Rollback Angle (G)
- 48.0 degree (angle)
- Dump Angle, Ground
- -143.0 degree (angle)
- Loader Raise
- 3.98 seconds
- Loader Lower
- 2.75 seconds
- Bucket Dump
- 2.65 seconds
- Bucket Rollback
- 1.81 seconds
