John Deere

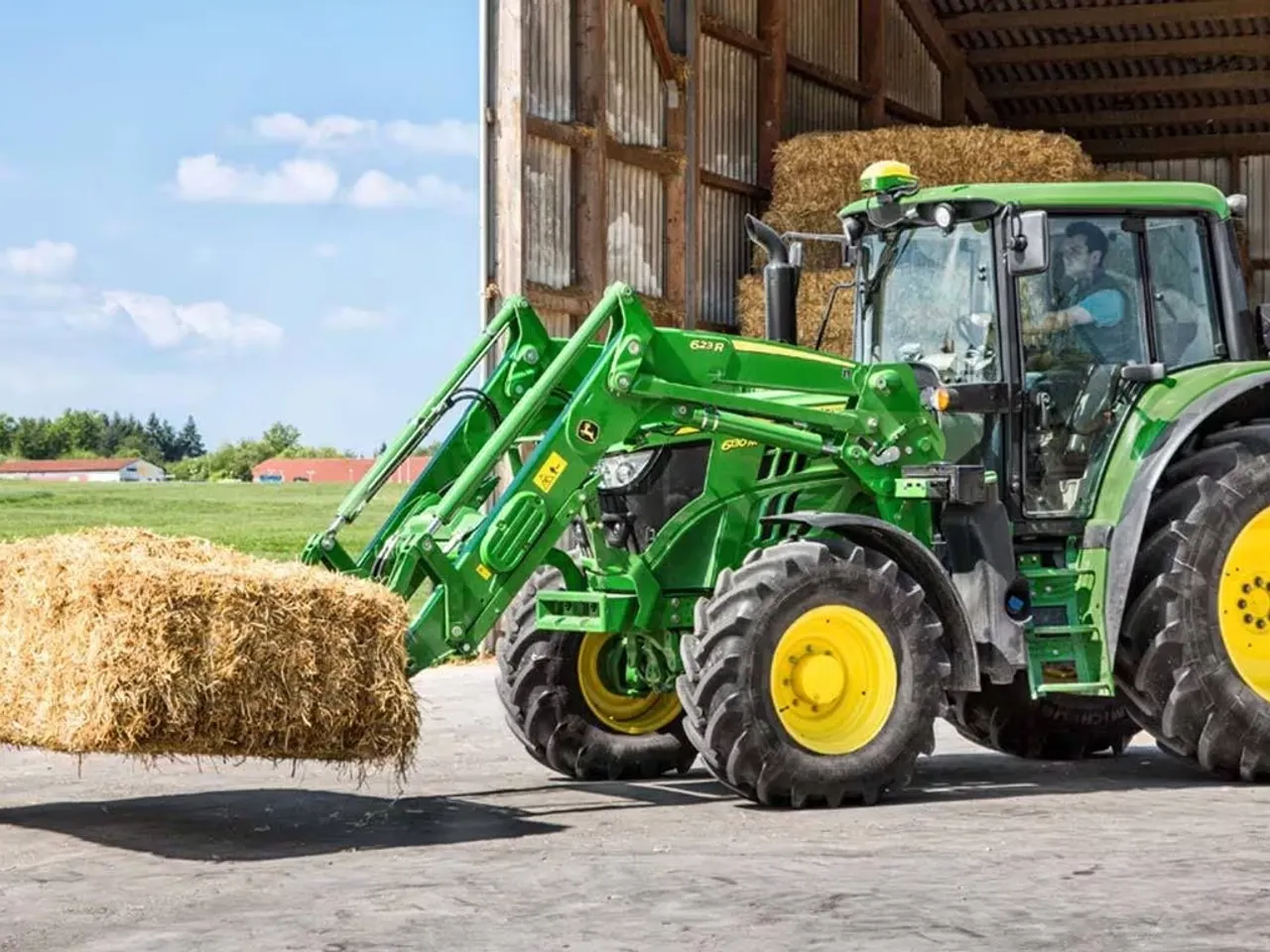

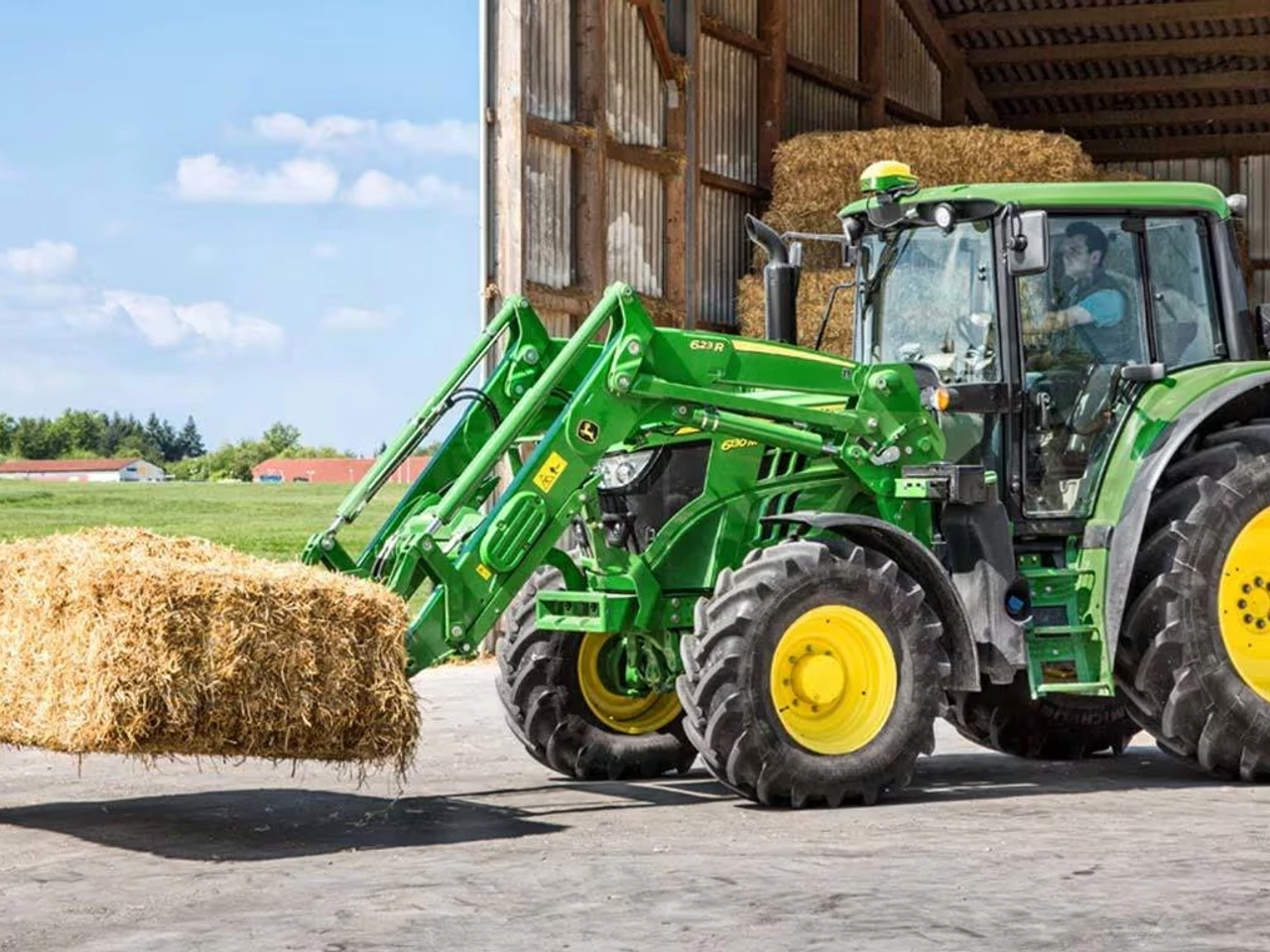

623R Frontloader
Front End Loaders

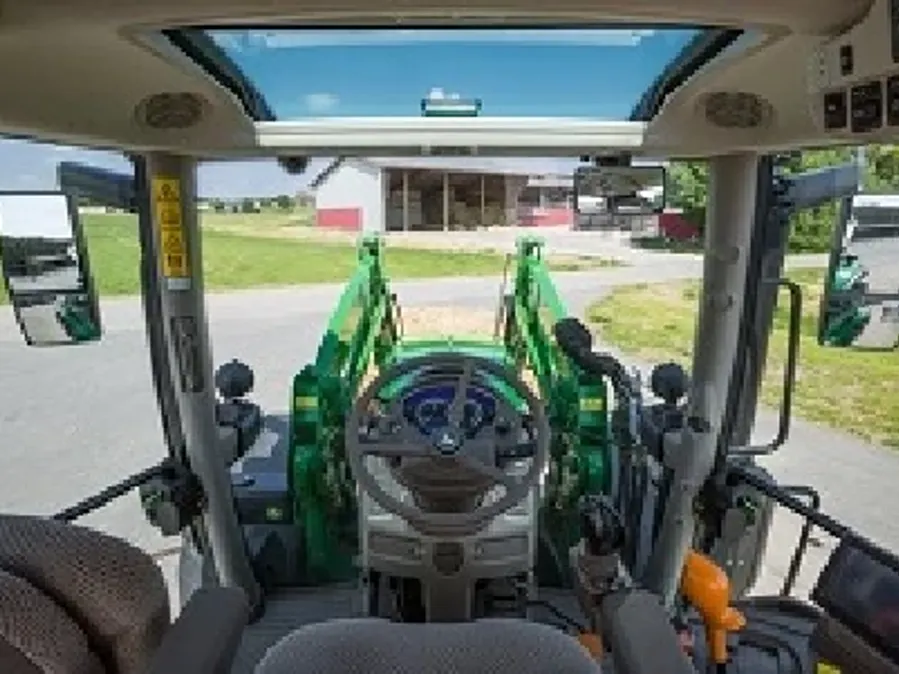

The 623R front loader fits your 6 Series tractor perfectly. It's compatible with John Deere front hitches, works with reliable precision and durability, and allows superb all-round visibility.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1702C
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2622.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5781.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2841.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 6263.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4358.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 9608.0 lb.
- Maximum Lift Height (A) (Metric)
- 4124.0 mm
- Maximum Lift Height (A) (Imperial)
- 162.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 3088.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 122.0 in.
- Dump Angle (E)
- -53.0 degree (angle)
- Rollback Angle (G)
- 48.0 degree (angle)
Tractor8 specifications
- Front Tire
- 480/70R24
- Rear Tire
- 520/70R38
- Wheelbase (Metric)
- 2580.0 mm
- Wheelbase (Imperial)
- 101.6 in.
- Pump Capacity (Metric)
- 114.0 L/min
- Pump Capacity (Imperial)
- 30.1 gpm
- Rated Pressure (Metric)
- 200.0 bar
- Rated Pressure (Imperial)
- 2900.0 psi
Loader42 specifications
- Bucket Used
- Standard Bucket 1850 mm
- Bucket Weight (Metric)
- 236.0 kg
- Bucket Weight (Imperial)
- 520.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2622.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5781.0 lb.
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric)
- 1757.0 kg
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial)
- 3874.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric)
- 2729.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial)
- 6016.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric)
- 2101.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial)
- 4632.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2841.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 6263.0 lb.
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric)
- 2065.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial)
- 4553.0 lb.
- At Maximum Height (VV) (Metric)
- 2258.0 kg
- At Maximum Height (VV) (Imperial)
- 4978.0 lb.
- At 59 in. (1500 mm) Lift Height (XX) (Metric)
- 9367.0 kg
- At 59 in. (1500 mm) Lift Height (XX) (Imperial)
- 4249.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4358.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 9608.0 lb.
- Maximum Lift Height (A) (Metric)
- 4124.0 mm
- Maximum Lift Height (A) (Imperial)
- 162.0 in.
- At Full Height Bucket Level (B) (Metric)
- 3854.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 152.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 3088.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 122.0 in.
- Overall Length (I+F) (Metric)
- 5128.0 mm
- Overall Length (I+F) (Imperial)
- 202.0 in.
- Digging Depth (H) (Metric)
- 91.0 mm
- Digging Depth (H) (Imperial)
- 4.0 in.
- Reach At Maximum Height (D) (Metric)
- 759.0 mm
- Reach At Maximum Height (D) (Imperial)
- 30.0 in.
- Reach At Ground Level Bucket Level (Metric)
- 2548.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 100.0 in.
- Dump Angle (E)
- -53.0 degree (angle)
- Rollback Angle (G)
- 48.0 degree (angle)
- Dump Angle, Ground
- -151.0 degree (angle)
- Loader Raise
- 3.4 seconds
- Loader Lower
- 2.6 seconds
- Bucket Dump
- 2.7 seconds
- Bucket Rollback
- 1.8 seconds
