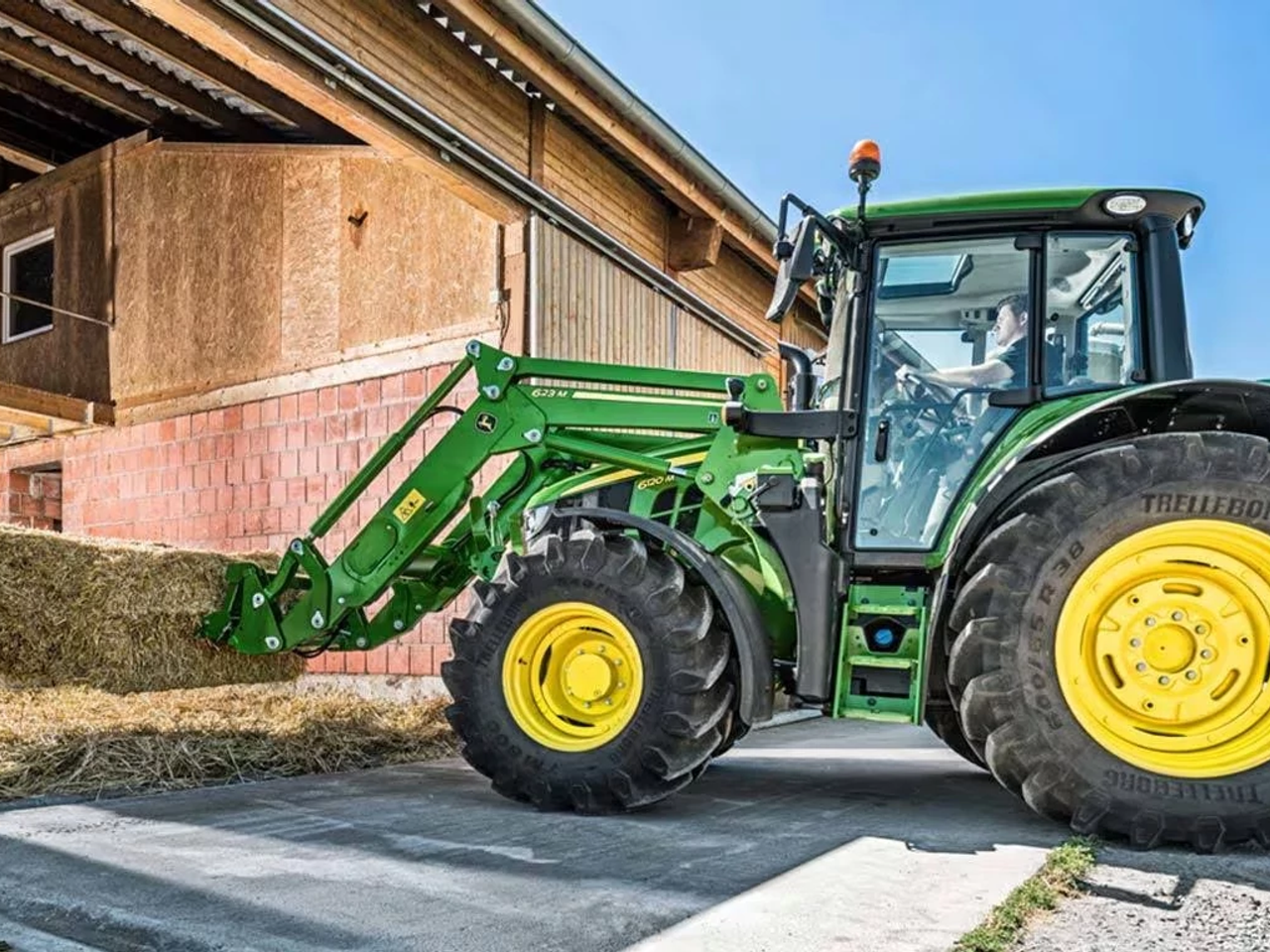

623M Frontloader

Name: 623M Frontloader
Brand: John Deere
SKU: 1762C

Front End Loaders

Light and strong, the M loader is the affordable loader for all standard Agriculture applications.

Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.

The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.

Model / part number: 1762C

Technical specification source: Official manufacturer technical data

Enquire about this model View manufacturer listing

Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04

Specifications

Key Specs12 specifications

Lift Capacity At Full Height Measured At Pivot (U) (Metric): 1673.0 kg
Lift Capacity At Full Height Measured At Pivot (U) (Imperial): 3688.0 lb.
Boom Breakout Force Measured At Pivot (Y) (Metric): 2040.0 kg
Boom Breakout Force Measured At Pivot (Y) (Imperial): 4497.0 lb.
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric): 2966.0 kg
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial): 6539.0 lb.
Maximum Lift Height (A) (Metric): 4121.0 mm
Maximum Lift Height (A) (Imperial): 162.0 in.
Clearance At Full Height Bucket Dumped (Metric): 3089.0 mm
Clearance At Full Height Bucket Dumped (Imperial): 122.0 in.
Dump Angle (E): -60.0 degree (angle)
Rollback Angle (G): 48.0 degree (angle)

Tractor6 specifications

Wheelbase (Metric): 2400.0 mm
Wheelbase (Imperial): 94.5 in.
Pump Capacity (Metric): 114.0 L/min
Pump Capacity (Imperial): 30.0 gpm
Rated Pressure (Metric): 200.0 bar
Rated Pressure (Imperial): 2900.0 psi

Loader41 specifications

Bucket Weight (Metric): 244.0 kg
Bucket Weight (Imperial): 538.0 lb.
Lift Capacity At Full Height Measured At Pivot (U) (Metric): 1673.0 kg
Lift Capacity At Full Height Measured At Pivot (U) (Imperial): 3688.0 lb.
Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric): 1770.0 kg
Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial): 3902.0 lb.
Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric): 1845.0 kg
Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial): 4068.0 lb.
Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric): 1756.0 kg
Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial): 3871.0 lb.
Boom Breakout Force Measured At Pivot (Y) (Metric): 2040.0 kg
Boom Breakout Force Measured At Pivot (Y) (Imperial): 4497.0 lb.
Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric): 1766.0 kg
Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial): 3893.0 lb.
At Maximum Height (VV) (Metric): 1742.0 kg
At Maximum Height (VV) (Imperial): 3840.0 lb.
At 59 in. (1500 mm) Lift Height (XX) (Metric): 3037.0 kg
At 59 in. (1500 mm) Lift Height (XX) (Imperial): 6695.0 lb.
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric): 2966.0 kg
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial): 6539.0 lb.
Maximum Lift Height (A) (Metric): 4121.0 mm
Maximum Lift Height (A) (Imperial): 162.0 in.
At Full Height Bucket Level (B) (Metric): 3858.0 mm
At Full Height Bucket Level (B) (Imperial): 152.0 in.
Clearance At Full Height Bucket Dumped (Metric): 3089.0 mm
Clearance At Full Height Bucket Dumped (Imperial): 122.0 in.
Overall Length (I+F) (Metric): 4961.0 mm
Overall Length (I+F) (Imperial): 195.0 in.
Digging Depth (H) (Metric): 73.0 mm
Digging Depth (H) (Imperial): 2.9 in.
Reach At Maximum Height (D) (Metric): 751.0 mm
Reach At Maximum Height (D) (Imperial): 30.0 in.
Reach At Ground Level Bucket Level (Metric): 2561.0 mm
Reach At Ground Level Bucket Level (Imperial): 101.0 in.
Dump Angle (E): -60.0 degree (angle)
Rollback Angle (G): 48.0 degree (angle)
Dump Angle, Ground: -109.0 degree (angle)
Loader Raise: 6.6 seconds
Loader Lower: 4.4 seconds
Bucket Dump: 4.4 seconds
Bucket Rollback: 5.9 seconds
