John Deere
603R Frontloader
Front End Loaders

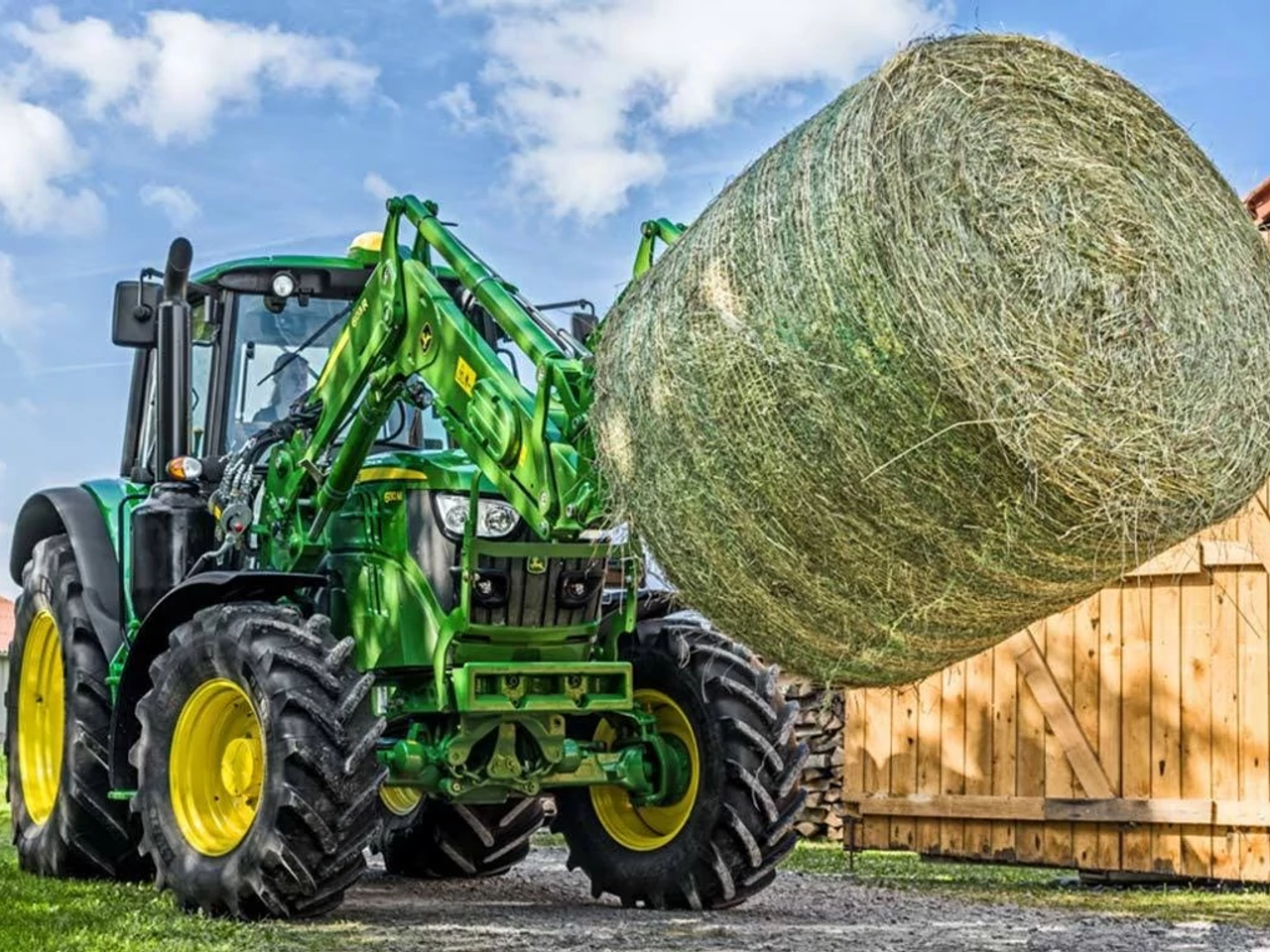

The 603R front loader fits your 6 Series tractor perfectly with precision, durability and superb visibility for heavy work.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1692C
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2308.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5088.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2809.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 6193.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4360.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 9612.0 lb.
- Maximum Lift Height (A) (Metric)
- 3900.0 mm
- Maximum Lift Height (A) (Imperial)
- 154.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2880.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 113.0 in.
- Dump Angle (E)
- -56.0 degree (angle)
- Rollback Angle (G)
- 48.0 degree (angle)
Tractor7 specifications
- Model
- 5070M-5080M-5090M-5100M (Mannheim Stage IIIa)
- Front Tire
- 575/13.6R24
- Rear Tire
- 750/16.9R34
- Wheelbase
- 2580.0 mm
- Pump Capacity
- 114.0 L/min
- Rated Pressure (Metric)
- 200.0 bar
- Rated Pressure (Imperial)
- 2900.0 psi
Loader43 specifications
- Leveling Configuration
- 603R HSL
- Bucket Used
- Heavy Duty Bucket 1850 mm
- Bucket Weight (Metric)
- 236.0 kg
- Bucket Weight (Imperial)
- 520.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 2308.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 5088.0 lb.
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric)
- 1590.0 kg
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial)
- 3505.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric)
- 2593.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial)
- 5717.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric)
- 1985.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial)
- 4376.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2809.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 6193.0 lb.
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric)
- 2025.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial)
- 4464.0 lb.
- At Maximum Height (VV) (Metric)
- 2363.0 kg
- At Maximum Height (VV) (Imperial)
- 5210.0 lb.
- At 59 in. (1500 mm) Lift Height (XX) (Metric)
- 4200.0 kg
- At 59 in. (1500 mm) Lift Height (XX) (Imperial)
- 9259.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 4360.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 9612.0 lb.
- Maximum Lift Height (A) (Metric)
- 3900.0 mm
- Maximum Lift Height (A) (Imperial)
- 154.0 in.
- At Full Height Bucket Level (B) (Metric)
- 3630.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 143.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2880.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 113.0 in.
- Overall Length (I+F) (Metric)
- 5069.0 mm
- Overall Length (I+F) (Imperial)
- 200.0 in.
- Digging Depth (H) (Metric)
- -120.0 mm
- Digging Depth (H) (Imperial)
- -5.0 in.
- Reach At Maximum Height (D) (Metric)
- 891.0 mm
- Reach At Maximum Height (D) (Imperial)
- 35.0 in.
- Reach At Ground Level Bucket Level (Metric)
- 2489.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 98.0 in.
- Dump Angle (E)
- -56.0 degree (angle)
- Rollback Angle (G)
- 48.0 degree (angle)
- Dump Angle, Ground
- -143.0 degree (angle)
- Loader Raise
- 3.11 seconds
- Loader Lower
- 2.34 seconds
- Bucket Dump
- 2.65 seconds
- Bucket Rollback
- 1.81 seconds
