John Deere

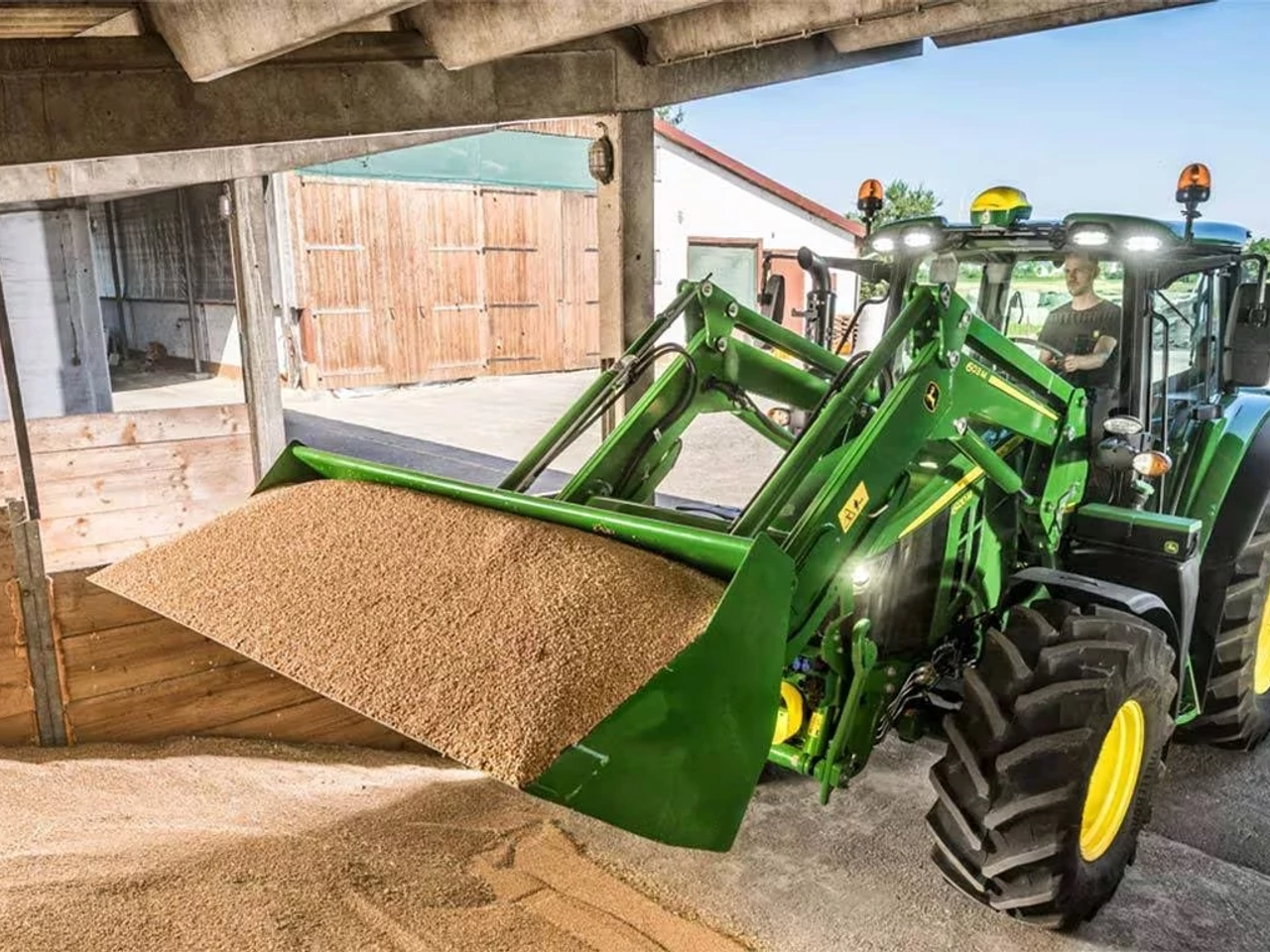

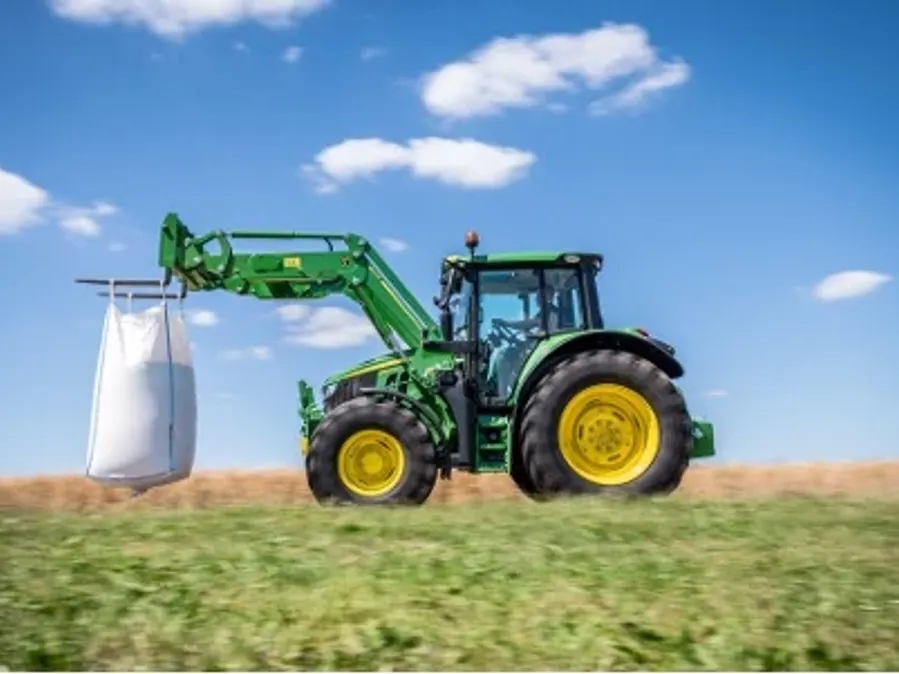

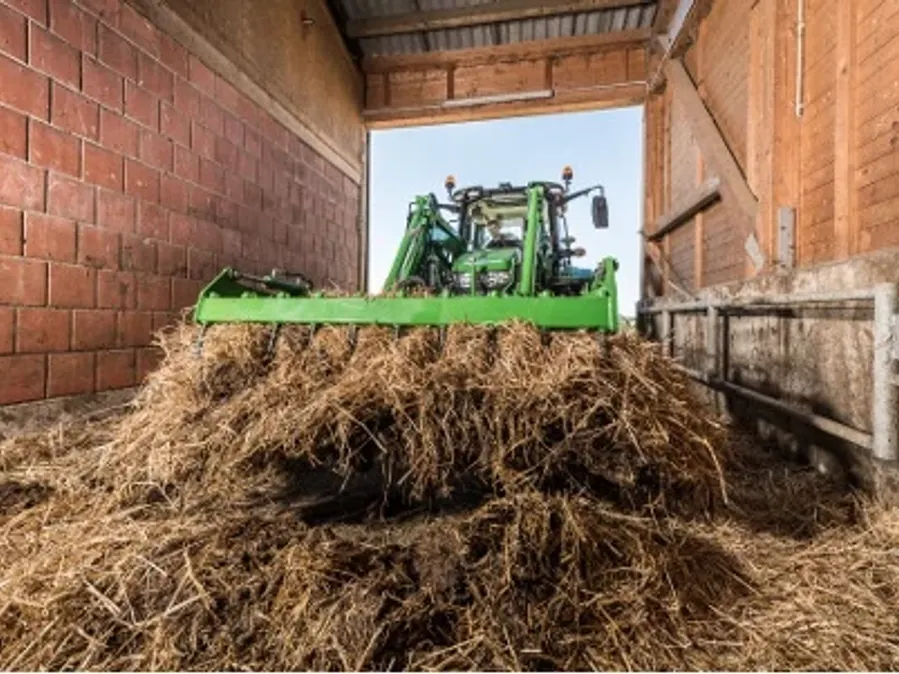

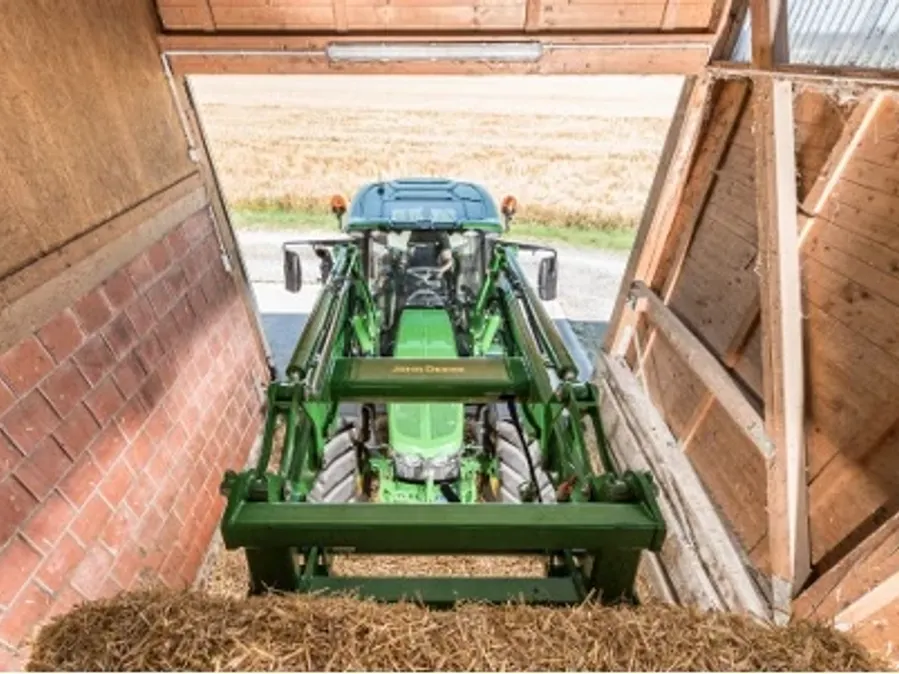

603M Frontloader
Front End Loaders
Light and strong, the M loader is the affordable loader for all standard Agriculture applications.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 1752C
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 1563.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 3446.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2013.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 4438.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 3012.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 6640.0 lb.
- Maximum Lift Height (A) (Metric)
- 3937.0 mm
- Maximum Lift Height (A) (Imperial)
- 155.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2907.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 114.0 in.
- Dump Angle (E)
- -59.0 degree (angle)
- Rollback Angle (G)
- 49.0 degree (angle)
Tractor6 specifications
- Wheelbase (Metric)
- 2400.0 mm
- Wheelbase (Imperial)
- 94.5 in.
- Pump Capacity (Metric)
- 114.0 L/min
- Pump Capacity (Imperial)
- 30.0 gpm
- Rated Pressure (Metric)
- 200.0 bar
- Rated Pressure (Imperial)
- 2900.0 psi
Loader39 specifications
- Bucket Weight (Metric)
- 216.0 kg
- Bucket Weight (Imperial)
- 476.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 1563.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 3446.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric)
- 1782.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial)
- 3929.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric)
- 1689.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial)
- 3724.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2013.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 4438.0 lb.
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric)
- 1727.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial)
- 3807.0 lb.
- At Maximum Height (VV) (Metric)
- 1776.0 kg
- At Maximum Height (VV) (Imperial)
- 3915.0 lb.
- At 59 in. (1500 mm) Lift Height (XX) (Metric)
- 3024.0 kg
- At 59 in. (1500 mm) Lift Height (XX) (Imperial)
- 6667.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 3012.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 6640.0 lb.
- Maximum Lift Height (A) (Metric)
- 3937.0 mm
- Maximum Lift Height (A) (Imperial)
- 155.0 in.
- At Full Height Bucket Level (B) (Metric)
- 3674.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 145.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2907.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 114.0 in.
- Overall Length (I+F) (Metric)
- 4910.0 mm
- Overall Length (I+F) (Imperial)
- 193.0 in.
- Digging Depth (H) (Metric)
- 50.0 mm
- Digging Depth (H) (Imperial)
- 2.0 in.
- Reach At Maximum Height (D) (Metric)
- 813.0 mm
- Reach At Maximum Height (D) (Imperial)
- 32.0 in.
- Reach At Ground Level Bucket Level (Metric)
- 2510.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 99.0 in.
- Dump Angle (E)
- -59.0 degree (angle)
- Rollback Angle (G)
- 49.0 degree (angle)
- Dump Angle, Ground
- -97.0 degree (angle)
- Loader Raise
- 4.0 seconds
- Loader Lower
- 2.6 seconds
- Bucket Dump
- 3.4 seconds
- Bucket Rollback
- 4.2 seconds
