John Deere

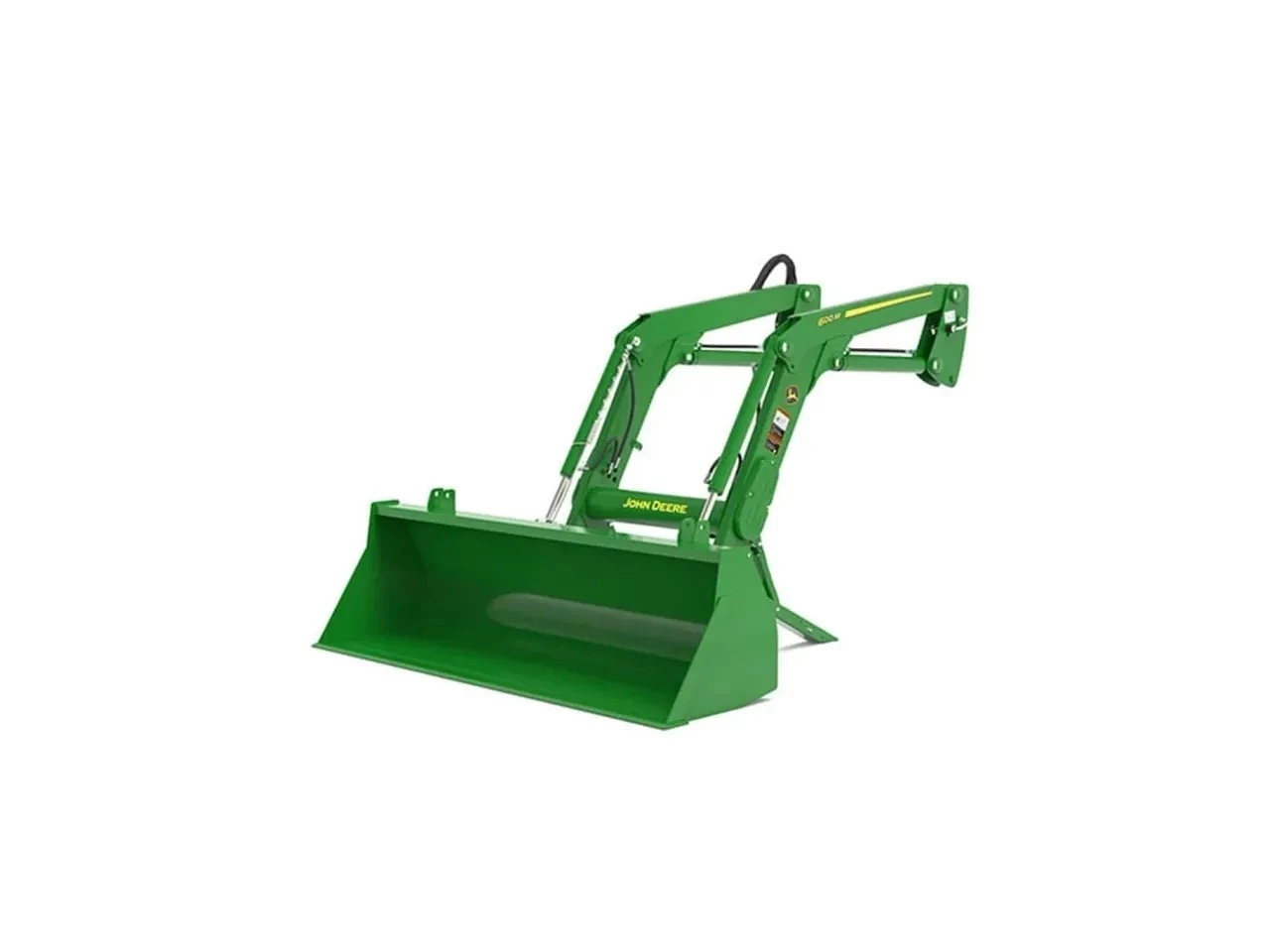

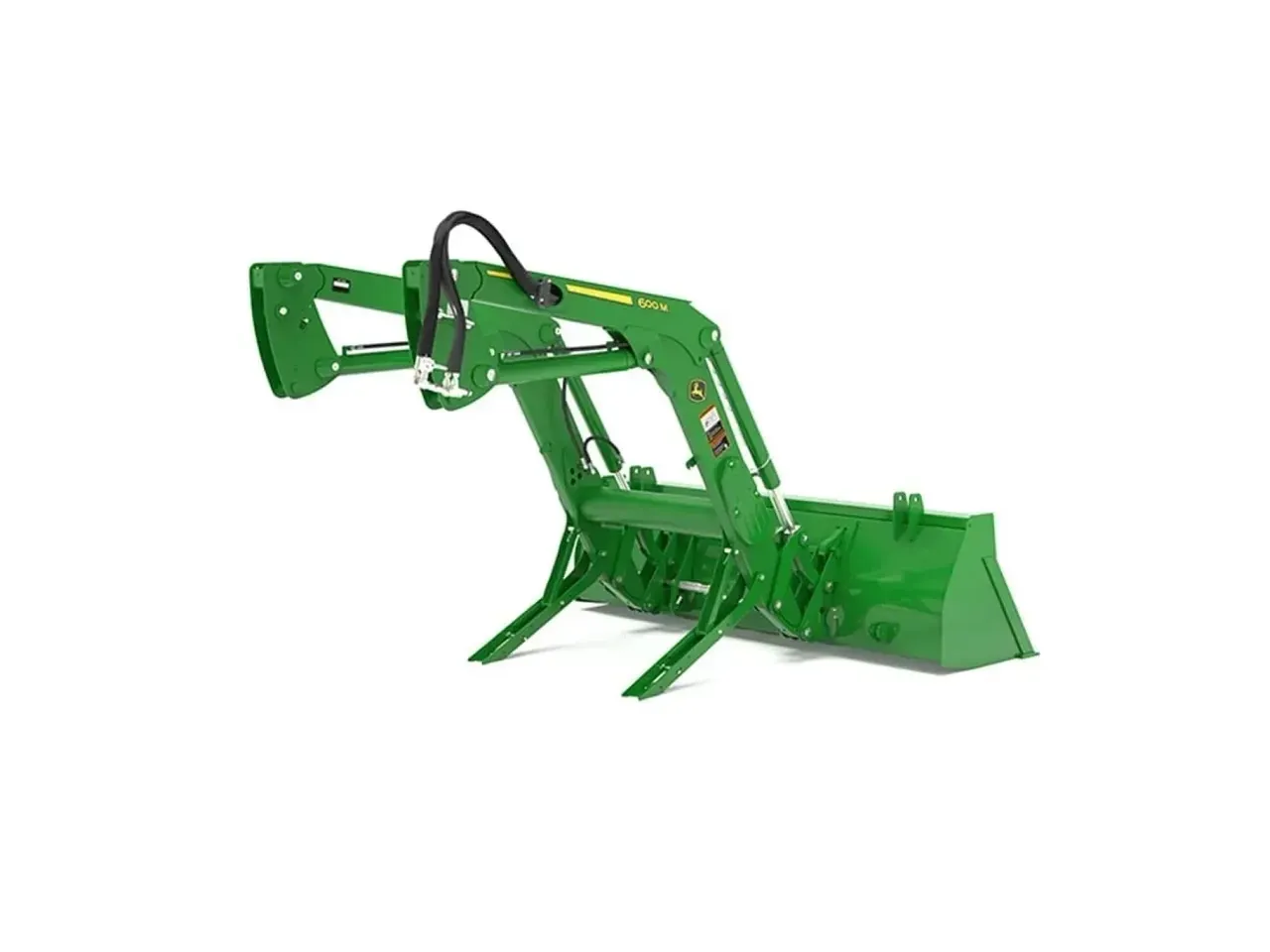

600M Loader
Front End Loaders
The 600M Loader offers versatile utility and farm applications with compatibility for materials buckets, heavy-duty buckets, and grapples.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 04G0P
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs12 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 1646.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 3629.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2583.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 5695.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 2986.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 6583.0 lb.
- Maximum Lift Height (A) (Metric)
- 3830.0 mm
- Maximum Lift Height (A) (Imperial)
- 150.8 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2801.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 110.3 in.
- Dump Angle (E)
- -79.0 degree (angle)
- Rollback Angle (G)
- 43.0 degree (angle)
Tractor10 specifications
- Model
- 6105D, 6115D, 6130D, 6140D
- Front Tire
- 14.9R24
- Rear Tire
- 18.4R38
- Front Axle Configuration
- MFWD
- Wheelbase (Metric)
- 2380.0 mm
- Wheelbase (Imperial)
- 93.7 in.
- Pump Capacity (Metric)
- 76.0 L/min
- Pump Capacity (Imperial)
- 20.1 gpm
- Rated Pressure (Metric)
- 195.0 bar
- Rated Pressure (Imperial)
- 2828.0 psi
Loader43 specifications
- Base Weight (Metric)
- 1113.2 kg
- Base Weight (Imperial)
- 2454.2 lb.
- Bucket Weight (Metric)
- 281.0 kg
- Bucket Weight (Imperial)
- 620.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 1646.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 3629.0 lb.
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric)
- 1790.0 kg
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial)
- 3946.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric)
- 2112.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial)
- 4656.0 lb.
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric)
- 2021.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial)
- 4456.0 lb.
- Boom Breakout Force Measured At Pivot (Y) (Metric)
- 2583.0 kg
- Boom Breakout Force Measured At Pivot (Y) (Imperial)
- 5695.0 lb.
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric)
- 2259.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial)
- 4980.0 lb.
- At Maximum Height (VV) (Metric)
- 1471.0 kg
- At Maximum Height (VV) (Imperial)
- 3243.0 lb.
- At 59 in. (1500 mm) Lift Height (XX) (Metric)
- 2916.0 kg
- At 59 in. (1500 mm) Lift Height (XX) (Imperial)
- 6429.0 lb.
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric)
- 2986.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial)
- 6583.0 lb.
- Maximum Lift Height (A) (Metric)
- 3830.0 mm
- Maximum Lift Height (A) (Imperial)
- 150.8 in.
- At Full Height Bucket Level (B) (Metric)
- 3636.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 143.1 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2801.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 110.3 in.
- Overall Length (I+F) (Metric)
- 4900.0 mm
- Overall Length (I+F) (Imperial)
- 193.0 in.
- Digging Depth (H) (Metric)
- 56.0 mm
- Digging Depth (H) (Imperial)
- 2.2 in.
- Reach At Maximum Height (D) (Metric)
- 923.0 mm
- Reach At Maximum Height (D) (Imperial)
- 36.3 in.
- Reach At Ground Level Bucket Level (Metric)
- 2519.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 99.2 in.
- Dump Angle (E)
- -79.0 degree (angle)
- Rollback Angle (G)
- 43.0 degree (angle)
- Dump Angle, Ground
- -95.0 degree (angle)
- Loader Raise
- 3.9 seconds
- Loader Lower
- 2.9 seconds
- Bucket Dump
- 2.1 seconds
- Bucket Rollback
- 2.1 seconds
