John Deere
540M Loader
Front End Loaders

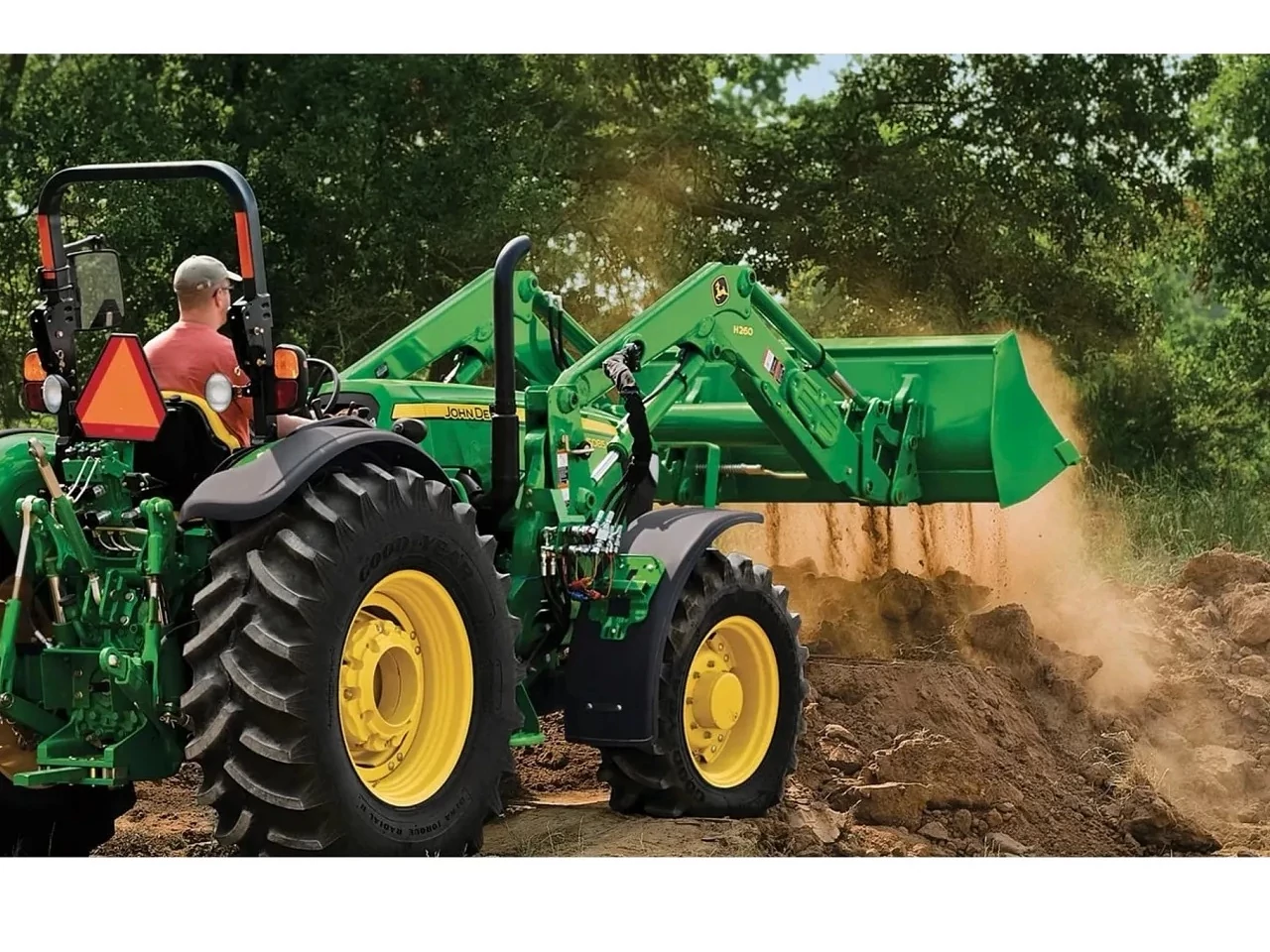

Discover the strength and versatility of the John Deere 540M Loader with durable boom design, advanced hydraulic system, and Mechanical Self-Leveling capability.
Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.
The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.
Model / part number: 14C0P
Technical specification source: Official manufacturer technical data
Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04
Specifications
Key Specs10 specifications
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 1373.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 3027.0 lb.
- Boom Breakout Force Measured At Pivot (Y)
- 2671.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ)
- 3046.0 kg
- Maximum Lift Height (A) (Metric)
- 3578.0 mm
- Maximum Lift Height (A) (Imperial)
- 141.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2538.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 100.0 in.
- Dump Angle (E)
- -74.0 degree (angle)
- Rollback Angle (G)
- 42.0 degree (angle)
Tractor10 specifications
- Model
- 6135E
- Front Tire
- 14.9R24
- Rear Tire
- 18.4R38
- Front Axle Configuration
- MFWD
- Wheelbase (Metric)
- 2380.0 mm
- Wheelbase (Imperial)
- 94.0 in.
- Pump Capacity (Metric)
- 75.7 L/min
- Pump Capacity (Imperial)
- 20.0 gpm
- Rated Pressure (Metric)
- 195.0 bar
- Rated Pressure (Imperial)
- 2828.0 psi
Loader35 specifications
- Base Weight
- 1028.2 kg
- Bucket Used
- 1850 mm / 73 in.
- Bucket Weight (Metric)
- 246.0 kg
- Bucket Weight (Imperial)
- 542.0 lb.
- Lift Capacity At Full Height Measured At Pivot (U) (Metric)
- 1373.0 kg
- Lift Capacity At Full Height Measured At Pivot (U) (Imperial)
- 3027.0 lb.
- Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot
- 1481.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At Pivot
- 2015.0 kg
- Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X)
- 1931.0 kg
- Boom Breakout Force Measured At Pivot (Y)
- 2671.0 kg
- Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z)
- 2325.0 kg
- At Maximum Height (VV)
- 1636.0 kg
- At 59 in. (1500 mm) Lift Height (XX)
- 2986.0 kg
- Bucket Rollback Force Capacity At Ground Level Line (ZZ)
- 3046.0 kg
- Maximum Lift Height (A) (Metric)
- 3578.0 mm
- Maximum Lift Height (A) (Imperial)
- 141.0 in.
- At Full Height Bucket Level (B) (Metric)
- 3383.0 mm
- At Full Height Bucket Level (B) (Imperial)
- 133.0 in.
- Clearance At Full Height Bucket Dumped (Metric)
- 2538.0 mm
- Clearance At Full Height Bucket Dumped (Imperial)
- 100.0 in.
- Overall Length (I+F) (Metric)
- 4800.0 mm
- Overall Length (I+F) (Imperial)
- 190.0 in.
- Digging Depth (H) (Metric)
- 47.0 mm
- Digging Depth (H) (Imperial)
- 1.9 in.
- Reach At Maximum Height (D) (Metric)
- 1011.0 mm
- Reach At Maximum Height (D) (Imperial)
- 39.8 in.
- Reach At Ground Level Bucket Level (Metric)
- 2426.0 mm
- Reach At Ground Level Bucket Level (Imperial)
- 95.5 in.
- Dump Angle (E)
- -74.0 degree (angle)
- Rollback Angle (G)
- 42.0 degree (angle)
- Dump Angle, Ground
- -96.0 degree (angle)
- Loader Raise
- 3.4 seconds
- Loader Lower
- 2.5 seconds
- Bucket Dump
- 2.1 seconds
- Bucket Rollback
- 2.1 seconds
