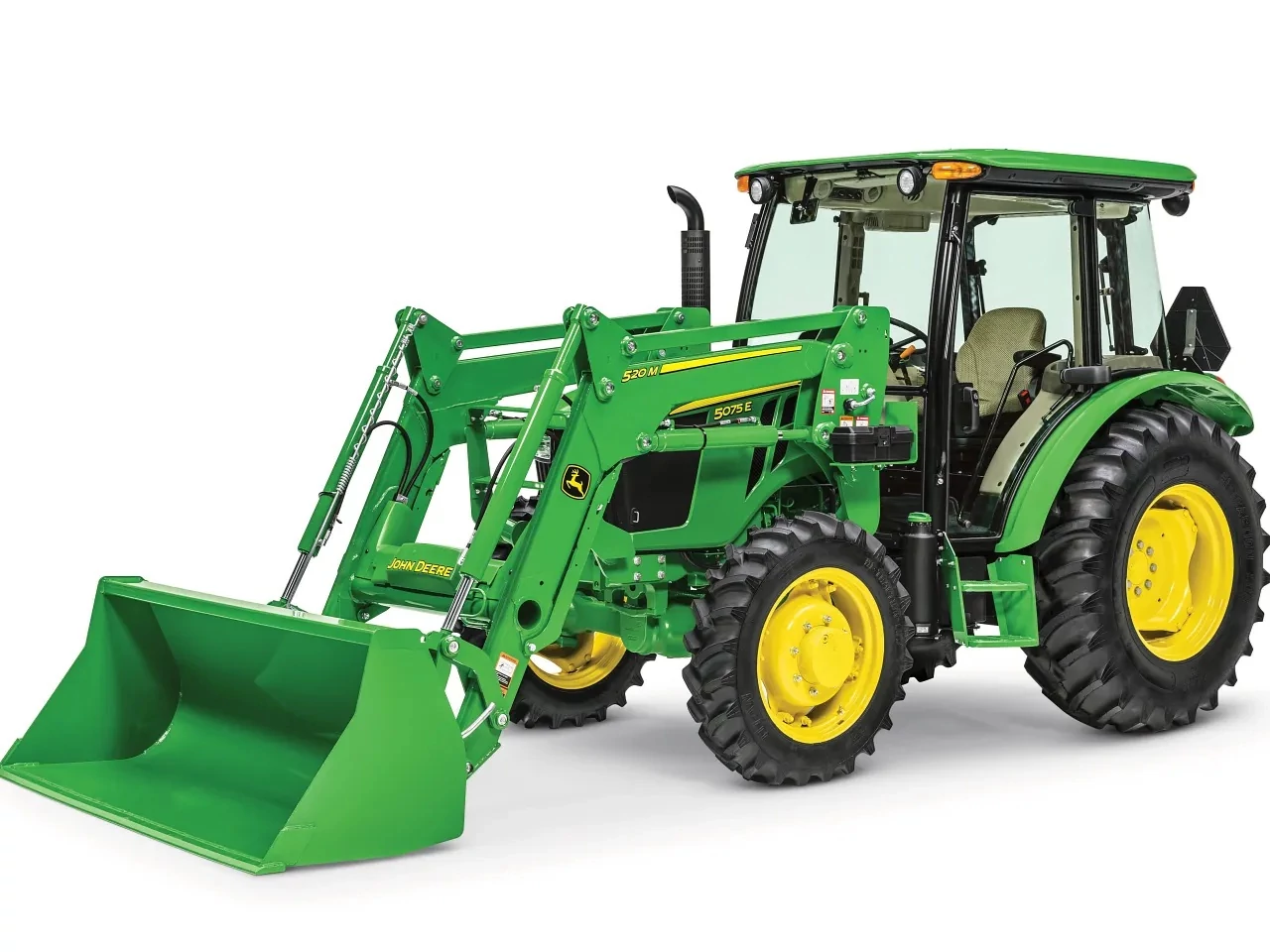

520M Loader

Name: 520M Loader
Brand: John Deere
SKU: 14B1P

Front End Loaders

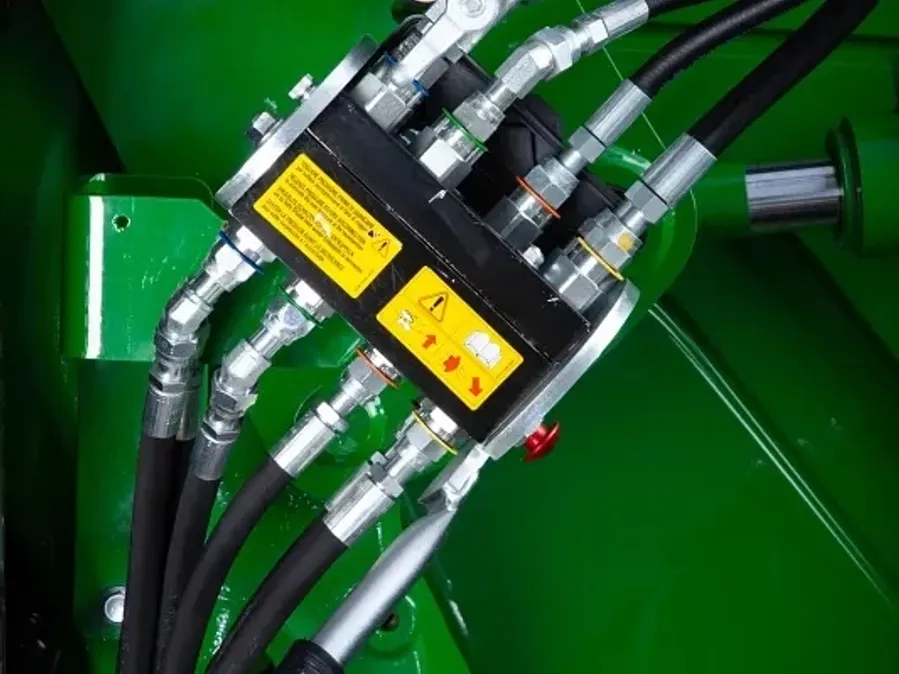

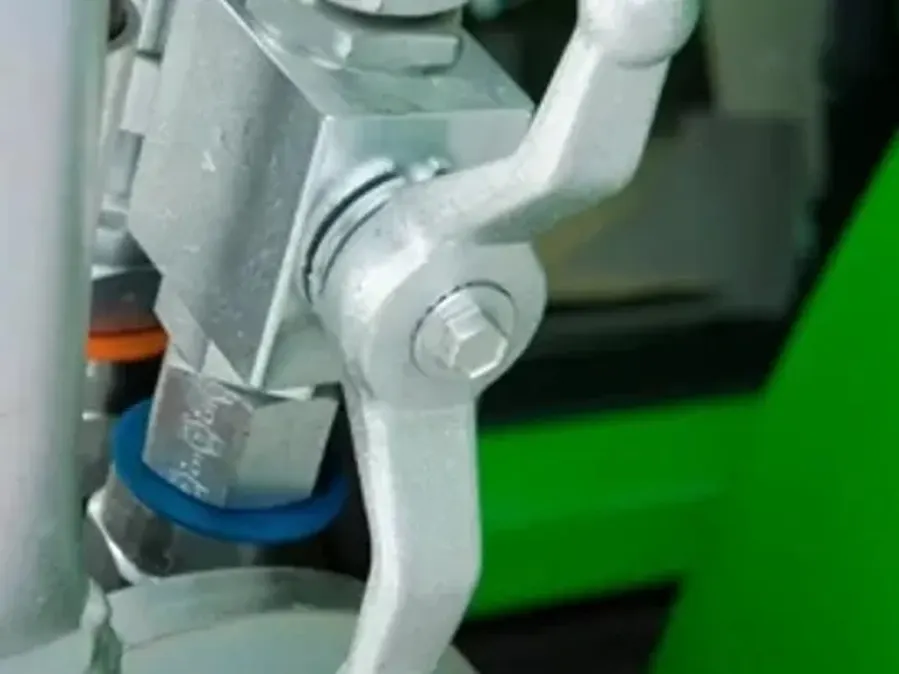

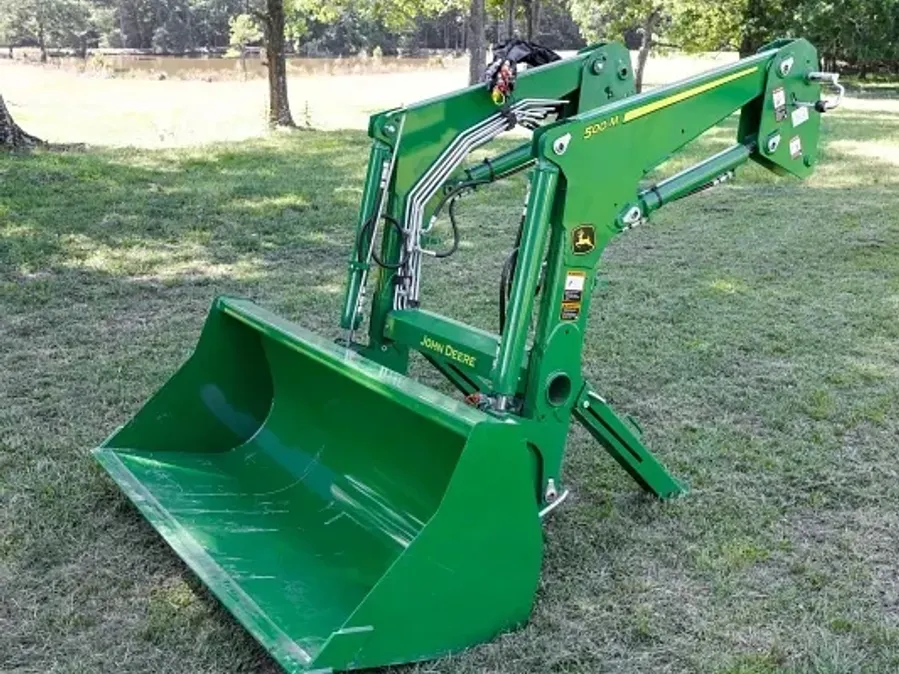

John Deere 520M Loader: Efficient single-point hydraulic connection, tool-free removal, durable boom with mechanical self-leveling, and advanced suspension for smooth operation.

Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.

The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.

Model / part number: 14B1P

Technical specification source: Official manufacturer technical data

Enquire about this model View manufacturer listing

Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04

Specifications

Key Specs12 specifications

Lift Capacity At Full Height Measured At Pivot (U) (Metric): 1182.0 kg
Lift Capacity At Full Height Measured At Pivot (U) (Imperial): 2606.0 lb.
Boom Breakout Force Measured At Pivot (Y) (Metric): 2174.0 kg
Boom Breakout Force Measured At Pivot (Y) (Imperial): 4793.0 lb.
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric): 3058.0 kg
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial): 6742.0 lb.
Maximum Lift Height (A) (Metric): 3343.0 mm
Maximum Lift Height (A) (Imperial): 132.0 in.
Clearance At Full Height Bucket Dumped (Metric): 2516.0 mm
Clearance At Full Height Bucket Dumped (Imperial): 99.0 in.
Dump Angle (E): -54.0 degree (angle)
Rollback Angle (G): 43.0 degree (angle)

Tractor6 specifications

Model: 5085E, 5090E, 5100E FT4
Front Tire: 320/85 R24 BKT (12.4 R24)
Rear Tire: 18.4 R30
Wheelbase: 90.0 in.
Pump Capacity: 11.0 gpm
Rated Pressure: 2828.0 psi

Loader42 specifications

Base Weight: 826.9 kg
Bucket Weight (Metric): 178.0 kg
Bucket Weight (Imperial): 392.0 lb.
Lift Capacity At Full Height Measured At Pivot (U) (Metric): 1182.0 kg
Lift Capacity At Full Height Measured At Pivot (U) (Imperial): 2606.0 lb.
Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Metric): 1280.0 kg
Lift Capacity At Full Height Measured At 800 mm Ahead Of Pivot (Imperial): 2822.0 lb.
Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Metric): 1611.0 kg
Lift Capacity At 59 in. (1500 mm) Measured At Pivot (Imperial): 3552.0 lb.
Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Metric): 1584.0 kg
Lift Capacity At 59 in. (1500 mm) Measured At 800 mm Ahead Of Pivot (X) (Imperial): 3492.0 lb.
Boom Breakout Force Measured At Pivot (Y) (Metric): 2174.0 kg
Boom Breakout Force Measured At Pivot (Y) (Imperial): 4793.0 lb.
Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Metric): 1836.0 kg
Boom Breakout Force Measured At 800 mm Ahead Of Pivot (Z) (Imperial): 4048.0 lb.
At Maximum Height (VV) (Metric): 1884.0 kg
At Maximum Height (VV) (Imperial): 4154.0 lb.
At 59 in. (1500 mm) Lift Height (XX) (Metric): 3095.0 kg
At 59 in. (1500 mm) Lift Height (XX) (Imperial): 6823.0 lb.
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Metric): 3058.0 kg
Bucket Rollback Force Capacity At Ground Level Line (ZZ) (Imperial): 6742.0 lb.
Maximum Lift Height (A) (Metric): 3343.0 mm
Maximum Lift Height (A) (Imperial): 132.0 in.
At Full Height Bucket Level (B) (Metric): 3148.0 mm
At Full Height Bucket Level (B) (Imperial): 124.0 in.
Clearance At Full Height Bucket Dumped (Metric): 2516.0 mm
Clearance At Full Height Bucket Dumped (Imperial): 99.0 in.
Overall Length (I+F) (Metric): 4500.0 mm
Overall Length (I+F) (Imperial): 176.4 in.
Digging Depth (H) (Metric): 93.0 mm
Digging Depth (H) (Imperial): 3.7 in.
Reach At Maximum Height (D) (Metric): 839.0 mm
Reach At Maximum Height (D) (Imperial): 33.0 in.
Reach At Ground Level Bucket Level (Metric): 2172.0 mm
Reach At Ground Level Bucket Level (Imperial): 85.5 in.
Dump Angle (E): -54.0 degree (angle)
Rollback Angle (G): 43.0 degree (angle)
Dump Angle, Ground: -109.0 degree (angle)
Loader Raise: 3.3 seconds
Loader Lower: 3.4 seconds
Bucket Dump: 2.6 seconds
Bucket Rollback: 2.6 seconds
