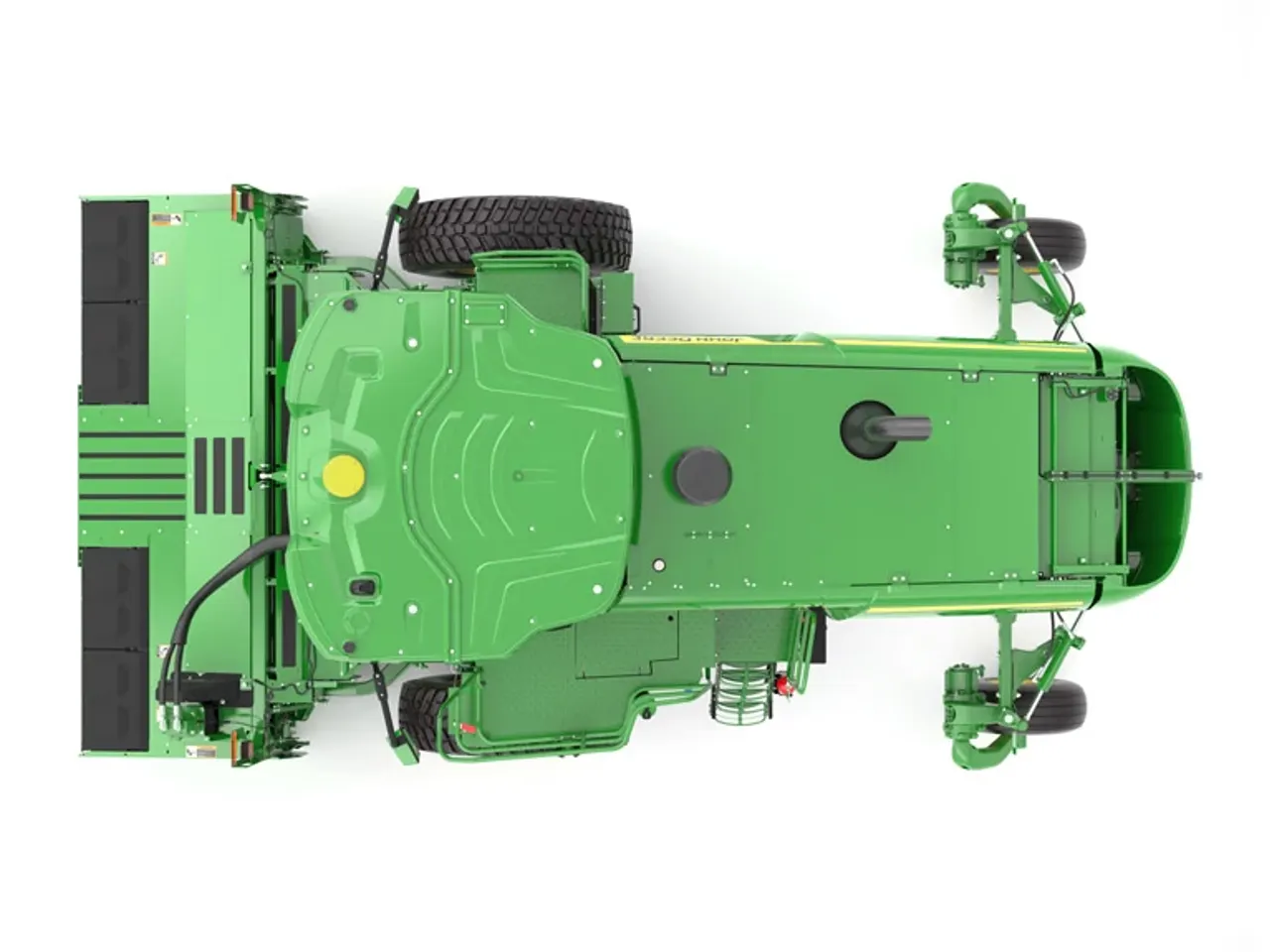

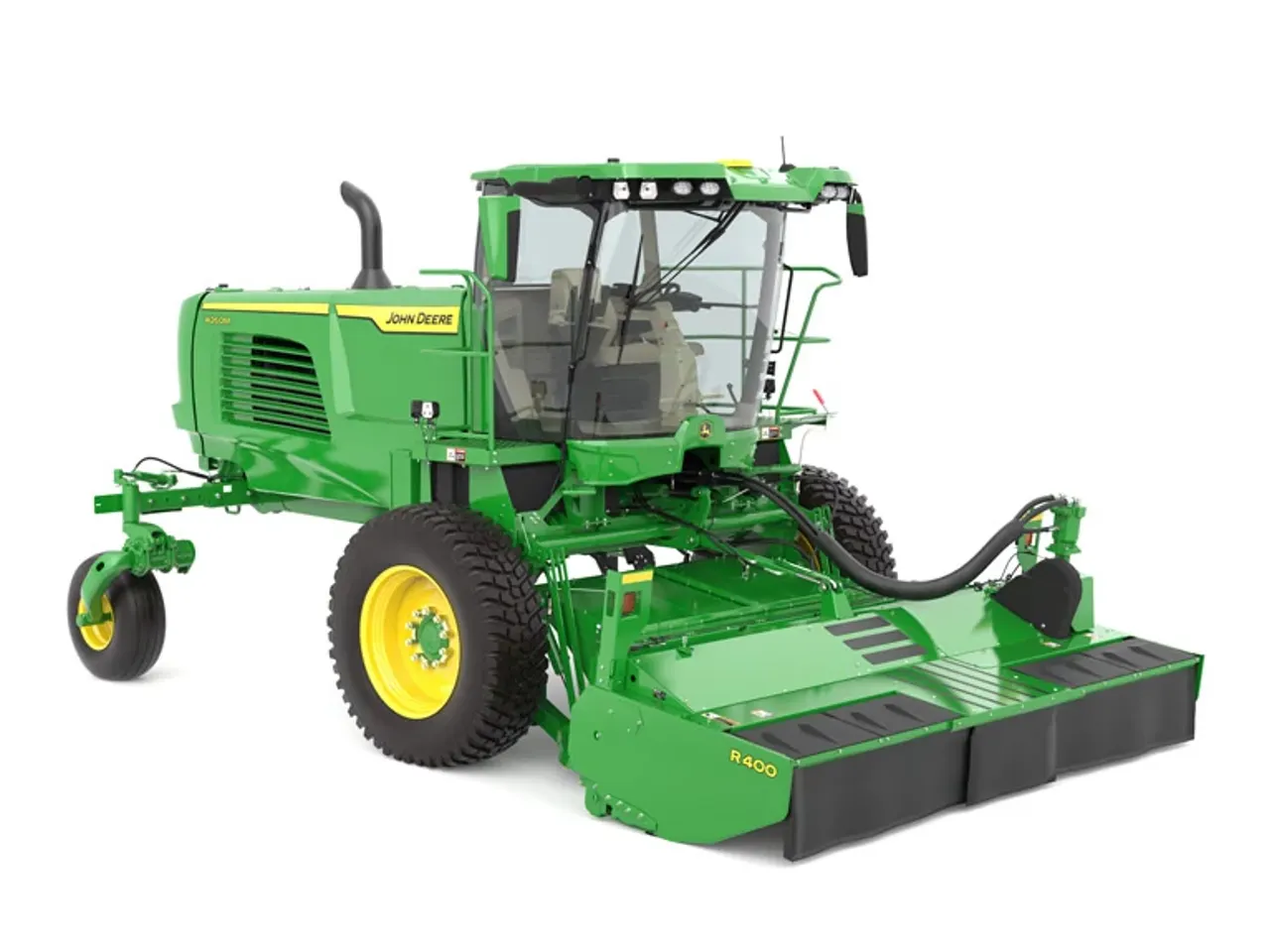

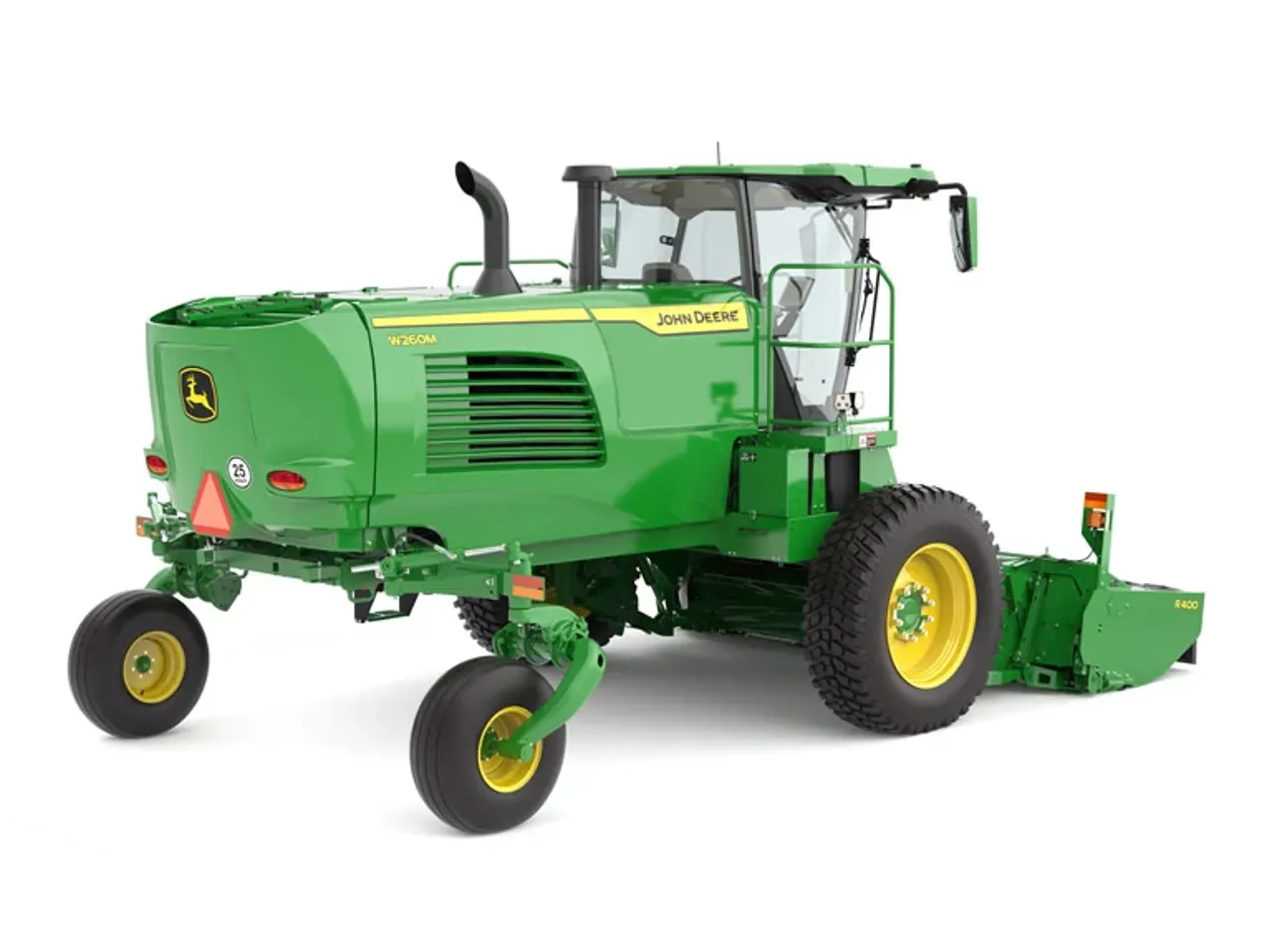

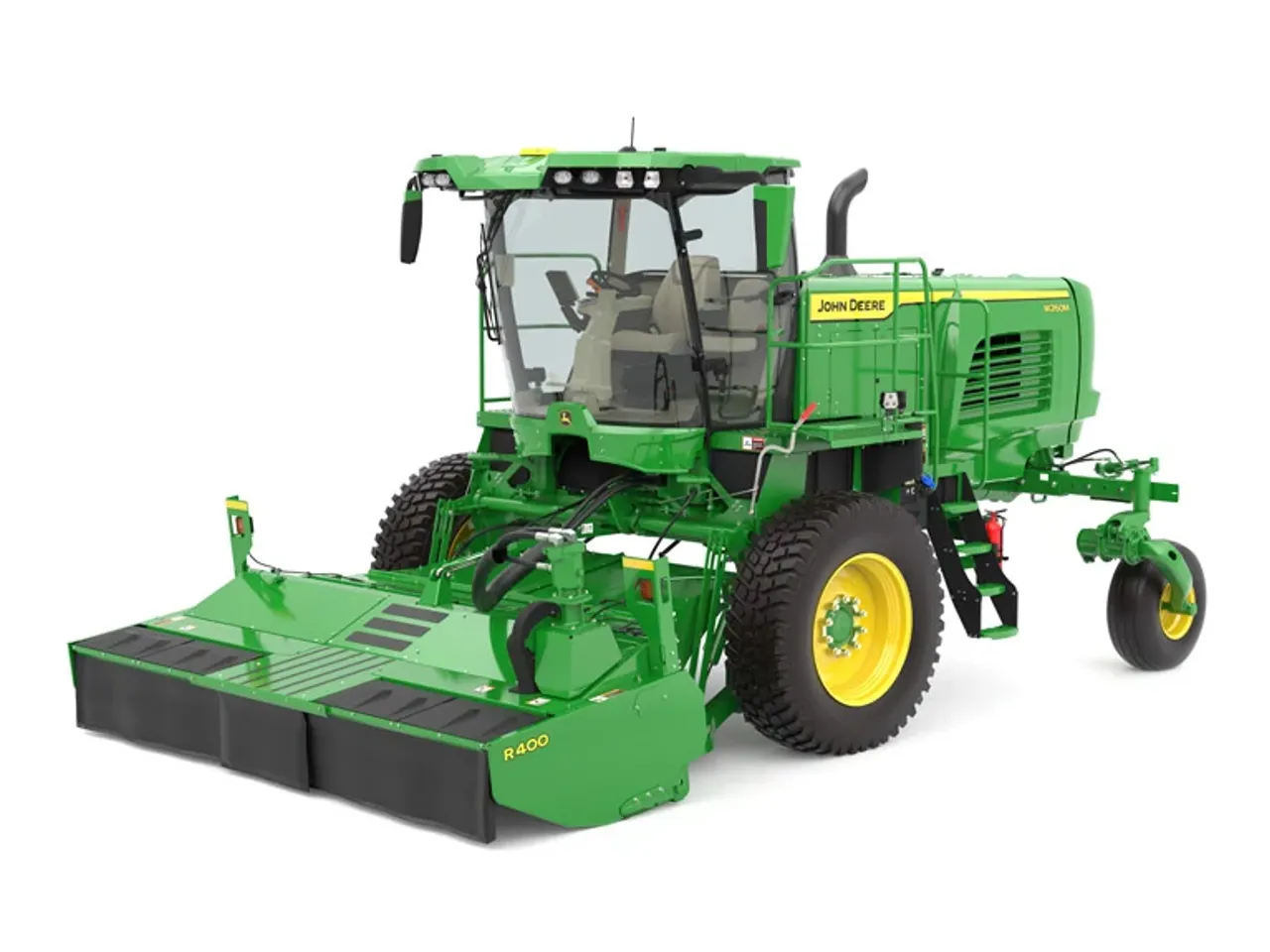

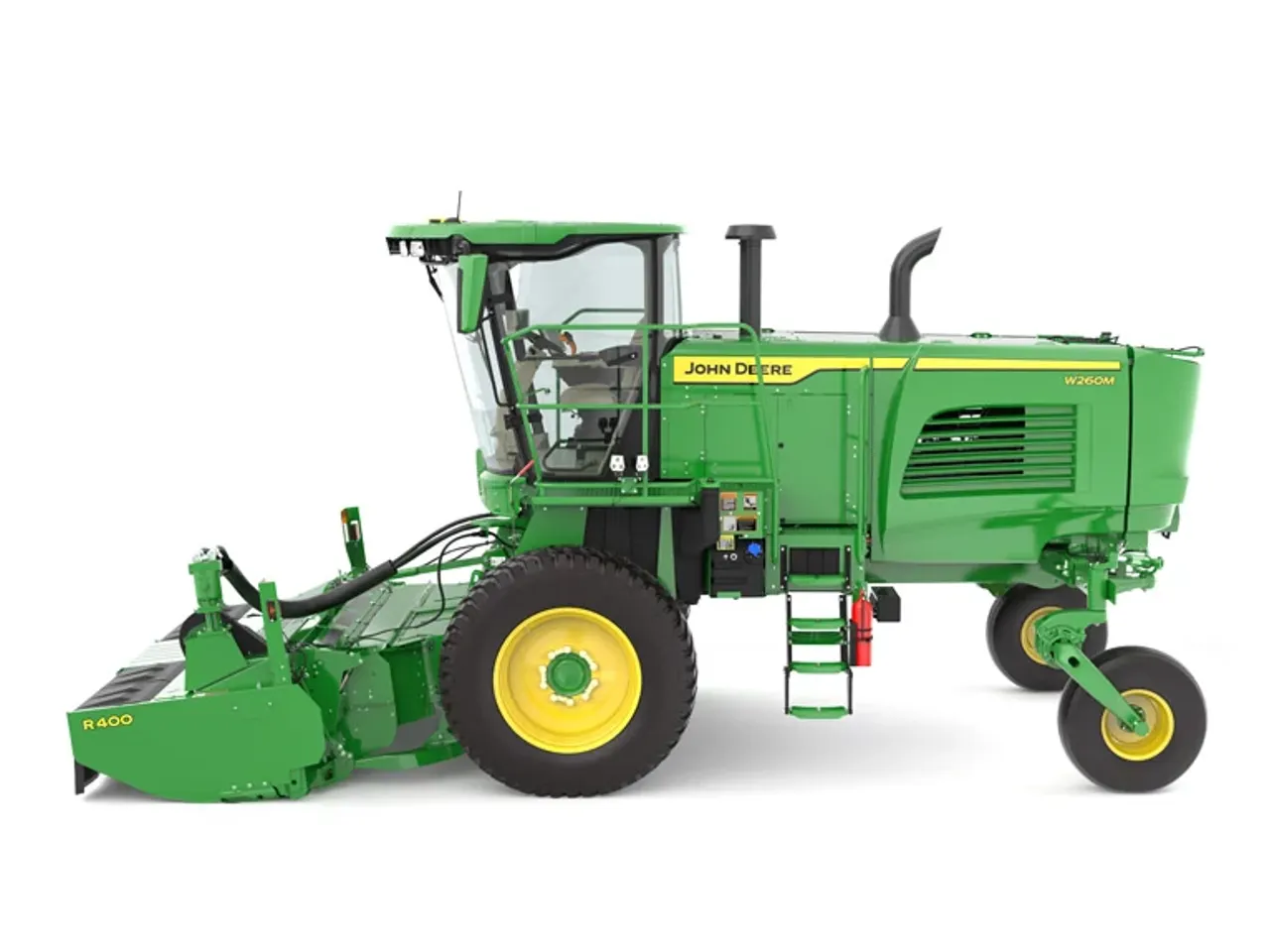

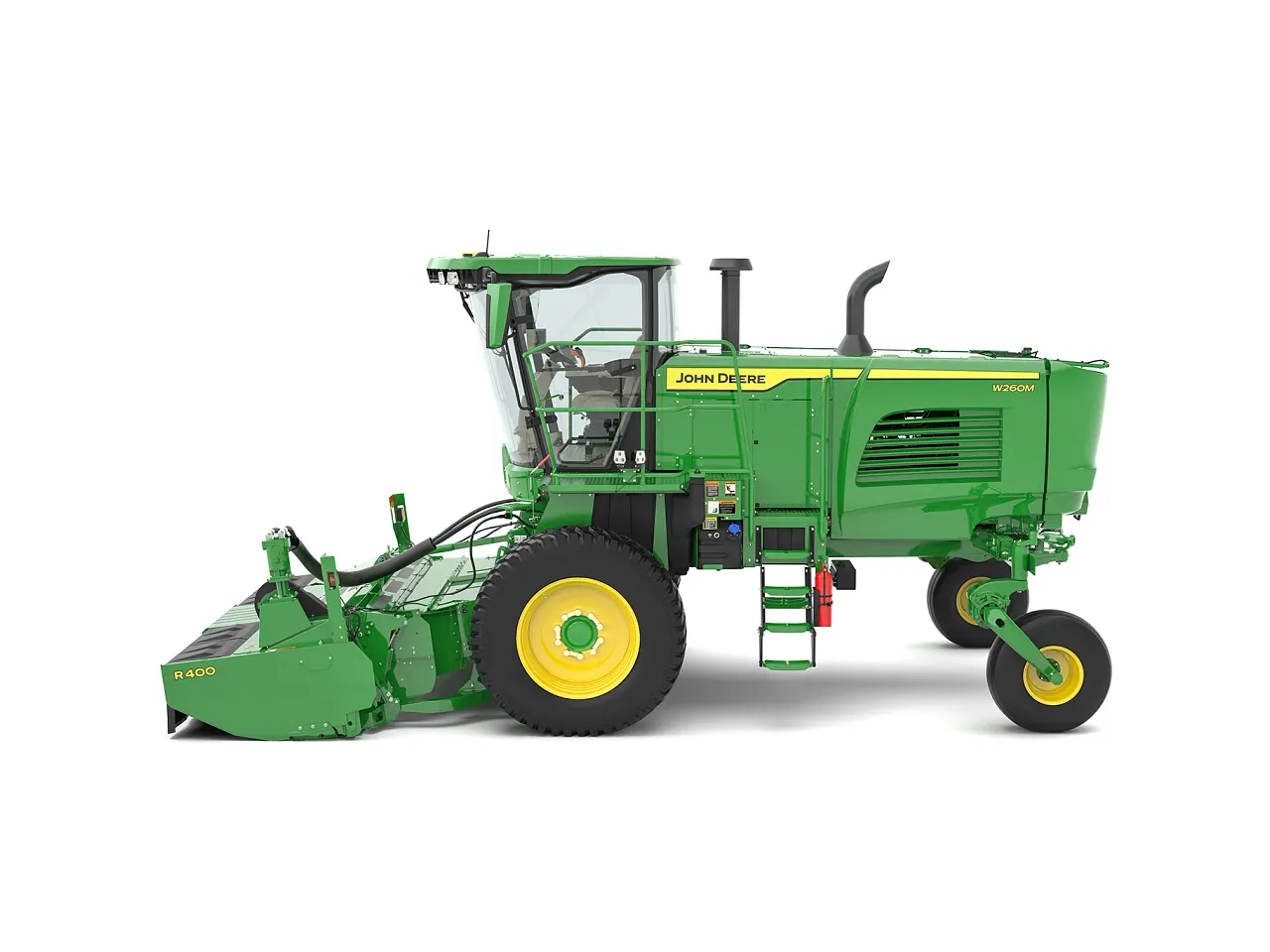

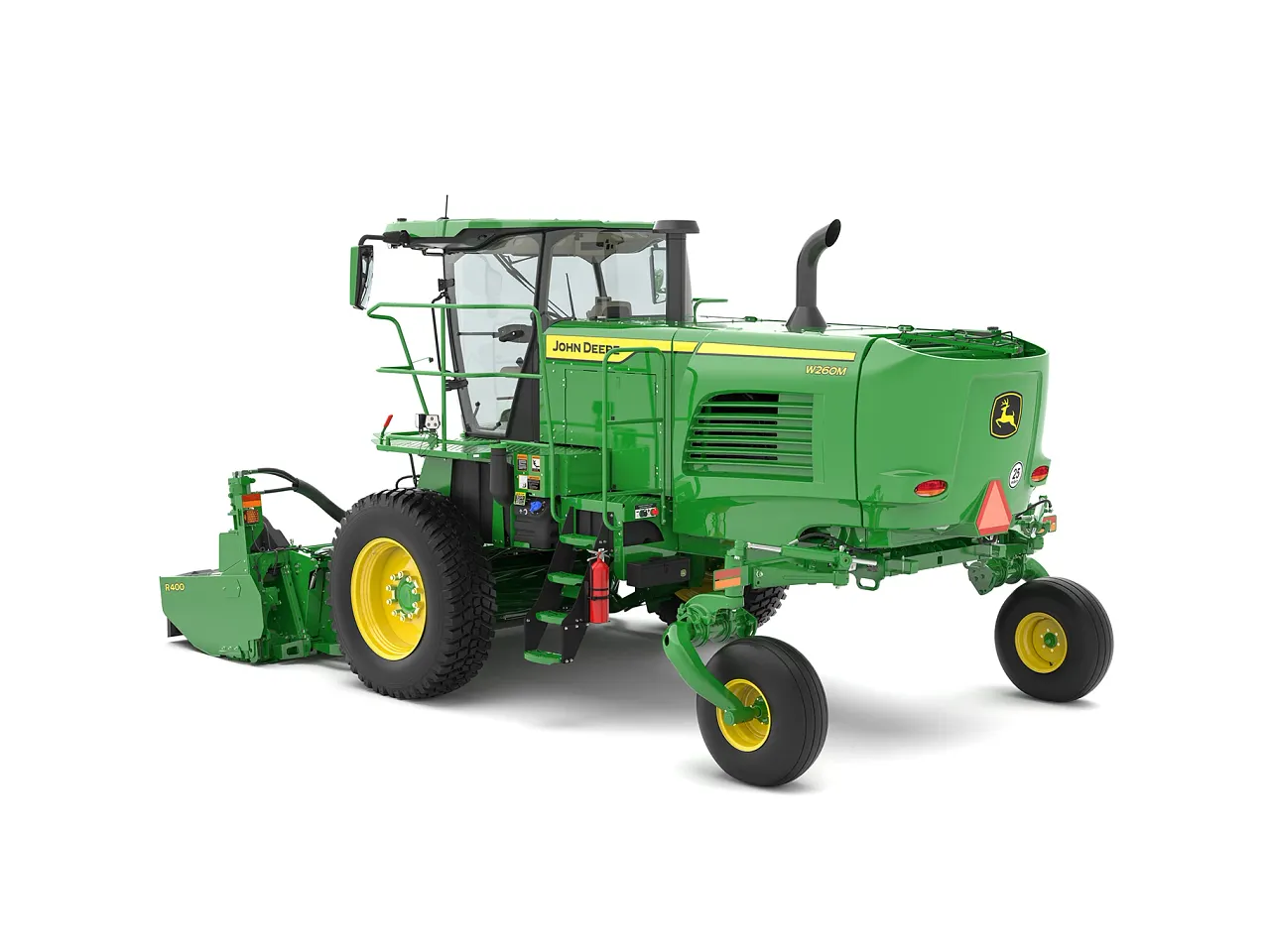

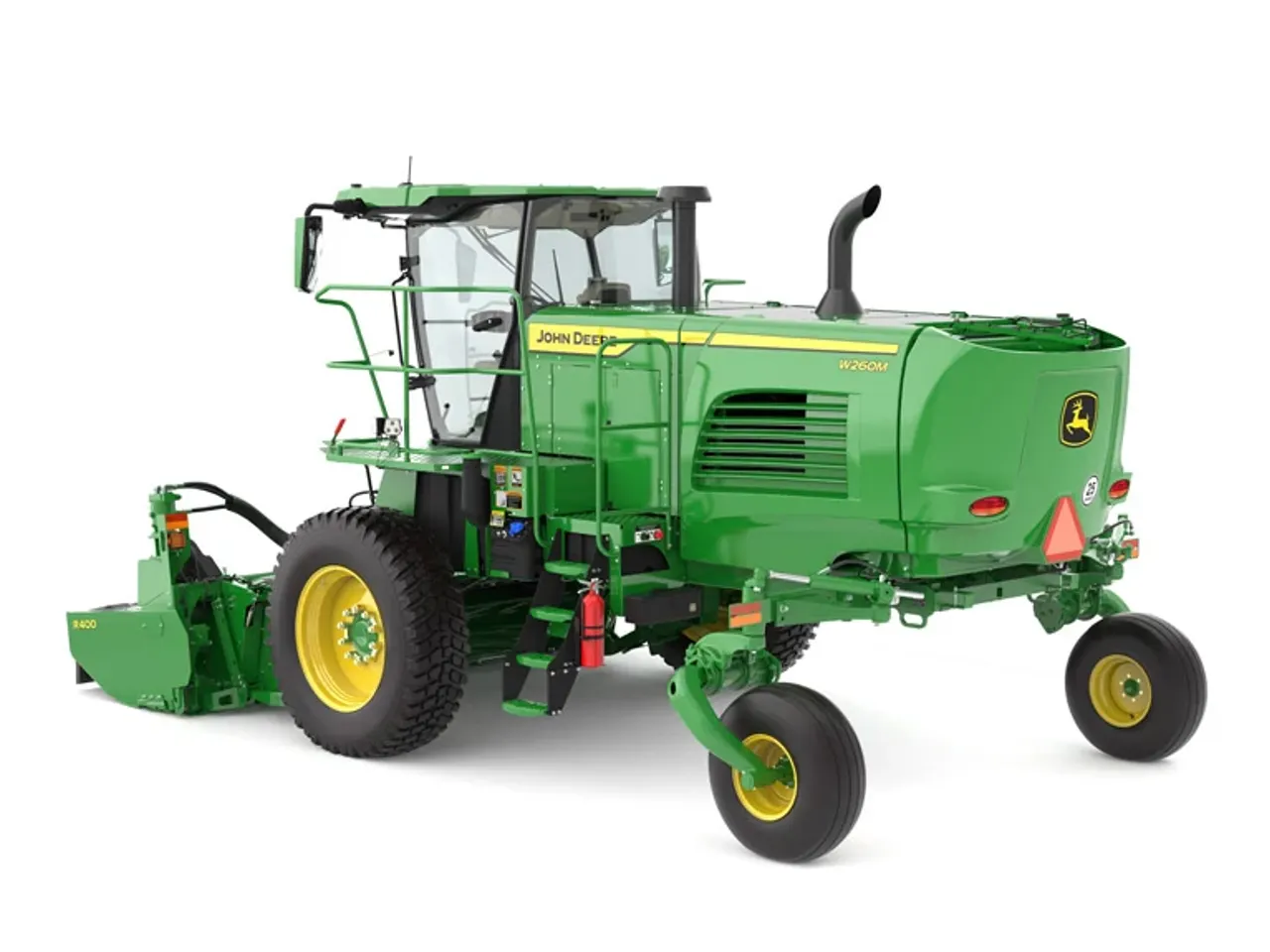

John Deere

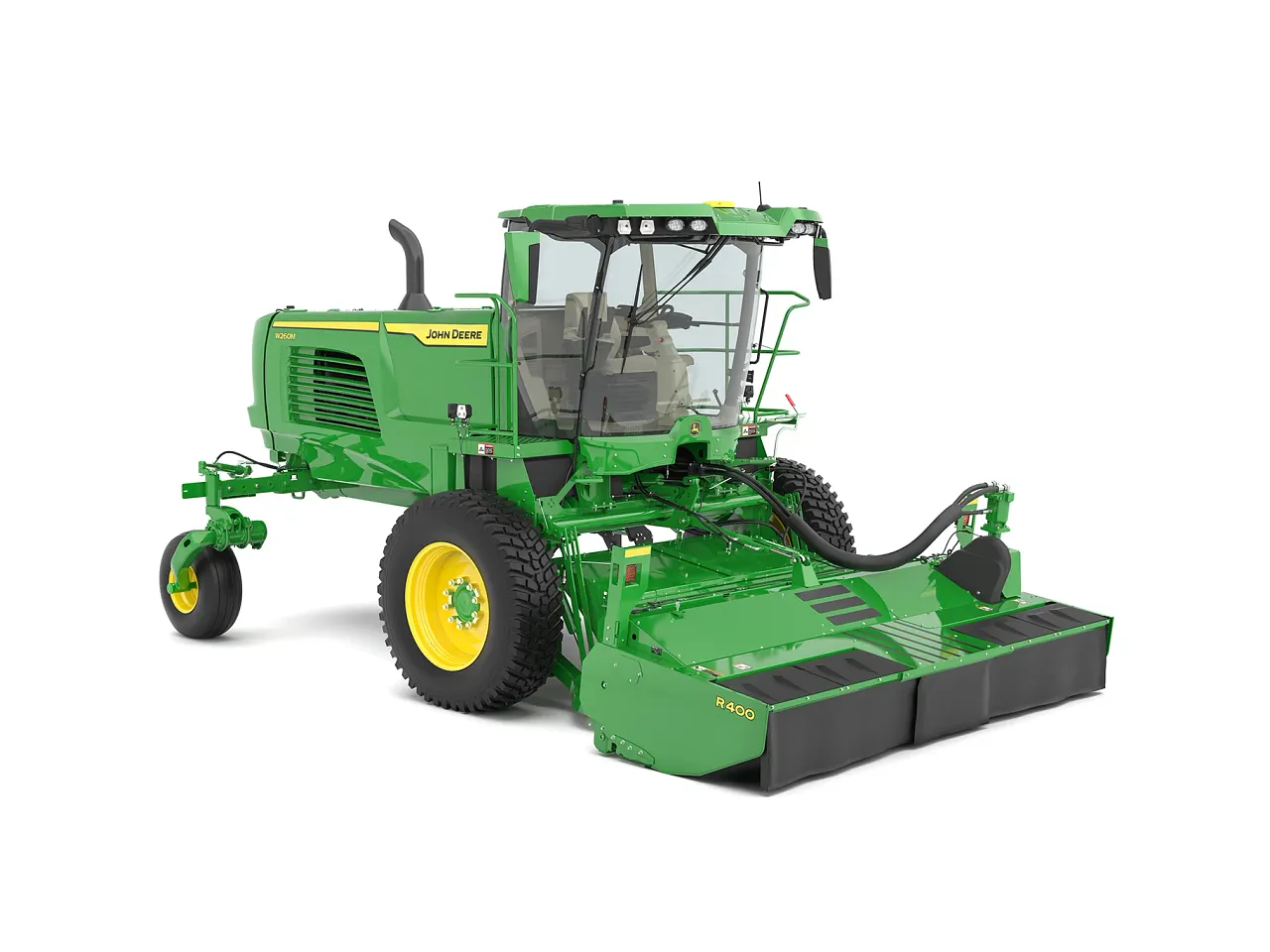

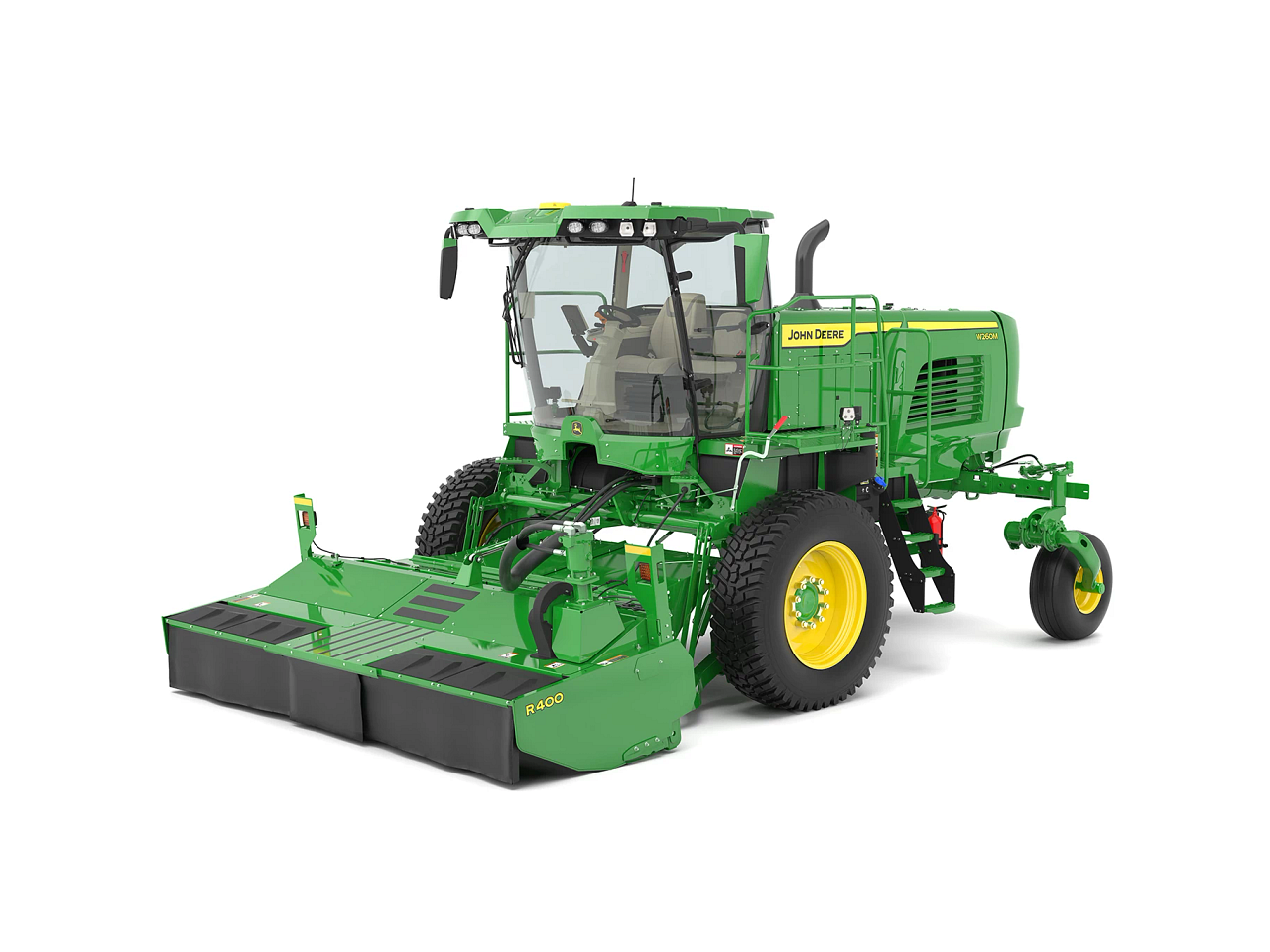

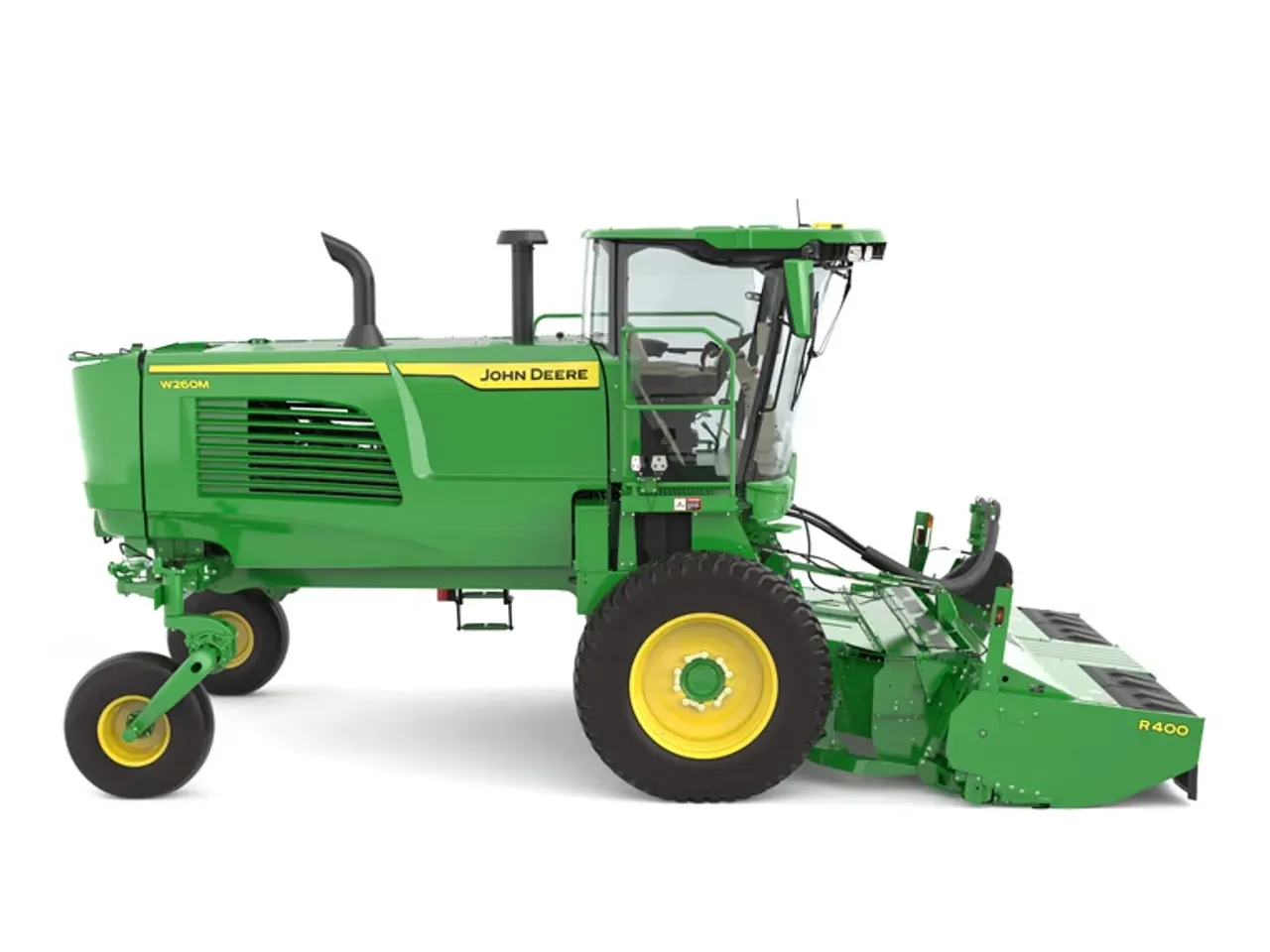

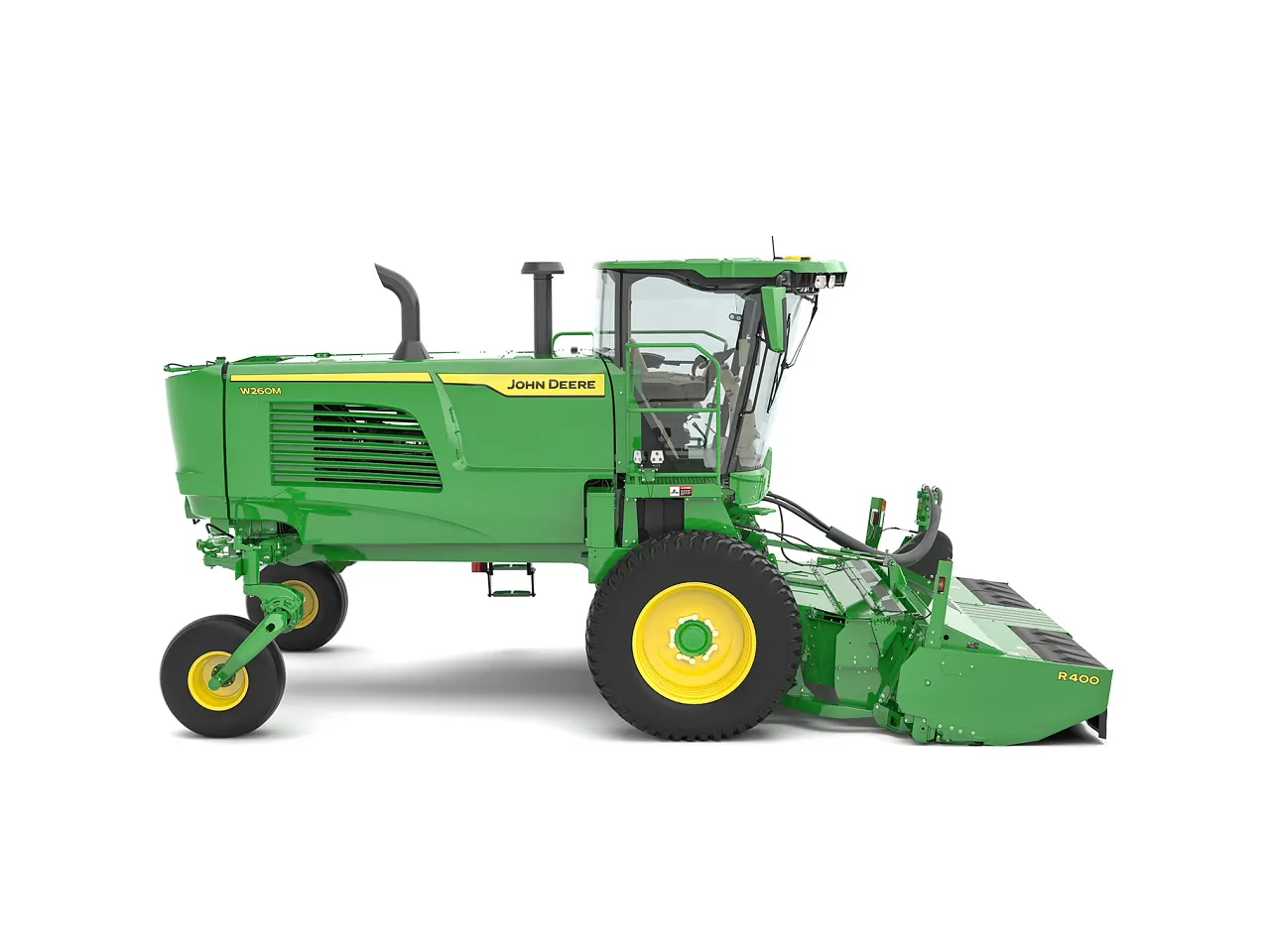

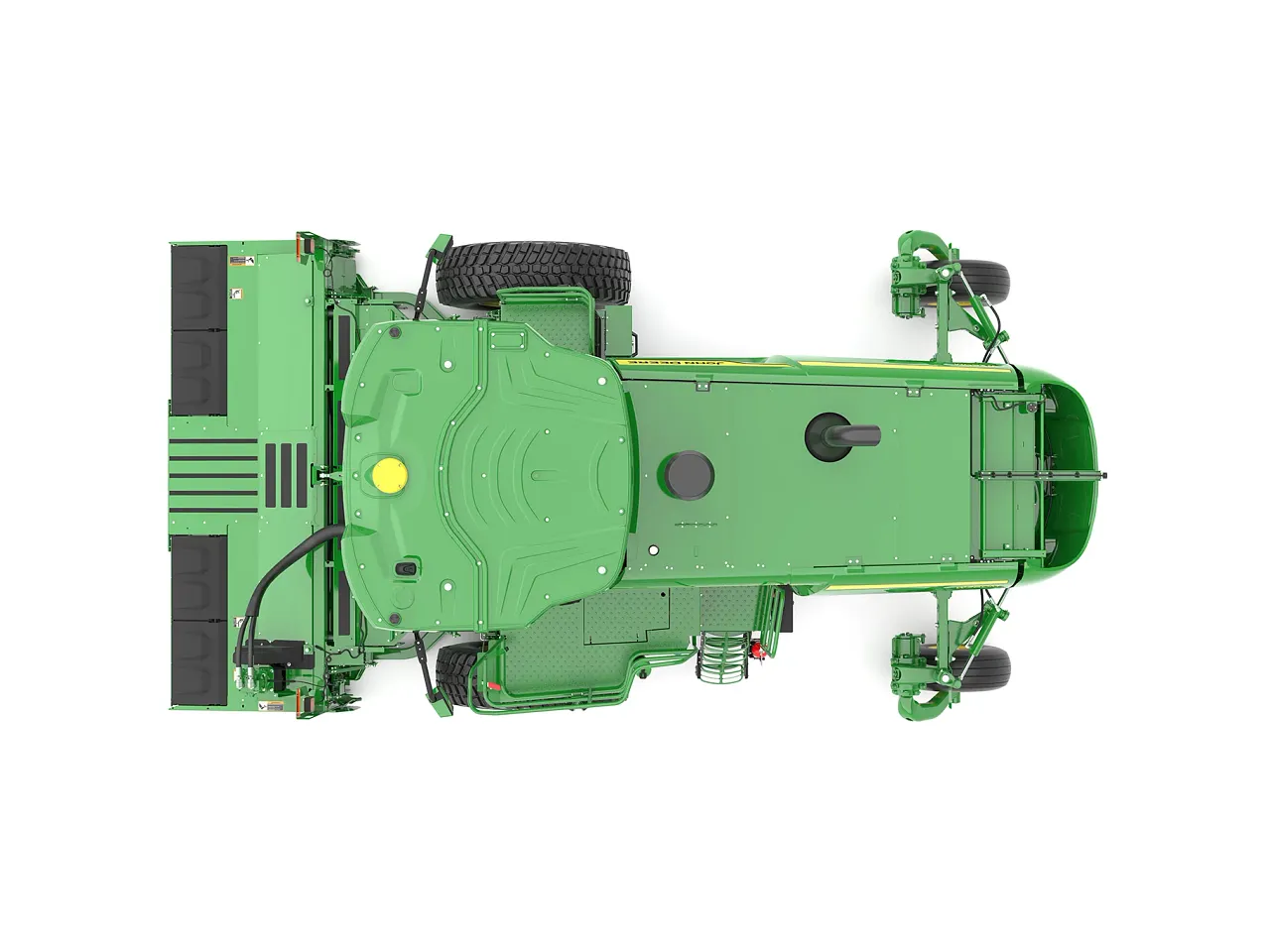

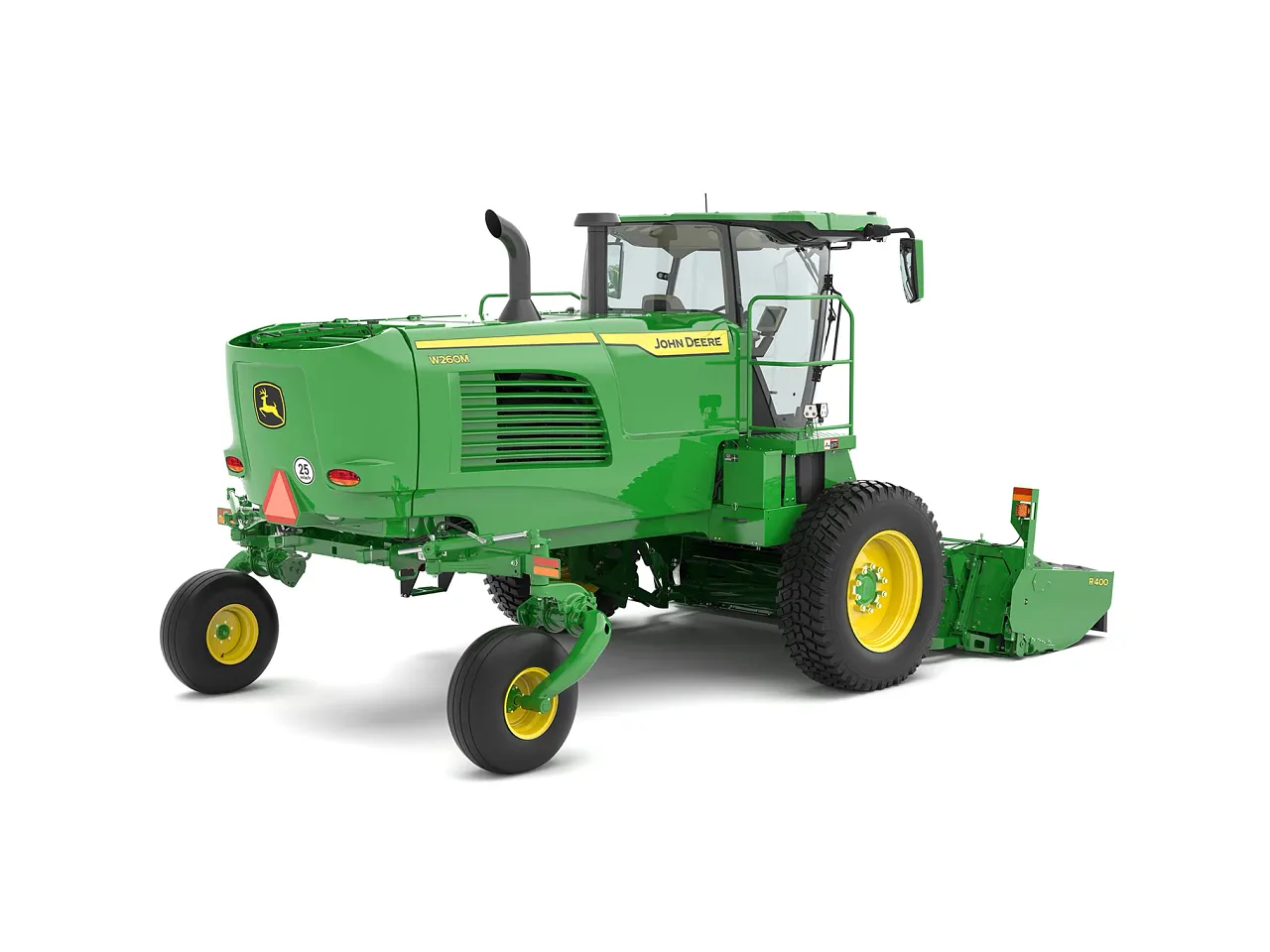

W260M Windrower

Name: W260M Windrower
Brand: John Deere
SKU: 4101E

Mowing

The W260M is designed to meet your harvesting needs and productivity requirements.

Current product detail page listed in the official John Deere AFME sitemap; this does not assert a 2026 model year or confirmed Eswatini stock.

The AFME sitemap includes model-year-specific and legacy listings. Confirm current model, configuration, and Eswatini availability with SwaziTrac before quoting.

Model / part number: 4101E

Technical specification source: Official manufacturer technical data

Enquire about this model View manufacturer listing

Catalogue source: John Deere Africa & Middle East (AFME) · Checked 2026-10-04

Specifications

Key Specs14 specifications

Horsepower At 2,400 rpm (Imperial): 260.0 hp
Horsepower At 2,400 rpm (Metric): 193.9 kW
Fuel Capacity (Imperial): 150.0 U.S. gal.
Fuel Capacity (Metric): 568.0 L
DEF Capacity (Imperial): 7.0 U.S. gal.
DEF Capacity (Metric): 26.5 L
Low Range With Two Speed (Imperial): 15.0 mph
Low Range With Two Speed (Metric): 24.1 km/h
High Range 2 Speed/Mid Range 3 Speed With Two Speed (Imperial): 24.0 mph
High Range 2 Speed/Mid Range 3 Speed With Two Speed (Metric): 38.4 km/h
Under Frame Clearance (Imperial): 44.0 in.
Under Frame Clearance (Metric): 112.0 cm
Total Weight (Imperial): 15428.0 lb.
Total Weight (Metric): 6998.0 kg

Engine14 specifications

Horsepower At 2,400 rpm (Imperial): 260.0 hp
Horsepower At 2,400 rpm (Metric): 193.9 kW
Horsepower Peak At 2,200 rpm (Imperial): 285.0 hp
Horsepower Peak At 2,200 rpm (Metric): 215.5 kW
Number Of Cylinders: 6
Engine Displacement (Imperial): 415.0 cu in.
Engine Displacement (Metric): 6.8 L
Low Idle Engine Speed: 900.0 rpm
High Idle (No Load) Engine Speed: 2450.0 rpm
Rated Engine Speed: 2450.0 rpm
Oil Crankcase Capacity (With Filter) (Imperial): 33.2 U.S. qt
Oil Crankcase Capacity (With Filter) (Metric): 31.4 L
Cooling System (Imperial): 13.0 U.S. gal.
Cooling System (Metric): 49.2 L

Hydraulic Platform Drive6 specifications

Number Of Pumps (Rotary/Auger): 1
Number Of Motors (Rotary/Auger): 1
Pump Displacement (Imperial): 7.02 cu in.
Pump Displacement (Metric): 115.0 cc
Motor Displacement (Per Revolution) (Imperial): 4.6 cu in.
Motor Displacement (Per Revolution) (Metric): 75.4 cm³

Hydraulics2 specifications

Reservoir Capacity (Imperial): 25.0 U.S. gal.
Reservoir Capacity (Metric): 94.5 L

Fuel4 specifications

Fuel Capacity (Imperial): 150.0 U.S. gal.
Fuel Capacity (Metric): 568.0 L
DEF Capacity (Imperial): 7.0 U.S. gal.
DEF Capacity (Metric): 26.5 L

Electrical System1 specifications

Alternator: 240.0 amp

Speeds4 specifications

Low Range With Two Speed (Imperial): 15.0 mph
Low Range With Two Speed (Metric): 24.1 km/h
High Range 2 Speed/Mid Range 3 Speed With Two Speed (Imperial): 24.0 mph
High Range 2 Speed/Mid Range 3 Speed With Two Speed (Metric): 38.4 km/h

Cab5 specifications

Cab Glass (Imperial): 58.7 sq ft
Cab Glass (Metric): 5.45 m²
Air Conditioner Refrigerant: R134a
Air Conditioner Capacity (Imperial): 5.5 lb.
Air Conditioner Capacity (Metric): 2.5 kg

Display And Input2 specifications

Display Size (Imperial): 8.4 in.
Display Size (Metric): 21.4 cm

Dimensions (With Platform Installed)10 specifications

Overall Length Without Platform (Imperial): 225.5 in.
Overall Length Without Platform (Metric): 590.0 cm
Overall Height (Imperial): 148.0 in.
Overall Height (Metric): 376.0 cm
Under Frame Clearance (Imperial): 44.0 in.
Wheelbase (Imperial): 146.0 in.
Under Frame Clearance (Metric): 112.0 cm
Wheelbase (Metric): 371.0 cm
Track Width (Imperial): 133.0 in.
Track Width (Metric): 340.0 cm

Weight6 specifications

Front Axle Weight (Imperial): 9636.0 lb.
Front Axle Weight (Metric): 4370.0 kg
Rear Axle Weight: 5792.0 lb.
Real Axle Weight: 2627.0 kg
Total Weight (Imperial): 15428.0 lb.
Total Weight (Metric): 6998.0 kg
